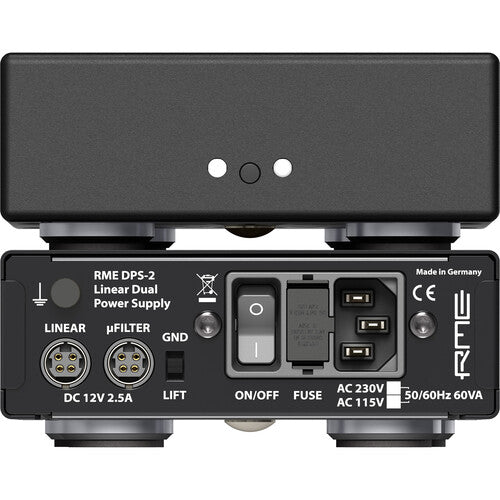

RME DPS-2 Linear Dual Audio Power Supply with µFilter and Sensor Technology
$1,299.00
Unit price
/
Designed to improve the performance of the company's ADI-2 Series converters in critical applications, the RME DPS-2 is a superlow-noise linear audio power supply offering two differently filtered DC outputs: Linear and proprietary µFilter with Sensor technology. A two-stage high-frequency filter and DC filter on the AC mains side ensure optimum performance without interference noise.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
DPS-2
RME DPS-2 Linear Dual Audio Power Supply with µFilter and Sensor Technology
$1,299.00Unit price /View Product -
About the RME DPS-2 Linear Dual Audio Power Supply with µFilter and Sensor Technology
Key Features
RME DPS-2 Linear Dual Audio Power Supply with µFilter and Sensor Technology Specs
AC Mains (Primary)
Standard input voltage
115 V or 230 V, set by internal connector
Input voltage range
95 V – 130 V or 200 V – 260 V
Power consumption idle
1.6 watt
Power consumption typical, 2 A load on Linear
38.5 watts
Power consumption typical, 2 A load on μFilter
39.8 watts
Fuses for 230 V: 2 x 250 V / 0.63 A slow blow, size
5x20 mm
Fuses for 115 V: 2 x 250 V / 1.2 A slow blow, size
5x20 mm
DC Linear – Secondary
Maximum output voltage
12.2 V @ 0 A
Minimum output voltage
11.5 V @ 3 A
Continuous output current
2.5 A
Continuous output power
30 watts
Maximum output current
4 A
Short circuit current
<0.3 A
Noise @ 1 A, AES17
30 μV, 3 μV A-weighted
Noise @ 1 A, 100 kHz bandwidth
30 μV, 4 μV A-weighted
Noise @ 2 A, AES17
111 μV, 14 μV A-weighted
Noise @ 2 A, 100 kHz bandwidth
111 μV, 14 μV A-weighted
Output impedance including cable
0.22 Ohm
Load Regulation (0/1/2 A)
3.63 %
Overload protection
> 5 A
Overheating protection
> 80 °C (176 °F)
Undervoltage detection
< 9.5 V
DC μFilter - Secondary
Output voltage
12.0 V
Continuous output current
2.5 A
Continuous output power
30 watts
Maximum output current
3.5 A
Short circuit current
<0.1 A
Noise @ 0 - 3 A, AES17
< 2 μV, < 1 μV A-weighted
Noise @ 0 - 3 A, 100 kHz bandwidth
<3 μV, < 2 μV A-weighted
Output impedance including cable
0.012 ohm
Load Regulation (0/1/2 A)
0.20 %
Overload protection
> 3.2 A
Overheating protection
> 80 °C (176 °F)
Undervoltage detection
< 9.5 V
