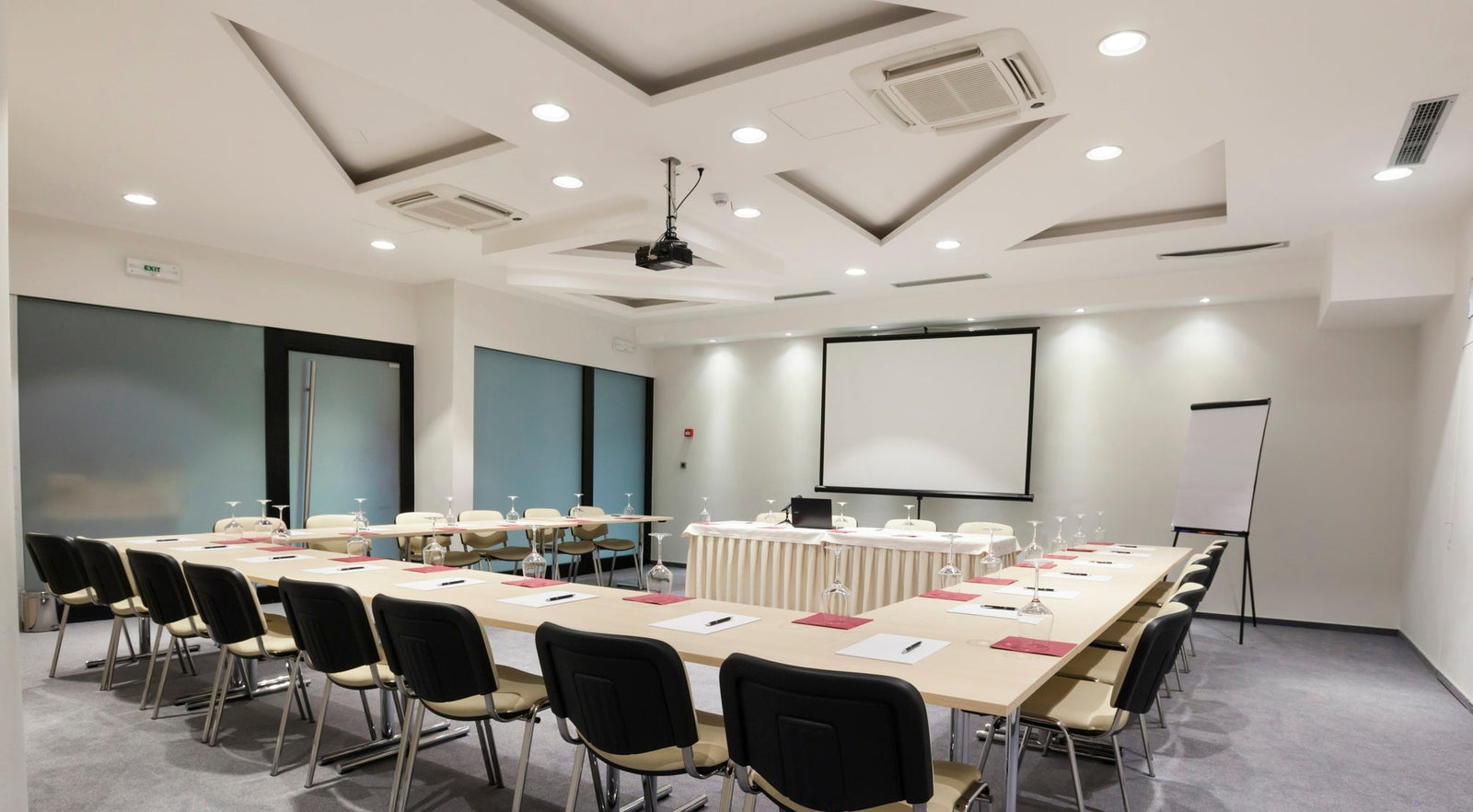

Mounting a projector on the ceiling keeps the unit out of the way, protects it from bumps, and gives the room a cleaner, more professional setup. For conference rooms, ceiling mounting also helps keep the projected image stable during meetings, presentations, trainings, and video calls.

A good installation starts before drilling. You need to confirm the projector’s throw distance, screen size, ceiling type, mounting hardware, power access, and cable path.

This guide walks through the planning, mount selection, installation steps, cable management, and alignment work involved in a clean conference room projector setup.

What Should You Plan Before Mounting a Projector on the Ceiling?

Before choosing a mount or marking the ceiling, confirm three things:

• Projector's throw distance
• Ceiling height
• Ceiling type

Most conference rooms have one of four ceiling types:

• Drywall with wood or metal framing above
• Suspended T-grid drop ceiling
• Concrete ceiling
• High or open ceiling

These details decide where the projector can be mounted, what hardware you need, and how the cables should be routed.

What Tools and Materials Do You Need?

What Measurements Should You Take First?

Take these measurements before drilling:

• Distance from the projection screen to the projector lens
• Screen width and screen height
• Ceiling height
• Clearance needed for the mount, arm, or extension pole
• Distance from the planned mount location to power
• Distance from the planned mount location to the signal source
• Lens offset and lens shift range, if available
• Any ceiling lights, HVAC vents, sprinkler heads, or obstructions near the image path

The most important measurement is throw distance. The projector must sit at the correct distance from the screen to fill the image area without relying on digital correction.

Where Should You Position a Ceiling-Mounted Projector?

Position the projector so the lens sits perpendicular to the center of the projector screen at the manufacturer's recommended throw distance. Use the lens shift range to fine-tune placement before marking the ceiling. Confirm the projector brand's throw chart matches your screen size and room layout.

How Do You Calculate Throw Distance?

Every projector has a throw ratio. To estimate throw distance, multiply the throw ratio by the screen width.

For example: Throw ratio × screen width = throw distance

If a projector has a 1.5:1 throw ratio and the screen is 8 feet wide, the lens should sit about 12 feet from the screen.

Projector types vary:

• A standard or long-throw projector sits farther back in the room.
• A short-throw projector sits closer to the screen.
• An ultra-short-throw projector sits very close to the screen and is usually mounted differently than a standard ceiling projector.

What Role Does Lens Shift Play?

Lens shift lets you move the image up, down, left, or right without physically moving the projector. It is an optical adjustment, so it helps preserve image quality.

Use lens shift for fine alignment when the projector supports it. It is usually better than keystone correction because keystone correction digitally reshapes the image and can reduce sharpness.

That said, not every projector has lens shift. Some models only offer limited adjustment, so placement still needs to be planned carefully.

How Does Ambient Light Affect Projector Placement?

Conference rooms often have windows, overhead lighting, glass walls, or bright white surfaces. All of these can wash out the image.

To improve visibility:

• Avoid placing the image where windows throw light onto the screen
• Avoid mounting the projector directly under lights that hit the screen
• Choose a brighter conference room projector for rooms with more ambient light
• Use shades, dimmable lights, or a brighter screen when needed
• Match the projector brightness to the room size and lighting conditions

What Type of Ceiling Mount Should You Use?

The right mount depends on the ceiling and projector weight.

Common projector mount options include:

• Universal adjustable ceiling mounts
• Low-profile fixed mounts
• Suspended ceiling projector kits
• Extension pole mounts
• Motorized projector lifts

Conference rooms most often use a universal ceiling mount on a flat structural ceiling or a suspended ceiling kit for drop ceilings.

When Should You Use an Extension Pole?

Use an extension pole when the ceiling is too high for proper projector alignment. The pole drops the projector closer to the screen’s vertical viewing area and helps reduce extreme image angles.

Extension poles come in fixed and adjustable lengths. Choose one that works with the mount, projector weight, ceiling height, and screen placement.

How Do You Install the Ceiling Mount Step-by-Step?

A ceiling projector installation usually follows six steps:

1. Locate structural support
2. Attach the ceiling plate
3. Install the pole or adjustable arm
4. Attach the bracket to the projector
5. Secure the projector to the mount
6. Add safety hardware and check the installation

Always follow the projector mount manufacturer’s instructions. Use hardware rated for the ceiling type and projector weight.

Step 1: Locate Structural Support

For drywall ceilings, locate the ceiling joist, framing, or approved blocking above the ceiling. Drywall alone cannot support a projector.

For drop ceilings, do not hang the projector from the T-grid alone. Use a suspended ceiling kit that transfers the load properly and ties back to structure according to the mount manufacturer’s instructions.

For concrete ceilings, use anchors designed for overhead loads and the specific concrete condition.

Step 2: Mount the Ceiling Plate

Mark the mount location based on the throw distance and screen alignment. Drill pilot holes only where the structure can support the load.

Use the fasteners specified by the mount manufacturer. The hardware must match the ceiling structure, projector weight, and mount type.

Step 3: Attach the Extension Pole or Arm

Attach the extension pole or adjustable arm to the ceiling plate. Use a level to confirm it sits plumb.

If the pole is adjustable, set it to the planned height before attaching the projector. Tighten all set screws and locking points according to the mount instructions.

Step 4: Attach the Mounting Bracket to the Projector

Place the projector upside down on a padded surface. Line up the bracket arms with the mounting holes on the underside of the projector.

Use the screws specified by the projector or mount manufacturer. Hand-tighten first, then snug them evenly. Avoid overtightening, which can damage the projector housing.

Step 5: Secure the Projector to the Mount

Lift the projector into place and connect the bracket to the mount assembly. This step is easier and safer with two people, especially for larger commercial projectors.

Once the projector is seated, tighten the locking mechanism. Do not let go until the mount is fully engaged.

Step 6: Add a Safety Cable and Final Check

Use a safety cable when required by the mount manufacturer, local code, or the project’s safety standards. A safety cable is especially important in commercial spaces, high ceilings, drop ceilings, and heavier projector installs.

Check that:

• The mount is tight
• The pole or arm is plumb
• The projector is locked into place
• The safety cable is attached correctly
• Cables are not pulling on the projector
• The projector has enough ventilation clearance

How Do You Run Cables to a Ceiling-Mounted Projector?

Plan the cable path before mounting the projector. Most conference room setups need power and video signal at the projector location.

Common signal options include:

• HDMI
• Active HDMI
• Fiber HDMI
• HDBaseT
• USB-C video, depending on the system
• Network/control cabling, depending on the projector

Use plenum-rated cable when the cable runs through plenum ceiling spaces. Label both ends so future service, swaps, and troubleshooting are easier.

Power should follow electrical code. In many commercial spaces, a licensed electrician may be needed to install a ceiling outlet near the projector.

What if You Cannot Run Cables Through the Ceiling?

Use surface-mount raceway when you cannot run cables through the ceiling or wall. Raceway works well on concrete ceilings, finished spaces, and rooms where cutting drywall is not practical.

Choose paintable raceway if the room needs a cleaner look.

How Do You Align the Projected Image After Mounting?

After the projector is mounted and connected, power it on and align the image.

Start with physical alignment first:

• Adjust mount roll, pitch, and yaw
• Center the lens with the screen as much as possible
• Use zoom to size the image
• Use focus to sharpen the image
• Use lens shift if the projector has it

Use keystone correction only as a last resort. It can help square the image, but it digitally alters the picture and can reduce image quality.

What if the Image is Skewed?

If the image is wider on one side, angled, or not square, adjust the mount before changing projector settings.

Most projector mounts allow small roll, pitch, and yaw adjustments:

• Roll corrects side-to-side tilt
• Pitch corrects up-and-down angle
• Yaw corrects left-to-right rotation

Square the projector to the screen first. Then fine-tune with lens shift, zoom, and focus.

Should You Rely on Keystone Correction?

No. Keystone correction is useful for small fixes, but it should not be the main alignment method.

A clean install places the projector as square to the screen as possible. Lens shift and physical mount adjustments usually produce a better image than heavy keystone correction.

What Should You Know About Conference Room Ceilings?

Conference room ceilings fall into three buckets: low flat ceilings, suspended drop ceilings, and high open ceilings. Each one calls for a different approach.

How Do You Mount a Projector on a Drop Ceiling?

Use a suspended ceiling projector kit designed for T-grid ceilings. These kits help distribute the load and provide a proper mounting point.

Do not hang the projector from the ceiling grid alone. The mount should be supported according to the manufacturer’s instructions and tied back to structure when required.

What Works Best for Low Ceilings?

For low ceilings, use a low-profile mount or a short-throw projector. This keeps the projector closer to the ceiling and reduces the chance that people will bump into it or block the image.

Ultra-short-throw projectors can also work in some conference rooms, but they usually require a different placement strategy and a compatible screen surface.

What Works Best for High Ceilings?

For high ceilings, use an extension pole or projector lift. This brings the projector down to the correct height for better image alignment.

Projector lifts are useful when the projector needs to be hidden when not in use, but they add cost and may require electrical work, structural planning, and professional installation.

When Should You Hire a Professional Installer?

Hire a professional installer when the project involves structural uncertainty, heavy equipment, complex wiring, or code requirements.

Call a pro if you are dealing with:

• Heavy commercial projectors
• Concrete ceilings
• Post-tensioned slab ceilings
• Suspended ceilings that need structural tie-back
• Long in-wall or in-ceiling cable runs
• Projector lifts
• Electrical work
• Occupied commercial buildings
• Fire code, plenum, or permit requirements

A professional AV installer can confirm the mount location, cable path, power plan, safety hardware, and image alignment before the system goes into daily use.
