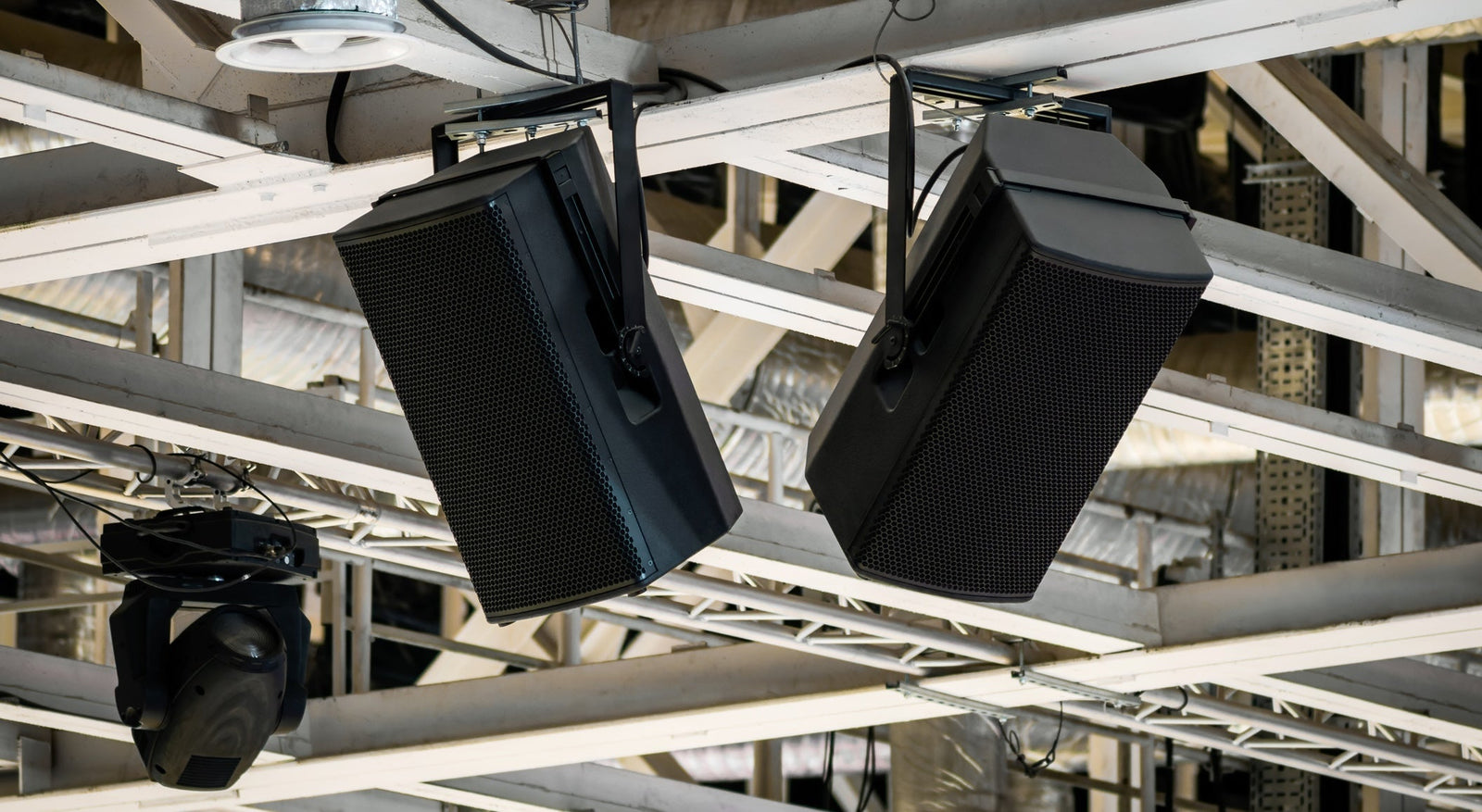

A passive speaker is a loudspeaker without a built-in amplifier. It needs an external power amplifier to drive it.
The term "passive" describes the cabinet's role in the signal chain. The speaker doesn't actively amplify, process, or shape the signal on its own. Instead, it passively converts an amplified electrical signal into sound. All the active electronics (amplification, DSP, limiting, EQ) live upstream in separate pieces of gear.
Passive speakers are the standard across most large-scale live sound, touring, broadcast, and permanent install work. Any time you see a flown line array at a concert, a set of column speakers in a house of worship, or cabinets mounted high in an arena rafter, you're almost certainly looking at a passive speaker system fed by a dedicated amp rack somewhere out of sight.
The signal path looks like this:
- Source (microphone, instrument, or playback)
- Mixing console
- Signal processor or DSP
- Power amplifier
- Passive speaker cabinet
The amplifier sits outside the cabinet, typically in an amp rack. It receives a line-level signal from the console (often processed through a system DSP first), boosts it to speaker level, and sends that high-current signal down a speaker cable to the cabinet. Most passive speakers are rated at 4 ohms, 8 ohms, or 16 ohms nominal impedance, and that number matters a lot when you're pairing a speaker with an amp.
Passive Speaker Signal Path at a Glance
Every passive speaker system follows the same basic signal path, and every stage matters. Here's what happens at each step and why it affects what you hear at the cabinet.
#1 Source. The signal starts at a microphone, instrument pickup, or playback device. If the input is clipped, distorted, or noisy at the source, no amount of downstream processing will save it. Clean input is the foundation of clean output.
#2 Mixing console. The console sets relative levels, applies channel EQ and dynamics, and routes signal to outputs. For passive PA systems, the mix bus output is line-level (balanced and low-current) and usually feeds a system processor or an amp rack input.
#3 System processor or DSP. This is where loudspeaker management lives: crossovers for multi-amped cabinets, EQ curves tuned to the room, delays to time-align subs and fills, and limiters to protect drivers. In a passive rig, the DSP is a separate box (or cluster of boxes) rather than onboard electronics inside the cabinet.
#4 Power amplifier. The amp converts the line-level signal into the high-current, high-voltage signal a passive cabinet needs to move air. Amplifier choice dictates dynamic headroom, distortion behavior at full output, and how many cabinets you can safely drive per channel.
#5 Speaker cable. Usually terminated with Speakon NL4 or NL8 connectors, the cable carries amplified signal from the rack to the cabinet. Cable length and gauge affect damping factor and overall efficiency.
#6 Passive speaker cabinet. Inside the box, a passive crossover network splits the incoming signal by frequency and routes each band to the appropriate driver (woofer, midrange, tweeter, or compression driver). The cabinet converts electrical energy into acoustic energy.
Every stage before the cabinet has to be dialed in for the system to perform the way the manufacturer intended. A mismatched amp, a clipped console output, or a poorly tuned system processor will all show up as bad sound at the cabinet. And sometimes as a blown driver.
What's Inside a Passive Speaker
Common Types of Passive Speakers
Passive speakers cover a wide range of form factors, each engineered for a specific job in a production rig. Here are the categories you'll encounter most often on tour riders, in install drawings, and on rental shelves:
| Category | What It Does | Typical Deployment | Example Products |
|---|---|---|---|
| Line arrays | Long-throw main PA with controlled vertical dispersion | Flown in hangs of 6–24 boxes per side at arenas, festivals, and theaters | L-Acoustics K2 and K3, d&b KSL and GSL, Adamson E15, JBL VTX A12 |
| Point-source mains | Single-box or stacked PA for smaller coverage zones | Ground-stacked or pole-mounted in clubs, houses of worship, corporate events | Martin Audio Wavefront, RCF TT series, EAW KF-series, d&b Y-Series |
| Subwoofers | Low-frequency extension below the main PA passband | Ground-stacked in cardioid or end-fire arrays, or flown on dedicated sub hangs | L-Acoustics KS28, d&b SL-SUB, Adamson E219, Meyer 1100-LFC |
| Stage monitors | Floor wedges for performer foldback | Positioned at the lip of the stage facing performers | Clair 12AM, d&b M4, L-Acoustics X15 HiQ, JBL VRX series |
| Front fills | Short-throw coverage for the front rows below the main PA | Placed across the downstage edge or the lip of the stage | d&b E8, L-Acoustics X8, Martin Audio CDD passive variants |
| Delay speakers | Coverage extension for deep rooms or under-balcony areas | Flown or mounted at measured distances and time-aligned in DSP | Same cabinets as point-source mains, delayed to match the main PA |
| Install cabinets | Fixed-installation PA with architectural form factors | Houses of worship, theaters, stadiums, and transportation hubs | Community IV6, JBL Control Contractor, EAW MKD series |
| Cinema and immersive | Screen channels and surrounds for theatrical playback | Dolby Atmos rooms, premium cinemas, post-production suites | JBL Professional 9350, Meyer Acheron, QSC SC series |
Production Brand Speakers for Less
AVGear carries all of these categories from major production brands. Browse the full lineup of new, used, B-Stock, and demo speakers.
Passive Speakers vs. Active Speakers
Active speakers (also called powered speakers) have a built-in amplifier inside the cabinet, and many also include onboard DSP and a built-in preamp stage for line-level inputs. Here's how the two types of speakers compare side by side:
| Spec | Passive Speakers | Active Speakers |
|---|---|---|
| Amplifier location | External amp rack | Built into cabinet |
| DSP | Outboard system processor | Onboard, usually pre-configured |
| Cabinet weight | Lighter | Heavier |
| AC power at cabinet | Not required | Required at every cabinet |
| Input signal type | Speaker-level (amplified) | Line-level |
| Typical cabling | Speakon speaker cable | XLR, AES/EBU, or network audio |
| Serviceability in the field | Swap the amp, keep the cabinet flown | Cabinet has to come down |
| Scale efficiency | Strong past 8+ boxes | Strong at 1–4 boxes |
| Setup time | Longer (rack wiring, patching) | Shorter (plug and play) |
| Best fit | Touring, large installs, arenas | Small venues, MI, corporate A/V |
Production companies and venues typically lean passive because the math works in their favor at scale. One amp rack can drive multiple cabinets across multiple zones, and when something breaks, a tech swaps the amp instead of pulling a cabinet down from a flown array.
Passive Speakers Outside the Pro Production World
Passive speakers aren't limited to touring and install audio. A standard home hi-fi rig or surround sound system also relies on passive cabinets driven by an external receiver or integrated amp. In a typical home audio setup, that might include a pair of bookshelf speakers or floorstanding fronts, a center speaker for dialogue, rear surround speakers for immersive effects, a passive subwoofer, and sometimes a turntable feeding into a receiver with a phono preamp stage.
The working principles are the same as in pro audio: the receiver or amp does the amplification, and the speakers handle conversion to sound. The difference is scale. Home systems run at much lower power and lower volume, use lighter-gauge speaker wire, and prioritize living room aesthetics over rigging hardware and tour-ready build quality.
Advantages of Passive Speakers
- Lighter cabinets: easier to rig, fly, and transport on a truck.
- Centralized amplification: fewer AC drops on stage, in catwalks, or in the rigging plot.
- Flexible system design: one amp rack can drive multiple cabinets across multiple zones.
- Easier field service: if an amp fails, swap the amp, not the cabinet.
- Longer cabinet lifespan: no internal electronics inside the box to age, overheat, or fail.
- Cost-effective at scale: buying large quantities of passive cabinets plus shared amp racks is typically cheaper per channel than buying the powered equivalents.
- Clean signal reproduction: with the right amp and tuning, a well-designed passive setup delivers high quality sound with low distortion, even at full output.
Things to Consider Before Going Passive
Passive isn't automatically the right answer for every situation. A few honest trade-offs:
- More gear to manage: you need amps, amp racks, speaker cable, and power distribution on top of the cabinets themselves.
- Amp matching matters: mismatched impedance or underpowered amps can damage drivers or sound poor.
- Tuning is on you: without built-in DSP, you'll need an outboard system processor for EQ, delay, and limiting.
- Cable runs affect performance: speaker cable length and gauge both matter.
- Longer setup: more rack wiring than a powered-speaker rig.
For a small band loading into a coffeehouse, a pair of powered cabinets on sticks is almost always faster. For a 5,000-cap venue with flown arrays, subs, front fills, and delays, passive is the practical path.
Matching Amplifiers to Passive Speakers
This is where passive systems reward planning. Get the amp-to-speaker relationship right and the rig sounds great for years. Get it wrong and you'll be replacing drivers.
Impedance
Most passive production speakers are rated 4 ohms or 8 ohms nominal. When you run a pair of speakers in parallel off a single amp channel, the total impedance the amp sees goes down. Two 8-ohm cabinets in parallel present a 4-ohm load; two 4-ohm cabinets in parallel present a 2-ohm load.
Every amp has a minimum rated load. Drop below it and the amp will either protect itself (best case) or overheat and shut down mid-show (worst case). Always check the amp's spec sheet before wiring cabinets in parallel.
Power and Headroom
A common rule of thumb: the amplifier's continuous (RMS) output should be roughly 1.5 to 2 times the speaker's continuous (AES) power rating. That gives you clean headroom for transients and helps avoid clipping.
Clipping is one of the most common causes of blown drivers in live sound. A clipped signal looks like a square wave, which sends a lot of energy to the high-frequency driver and cooks the voice coil. Underpowering a speaker and pushing the amp into clipping is more dangerous to the cabinet than overpowering it slightly and keeping the signal clean.
Watch for three different power ratings on a spec sheet: peak, program, and continuous. Continuous (sometimes called AES or RMS) is the honest number to design around.
Cabling
Speakon connectors (NL4 and NL8) are the production standard and should be your default. For gauge:
- 12 AWG for longer runs or higher-current applications (subs, long throws)
- 14 AWG for shorter runs on tops and fills
Undersized cable introduces resistance in the signal path, which costs you power and damping at the cabinet. It's a cheap mistake to avoid.
Buying Passive Speakers for Production
A few practical checks before you commit to a purchase, whether you're buying a new speaker or sourcing pre-owned:
- Verify impedance and power handling match your existing amp inventory. If you already own a rack of 4-ohm-capable amps, buying 16-ohm cabinets will leave power on the table.
- Inspect rigging hardware and fly points. On used cabinets, this is where problems hide. Bent fly bars, worn pins, and damaged rigging points are safety issues, not cosmetic ones.
- Listen for driver rub, buzz, or blown components during evaluation. A quick sine sweep through each cabinet will expose most driver problems.
- Check the condition of the passive crossover. Crossover damage is less visible than a torn cone but can kill a cabinet's performance.
- Buy matched sets when possible. Same model, same generation, same production batch if you can get it.
- Weigh price point against application. High end touring cabinets carry a premium for a reason, but mid-tier install brands often deliver everything a permanent install needs at a much lower cost per box.
For pre-owned inventory, AVGear's used cabinets go through technical and cosmetic reconditioning before they hit the listing page, so the guesswork of buying blind online is handled on the front end.
