If you've ever stood too close to a large screen and noticed individual dots of light, or wondered why one LED video wall looks razor-sharp while another looks grainy, pixel pitch is the answer. It's one of the most important specs to understand when purchasing, specifying, or deploying an LED video wall.

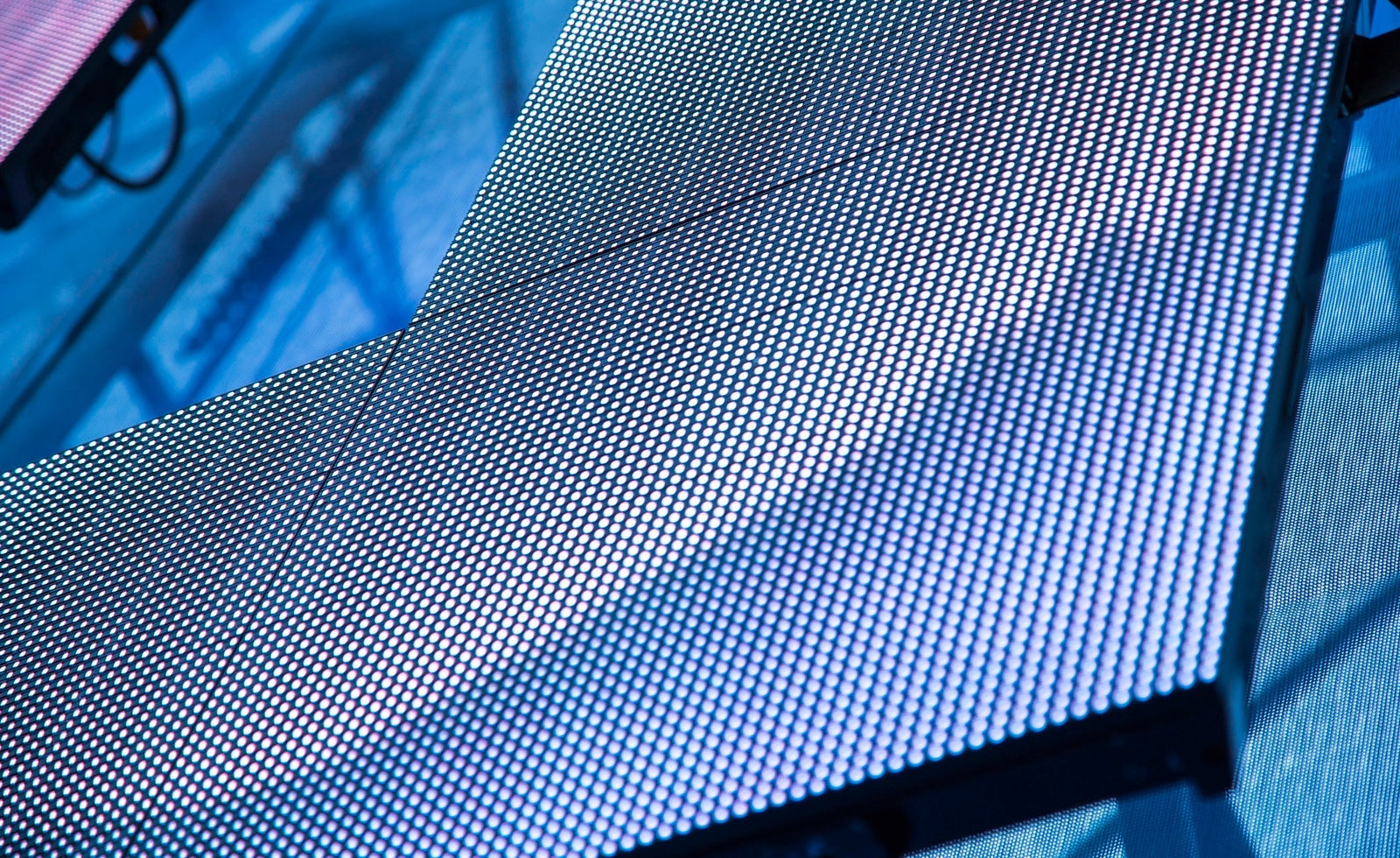

What Is Pixel Pitch?
Pixel pitch (or dot pitch) is the distance - measured in millimeters - between the centers of two adjacent pixels on an LED panel. It tells you how tightly packed the pixels are.
A smaller pixel pitch means the individual pixels are packed more tightly together, which increases pixel density and produces a higher resolution image. A larger pixel pitch means more space between each pixel, lower pixel density, and a lower resolution image at any given screen size.
You'll commonly see pixel pitch written as "P" followed by a number: P1.9, P2.5, P3, P4, P6, P10, and so on. That number is always in millimeters.
Here's how that plays out across common pixel pitch values:
| Pixel Pitch | Pixel Size | Pixel Density | Resolution at Same Screen Size |
|---|---|---|---|
| P1.2 – P1.9 | Very small | Very high | Very high |
| P2.0 – P2.9 | Small | High | High |
| P3.0 – P3.9 | Medium | Medium | Medium |
| P4.0 – P5.9 | Large | Low | Lower |
| P6.0+ | Very large | Very low | Low |
It's worth noting that pixel pitch is a spec specific to LED video walls. LCD displays and projection systems use different resolution metrics, so this guide applies specifically to direct-view LED panels.
Why Pixel Pitch Matters for LED Video Walls
Pixel pitch is the biggest single factor in determining image quality on an LED video wall, but only in the context of how far away people are actually watching.
A display with a lower pixel pitch produces sharper, more detailed images. That's useful when viewers are close and can actually perceive that detail. But push that same viewer to 60 feet back, and the human eye can no longer distinguish the difference between a P2.5 and a P6 panel. At that distance, higher pixel density doesn't improve the viewing experience; it just raises the cost.
This is the core tension in pixel pitch decisions: matching screen resolution to the actual viewing conditions of your space.
- Tighter pixel pitch (smaller number) = high resolution, sharper image, higher cost per square foot
- Wider pixel pitch (larger number) = lower resolution, lower cost, better suited for larger distances
Get it right and you have an LED screen that looks exceptional at the distances people are actually standing. Get it wrong and you've either pixelated close-up content or paid a significant premium for resolution no one can see.
Pixel Pitch and Viewing Distance: How They Work Together
Viewing distance and pixel pitch are directly linked and understanding that relationship is important for installation.
There are three distances worth knowing for any install:
- Minimum viewing distance: The closest point at which individual pixels are no longer visible to the naked eye and the image reads as continuous. Stand closer than this and you'll see the pixel structure.
- Optimal viewing distance: The range where image clarity, color, and detail are all fully appreciated. This is where most of your audience should sit or stand.
- Maximum effective viewing distance: Beyond this point, brightness and display size become the limiting factors, not resolution.
The Pixel Pitch Viewing Distance Formula
The most commonly used rule of thumb: multiply the pixel pitch in millimeters by 10 to get an approximate minimum viewing distance in feet. A P2.5 panel has a minimum viewing distance of roughly 8–10 feet. A P4 panel pushes that out to around 13–15 feet.
Get closer than that minimum distance, and you start to see individual pixels, a phenomenon often called the "screen door effect." The image looks pixelated rather than smooth. This isn't a defect; it's just physics. The pixels are visible because you're too close for that pitch.
A more precise formula used across the industry: distance (feet) = pixel pitch (mm) × 3.28. This is based on visual acuity thresholds for the average human eye.
Use this table as a practical reference for your planning:
| Pixel Pitch | Min. Viewing Distance | Optimal Viewing Distance | Common Use Case |
|---|---|---|---|
| P1.2 – P1.9 | 4–6 ft | 6–15 ft | Broadcast studios, control rooms, command centers |
| P2.0 – P2.9 | 6–10 ft | 10–25 ft | Corporate boardrooms, retail, houses of worship |
| P3.0 – P3.9 | 10–14 ft | 15–35 ft | Event venues, large meeting rooms, auditoriums |
| P4.0 – P5.9 | 13–20 ft | 25–60 ft | Arenas, stadiums, large lobbies |
| P6.0 – P10+ | 20–35 ft | 50–150 ft | Outdoor LED, outdoor billboard, large-scale events |
These are guidelines, not hard rules. Ambient light, content type, and panel brightness all factor in. But for initial planning, this table gets you close.
How to Calculate the Right Pixel Pitch
Rather than guessing, use this four-step framework to land on the right pixel pitch for your project.
Step 1: Determine Your Minimum Viewing Distance
Measure the distance from the display to where your closest audience member will typically be standing or sitting during normal use. This is your minimum viewing distance. If you have a range, use the closest distance as your benchmark.
Step 2: Apply the Pixel Pitch Formula
Divide your minimum viewing distance (in feet) by 10 to get the maximum acceptable pixel pitch.
Pixel Pitch (mm) = Viewing Distance (ft) ÷ 10
A few examples:
- Closest viewer at 15 ft → P1.5 or larger is acceptable → P3 or P4 is a practical choice
- Closest viewer at 30 ft → P3 or larger is acceptable → P5 or P6 is a practical choice
- Closest viewer at 60 ft → P6 or larger is fine → P8 or P10 makes good budget sense
If you're working in meters, the formula adjusts slightly: multiply your minimum viewing distance in meters by 1,000, then divide by 1,000 again. Or simply convert to feet first (1 meter ≈ 3.28 feet).
Indoor vs. Outdoor LED Walls: Pixel Pitch Differences
Indoor and outdoor LED installs have fundamentally different pixel pitch requirements, and conflating the two is one of the more common planning mistakes.
Indoor LED Walls
Indoor LED screens serve audiences at close viewing distances, often in controlled lighting conditions. A corporate lobby display, a house of worship IMAG screen, a retail store, or a broadcast studio wall might have viewers standing 8 to 25 feet away. At those distances, you need a finer pixel pitch - typically P1.5 to P3 - to produce sharp, detailed images that hold up at close range. High pixel density matters here.
Outdoor LED Walls
Outdoor LED displays operate at much greater distances. A roadside outdoor billboard, a stadium fascia, or a festival main stage screen may have a nearest viewer 30, 50, or 100+ feet away. At those distances, a larger pixel pitch - P6 to P10 or higher - produces perfectly acceptable image quality while dramatically reducing cost. For outdoor installs, brightness (measured in nits) typically becomes a higher priority than pixel density, since the display has to compete with direct sunlight and ambient light. Outdoor panels typically need to produce 5,000 to 10,000+ nits to remain visible in bright daylight, whereas an indoor panel running at those brightness levels would be blinding.
Quick comparison:
- Indoor: Closer viewing distance → smaller pixel pitch → higher pixel density → sharper detailed images
- Outdoor: Greater distance → larger pixel pitch → lower pixel density → brightness and visibility take priority
Shop New & Used Professional LED Video Walls
Browse AVGear's LED video wall inventory to see a range of indoor and outdoor options across multiple pixel pitches.
What Other Factors Affect the Right Pixel Pitch?
Viewing distance is the primary driver, but several other variables influence the ideal pixel pitch for any given project.
Display Size
A larger LED video wall seen at close range demands a lower pixel pitch to maintain image clarity. If you're building a 20-foot-wide display in a room where the front row is 12 feet away, a P4 panel is going to show its pixels. Scale and proximity work against each other.
Content Type
Detailed images, fine text, data visualizations, and tight graphics require a higher pixel density to read cleanly. Full-motion video and large-format graphics are far more forgiving - the motion masks pixel structure that would be obvious in a static image.
Budget
Smaller pixel pitch panels cost significantly more per square meter. Finding the appropriate pixel pitch for your space (not the finest available) is how you avoid overpaying for resolution that doesn't improve the actual viewing experience.
Ambient Light
Bright environments shift the priority. Outdoor and high-ambient-light indoor installs need panels with higher nit ratings. Chasing a lower pixel pitch while neglecting brightness specs is a common error in high-light environments.
Direct View LED
Unlike rear-projection or LCD video walls, direct view LED panels emit light from the panel surface itself. This changes how pixel structure is perceived at various distances - generally making direct view LED more forgiving at moderate distances than equivalent-pitch projection.
New vs. Used LED Video Walls: Does Pixel Pitch Change the Equation?
One question that comes up often: does buying used LED panels change anything about the pixel pitch calculation?
The short answer is no. Pixel pitch number is a fixed hardware specification of the panel itself. A used P2.5 panel performs the same as a new P2.5 panel from the same manufacturer, assuming it's in good working condition. The physics don't change.
What does change is cost. Used professional-grade LED panels from top manufacturers can deliver full professional performance at a significantly lower price per square foot than new inventory. For organizations with tight budgets but legitimate performance requirements, the secondary market is worth exploring.
The key is buying from a source with real expertise in professional AV equipment, not a general resale marketplace where condition and accuracy are uncertain. AVGear specializes exclusively in professional AV equipment and carries LED video wall systems across multiple pixel pitches, configurations, and price points - new and used.
