What's the Difference Between Indoor and Outdoor Video Wall Systems?

Indoor and outdoor LED video walls look similar on a spec sheet, but they are built for very different conditions.

Outdoor LED video walls run several times brighter and have a larger pixel pitch for longer viewing distances.

Indoor walls use finer pitch, lighter panels, and lower brightness tuned for controlled indoor environments.

Understanding these differences can help you choose a wall that holds up on site and avoid washed-out images, moisture damage, or paying for resolution your audience can’t see.

What Is the Main Difference Between Indoor and Outdoor LED Video Walls?

The main difference between indoor and outdoor LED video walls is the environment each wall system is built to handle.

Outdoor walls face direct sun, rain, dust, and temperature swings. These conditions require brighter LEDs, sealed cabinets, and heavier frames.

Indoor walls operate in climate-controlled rooms, so manufacturers can use finer pixel pitch and thinner panels. These panels also draw less power and come at a lower price per unit.

Neither type is the better panel overall. Each one matches a different set of performance requirements. However, using a panel in the wrong setting costs money in repairs or lost image quality.

How Bright Does an LED Video Wall Need to Be?

Brightness requirements depend on ambient lighting, installation location, viewing angle, and exposure to direct sunlight. LED video wall brightness is measured in nits (cd/m²), with higher values indicating greater luminance.

Indoor systems commonly operate between 600 and 1,500 nits, while outdoor displays may require 5,000 nits or more for visibility in direct sunlight. However, the appropriate brightness level should be determined by the installation environment rather than a fixed specification.

How Bright Is an Indoor LED Wall?

Most indoor LED video walls used in conference rooms, auditoriums, and showrooms with controlled lighting rarely need more than 1,500 nits of brightness. Running an indoor wall too bright causes eye strain and washes out skin tones on camera. However, spaces with strong natural light are the exception. Lobbies and atriums with glass walls or skylights often need high-brightness indoor panels rated near 3,000 nits to hold contrast through the afternoon.

How Bright Is an Outdoor LED Wall?

Outdoor panels need at least 5,000 nits for direct sunlight, and some reach 10,000 nits or more. Hotels, resorts, and rooftops that add screens to pool decks and other outdoor living areas need the same brightness as any outdoor wall. Most outdoor systems use ambient light sensors that dim the wall at night. Auto-dimming improves energy efficiency, extends LED life, and keeps the display from glaring at drivers and neighbors after dark.

What IP Rating Does an Outdoor LED Wall Need?

An LED video wall's Ingress Protection (IP) rating indicates its resistance to solid particles and water intrusion. Because it measures how well a cabinet blocks solids and liquids, it is the most important spec for outdoor use.

Outdoor installations generally need an IP65 rating or higher for full exposure to rain and dust. Indoor panels often sit around IP20, which provides protection against larger solid objects but offers no water protection.

• First digit (dust protection): The scale runs from 0 to 6, and a 6 means the enclosure is completely dust-tight.
• Second digit (water protection): The scale runs from 0 to 9, and a 5 means the enclosure can withstand water jets from any direction.

For covered outdoor spaces or storefront displays protected from direct exposure to rain, IP54-rated panels may be suitable. However, businesses installing LED walls in fully exposed outdoor areas should look for weather-resistant cabinets with sealed gaskets and corrosion-resistant hardware. These features help protect the equipment, reduce maintenance needs, and support long-term performance.

How Does Pixel Pitch Change Indoors vs Outdoors?

Pixel pitch is the center-to-center distance between adjacent LED pixels, measured in millimeters. It determines pixel density and directly influences image resolution, viewing distance, and equipment costs. A smaller pitch packs more pixels into each panel, which produces a sharper image at short range but raises the cost per square foot.

Indoor LED video walls typically use finer pixel pitches because audiences view the displays at shorter distances. Outdoor applications generally use larger pixel pitches to accommodate longer viewing distances without investing in unnecessary pixel density.

A common rule of thumb says the minimum comfortable viewing distance in meters roughly equals the pixel pitch in millimeters. For example, a display with a 2 mm pixel pitch may be suitable for viewers standing about 2 meters away.

LED video wall panels are listed by pitch, which makes it easier to match a panel to the room.

How Do Installation Requirements Differ?

Indoor installs focus on weight, access, and fit, while outdoor installs add wind load, structural engineering, permits, and weather-protected power. An indoor wall can go up on an interior wall or a ground stack in a day. An outdoor wall on an exterior wall or tower often needs engineering approval and inspections before it goes live.

What Does an Indoor Install Involve?

Indoor cabinets are generally thinner and lighter, so crews can hang them from truss systems, stack them on the floor, or curve them around a stage.

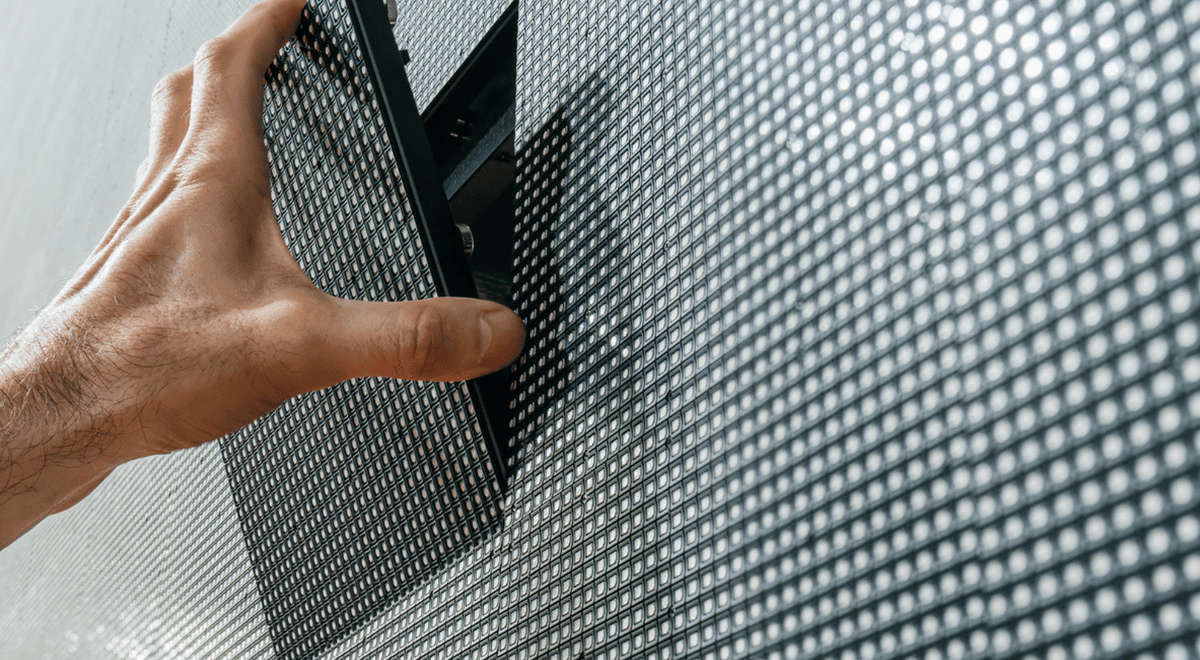

Serviceability is another important consideration. Front-service cabinets allow technicians to access individual modules without removing the entire display. This can reduce maintenance complexity in installations with limited rear access.

Compatible rigging hardware, mounting structures, power distribution, and signal cabling must be selected according to the display manufacturer's specifications.

What Does an Outdoor Install Involve?

Outdoor LED video walls require additional structural support because they are generally heavier and must withstand wind and changing weather conditions.

Permanent installs on commercial buildings need a steel substructure, an engineer’s review, and approval under local building codes. Facade screens over a curtain wall need anchoring that protects the glass wall systems behind them.

Outdoor projects also carry infrastructure costs indoor installs rarely face, including dedicated power and weatherproof enclosures.

Can You Use an Indoor LED Wall Outdoors?

Indoor LED walls are not built for outdoor use, even for a one-day event. They have no weather sealing, their images fade in direct sun, and moisture can damage them even under a tent.

For production companies and rental providers working across indoor and outdoor venues, dual-use LED panels can offer greater deployment flexibility. However, IP ratings, brightness capabilities, pixel pitch, and manufacturer-approved operating conditions should be reviewed before selecting a system.

How Much Do Indoor and Outdoor LED Walls Cost?

Outdoor LED panels usually cost more per panel than indoor panels because of weatherproof cabinets, brighter LEDs, and heavier frames. Total project cost depends just as much on pixel pitch and installation. A fine-pitch indoor wall can cost more per square foot than a coarse-pitch outdoor wall because it packs in far more LEDs.

A full LED wall budget usually includes these line items.

• Panels are priced by pitch, brightness, and brand.
• A video processor or controller must be sized to the wall’s total resolution.
• Rigging, ground support, and mounting hardware hold the wall in place.
• Power distribution, data cabling, and spare modules keep the wall running.
• Outdoor installs add labor, engineering, and permit fees.

Which LED Video Wall Fits Your Project?

Choose an indoor wall for any space with a roof, walls, and controlled light, and choose an outdoor wall for anything exposed to sun or rain. Dual-rated rental panels make sense for companies that move between both settings. In any commercial space, the deciding factors stay the same: ambient light, weather exposure, and viewing distance.
