SKU: 12P HEX IP-B

ADJ 12P HEX IP Heavy-Duty RGBAW+UV LED Wash Light (IP65) [B-Stock]

$350.95

Items Included

  • American DJ 12P HEX IP Heavy-Duty RGBAW+UV LED Wash Light (IP65)Power Cord

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Title
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

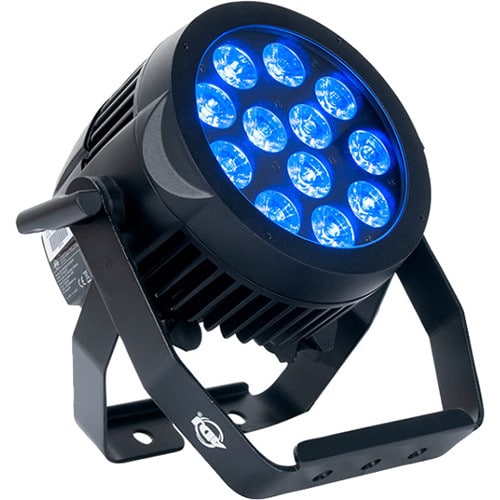

The American DJ 12P HEX IP is a heavy-duty RGBAW+UV (red, green, blue, amber, white + ultraviolet) LED PAR fixture designed to produce a wide variety of bright color washes with smooth color mixing for use in a variety of applications including touring, event production, and hire situations where equipment is continually transported, rigged, and derigged. The fixture is rated IP65, affording the unit to be safe from rain, snow, and dust. Dimensions: 15x14x14 Weight: 13lbs Read more

Features

  • IP65 Outdoor Rated30° Beam AngleDMX & AC Connectors with IP Dust Caps5 x Operational ModesIncludes Adjustable Scissor Yoke12 x 12W RGBAW+UV LEDsUV Glow, Variable Color Temperatures6 x DMX Channel Modes0-100% DimmingIncludes Power Cord

Business Financing Options Avaiable

The American DJ 12P HEX IP is a heavy-duty RGBAW+UV (red, green, blue, amber, white + ultraviolet) LED PAR fixture designed to produce a wide variety of bright color washes with smooth color mixing for use in a variety of applications including touring, event production, and hire situations where equipment is continually transported, rigged, and derigged. The fixture is rated IP65, affording the unit to be safe from rain, snow, and dust. Dimensions: 15x14x14 Weight: 13lbs Read more

Features

  • IP65 Outdoor Rated30° Beam AngleDMX & AC Connectors with IP Dust Caps5 x Operational ModesIncludes Adjustable Scissor Yoke12 x 12W RGBAW+UV LEDsUV Glow, Variable Color Temperatures6 x DMX Channel Modes0-100% DimmingIncludes Power Cord

About the ADJ 12P HEX IP Heavy-Duty RGBAW+UV LED Wash Light (IP65) [B-Stock]

The ADJ HEX206 12P HEX HEX IP is a rugged, high-performance, and fully weatherproof (IP65-rated) LED wash light built into a distinctive hexagonal housing. It is designed for demanding outdoor and indoor installations where reliable, vibrant wash lighting is needed in environments exposed to dust, moisture, and weather. The fixture’s core feature is its array of 12 powerful, individually addressable "puck" style LED modules, each containing a full RGBAW+UV (Red, Green, Blue, Amber, White, and Ultraviolet) LED cluster. This sophisticated color system provides an exceptionally wide color gamut, including rich pastels, deep saturates, high-quality variable white light, and the unique visual pop of ultraviolet for fluorescent effects.

This fixture operates in two primary modes: as a high-output, smooth-field wash light where all pixels blend together, or as a pixel-mappable effects engine where each of the 12 pucks can be controlled independently for graphic chases, patterns, and animations. The hexagonal shape and pixelated design make it ideal for creating organic, honeycomb-like video walls or for use as a standalone architectural element on buildings, in theme parks, or on concert stages. The heavy-duty cast aluminum housing and fully sealed optical system ensure long-term durability in permanent installations or on touring rigs exposed to the elements.

Control is comprehensive, supporting standard DMX with RDM and advanced pixel mapping protocols via an Ethernet port for integration into networks running Art-Net or sACN. With its combination of high lumen output, advanced color rendering, individual pixel control, and true IP65 protection, the HEX206 is a premium solution for architects, production designers, and installers looking for a versatile, weatherproof wash light that can also serve as a dynamic visual display element.

Key Features

  • IP65 Outdoor Rated30° Beam AngleDMX & AC Connectors with IP Dust Caps5 x Operational ModesIncludes Adjustable Scissor Yoke12 x 12W RGBAW+UV LEDsUV Glow, Variable Color Temperatures6 x DMX Channel Modes0-100% DimmingIncludes Power Cord

ADJ 12P HEX IP Heavy-Duty RGBAW+UV LED Wash Light (IP65) [B-Stock] Specs

Optical System & Light Source
Fixture Shape
Hexagonal
Pixel Array
12 individually addressable high-power LED pucks
LEDs per Pixel
RGBAW+UV (Red, Green, Blue, Amber, White, Ultraviolet)
Total LED Count
72 LEDs (12 pucks x 6 colors)
Pixel Control
Individual pixel addressability for graphic effects
Primary Function
High-output color wash and pixel-mappable effects
Beam Angle per Pixel
Wide field (typically ~25°)
Color & Performance
Color Mixing
Full RGBAW+UV mixing for maximum color gamut
White Light
Variable color temperature white from Amber/White LED mix
UV Effect
Dedicated Ultraviolet LEDs for fluorescent/blacklight effects
Dimming
0-100% smooth dimming, per pixel or global
Strobe
Electronic strobe effect
Control & Networking
Control Protocol
DMX-512, RDM
Pixel Mapping
Full individual pixel control via high-channel-count DMX modes or Art-Net/sACN
Network Port
RJ45 Ethernet for Art-Net, sACN, or proprietary network protocols
DMX Channels
Multiple modes: e.g., 8, 20, 44, 92, or 188 channels
188-Channel Mode
Full individual control (12 pucks x 6 colors = 72, plus control channels)
Control Modes
DMX, Network, Master/Slave, Standalone
Physical & Environmental
IP Rating
IP65 (Dust-tight and protected against water jets)
Housing
Heavy-duty die-cast aluminum, fully sealed
Power Supply
Auto-switching 100-240V AC, 50/60Hz
Power Consumption
~240 Watts
Power Connection
PowerCON TRUE1 In and Out (linkable)
Cooling
IP65-rated, temperature-controlled forced-air cooling
Weight
Approx. 12.5 kg (27.5 lbs)
Dimensions (Hexagon)
Approx. 430 mm (17") across flats, depth ~200 mm (7.9")
Mounting
Multiple 1/4"-20 and M10 mounting points on rear, integrated yoke options may vary
Connectivity & Display
Data Connections
3-pin & 5-pin XLR DMX In/Out, RJ45 Ethernet
Display
LCD screen for addressing and configuration
Software Updates
Firmware upgradable via USB or network
Additional Features
Lens
Sealed, durable diffuser lens over each pixel puck
Effects Engine
Built-in auto programs for pixel chases and color effects
Thermal Protection
Over-temperature monitoring and automatic brightness adjustment
Safety Certifications
ETL, CE certified
Typical Use
Architectural facade lighting, outdoor stages, theme parks, permanent concert venues, pixel-mapped installations.

Key Features

  • IP65 Outdoor Rated30° Beam AngleDMX & AC Connectors with IP Dust Caps5 x Operational ModesIncludes Adjustable Scissor Yoke12 x 12W RGBAW+UV LEDsUV Glow, Variable Color Temperatures6 x DMX Channel Modes0-100% DimmingIncludes Power Cord
