SKU: COB Cannon LP200ST-B

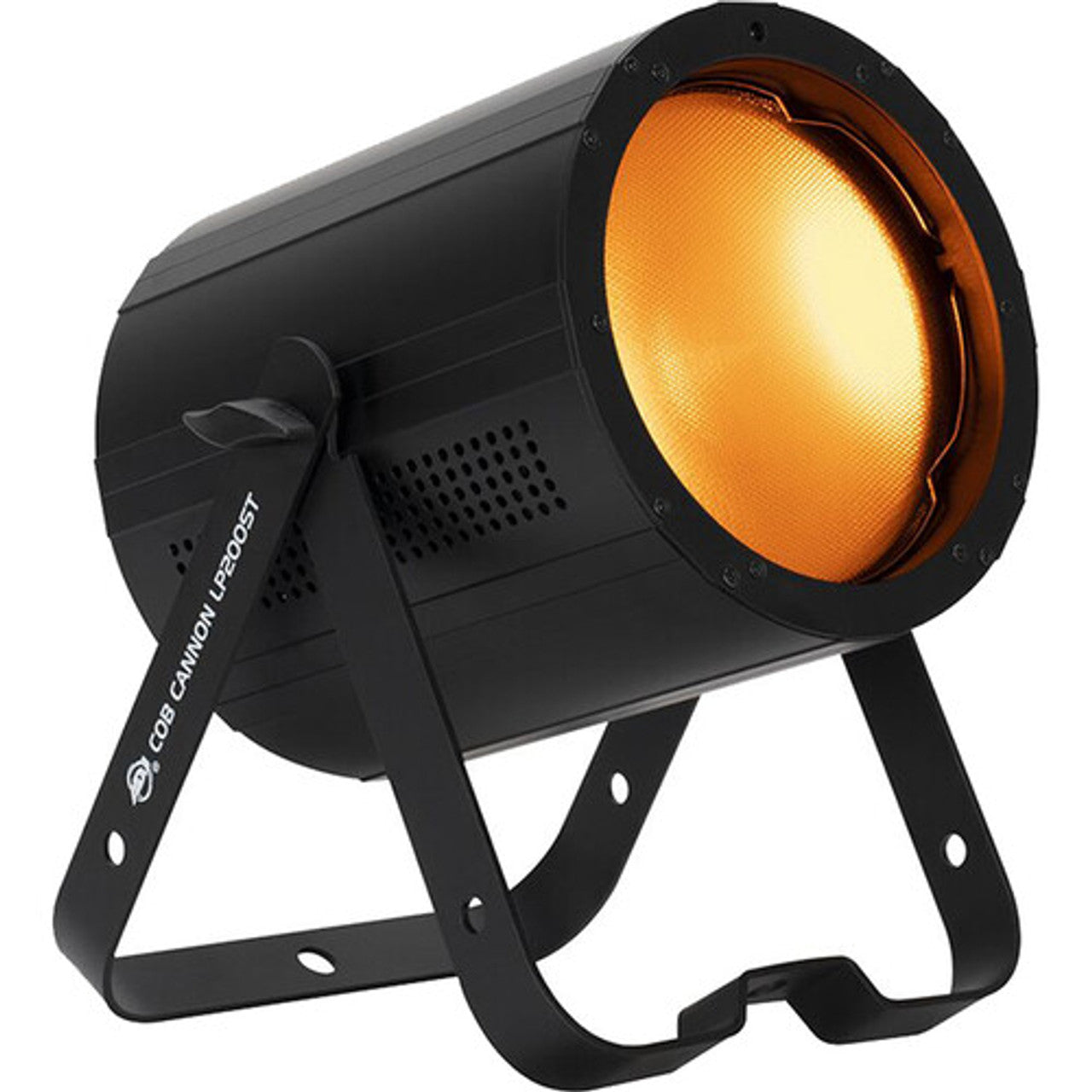

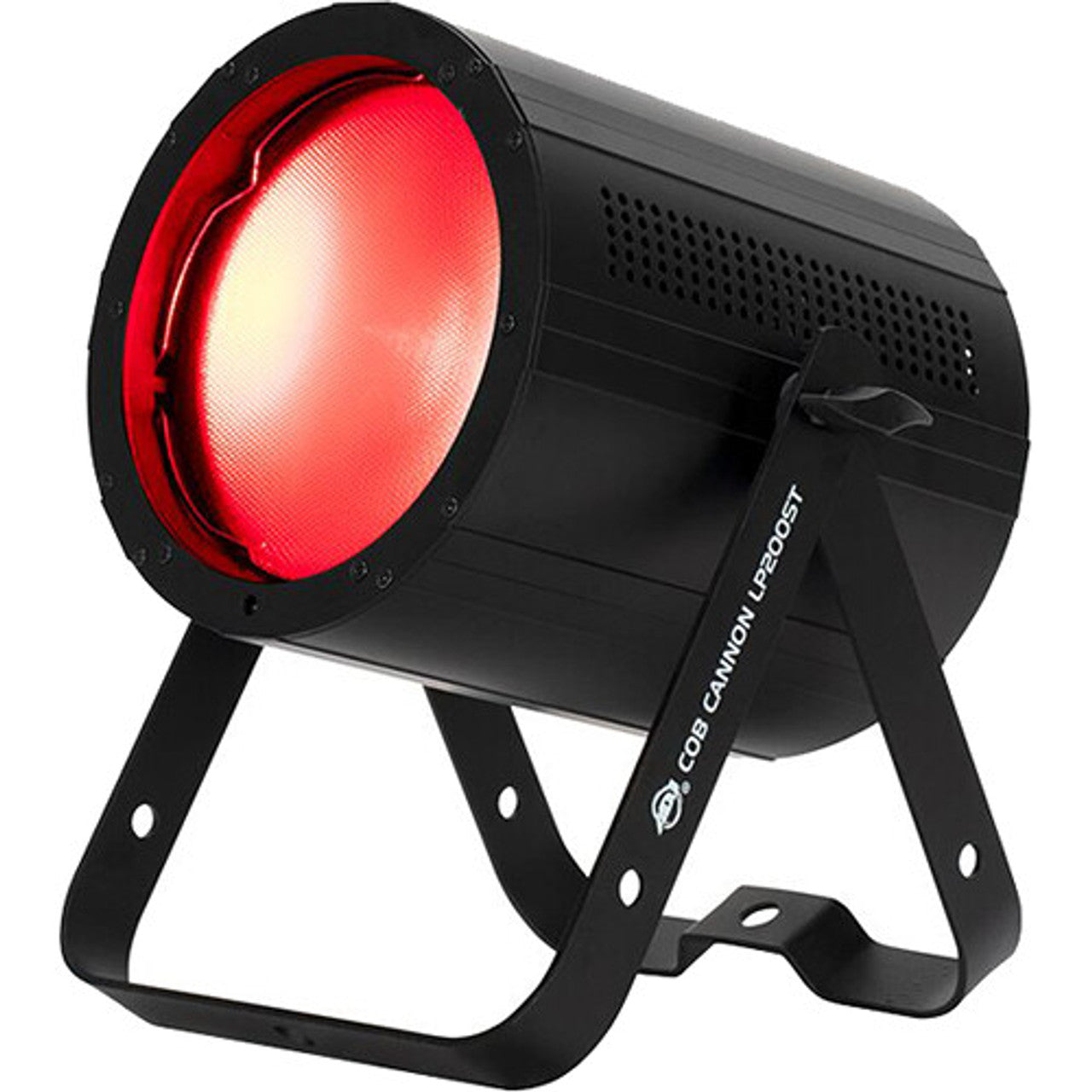

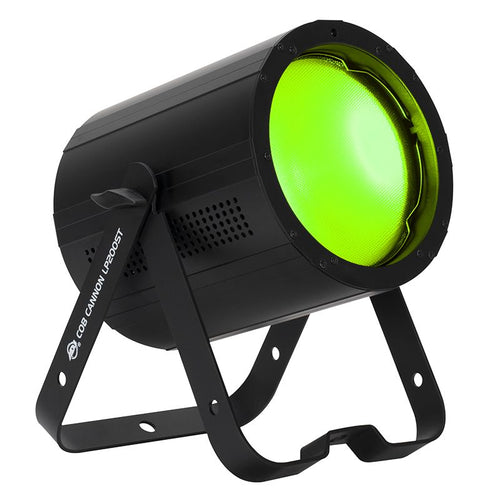

ADJ COB200 Cannon LP200ST COB200 5-in-1 LED Wash Fixture

$431.00 - $599.99

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

Featuring a high output 200-Watt COB (Chip On Board) LED engine, the ADJ COB Cannon LP200ST is a potent color mixing wash lighting fixture. It’s 5-in-1 light source combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors with a high CRI, plus a tunable white color temperature between 2300K and 9900K. A compact and versatile fixture, it offers a wide 80-degree native beam angle but is also supplied with both 40-degree and 50-degree lens options. Read more

Features

  • Primary / Secondary Mode
  • Flicker Free operation (No flickering on camera)
  • Produces powerful, smooth RGBAL color mixing with rich palettes of color
  • Scissor yoke allows fixture to be mounted on truss or set on the ground
  • Optional Barn Doors (BAR001) sold separately

Business Financing Options Avaiable

View Available Financing

Featuring a high output 200-Watt COB (Chip On Board) LED engine, the ADJ COB Cannon LP200ST is a potent color mixing wash lighting fixture. It’s 5-in-1 light source combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors with a high CRI, plus a tunable white color temperature between 2300K and 9900K. A compact and versatile fixture, it offers a wide 80-degree native beam angle but is also supplied with both 40-degree and 50-degree lens options. Read more

Features

  • Primary / Secondary Mode
  • Flicker Free operation (No flickering on camera)
  • Produces powerful, smooth RGBAL color mixing with rich palettes of color
  • Scissor yoke allows fixture to be mounted on truss or set on the ground
  • Optional Barn Doors (BAR001) sold separately

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the ADJ COB200 Cannon LP200ST COB200 5-in-1 LED Wash Fixture

The ADJ COB200 Cannon LP200ST is a compact, high-intensity LED wash fixture centered around a powerful COB (Chip-on-Board) LED source, engineered to deliver a remarkably smooth and uniform field of light without the individual pixelation often associated with discrete LED arrays. Its "5-in-1" designation refers to the fixture's capability to mix five distinct LED color diodes—typically Red, Green, Blue, Amber, and White—within a single optical chamber, allowing for the creation of a vast palette of saturated colors, pastels, and high-quality white light from a single, cohesive emission point. The fixture is designed for versatility in small to medium-scale applications, including mobile DJ setups, small stages, photography, and permanent installations where space is at a premium but output and color quality are critical.

Leveraging COB technology, the COB200 produces a beam with a smooth edge and consistent color temperature across its entire field, mimicking the quality of traditional tungsten or HMI fixtures. This makes it particularly effective for lighting subjects directly, as it avoids the multi-shadow effect and provides flattering, even illumination. The integrated LP200ST designation indicates specific features such as a low-profile housing and potentially a static (non-moving) design, focusing all engineering on maximizing optical performance and thermal management rather than mechanical movement. Efficient cooling systems ensure the high-output COB LED maintains optimal performance and longevity, even during extended use.

Control is facilitated through multiple DMX channel modes, offering users flexibility in complexity, from simple intensity and color control to advanced functions like variable strobe and dimming curves. The fixture's compact and lightweight design, coupled with a standard yoke mount, allows for easy positioning on stands, trussing, or shelves. By combining the superior beam quality of COB technology with robust five-color mixing in a streamlined package, the ADJ COB200 Cannon provides an accessible professional lighting solution that excels in applications demanding rich, smooth, and consistent wash lighting from a reliable and user-friendly fixture.

Key Features

  • Primary / Secondary Mode
  • Flicker Free operation (No flickering on camera)
  • Produces powerful, smooth RGBAL color mixing with rich palettes of color
  • Scissor yoke allows fixture to be mounted on truss or set on the ground
  • Optional Barn Doors (BAR001) sold separately

Already own this item and want to sell it?

Click here to sell your item

ADJ COB200 Cannon LP200ST COB200 5-in-1 LED Wash Fixture Specs

General Identification
Manufacturer
ADJ
Model Family
COB Cannon
Specific Model
COB200 LP200ST
Fixture Type
Static LED Wash
LED Technology
5-in-1 Chip-on-Board (COB)
Optical Core
Light Source
High-Power COB LED (5 Color Diodes in One)
Beam Characteristics
Ultra-Smooth Field, No Pixelation
Color Mixing
Full, Additive Mixing from Single Source
White Point Range
Tunable via RGBAW Combination
Electrical & Performance
Power Consumption
Approximately 200 Watts
Input Voltage
AC 100-240V (Auto-Sensing)
DMX Control
DMX512, Multiple Channel Modes
Dimmer
Electronic 0-100% Smooth Dimming
Physical & Thermal
Housing Design
Low-Profile, Die-Cast Aluminum
Cooling
Active (Quiet Fan) or Advanced Passive System
Mounting
Integral Yoke with 1/4-Turn Lock
Connections
IEC Power In/Out, 3-Pin/5-Pin XLR DMX In/Out

Key Features

  • Primary / Secondary Mode
  • Flicker Free operation (No flickering on camera)
  • Produces powerful, smooth RGBAL color mixing with rich palettes of color
  • Scissor yoke allows fixture to be mounted on truss or set on the ground
  • Optional Barn Doors (BAR001) sold separately

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ COB200 Cannon LP200ST COB200 5-in-1 LED Wash Fixture

What primary lighting role does the ADJ Cannon LP200ST (COB200) serve?

It is a high-output, short-barrel professional LED wash fixture designed for theatrical stage lighting, concert production, venue backlighting, and wide wall washing. Powered by Chip-on-Board (COB) technology, it delivers broad, even color sweeps without the multi-colored pixel artifacts or "shadow-fringing" of traditional LED fixtures.

What LED light engine and color mixing system power the unit?

The fixture houses a single high-output 200-Watt 5-in-1 COB LED engine that combines Red, Green, Blue, Amber, and Lime (RGBAL) diodes. The addition of Lime and Amber expands the color gamut, yielding vivid saturated colors, rich pastels, a high CRI (90+), and linear tunable white light from 2,700K to 6,500K CCT.

What native beam angle and interchangeable lens options are included?

It features a wide 80-degree native beam spread, making it ideal for high-coverage flood lighting from close range. It ships standard with two drop-in lens options—a 40-degree and a 50-degree lens kit—allowing lighting operators to narrow the projection angle for focused stage key lighting or mid-throw washing.

What operational control modes and DMX capabilities are featured?

The unit offers 5 operational modes: Standard DMX-512 Control, RGBAW Manual Dimmer mode, Static Color mode, Auto Run mode, and Sound Active mode. It features multiple DMX channel modes (offering 16-bit fine dimming), 5 selectable dimming curves, and 64 built-in color macros.

How is camera flicker managed for broadcast and television production?

The Cannon LP200ST features selectable Pulse Width Modulation (PWM) refresh rates ranging up to 25,000Hz. This high refresh rate ensures completely flicker-free performance on camera during live video streaming, film shoots, and television broadcasts.

What control display and configuration interface are built onto the fixture?

System setup, manual color tweaking, and DMX addressing are managed via an onboard 4-button digital menu display located on the rear panel. It also supports RDM (Remote Device Management) for configuring address settings remotely over a DMX line.

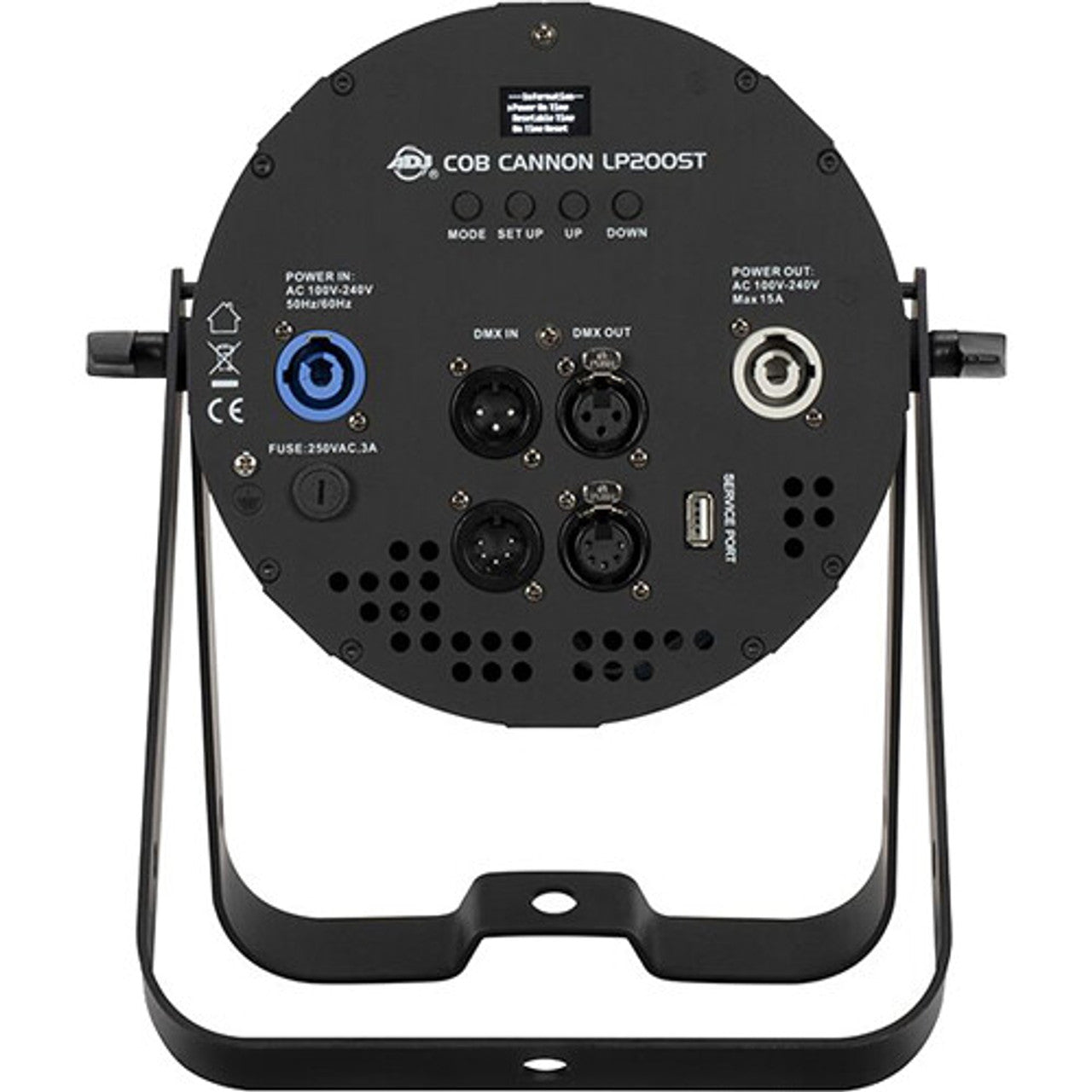

How are main power and DMX data linked across multi-fixture rigs?

The rear connectivity panel features locking power input and output sockets (PowerCON compatible) alongside 3-pin and 5-pin XLR DMX input and output jacks. Main electrical power can be daisy-chained across multiple units on a single electrical circuit.

What are the physical dimensions, weight, and mounting bracket specs?

Housed in a compact, durable black metal chassis with a short-barrel design, it measures 13.0" x 10.0" x 7.5" (330 x 256 x 190 mm) and weighs 9.2 lbs (4.2 kg). It includes a scissor-style dual mounting yoke that functions both as a hanging bracket for truss clamping and as a floor stand for low-profile uplighting.
