SKU: Frost FX Bar RGBW-B

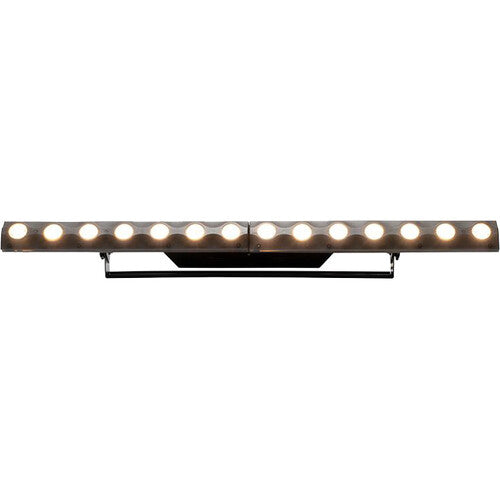

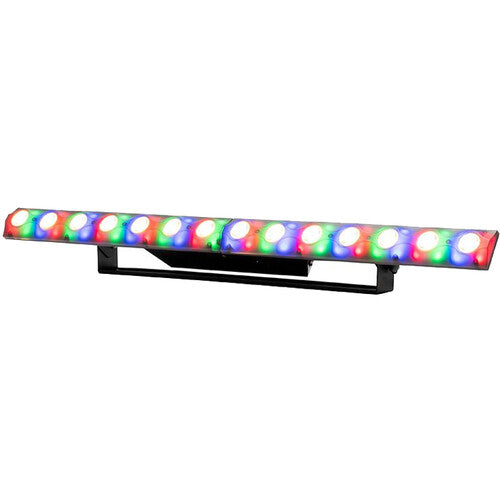

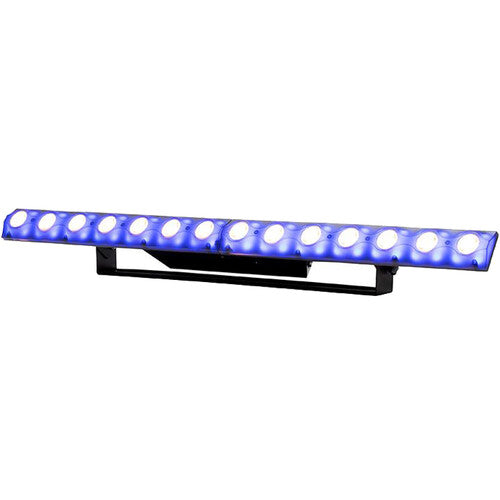

ADJ FRO123 Eliminator Lighting Frost FX Bar W RGBW LED Linear Fixture

$98.63 - $215.48

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Eliminator Lighting Frost FX BAR RGBW is a 1-meter linear entertainment lighting fixture that creates color washes and breathtaking color chase effect. It has two types of color LEDs in one fixture. It has fourteen 3W RGBW LEDs with ACL lens across the front of the fixture to create intense color beam effects. Plus, it has eighty-four RGB SMD LEDs behind a frosted plastic lens that create glowing color chase patterns. Both sets of LEDs run independently.  Each fixture has 45 built-in lightshows that can be triggered from the on-board 4-button display controls or run in DMX, sound or primary/secondary configurations. Multiple fixtures may be linked together through 3-pin DMX In/Out data connections and locking power in/out connections to so that the power may be daisy chained from one fixture to another. Users may choose from 64 built-in color macros and 8 flexible DMX channel modes. The fixture offers 0-100% electronic dimming and requires a maximum of 55W per unit. The Frost FX Bar RGBW horizontally or vertically for unique effects for stages, bars, lounges, clubs, bands and mobile entertainers. Multiple fixtures may be placed directly next to each other to create a seamless band or color light. Read more

Features

  • 1-meter LED linear wash fixture that chases colors and creates engaging effects
  • Light sources: 14x 3W RGBW (4-IN-1 – Red, Green, Blue & White) LEDs + 84x 5050
  • RGB (3-IN-1) SMD LEDs
  • 17-degree beam angle
  • 4-button LED function display
  • 8 DMX channel modes (3, 7, 11, 18, 102, 107 & 111-channel modes)
  • 4 operation modes: DMX, Auto, Sound and Primary/Secondary
  • With wired digital communication network
  • 0-100% Electronic Dimming
  • 64 built-in color macros
  • 45 built-in shows

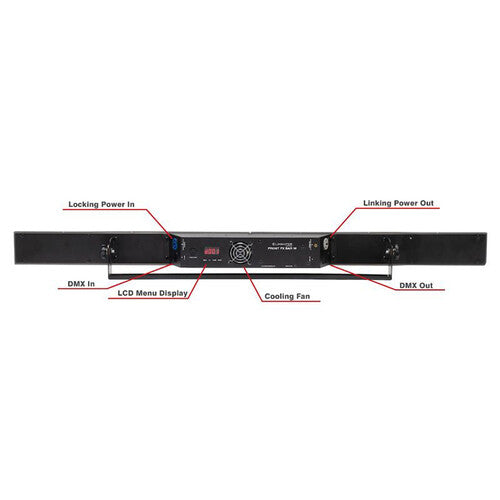

  • 3-pin DMX In/Out connections to link data
  • Locking power In/Out connections to daisy chain power
  • Max power: 55W
  • Multi-voltage operation: AC 110-240V, 50/60Hz
  • Dimensions (LxWxH): 39.4” x 4.8” x 2.8” / 1000x70x121.4mm
  • Weight: 7 lbs. / 3 Kg.
  • Adjustable Angle Hanging Bracket
  • Power cable

Business Financing Options Avaiable

View Available Financing

The Eliminator Lighting Frost FX BAR RGBW is a 1-meter linear entertainment lighting fixture that creates color washes and breathtaking color chase effect. It has two types of color LEDs in one fixture. It has fourteen 3W RGBW LEDs with ACL lens across the front of the fixture to create intense color beam effects. Plus, it has eighty-four RGB SMD LEDs behind a frosted plastic lens that create glowing color chase patterns. Both sets of LEDs run independently.  Each fixture has 45 built-in lightshows that can be triggered from the on-board 4-button display controls or run in DMX, sound or primary/secondary configurations. Multiple fixtures may be linked together through 3-pin DMX In/Out data connections and locking power in/out connections to so that the power may be daisy chained from one fixture to another. Users may choose from 64 built-in color macros and 8 flexible DMX channel modes. The fixture offers 0-100% electronic dimming and requires a maximum of 55W per unit. The Frost FX Bar RGBW horizontally or vertically for unique effects for stages, bars, lounges, clubs, bands and mobile entertainers. Multiple fixtures may be placed directly next to each other to create a seamless band or color light. Read more

Features

  • 1-meter LED linear wash fixture that chases colors and creates engaging effects
  • Light sources: 14x 3W RGBW (4-IN-1 – Red, Green, Blue & White) LEDs + 84x 5050
  • RGB (3-IN-1) SMD LEDs
  • 17-degree beam angle
  • 4-button LED function display
  • 8 DMX channel modes (3, 7, 11, 18, 102, 107 & 111-channel modes)
  • 4 operation modes: DMX, Auto, Sound and Primary/Secondary
  • With wired digital communication network
  • 0-100% Electronic Dimming
  • 64 built-in color macros
  • 45 built-in shows
  • 3-pin DMX In/Out connections to link data
  • Locking power In/Out connections to daisy chain power
  • Max power: 55W
  • Multi-voltage operation: AC 110-240V, 50/60Hz
  • Dimensions (LxWxH): 39.4” x 4.8” x 2.8” / 1000x70x121.4mm
  • Weight: 7 lbs. / 3 Kg.
  • Adjustable Angle Hanging Bracket
  • Power cable

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the ADJ FRO123 Eliminator Lighting Frost FX Bar W RGBW LED Linear Fixture

The ADJ FRO123 Eliminator Lighting Frost FX Bar W is a versatile linear LED effects fixture designed to add dynamic color and texture washes to stage and event lighting designs. This bar leverages a high-density array of RGBW LEDs, allowing for the creation of a vast spectrum of vibrant, saturated colors as well as crisp, variable white light. Its primary application is as a color wash unit, capable of evenly illuminating backdrops, stages, and architectural elements with a smooth, blended field of light due to its linear form factor and diffused output.

A key feature of this fixture is its integration of frost or diffusion effects, which can soften the beam further to eliminate individual LED spotting and create an ultra-smooth, homogeneous output ideal for close-up applications or creating a gentle ambient glow. Control is comprehensive, offering standard DMX-512 for precise console programming, master/slave operation for synchronizing multiple units without a console, and standalone modes with sound activation for simpler, automated operation. It may also include digital communication ports for streamlined daisy-chaining in larger setups.

Housed in a durable yet lightweight casing, the Frost FX Bar is designed for easy rigging on truss or mounting on the floor as an uplight. Its efficient LED engine provides high output with relatively low power consumption and heat. By combining rich RGBW color mixing, linear wash capabilities, and integrated diffusion in a single unit, this fixture serves as a flexible and effective tool for adding broad color washes and atmospheric effects to any production, from concerts and clubs to theatrical sets and corporate events.

Key Features

  • 1-meter LED linear wash fixture that chases colors and creates engaging effects
  • Light sources: 14x 3W RGBW (4-IN-1 – Red, Green, Blue & White) LEDs + 84x 5050
  • RGB (3-IN-1) SMD LEDs
  • 17-degree beam angle
  • 4-button LED function display
  • 8 DMX channel modes (3, 7, 11, 18, 102, 107 & 111-channel modes)
  • 4 operation modes: DMX, Auto, Sound and Primary/Secondary
  • With wired digital communication network
  • 0-100% Electronic Dimming
  • 64 built-in color macros
  • 45 built-in shows
  • 3-pin DMX In/Out connections to link data
  • Locking power In/Out connections to daisy chain power
  • Max power: 55W
  • Multi-voltage operation: AC 110-240V, 50/60Hz
  • Dimensions (LxWxH): 39.4” x 4.8” x 2.8” / 1000x70x121.4mm
  • Weight: 7 lbs. / 3 Kg.
  • Adjustable Angle Hanging Bracket
  • Power cable

Already own this item and want to sell it?

Click here to sell your item

ADJ FRO123 Eliminator Lighting Frost FX Bar W RGBW LED Linear Fixture Specs

General
Product Model
FRO123 Frost FX Bar W
Type
RGBW LED Linear Wash Fixture
Effects
Color wash, frost/diffusion effects
Light Source
LED Type
High-Density RGBW LED Array
Color System
Color Mixing
Full RGBW color mixing
White Output
Variable white light from RGBW combination
Control
Control Protocol
DMX-512, Master/Slave, Standalone, Sound Active
DMX Channels
4 / 7 / 10 selectable (model specific)
Optical Output
Beam Type
Wide, linear wash
Diffusion
Integrated frost/diffusion effect
Physical
Housing Material
Aluminum and plastic composite
Mounting
Multiple rigging points, optional floor base
Cooling
Passive or low-noise fan
Power & Connectivity
Power Supply
100-240V AC, 50/60 Hz
Power Consumption
Approximately 120W
Connectors
PowerCON TRUE1 In/Out, 3-pin XLR DMX In/Out

Key Features

  • 1-meter LED linear wash fixture that chases colors and creates engaging effects
  • Light sources: 14x 3W RGBW (4-IN-1 – Red, Green, Blue & White) LEDs + 84x 5050
  • RGB (3-IN-1) SMD LEDs
  • 17-degree beam angle
  • 4-button LED function display
  • 8 DMX channel modes (3, 7, 11, 18, 102, 107 & 111-channel modes)
  • 4 operation modes: DMX, Auto, Sound and Primary/Secondary
  • With wired digital communication network
  • 0-100% Electronic Dimming
  • 64 built-in color macros
  • 45 built-in shows
  • 3-pin DMX In/Out connections to link data
  • Locking power In/Out connections to daisy chain power
  • Max power: 55W
  • Multi-voltage operation: AC 110-240V, 50/60Hz
  • Dimensions (LxWxH): 39.4” x 4.8” x 2.8” / 1000x70x121.4mm
  • Weight: 7 lbs. / 3 Kg.
  • Adjustable Angle Hanging Bracket
  • Power cable

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ FRO123 Eliminator Lighting Frost FX Bar W RGBW LED Linear Fixture

What is the Eliminator Frost FX Bar W LED Linear Fixture?

It is a 1-meter (100cm) linear wash fixture featuring a white housing designed for stage lighting, wall washing, and eye-candy background effects. The unit combines a main beam array with dual frosted chase strips to create dynamic two-in-one lighting effects.

What LEDs and light output does this fixture use?

The light uses 14x 3W 4-in-1 RGBW (Red, Green, Blue, White) LEDs for the main beam, plus 84x SMD 5050 RGB 3-in-1 LEDs that create the glowing frosted lens background effect. This allows for vivid color mixing on the main wash alongside independent background pixel patterns.

How does the white housing model differ from the standard version?

The Frost FX Bar W features a white fixture casing, making it visually seamless when used against light walls, in churches, on wedding stages, or in modern architectural installations. Apart from casing color, it has the exact same lighting output and technical features as the black version.

Can I control individual zones or pixels on this bar?

Yes, the fixture supports pixel control modes that let you program multi-color chase patterns across different sections of the 14 main LEDs and the frosted background strip. This allows for customized dynamic wave, chase, and blinder effects.

How can I control the Frost FX Bar W?

It features multiple control modes, including standard DMX512 (with multiple channel choices), Sound Active mode, Auto Run mode with built-in chase programs, and Primary/Secondary sync mode. Settings can be easily adjusted using the 4-button LED menu display on the back.

How is the fixture mounted or installed?

The bar comes with adjustable mounting brackets on the back rail that allow for flexible mounting angles. You can attach standard rigging clamps for truss mounting or place it flat on the floor to use as an uplight.

Can I link multiple units together for power and control?

Yes, it features 3-pin DMX in/out sockets for control signal daisy-chaining, along with power input and output connections. This allows you to chain power across multiple bars to clean up cable runs on stage or along walls.

Is this fixture suitable for outdoor events?

No, the Frost FX Bar W carries an IP20 rating, meaning it is designed solely for indoor use. If used for outdoor events, it must be fully protected from rain, moisture, and high humidity.
