Optical System & Light Source
Fixture Type

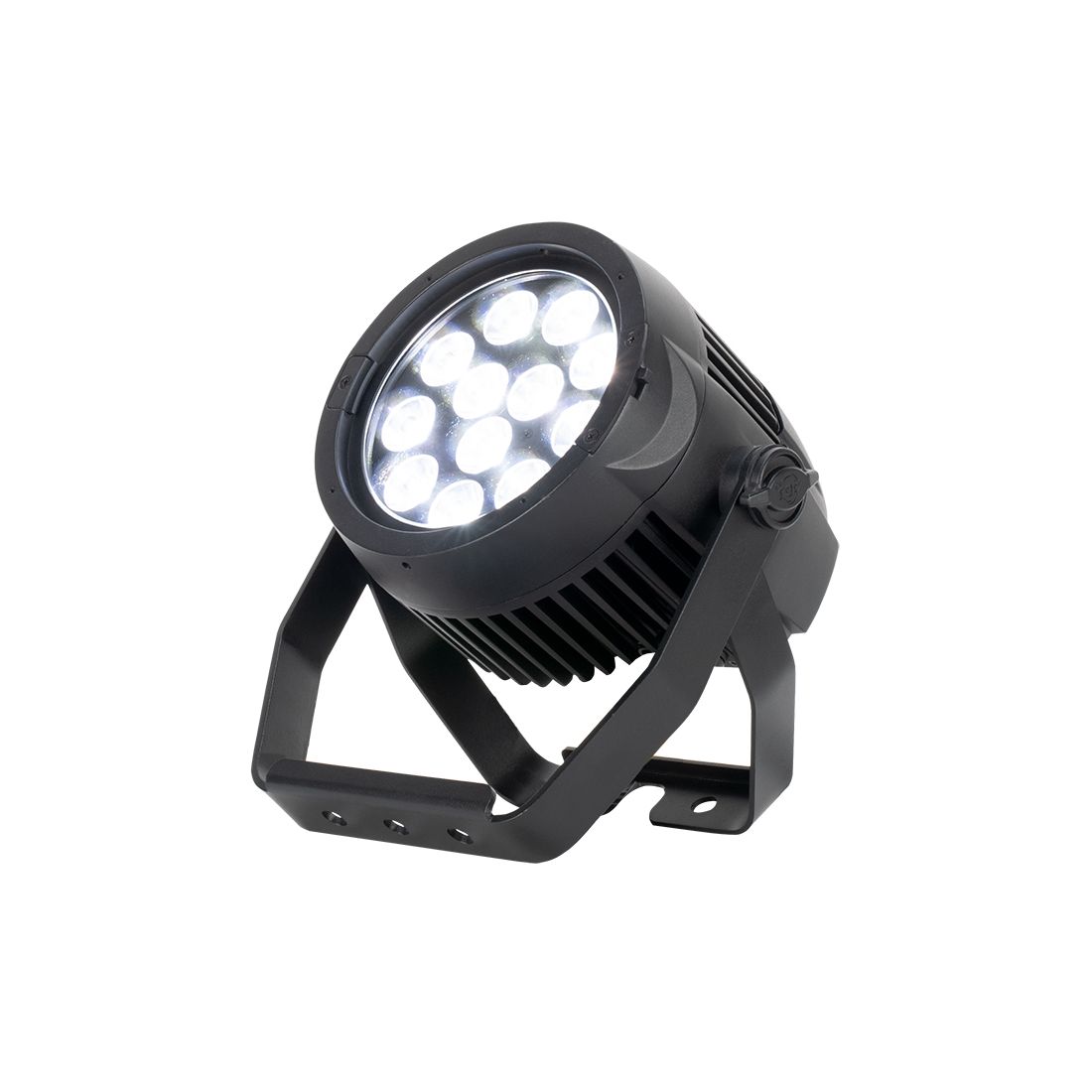

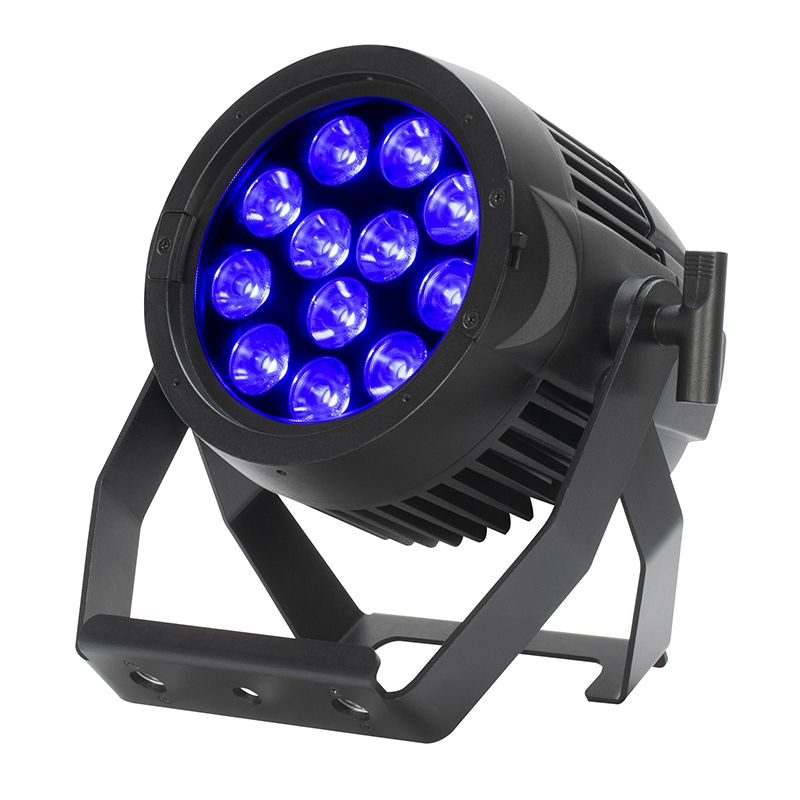

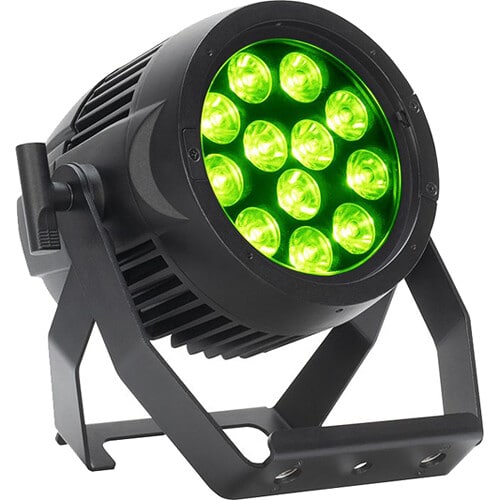

12-inch LED Par Can
Light Source
High-power RBGL (Red, Blue, Green, Lime) LED array
LED Configuration
Multiple high-wattage LEDs (e.g., 12 x 15W LEDs or similar high-density array)
Lens
Large 12-inch (305mm) textured diffusion lens
Beam Angle

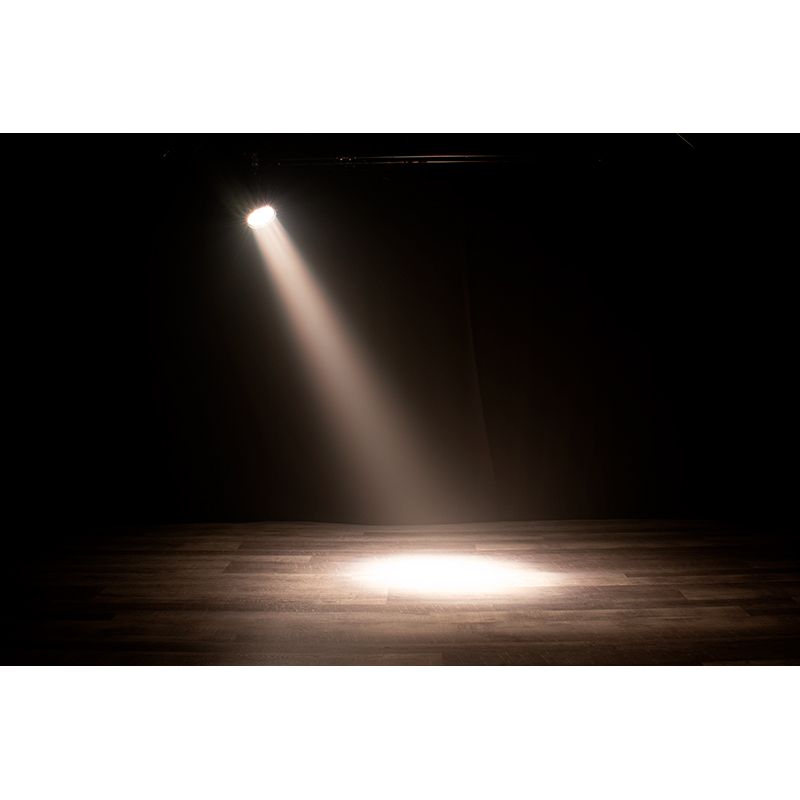

Wide flood beam (typically ~25-30°)
Color Mixing

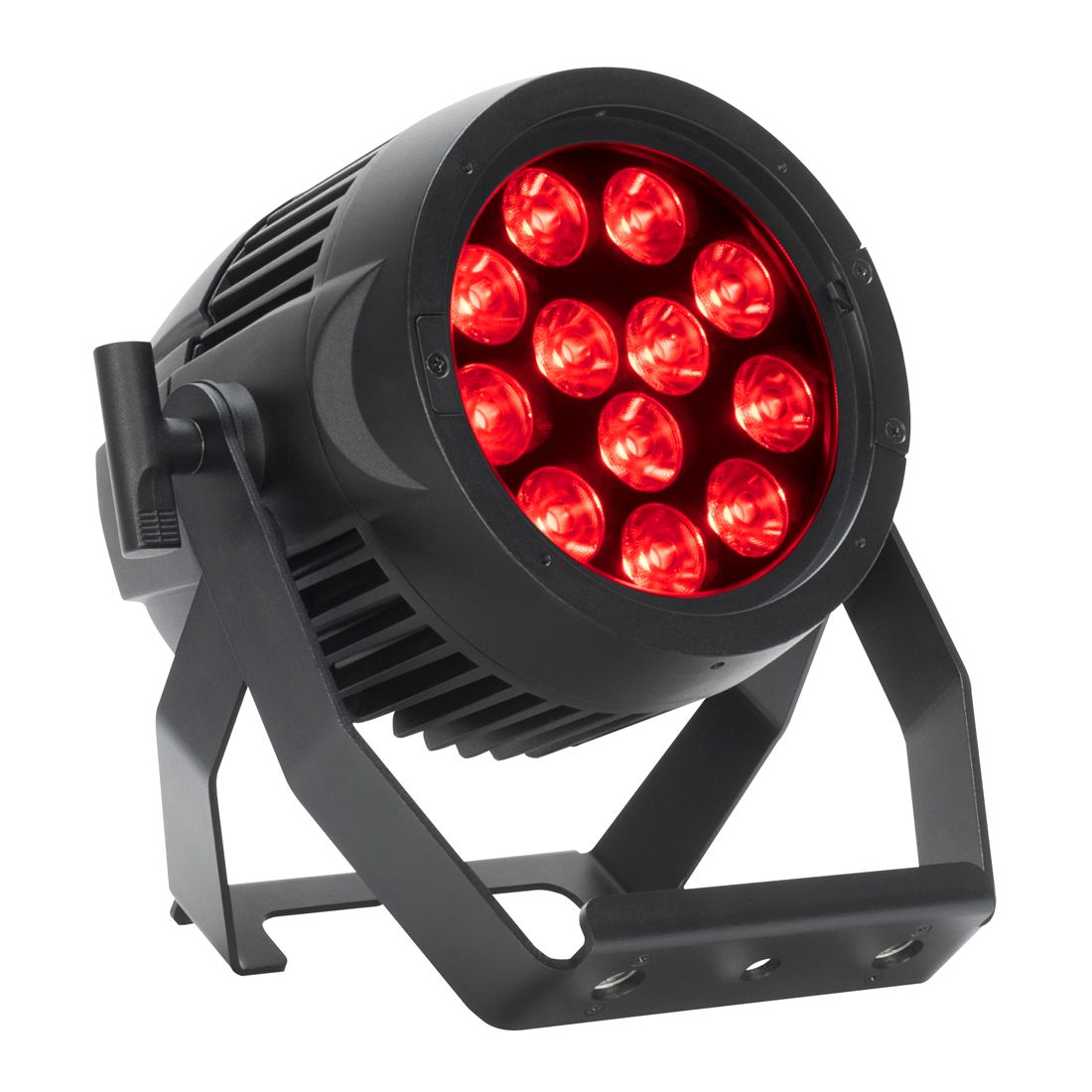

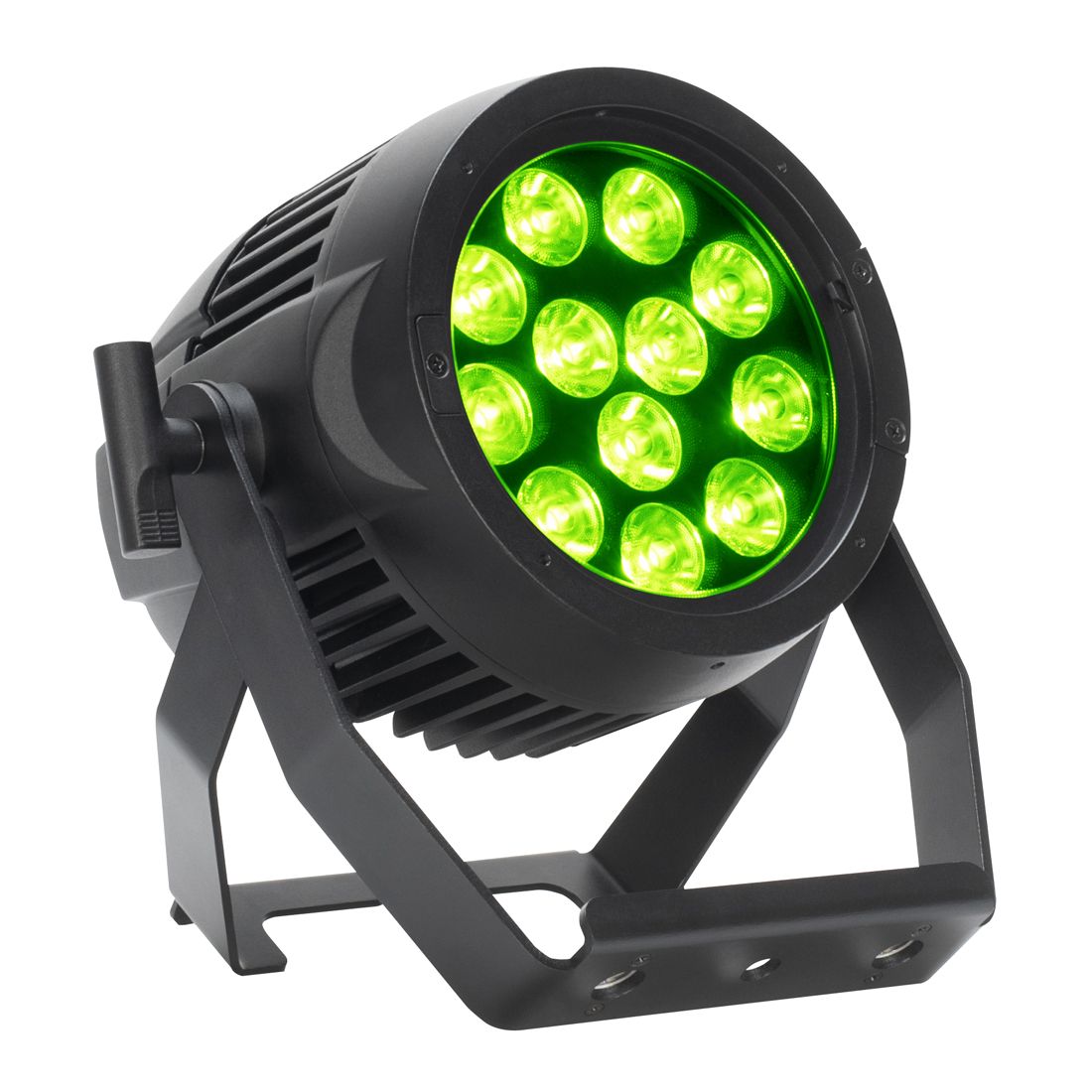

Full RBGL mixing for an expanded color gamut with enhanced greens and yellows
White Light

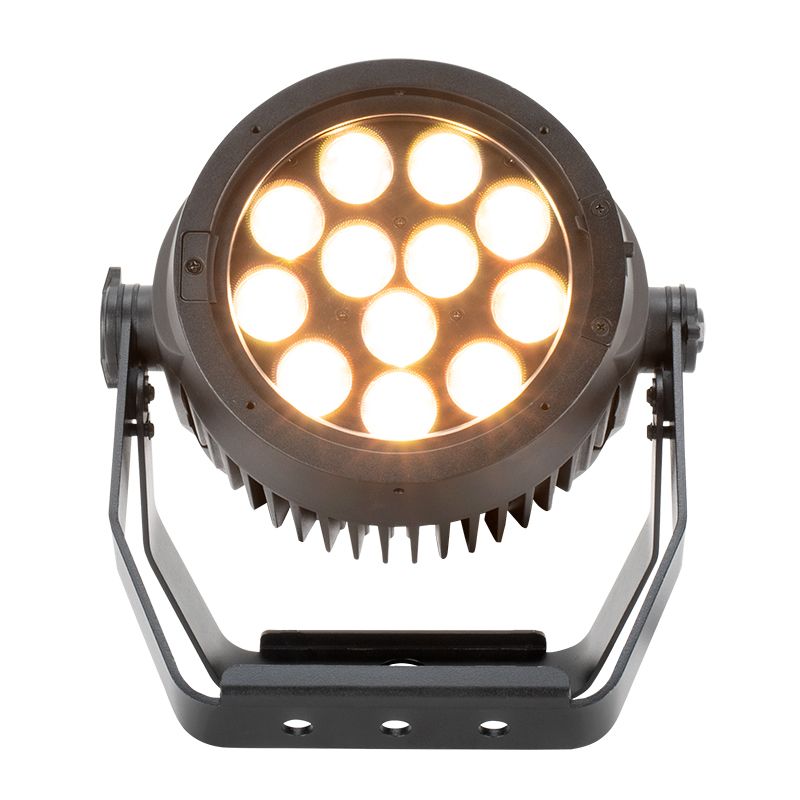

Variable white light achievable via color mixing (Lime LED improves quality)
Dimming
0-100% smooth, flicker-free electronic dimming
DMX Channels
Standard selectable modes (e.g., 4-channel: R, G, B, Master; or 7-channel for individual color + dimmer/strobe control)
Control Modes
DMX, Master/Slave, Standalone with auto programs, Sound-Active

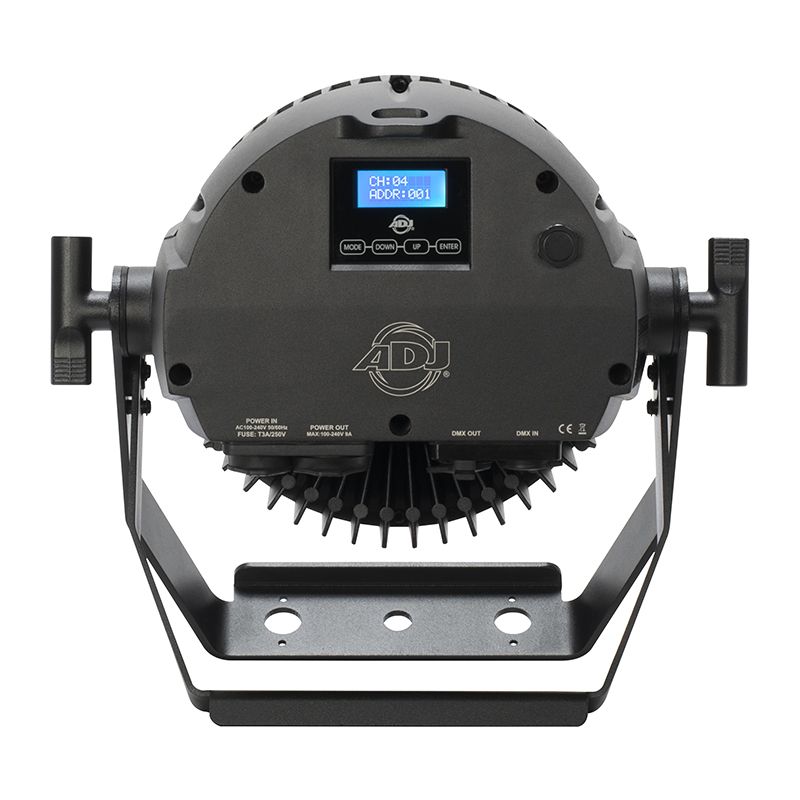

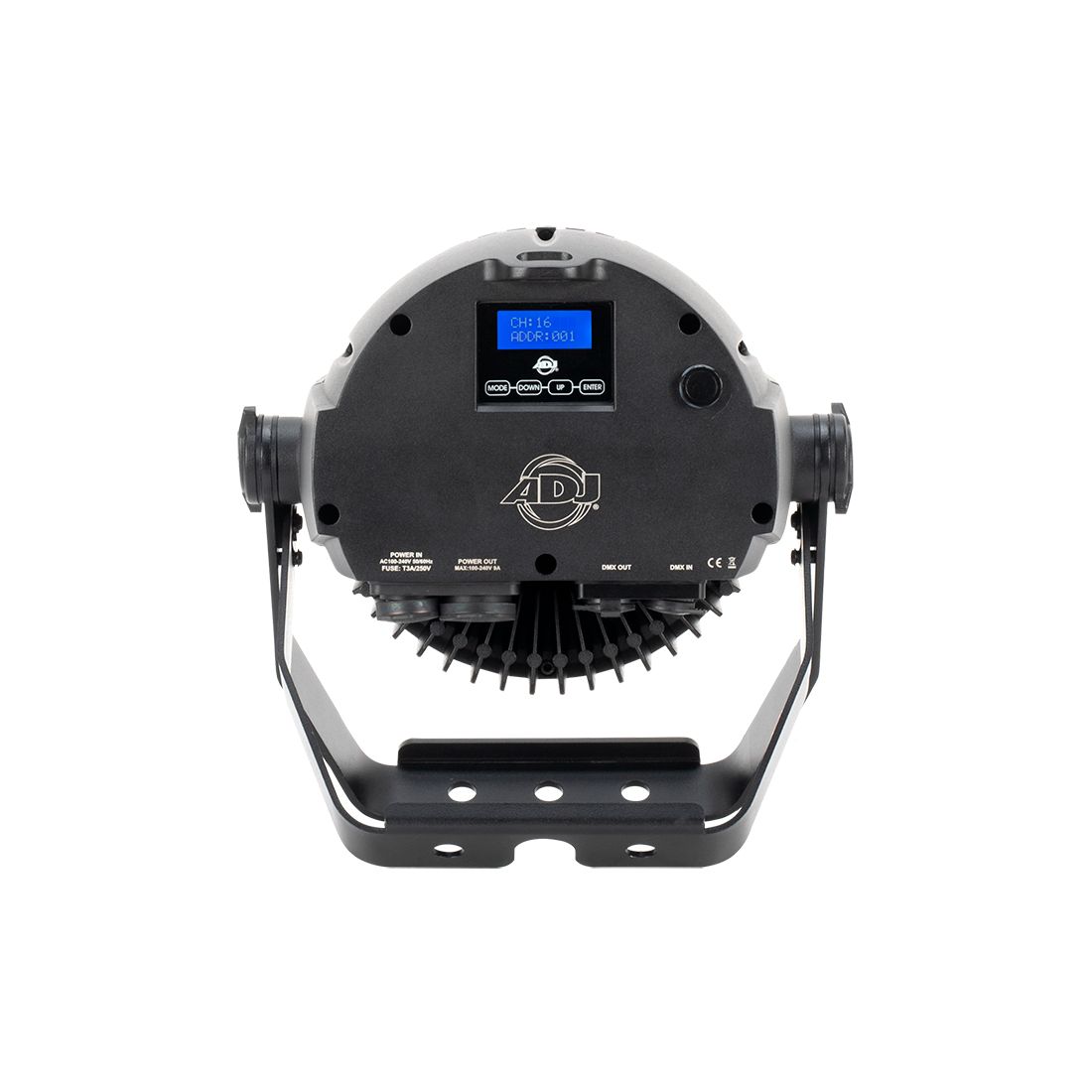

Interface

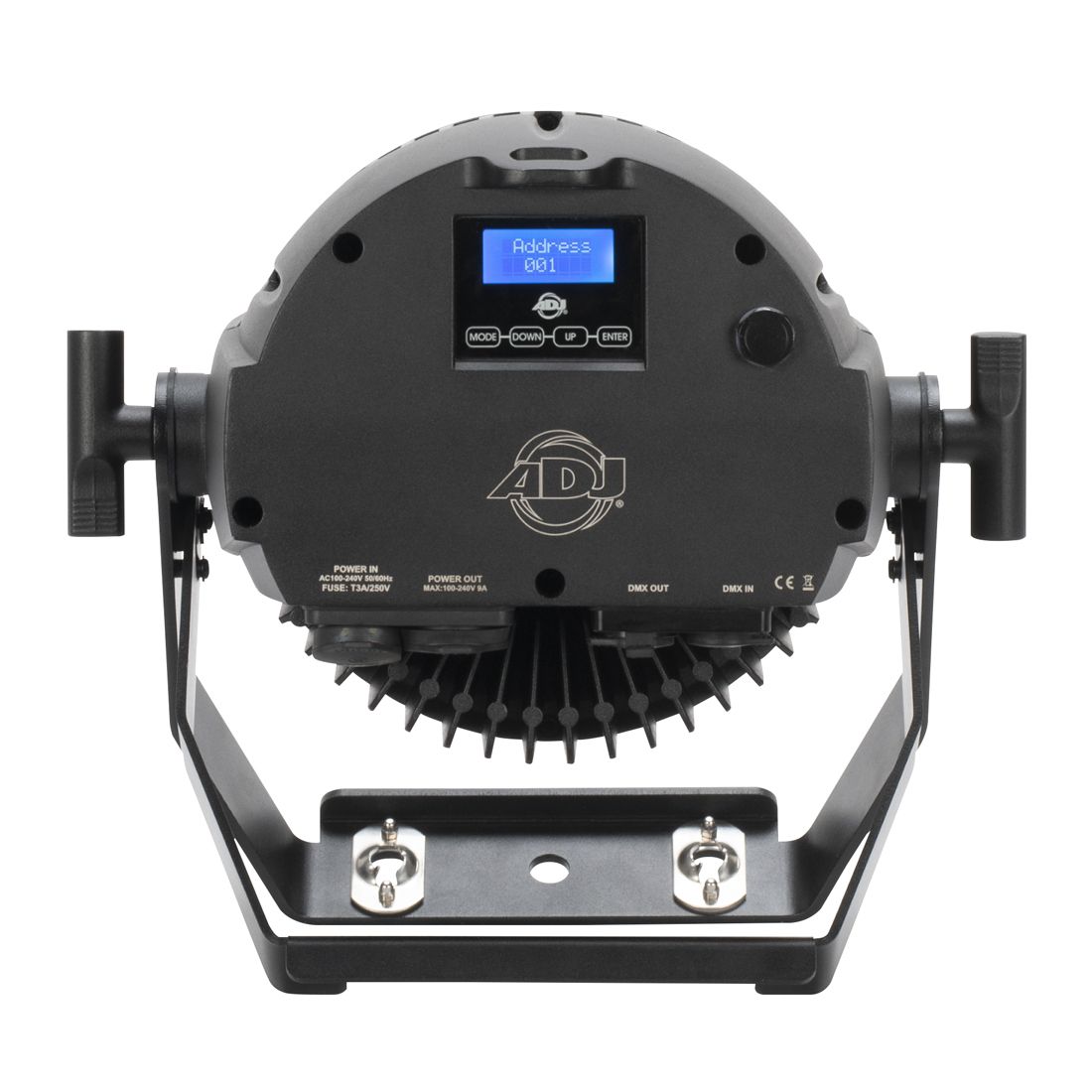

DIP switches and LED indicators for DMX address and mode (some models may feature an LCD display)
IP Rating
IP65 (Dust-tight and protected against water jets from any direction)
Housing
Heavy-duty die-cast aluminum, fully sealed
Power Supply
Auto-switching 100-240V AC, 50/60Hz
Power Consumption
~200-250 Watts (substantial output)
Power Connection

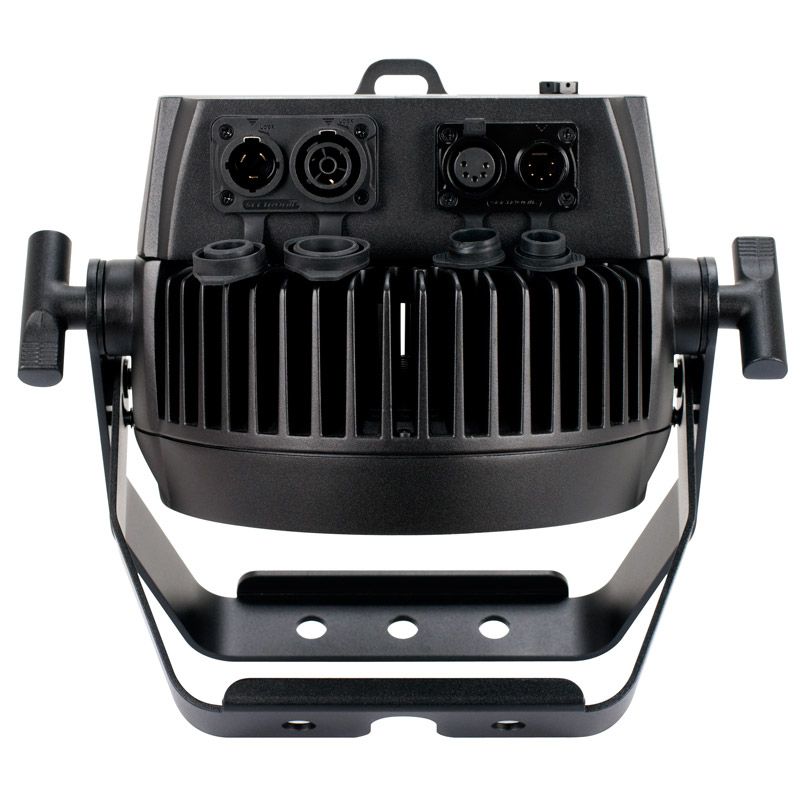

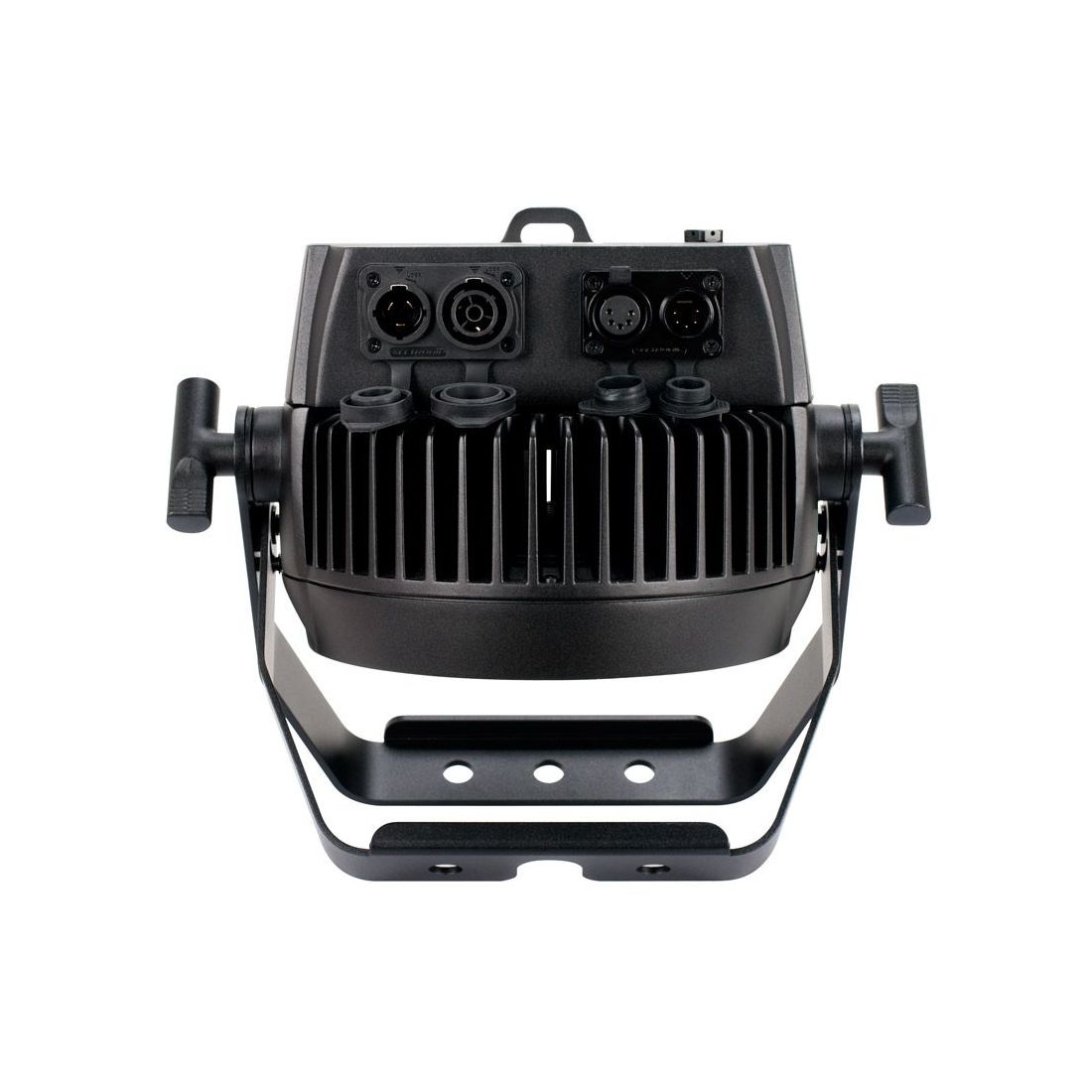

PowerCON TRUE1 In and Out (linkable) or equivalent robust, waterproof connector
Cooling
Passive cooling (no fan) due to efficient heat sink design and outdoor-rated components
Weight
Approx. 12-15 kg (26-33 lbs)
Dimensions (Body)
Approx. 330 x 330 x 450 mm (13" x 13" x 17.7") - size indicative of 12" lens
Mounting
Integrated heavy-duty yoke with multi-position tilt lock, U-bracket compatible, robust mounting points
Environmental & Durability
Sealing
Silicone gaskets on all seams, sealed lens assembly
Operating Temperature
Designed for a wide outdoor temperature range
Construction
Built to withstand vibration and environmental stress
Strobe
Electronic strobe effect
Programs
Built-in color chase, fade, and sound-activated programs
Safety Certifications
ETL, CE, RoHS compliant
Safety Features
Over-temperature protection, robust mounting points, safety cable eyelet
Typical Use
Large architectural facade lighting, outdoor concert stage wash, theme park installations, monument lighting, major event production.
