SKU: Focus Flex L19

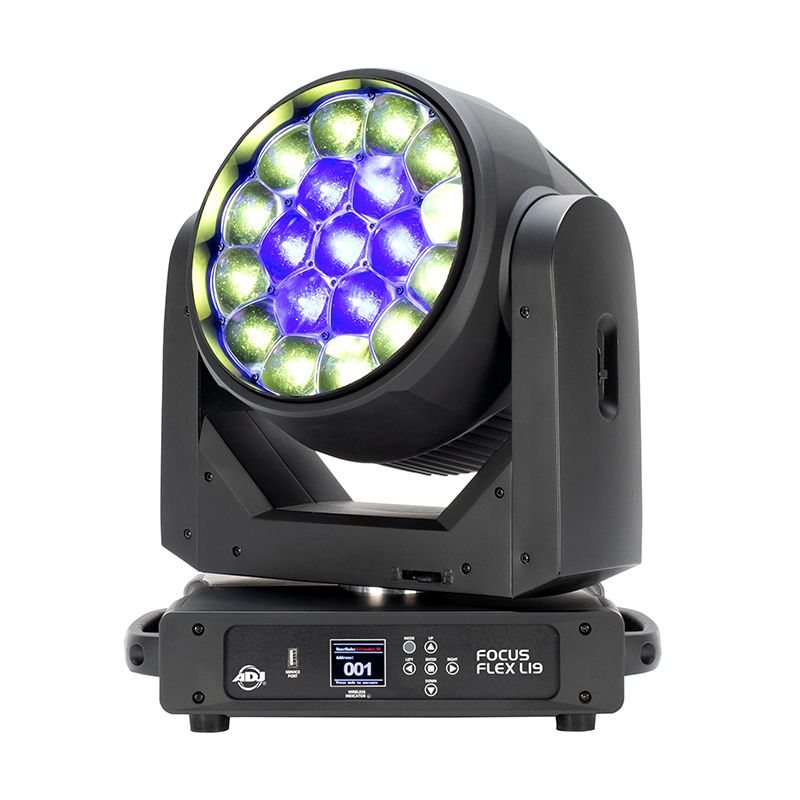

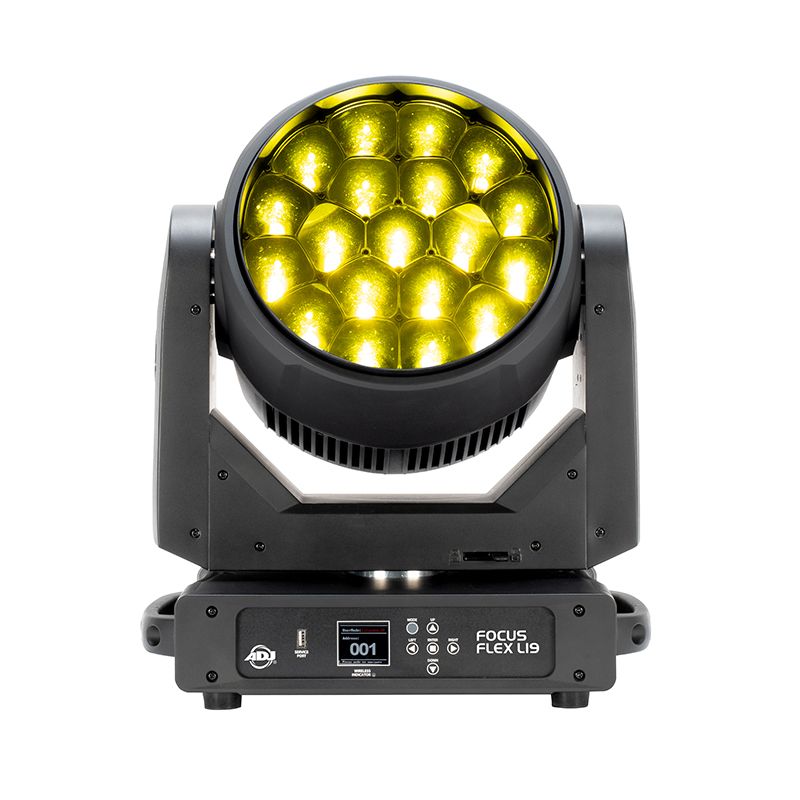

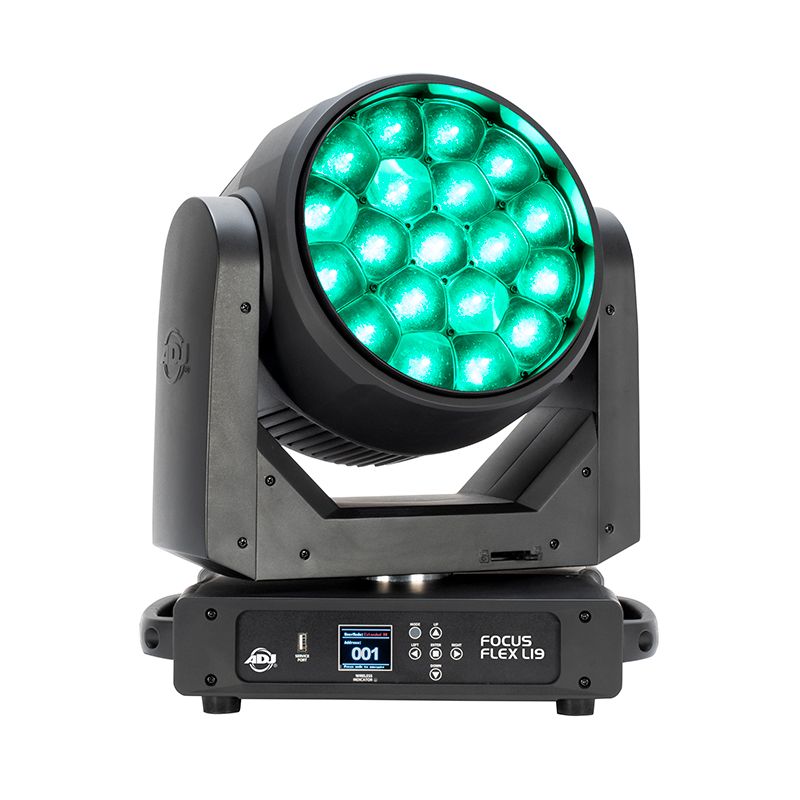

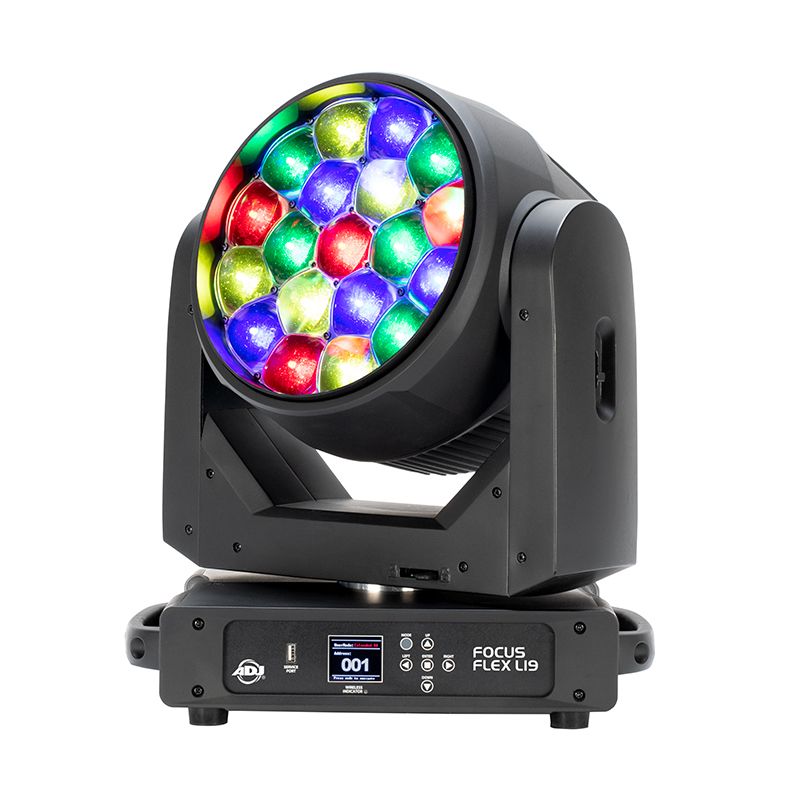

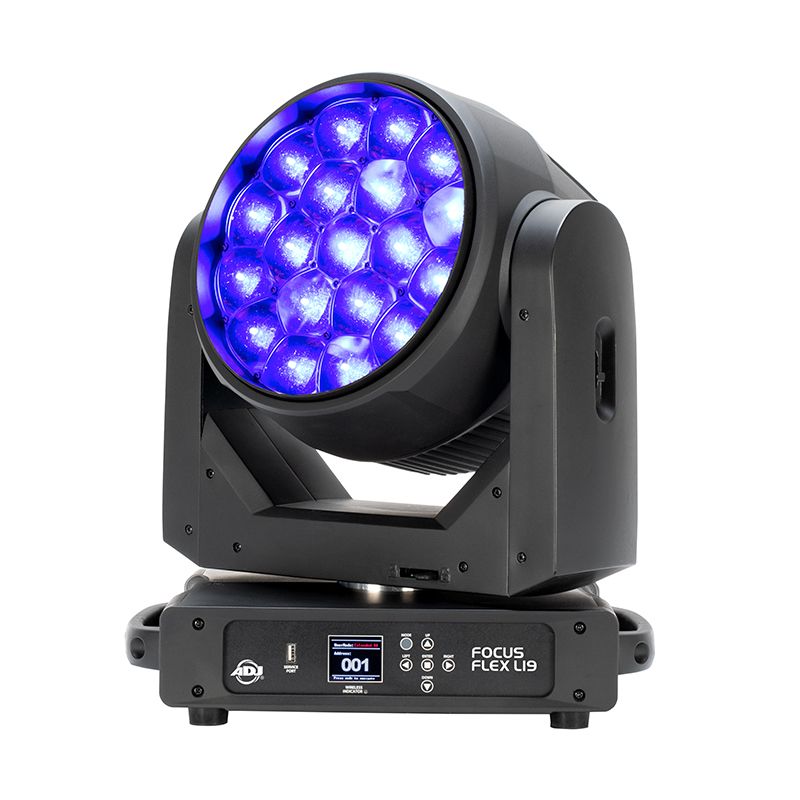

ADJ FOC747 Focus Flex L19 RGBL LED Moving Head w/ Pixel Effects

$2,369.20 - $3,479.99

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

Lighting designers in search of a fixture with creative flexibility for generating vibrant washes, punchy beams, and eye-catching pixel effects should look no further than the American DJ Focus Flex L19, a versatile moving head luminaire well suited for event production and rental houses as well as permanent installations in concert halls, theatres, nightclubs, and churches. The Focus Flex L19 is powered by 19 x 40W 4-in-1 (red, green, blue, lime) color-mixing LEDs, each of which can be controlled independently. It offers a motorized zoom with a variable field angle of 5 to 50°. With various DMX mode options appropriate for different applications, the Focus Flex L19 offers virtual background and foreground color-wheel control and virtual CMY color mixing as well as a choice of six DMX modes. The Focus Flex includes a locking power cord, two Omega brackets, a safety cable, and a WiFLY antenna. Read more

Features

  • Moving light pixel wash
  • Individual pixel control
  • Built-in pixel effect programs
  • Electronic strobe / dimmer
  • Pan/Tilt: 540/630 x 260
  • Beam Angle: 4.3° to 29°
  • Field Angle: 5° to 50°
  • Color calibrated pixels, so units match from batch to batch
  • Virtual CMY DMX control modes
  • Virtual foreground and background color wheel control
  • Selectable LED refresh rates (900 Hz to 25 kHz)
  • Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2, and user settable
  • Dim Speed (0.1 to 10s)
  • 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
  • 0-100% smooth dimming
  • Fan cooled
  • Antenna for WiFLY EXR Wireless DMX

Business Financing Options Avaiable

View Available Financing

Lighting designers in search of a fixture with creative flexibility for generating vibrant washes, punchy beams, and eye-catching pixel effects should look no further than the American DJ Focus Flex L19, a versatile moving head luminaire well suited for event production and rental houses as well as permanent installations in concert halls, theatres, nightclubs, and churches. The Focus Flex L19 is powered by 19 x 40W 4-in-1 (red, green, blue, lime) color-mixing LEDs, each of which can be controlled independently. It offers a motorized zoom with a variable field angle of 5 to 50°. With various DMX mode options appropriate for different applications, the Focus Flex L19 offers virtual background and foreground color-wheel control and virtual CMY color mixing as well as a choice of six DMX modes. The Focus Flex includes a locking power cord, two Omega brackets, a safety cable, and a WiFLY antenna. Read more

Features

  • Moving light pixel wash
  • Individual pixel control
  • Built-in pixel effect programs
  • Electronic strobe / dimmer
  • Pan/Tilt: 540/630 x 260
  • Beam Angle: 4.3° to 29°
  • Field Angle: 5° to 50°
  • Color calibrated pixels, so units match from batch to batch
  • Virtual CMY DMX control modes
  • Virtual foreground and background color wheel control
  • Selectable LED refresh rates (900 Hz to 25 kHz)
  • Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2, and user settable
  • Dim Speed (0.1 to 10s)
  • 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
  • 0-100% smooth dimming
  • Fan cooled
  • Antenna for WiFLY EXR Wireless DMX

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the ADJ FOC747 Focus Flex L19 RGBL LED Moving Head w/ Pixel Effects

The ADJ FOC747 Focus Flex L19 is an innovative moving head wash light that integrates individual pixel control into a conventional wash fixture, offering unique creative possibilities for dynamic stage and event lighting. This fixture utilizes a linear array of 19 high-output RGBL (Red, Green, Blue, Lime) LED modules, each of which can be addressed and controlled independently. This pixel-level control allows the fixture to function not only as a traditional color wash, flooding an area with uniform color, but also as a dynamic effects engine capable of producing color chases, gradients, patterns, and even basic bitmap animations across its face.

The inclusion of a dedicated lime (L) LED significantly enhances the fixture's color gamut, particularly in the green-yellow-amber spectrum, resulting in more vibrant and natural-looking colors, especially for foliage, skin tones, and rich pastels. The fixture maintains all the expected features of a professional moving head, including smooth and quiet 16-bit pan and tilt movement for precise positioning. Its optical system is designed around a wide 19-degree beam angle, optimized for providing even, soft-edged coverage ideal for washing stages, backdrops, and architectural elements.

Control is highly versatile, supporting standard DMX-512 for detailed console programming (requiring a high channel count for full pixel mapping), master/slave operation, and standalone modes with built-in pixel effects. The efficient LED engine provides bright output with lower power consumption and heat. By merging the broad, even illumination of a wash light with the detailed, animated capabilities of pixel mapping, the Focus Flex L19 provides lighting designers with a powerful hybrid tool to create both foundational color washes and intricate, moving light textures within a single fixture.

Key Features

  • Moving light pixel wash
  • Individual pixel control
  • Built-in pixel effect programs
  • Electronic strobe / dimmer
  • Pan/Tilt: 540/630 x 260
  • Beam Angle: 4.3° to 29°
  • Field Angle: 5° to 50°
  • Color calibrated pixels, so units match from batch to batch
  • Virtual CMY DMX control modes
  • Virtual foreground and background color wheel control
  • Selectable LED refresh rates (900 Hz to 25 kHz)
  • Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2, and user settable
  • Dim Speed (0.1 to 10s)
  • 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
  • 0-100% smooth dimming
  • Fan cooled
  • Antenna for WiFLY EXR Wireless DMX

Already own this item and want to sell it?

Click here to sell your item

ADJ FOC747 Focus Flex L19 RGBL LED Moving Head w/ Pixel Effects Specs

General
Product Model
FOC747 Focus Flex L19
Type
Pixel-Mappable RGBL LED Moving Head Wash
LED Modules
19 Independently controllable RGBL pixels
Light Source
LED Type per Module
RGBL (Red, Green, Blue, Lime)
Color System
Color Mixing
Independent RGBL control per pixel
Color Gamut
Extended via lime LED
Optical System
Beam Type
Wash
Beam Angle
19 degrees (fixed)
Focus
Fixed lens for even field
Movement
Pan Range
540 degrees
Tilt Range
270 degrees
Control & Effects
Control Protocol
DMX-512, Master/Slave, Standalone
DMX Channels
Extensive for full pixel control (e.g., 100+ channels)
Pixel Effects
Color chases, gradients, patterns, built-in animations
Physical
Housing Material
Die-cast aluminum and plastic composite
Cooling
Fan-assisted
Mounting
Integrated yoke with safety lock
Power & Connectivity
Power Supply
100-240V AC, 50/60 Hz
Power Consumption
Approximately 200W

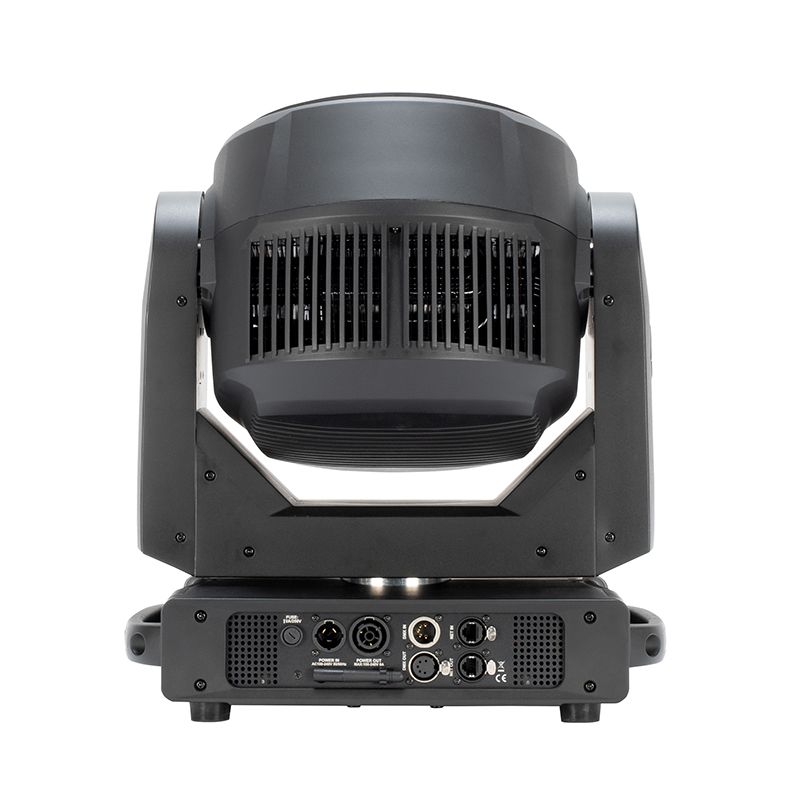

Connectors
PowerCON TRUE1 In/Out, 3-pin XLR DMX In/Out

Key Features

  • Moving light pixel wash
  • Individual pixel control
  • Built-in pixel effect programs
  • Electronic strobe / dimmer
  • Pan/Tilt: 540/630 x 260
  • Beam Angle: 4.3° to 29°
  • Field Angle: 5° to 50°
  • Color calibrated pixels, so units match from batch to batch
  • Virtual CMY DMX control modes
  • Virtual foreground and background color wheel control
  • Selectable LED refresh rates (900 Hz to 25 kHz)
  • Selectable Dim Modes: Standard, Stage, TV, Arch., Theatre, Stage 2, and user settable
  • Dim Speed (0.1 to 10s)
  • 4 Dim Curves: Square, Linear, Inv. Square, and S. Curve
  • 0-100% smooth dimming
  • Fan cooled
  • Antenna for WiFLY EXR Wireless DMX

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ FOC747 Focus Flex L19 RGBL LED Moving Head w/ Pixel Effects

What is the ADJ Focus Flex L19, and how does it differ from other moving heads in the Focus Flex series?

The Focus Flex L19 is a high-output moving head wash/beam fixture equipped with nineteen 40-Watt RGBL (Red, Green, Blue, Lime) LEDs. Compared to 7-pixel models, its larger 19-LED array delivers significantly higher lumen output and expanded pixel-mapping surface area for large-stage production.

What advantages does the RGBL color engine offer?

The addition of the lime LED chip fills the spectrum gap between green and white, producing higher CRI levels, vibrant saturated colors, and smooth pastels. It also enables tunable white color temperature control ranging from 2700K to 10,000K for television, film, and theatrical applications.

What is the zoom range on the Focus Flex L19?

It features a motorized zoom system that adjusts the beam angle from a tight $5^\circ$ beam up to a broad $50^\circ$ wash spread. This wide zoom capability allows the fixture to transition instantly from narrow mid-air beam effects to wide stage coverage.

What pixel effects and mapping capabilities are available?

Each of the 19 RGBL LEDs can be pixel-mapped independently, giving programmers individual control over color and intensity for every chip. It also includes pre-programmed pixel macro effects and ring control to quickly build visual eye-candy patterns without custom channel mapping.

What control protocols and data connections are supported?

It supports standard DMX, RDM, Art-Net, and sACN control protocols. Connectivity includes locking 5-pin XLR DMX input/output sockets as well as dual RJ45 etherCON network ports for high-speed data pass-through.

How fast and smooth are the motorized movements?

Driven by high-torque 16-bit stepper motors, it delivers fast $540^\circ$ pan and $260^\circ$ tilt motion. It features 16-bit fine pan/tilt control for precise positioning and smooth, fluid movement during slow-motion sweeps.

How is the fixture mounted or rigged in a lighting setup?

The unit comes equipped with quick-lock Omega brackets for fast attachment of standard lighting clamps to hang from trussing. It also includes sturdy side handles on the base for comfortable transport and positioning on flat surfaces.

Can power and data be daisy-chained across multiple units?

Yes, it features locking indoor/outdoor-style power input and output connectors to safely loop AC power across multiple fixtures on a single circuit. Control lines can be looped through the XLR ports or daisy-chained via its dual etherCON network ports.
