ADJ

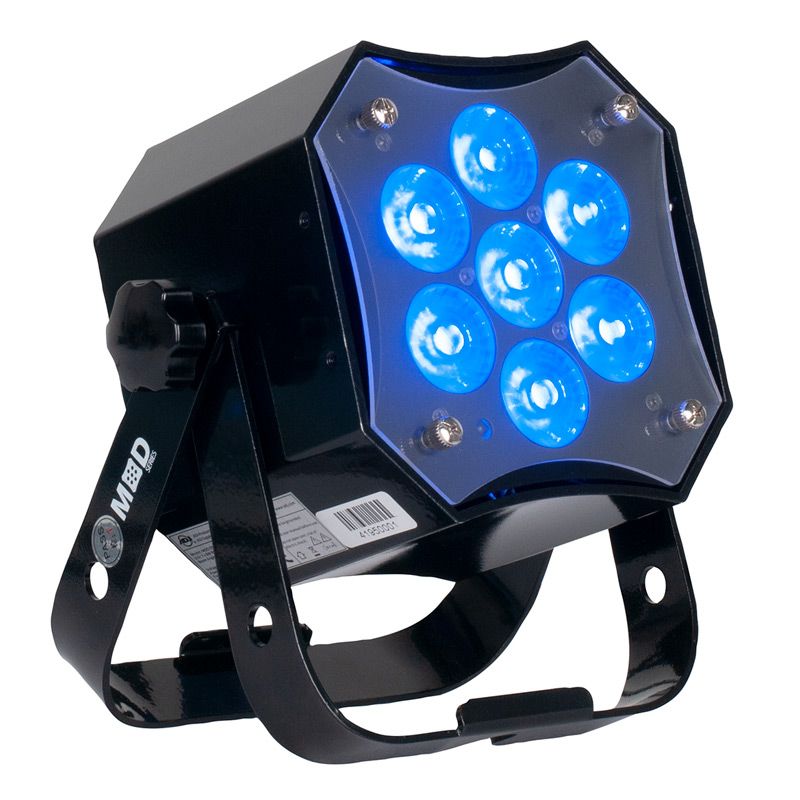

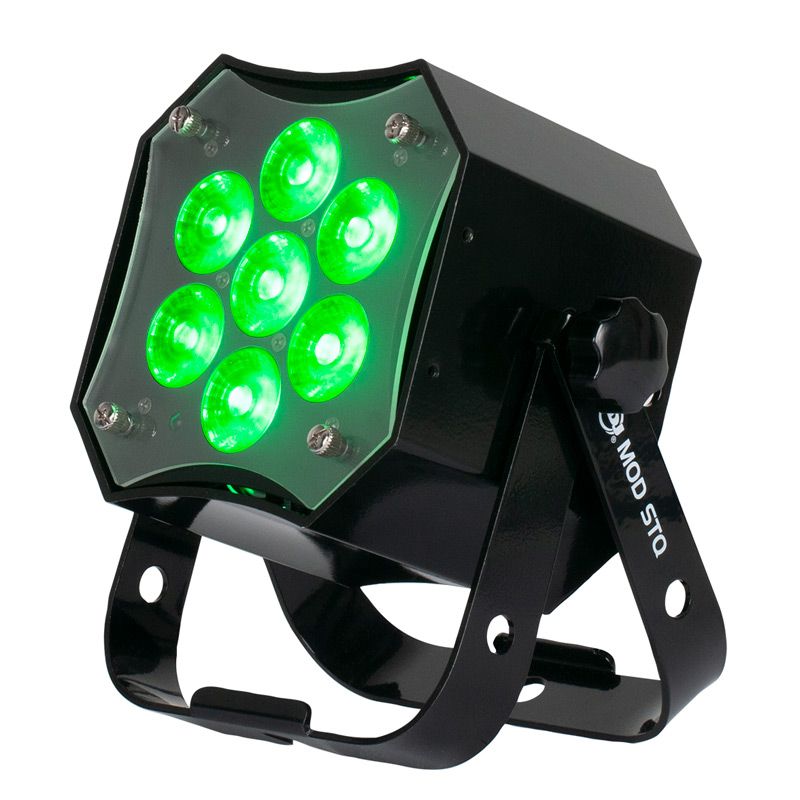

ADJ MOD245 MOD STQ Compact High-Output Low-Power Draw LED Par Wash Fixture

$197.31 - $289.99

The ADJ MOD STQ is compact, high out, low power draw LED Par used as a wash fixture powered by seven 8-Watt RGBW (4-IN-1) LED diodes, a scissor yoke and four beam angle options: 17, 20, 40 or 60-degrees.

View Product Features

  • Compact, black gloss metal housing

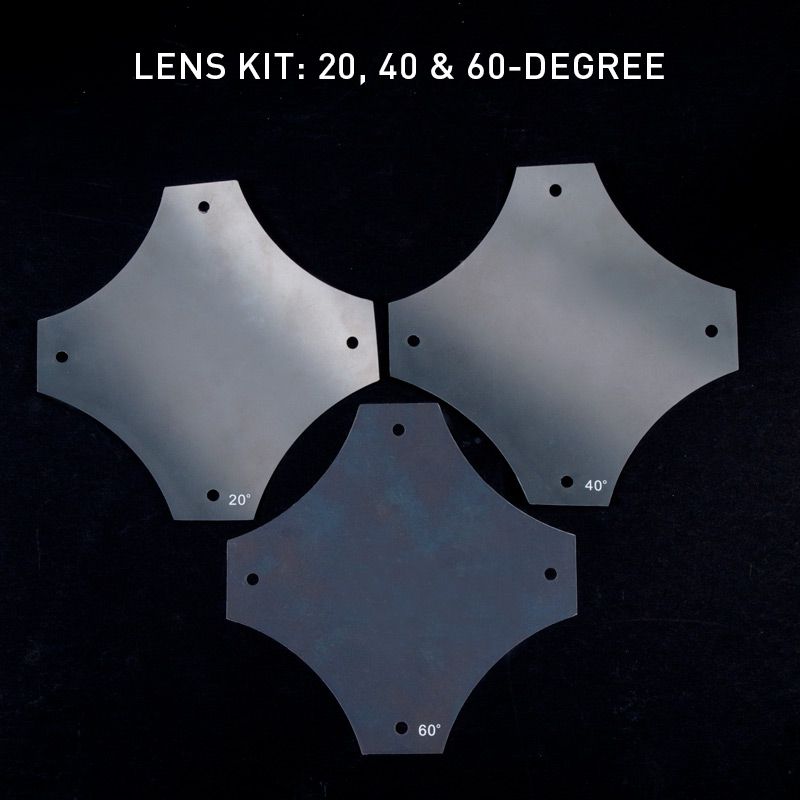

  • Includes 3 frost filters to change beam angle: 20-degree, 40-degree or 60-degree
  • Scissor yoke included
  • Interchangeable Beam Angles
  • Power & Control Features


In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the ADJ MOD245 MOD STQ Compact High-Output Low-Power Draw LED Par Wash Fixture

The ADJ MOD245 MOD STQ is a compact, efficient, and affordable LED par can designed for static wash lighting applications. It belongs to ADJ's "MOD" series, which emphasizes modularity and modern LED efficiency in a simple, durable package. This fixture is engineered as a direct and superior replacement for traditional high-wattage PAR cans (like PAR 64s with 500W+ halogen lamps), offering dramatic reductions in power consumption and heat output while providing vibrant, mixable color and smooth dimming. It's a versatile workhorse suitable for small to medium venues, including clubs, bars, churches, stages, and mobile DJ setups.

The fixture features a quad-color LED array, utilizing a combination of Red, Green, Blue, and White LEDs. This "STQ" (Super-bright Triple Quad) system allows for a wide gamut of saturated colors, pastels, and a variable white light output. The design uses multiple lower-wattage LEDs densely packed behind a textured Fresnel lens to create a smooth, even field of light without the distracting individual LED "dots" common in early LED pars. It offers both DMX controllability for integration into a professional lighting rig and a standalone mode with sound activation and built-in programs for simple, plug-and-play operation.

Housed in a lightweight yet rugged aluminum casing with an integrated yoke, the MOD STQ is built for durability and ease of use. Its compact size and standard mounting options make it easy to deploy in tight spaces or on crowded trusses. With no moving parts, it is a highly reliable fixture with a long operational lifespan. Its primary value proposition is delivering professional-quality color wash lighting with the energy savings and cool operation of LED technology at an accessible price point, making LED upgrading practical for a broad range of users.

Key Features

  • Compact, black gloss metal housing
  • Includes 3 frost filters to change beam angle: 20-degree, 40-degree or 60-degree
  • Scissor yoke included
  • Interchangeable Beam Angles
  • Power & Control Features


ADJ MOD245 MOD STQ Compact High-Output Low-Power Draw LED Par Wash Fixture Specs

Optical System & Light Source
Light Source
Quad-color LED array (Red, Green, Blue, White) - "STQ" type
Total LED Count
72 LEDs (18 of each color: R, G, B, W)
Equivalent Wattage
Replaces traditional 500W+ PAR cans
Beam Angle
Wide, typically ~25° (fixed, via Fresnel lens)
Color Mixing
Full RGBW mixing for a wide color palette
White Light Output
Variable cool to warm white from color mixing
Dimming
0-100% smooth electronic dimming
Control & Operation
Control Protocol
DMX-512 (3-pin)
DMX Channels
4-channel mode (typically: Red, Green, Blue, Master Dimmer/Strobe)
Control Modes
DMX, Master/Slave, Sound-Active, Standalone with built-in programs
Standalone Programs
Multiple auto color chase and fade programs
Sensitivity Control
Adjustable for sound-active mode
Physical & Electrical
Power Supply
Internal, auto-switching (100-240V AC, 50/60Hz)
Power Consumption
Very low, approximately 45 Watts
Power Connection
Integrated power cable (IEC C13) or specified plug type depending on region
Housing
Durable aluminum construction
Cooling
Passive cooling (no fan), silent operation
Weight
Approx. 2.7 kg (6 lbs)
Dimensions (Body)
Approx. 245 x 215 x 165 mm (9.6" x 8.5" x 6.5")
Mounting
Integrated 90° yoke with standard 1/4-turn mounting, U-bracket compatible
Lens
Textured Fresnel lens for smooth beam

Key Features

  • Compact, black gloss metal housing
  • Includes 3 frost filters to change beam angle: 20-degree, 40-degree or 60-degree
  • Scissor yoke included
  • Interchangeable Beam Angles
  • Power & Control Features
