ADJ myDMX-RM Rackmount DMX Control Software/Hardware System

Name: ADJ myDMX-RM Rackmount DMX Control Software/Hardware System
Brand: AVGear.com
Availability: OutOfStock

Items Included

Item Notes

Condition: Out of stock

Once stock replenishes, inventory will display below.

Pre-Owned Guarantee 14 Day Return Window

Trade-In & SAVE Click Here To Get Started

Description

Building upon the success of the myDMX 3.0 DMX controller and software, the American DJ myDMX-RM is a Windows and Mac OS X compatible multi-platform DMX control software/hardware system, built into a 19" 1 RU rackmount interface that functions as a hardware dongle and includes 16 front-panel triggers for recalling 16 pre-set shows without the need of a connected computer. The myDMX-RM is a great solution for a lighting designer to leave at a venue so that their staff can trigger lighting scenes without the use of a computer or myDMX software. Read more

Features

Standalone operation: Recalls saved scenes without a computer.
16 trigger buttons: Assignable front-panel buttons for scene recall.
DMX channels: 512 live and 512 standalone channels.
Extensive fixture library: Wide range of fixture profiles available.
Drag-and-drop effects: Intuitive software for creating lighting effects.

Business Financing Options Avaiable

View Available Financing

Features

Standalone operation: Recalls saved scenes without a computer.
16 trigger buttons: Assignable front-panel buttons for scene recall.
DMX channels: 512 live and 512 standalone channels.
Extensive fixture library: Wide range of fixture profiles available.
Drag-and-drop effects: Intuitive software for creating lighting effects.

No products currently in stock

About the ADJ myDMX-RM Rackmount DMX Control Software/Hardware System

The ADJ myDMX-RM is a comprehensive rack-mountable DMX control system that combines dedicated hardware with sophisticated software to offer a professional lighting control solution. This integrated unit provides a complete package for managing intelligent lighting fixtures, LEDs, and dimmers, making it suitable for mobile DJs, nightclubs, theaters, and event production companies. At its core is a reliable hardware interface that outputs a full 512 DMX channels per universe via a standard 5-pin XLR connector, ensuring robust and stable communication with a wide array of lighting equipment. The system is designed for ease of use, featuring a built-in touchscreen display and rotary encoder on the front panel for direct hardware control, allowing for basic operation without a connected computer.

The true power of the myDMX-RM is unlocked through its included myDMX 3.0 software, which provides a rich, visual environment for creating and executing complex lighting shows. The software features an intuitive graphical interface with drag-and-drop functionality, a vast built-in library of fixture profiles, and a powerful pixel mapper for advanced LED matrix control. Users can program intricate chases, cues, and shows using a timeline-based editor, and trigger them via MIDI, timecode, or an audio beat detector. The system supports real-time manual control through virtual faders and effects generators, offering a versatile workflow that accommodates both pre-programmed shows and spontaneous live manipulation.

Designed for the rigors of live performance, the myDMX-RM is housed in a durable 1U rack-mount metal chassis, making it a permanent and tidy addition to any equipment rack. It connects to a host computer via a high-speed USB 2.0 cable for software control, while the onboard processor and touchscreen allow for stand-alone playback of pre-programmed shows, providing a vital backup should the computer connection fail. This combination of hands-on hardware control and deep software capabilities makes the myDMX-RM a flexible and dependable all-in-one lighting control solution for professionals seeking a balance between creative power and operational reliability.

Key Features

Standalone operation: Recalls saved scenes without a computer.
16 trigger buttons: Assignable front-panel buttons for scene recall.
DMX channels: 512 live and 512 standalone channels.
Extensive fixture library: Wide range of fixture profiles available.
Drag-and-drop effects: Intuitive software for creating lighting effects.

Already own this item and want to sell it?

Click here to sell your item

ADJ myDMX-RM Rackmount DMX Control Software/Hardware System Specs

Control System

DMX Outputs

1 (Standard 5-pin XLR)

DMX Channels per Port

512

Control Interface

Front-panel touchscreen & encoder

Computer Connection

USB 2.0

Rack Units

Software Specifications

Fixture Library

>15,000 pre-programmed profiles

Visualizer

Integrated 3D OpenGL visualizer

Pixel Mapping

Full support for LED matrices

Control Protocols

DMX, MIDI, Art-Net, sACN

Programming & Playback

Show Timeline

Unlimited cues and chases

Trigger Sources

MIDI, Timecode, Audio, Manual

Audio Input

Software-based beat detection

Standalone Playback

Yes (from internal memory)

Physical & Electrical

Dimensions (WxDxH)

483 x 210 x 44 mm

Weight

2.1 kg

Power Supply

External 12V DC, 2A

Operating Temperature

0°C to 40°C

System Requirements

Operating System

Windows 10/11, macOS 10.14+

Processor

2.0 GHz multi-core

RAM

4 GB minimum

USB Ports

1 available (USB 2.0 or higher)

Key Features

Standalone operation: Recalls saved scenes without a computer.
16 trigger buttons: Assignable front-panel buttons for scene recall.
DMX channels: 512 live and 512 standalone channels.
Extensive fixture library: Wide range of fixture profiles available.
Drag-and-drop effects: Intuitive software for creating lighting effects.

Already own this item and want to sell it?

Click here to sell your item

FAQs about ADJ myDMX-RM Rackmount DMX Control Software/Hardware System

What is the ADJ myDMX-RM?

It is a 19-inch rackmountable multi-platform hardware/software DMX control interface designed for permanent installations, venues, bars, clubs, and production houses. It acts as both a USB-to-DMX computer interface and a standalone scene playback controller.

How many DMX channels and universes does the myDMX-RM support?

Out of the box, the hardware includes 512 live DMX channels across a single universe and 512 standalone channels stored onboard. It can be expanded up to 1,024 live channels (2 DMX universes) via optional software upgrades through the official store.

How does standalone mode function without a connected computer?

After programming light shows using the myDMX software on a PC or Mac, scenes can be written directly to the internal memory of the myDMX-RM. Once stored, the rack unit can trigger scenes autonomously without needing a laptop or computer connected.

What physical front-panel controls are featured on the rack housing?

The front fascia includes 16 touch-sensitive trigger buttons. These capacitive buttons allow venue staff, bartenders, or operators to manually trigger stored scenes, light shows, or color presets instantly without navigating complex software menus.

What software versions and operating systems are compatible?

The myDMX-RM works seamlessly with MyDMX 3.0 software and is compatible with both macOS and Windows PC operating systems. The software includes dynamic fixture profiling, 3D visualizers, advanced SSL2 profile creation, and scene generator FX tools.

What physical ports and signal connections are provided on the rear panel?

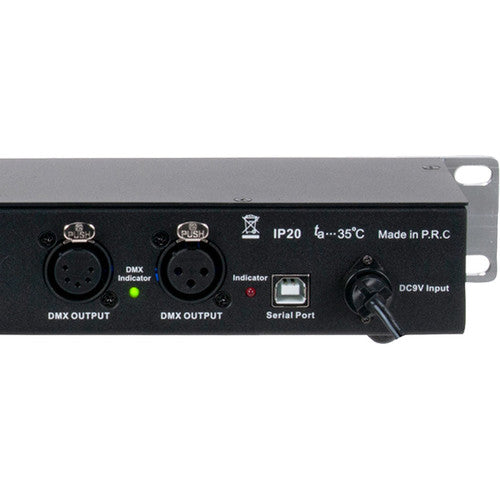

The rear panel provides both 3-pin and 5-pin XLR DMX output connectors for versatile lighting cable compatibility, a USB port for computer link/programming, and an external power supply jack.

What additional triggering options are supported for installation automation?

Beyond front-panel buttons, the unit features dry-contact port closure triggers on the rear. This allows external wall plates, lighting panels, or automation switches to trigger stored lighting scenes remotely across the venue.

What are the form factor, dimensions, and mounting specifications?

Built with a rugged steel enclosure designed to fit standard 19-inch equipment racks, the myDMX-RM occupies 1U of rack space. It measures 19.0" x 4.25" x 1.75" (482.5 x 108 x 44 mm) and weighs approximately 3.1 lbs (1.4 kg).
