SKU: Ultra LB18

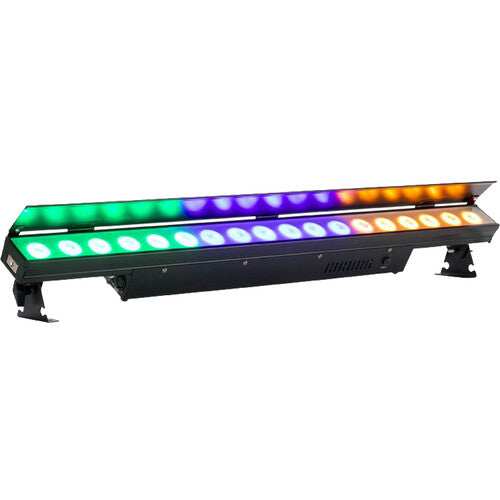

ADJ Ultra LB18 5-in-1 Color Mixing LED Linear Fixture

$619.99

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

Lighting designers in need of a bright, linear LED light strip should check out the American DJ Ultra LB18, a 40" versatile LED linear fixture that has 18 x 10W, 5-in-1 HEX LEDs (RGBA+Lime). The 17x40° beam angle makes it especially useful for wide washes and its dual mounting brackets also function as floor stands, making it ideal for uplighting applications. A glare shield is provided to block the LEDs from glare/view while offering protection during transport. Read more

Features

  • 18 × 10 W RGBAL LEDs (Red–Green–Blue–Amber–Lime)
  • Tunable White Range (2,300 K – 9,900 K)
  • Six Independent Zones + Pixel Flip & 64 Color Macros
  • Six Modes & Four Selectable Dim Curves

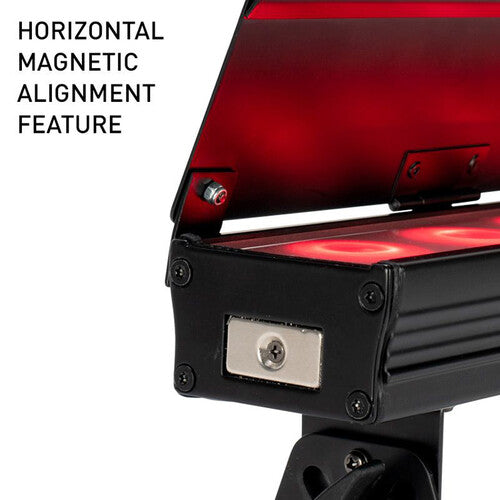

  • Magnetic Linking & Multi-Mounting Design

Business Financing Options Avaiable

Lighting designers in need of a bright, linear LED light strip should check out the American DJ Ultra LB18, a 40" versatile LED linear fixture that has 18 x 10W, 5-in-1 HEX LEDs (RGBA+Lime). The 17x40° beam angle makes it especially useful for wide washes and its dual mounting brackets also function as floor stands, making it ideal for uplighting applications. A glare shield is provided to block the LEDs from glare/view while offering protection during transport. Read more

Features

  • 18 × 10 W RGBAL LEDs (Red–Green–Blue–Amber–Lime)
  • Tunable White Range (2,300 K – 9,900 K)
  • Six Independent Zones + Pixel Flip & 64 Color Macros
  • Six Modes & Four Selectable Dim Curves
  • Magnetic Linking & Multi-Mounting Design

About the ADJ Ultra LB18 5-in-1 Color Mixing LED Linear Fixture

The ADJ Ultra LB18 is a versatile and dynamic LED linear fixture engineered to serve as a multi-functional workhorse for stage lighting, architectural accenting, and event design. Its core innovation lies in its 5-in-1 color mixing LED engine, which combines dedicated diodes for White, Amber, Green, Red, and Blue. This specific combination allows for a exceptionally broad and rich color palette, enabling the creation of everything from pure, vibrant saturated colors to nuanced pastels and a wide range of tunable white light—from a warm, golden amber-white to a cool, clinical blue-white. This flexibility makes it an invaluable tool for lighting designers who need to match specific brand colors, create mood-altering atmospheres, or provide consistent white light for camera work, all from a single fixture.

Designed in a sleek, low-profile linear housing, the Ultra LB18 is ideal for applications where a clean, modern look is essential. It can be used as a straight fixture for outlining structures, trusses, or stages, or its segments can be linked together to create longer continuous runs or geometric shapes. Beyond static color, it offers a range of dynamic effects including color chasing, fading, and strobing, controllable via DMX for integration into a professional lighting console rig. With multiple built-in operating modes like sound activation and auto programs, it also functions effectively in simpler setups without external control. Combining high output, rich color mixing, a flexible form factor, and robust construction, the ADJ Ultra LB18 provides a powerful and adaptive lighting solution for creating both bold statements and subtle accents in any live visual environment.

Key Features

  • 18 × 10 W RGBAL LEDs (Red–Green–Blue–Amber–Lime)
  • Tunable White Range (2,300 K – 9,900 K)
  • Six Independent Zones + Pixel Flip & 64 Color Macros
  • Six Modes & Four Selectable Dim Curves
  • Magnetic Linking & Multi-Mounting Design

ADJ Ultra LB18 5-in-1 Color Mixing LED Linear Fixture Specs

Light Source & Color Technology
LED Configuration
5-in-1 (Red, Green, Blue, Amber, White)
Color Mixing
Full RGB + Amber + White (RGBAW) independent control
Tunable White
Yes, via Amber and White LED combination
Color Reproduction
Wide gamut including deep saturated colors and pastels
Optical & Physical Design
Fixture Form
Linear (Bar) form factor
Housing Profile
Low-profile, sleek aluminum housing
Mounting Options
Multiple rigging points, compatible with standard clamps
Lens/Diffusion
Optical system for even color blending and soft edge
Control & Operation
Primary Control
DMX512
DMX Channel Modes
Multiple selectable modes (e.g., 6CH, 9CH, 12CH)
Standalone Modes
Sound-active, auto programs, master/slave
Dynamic Effects
Built-in color macros, chases, fades, strobe
Electrical & Performance
Power Consumption
Varies by model; typically medium-range wattage
Input Voltage
AC 100-240V, 50/60Hz (auto-switching)
Connection
IEC power inlet, 3-pin XLR for DMX In/Out
Brightness
High-output LEDs suitable for stage and architectural use
Additional Features
Construction
Robust design for touring and installation
Cooling
Passive or quiet active cooling system
IP Rating
Typically IP20 for indoor use; outdoor versions may differ

Key Features

  • 18 × 10 W RGBAL LEDs (Red–Green–Blue–Amber–Lime)
  • Tunable White Range (2,300 K – 9,900 K)
  • Six Independent Zones + Pixel Flip & 64 Color Macros
  • Six Modes & Four Selectable Dim Curves
  • Magnetic Linking & Multi-Mounting Design

FAQs about ADJ Ultra LB18 5-in-1 Color Mixing LED Linear Fixture

What type of LEDs power the ADJ Ultra LB18, and what colors can it produce?

The fixture features 18 x 10-Watt 5-in-1 5P Hex LEDs producing smooth color mixing across Red, Green, Blue, Amber, and Lime (RGBA+Lime) diodes. The addition of lime allows for rich pastels, vivid secondary colors, and higher CRI white light tones.

What is the beam angle and physical length of this linear light bar?

It features a broad 17x40-degree beam angle, making it ideal for smooth wall washing, floor uplighting, and stage horizon effects. The fixture chassis measures 39.3 inches (1 meter) in length.

Can you control sections of the light bar independently for pixel mapping?

Yes, the fixture features 6 independently controllable zones (3 LEDs per zone) when operated in advanced DMX modes. This allows you to create dynamic color chases, eye-candy linear patterns, and complex visual effects.

What control protocols and DMX options are supported?

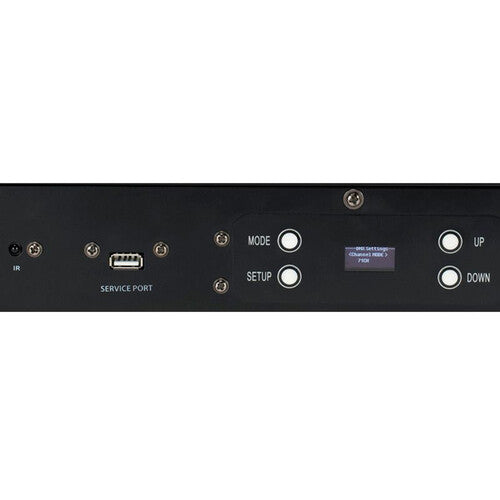

It supports standard 3-pin DMX input and output, alongside 6 operational modes and multiple DMX channel counts. It also includes an intuitive rear LCD menu display with a 4-button touch interface for manual setup.

Is the fixture compatible with wireless remotes?

Yes, it is compatible with the optional ADJ UC IR wireless remote and the Airstream IR app transmitter. These allow easy non-line-of-sight trigger control over blackout, dimming, static colors, and internal auto programs.

Can I daisy-chain AC power across multiple units?

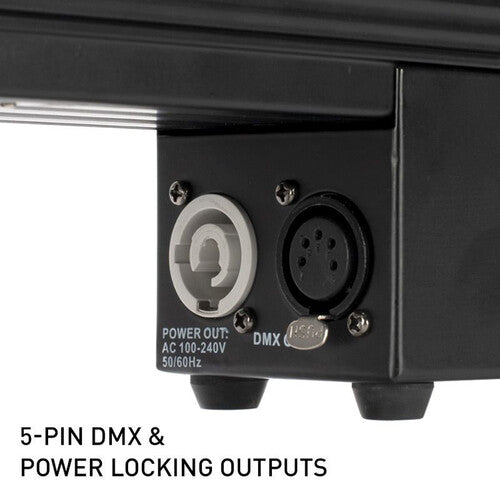

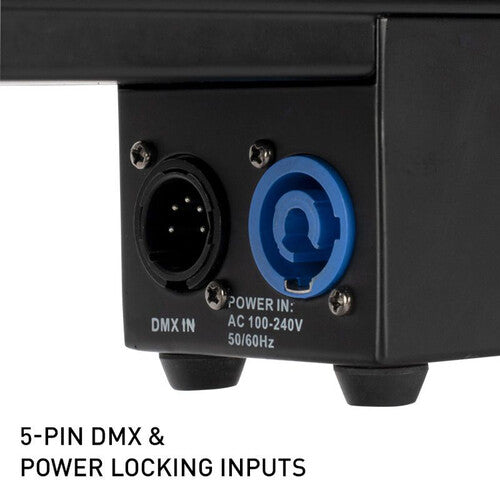

Yes, it features locking power input and output connections on the rear panel. You can power-link up to 12 fixtures sequentially at 120V or up to 24 fixtures at 240V off a single electrical circuit.

Is this fixture suitable for video broadcasts and theatrical productions?

Yes, it offers flicker-free operation with customizable LED refresh rates ranging from 900Hz to 25,000Hz to prevent camera banding. It also features 6 selectable dimming modes and 4 dimming curves tailored for film and stage environments.
