The ADJ DP-DMX20L is a professional-grade, rack-mountable DMX dimmer pack designed to control up to four channels of non-dimmed (switch) or dimmed incandescent or LED lighting fixtures. It serves as a crucial interface between a standard DMX lighting controller and traditional "dumb" lighting fixtures like PAR cans, strip lights, or certain LEDs that do not have built-in DMX decoders. This allows users to integrate these simple fixtures into a modern, DMX-controlled lighting rig, enabling console-based control over their intensity (dimmer channels) or on/off state (switch channels). Its 20-amp total capacity makes it suitable for small to medium-sized applications, such as mobile DJ setups, small stages, clubs, and houses of worship.

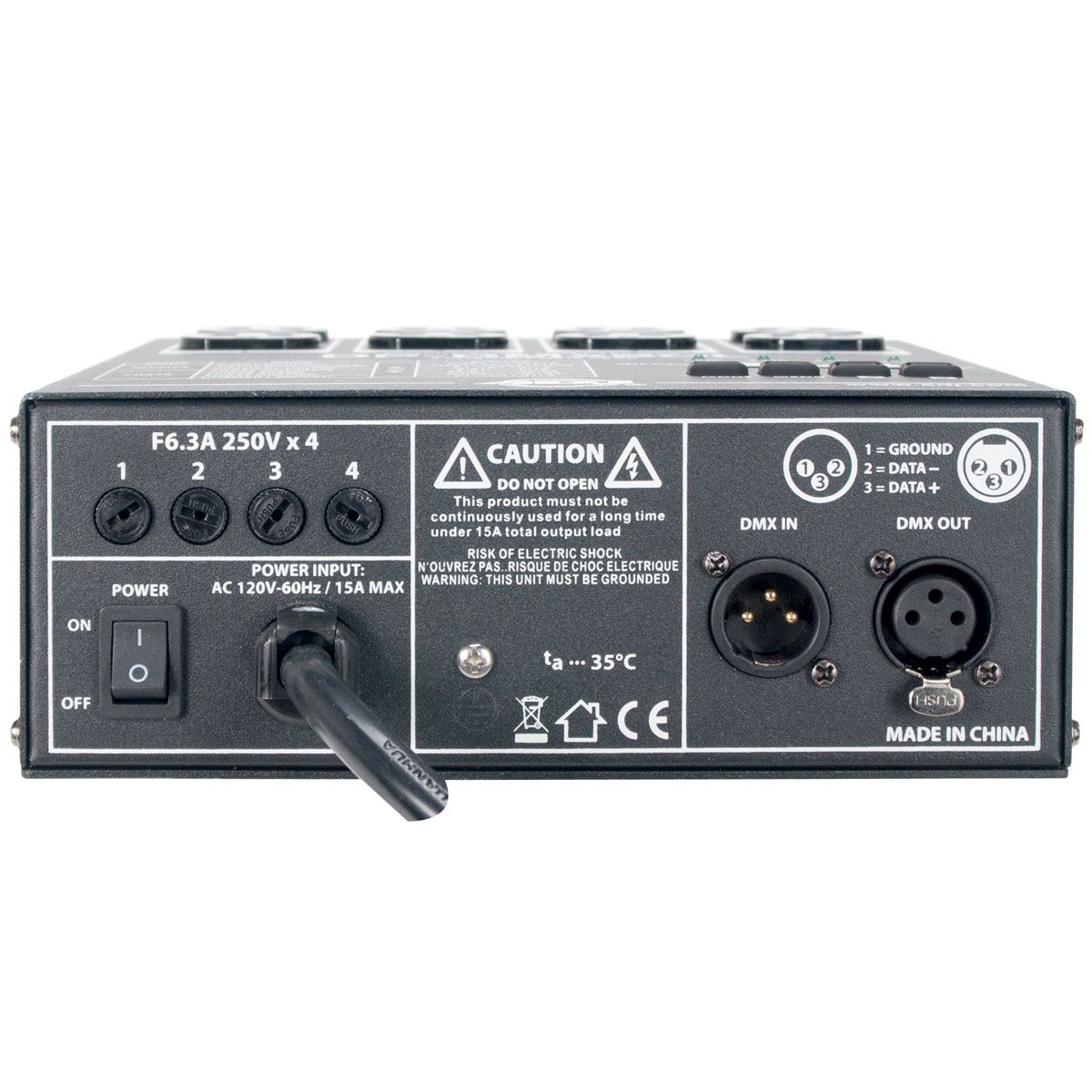

This dimmer pack is built for reliability and ease of use. Each of its four channels features a heavy-duty Neutrik PowerCON TRUE1 output connector, which is both secure and widely used in professional audio and lighting. The unit can operate in several modes: Dimmer Mode for smooth 0-100% control of incandescent lamps (using leading-edge phase-control dimming), Switch Mode for simple on/off control of electronic devices like fans, fog machines, or non-dimmable LEDs, and a Non-Dim mode that provides full power instantly. It includes comprehensive safety features such as electronic short-circuit protection, thermal overload protection, and a magnetic circuit breaker to prevent damage to the unit and connected fixtures.

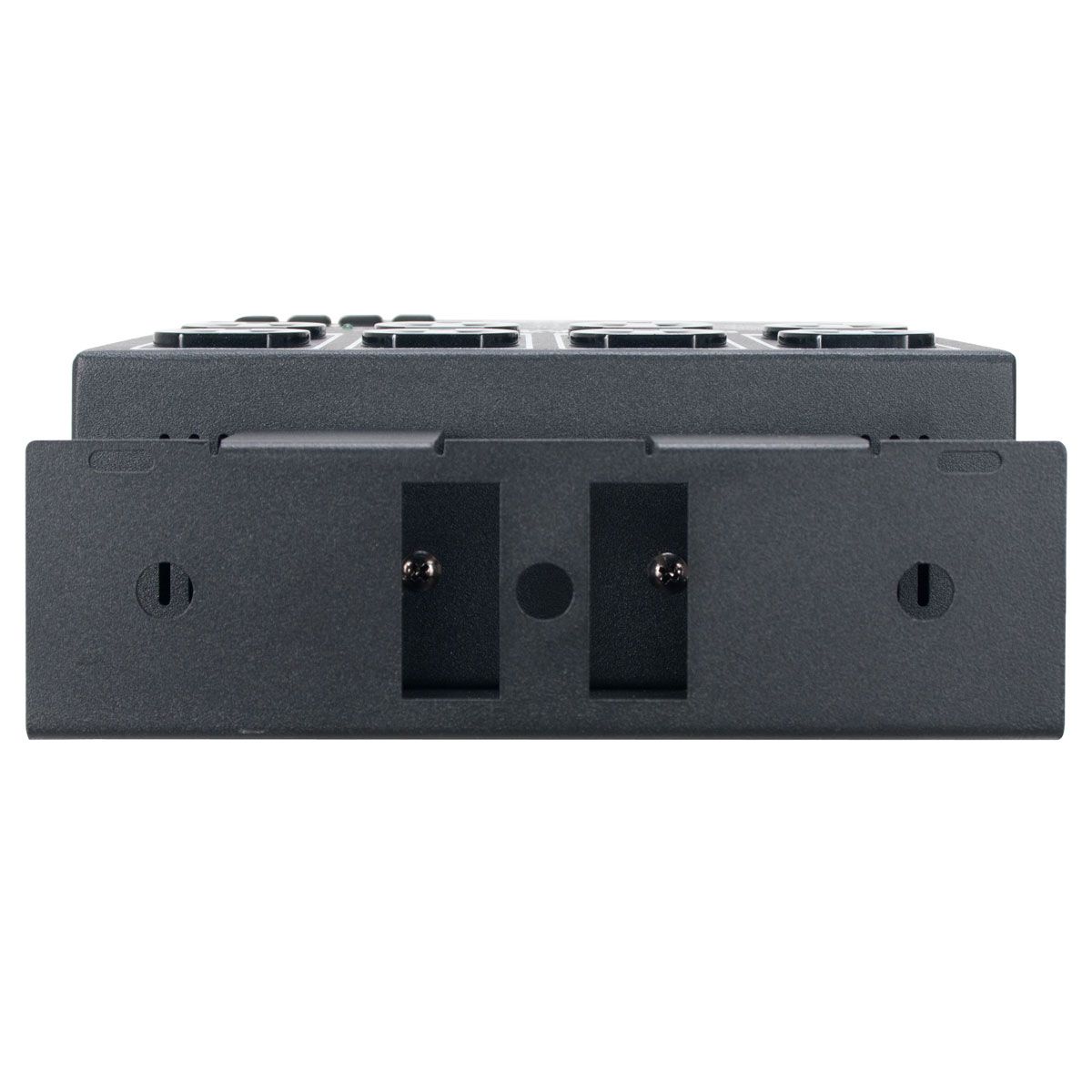

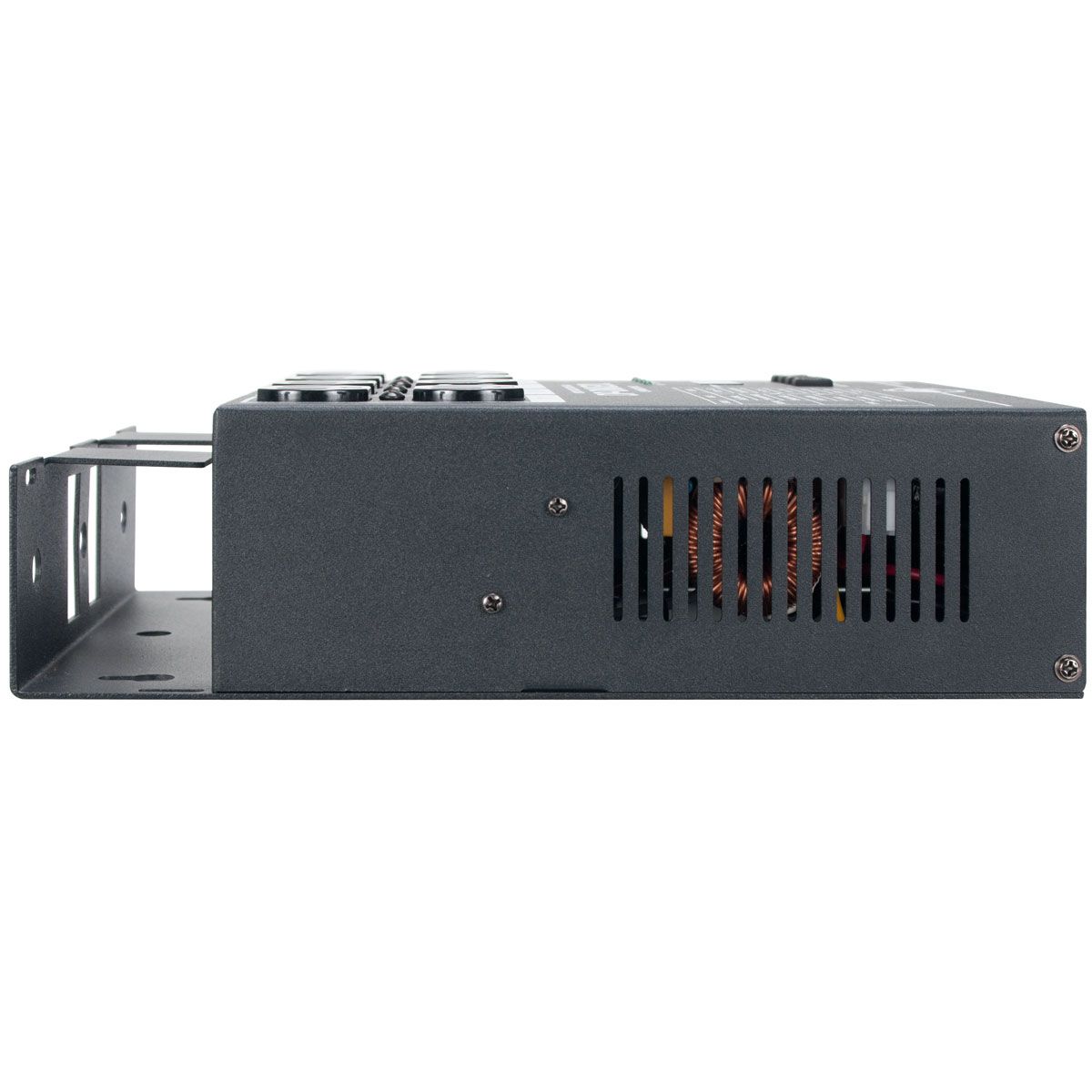

Housed in a sturdy steel rack-mount chassis (1U height), the DP-DMX20L is designed for both permanent installation and portable use. It features an intuitive front panel with individual channel level indicators, a large LCD display for DMX addressing and configuration, and manual sliders for testing each channel without a DMX controller. With its combination of robust power handling, versatile control modes, and professional connectivity, this dimmer pack is a fundamental tool for expanding the control capabilities of a basic lighting system.
