ADJ

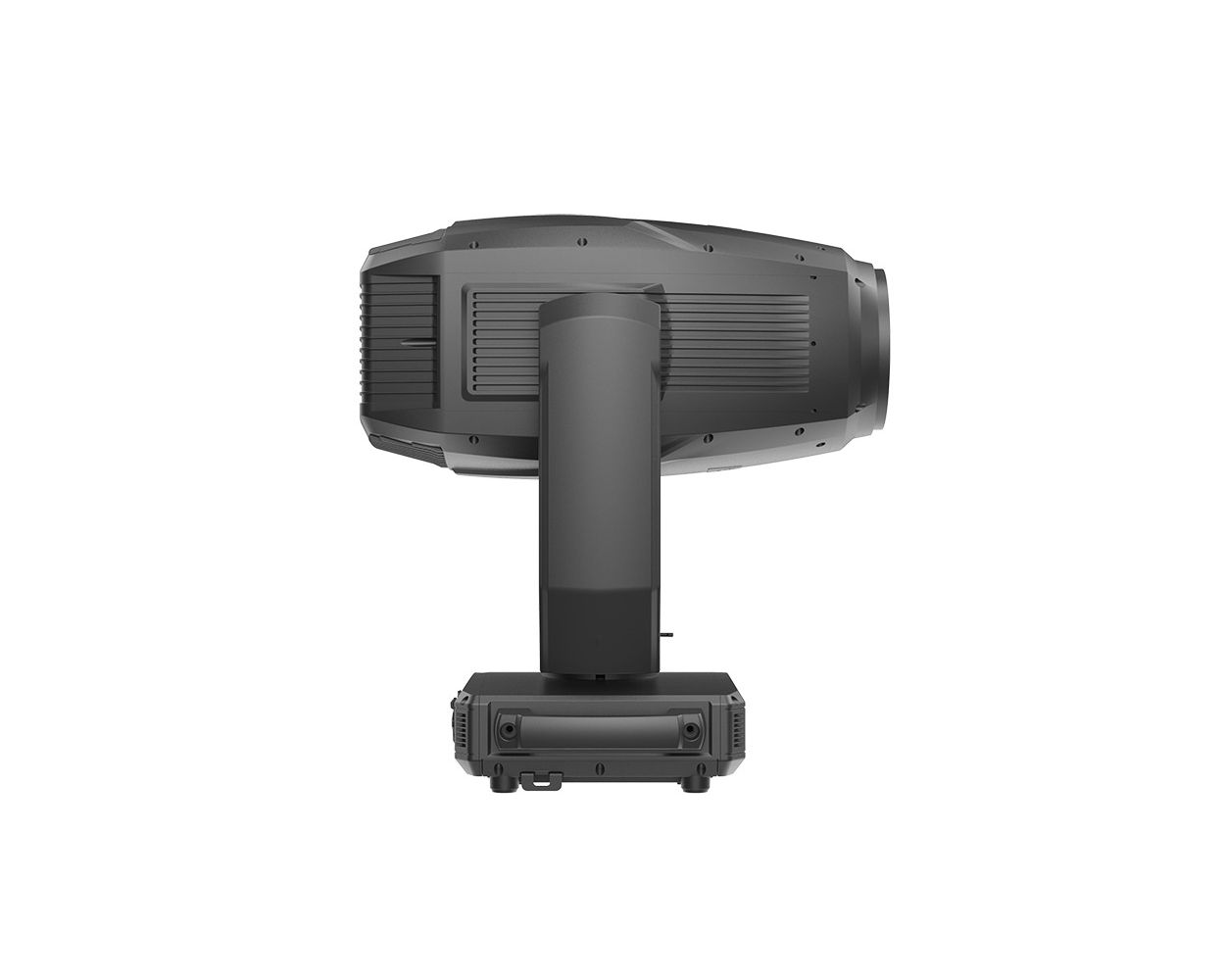

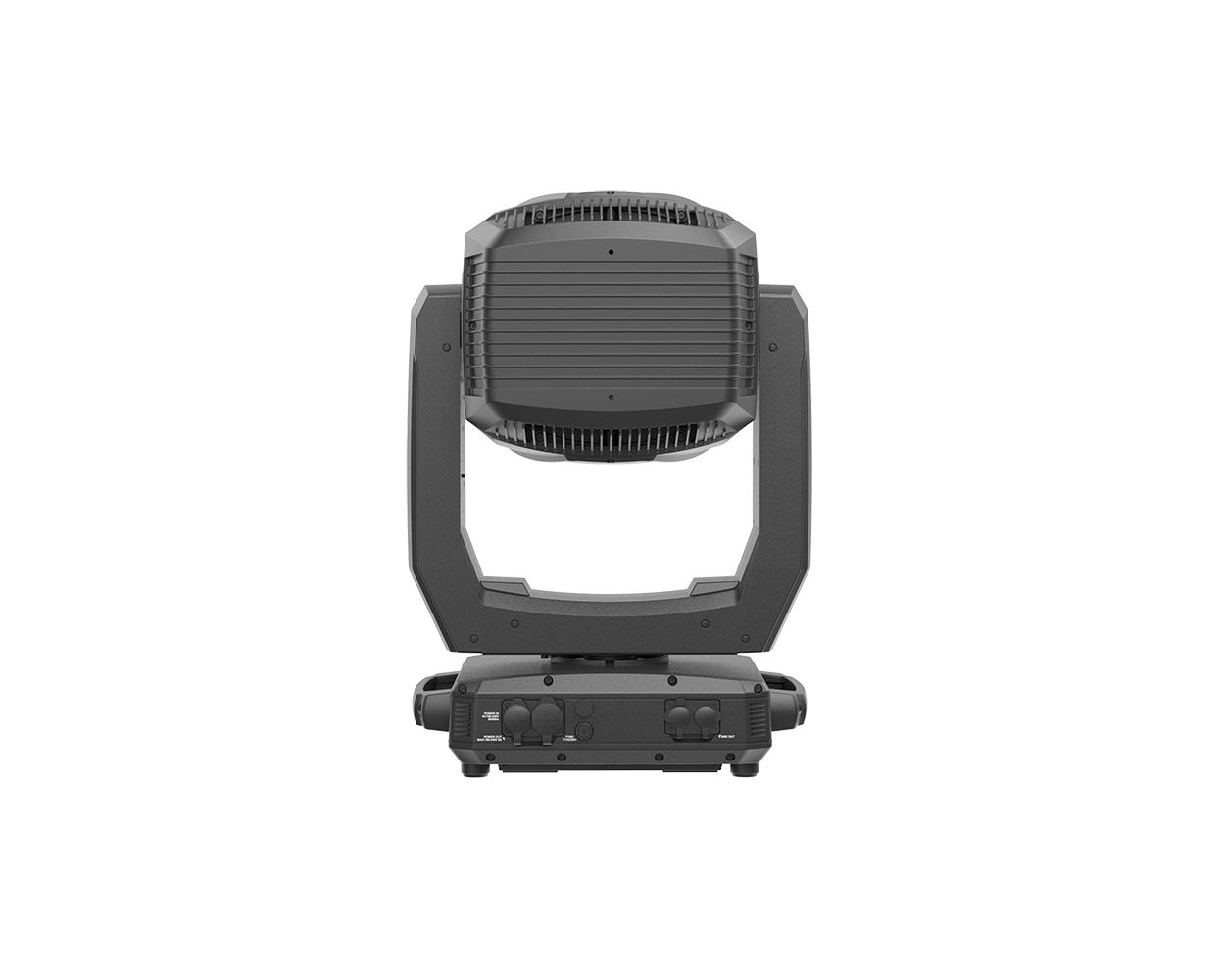

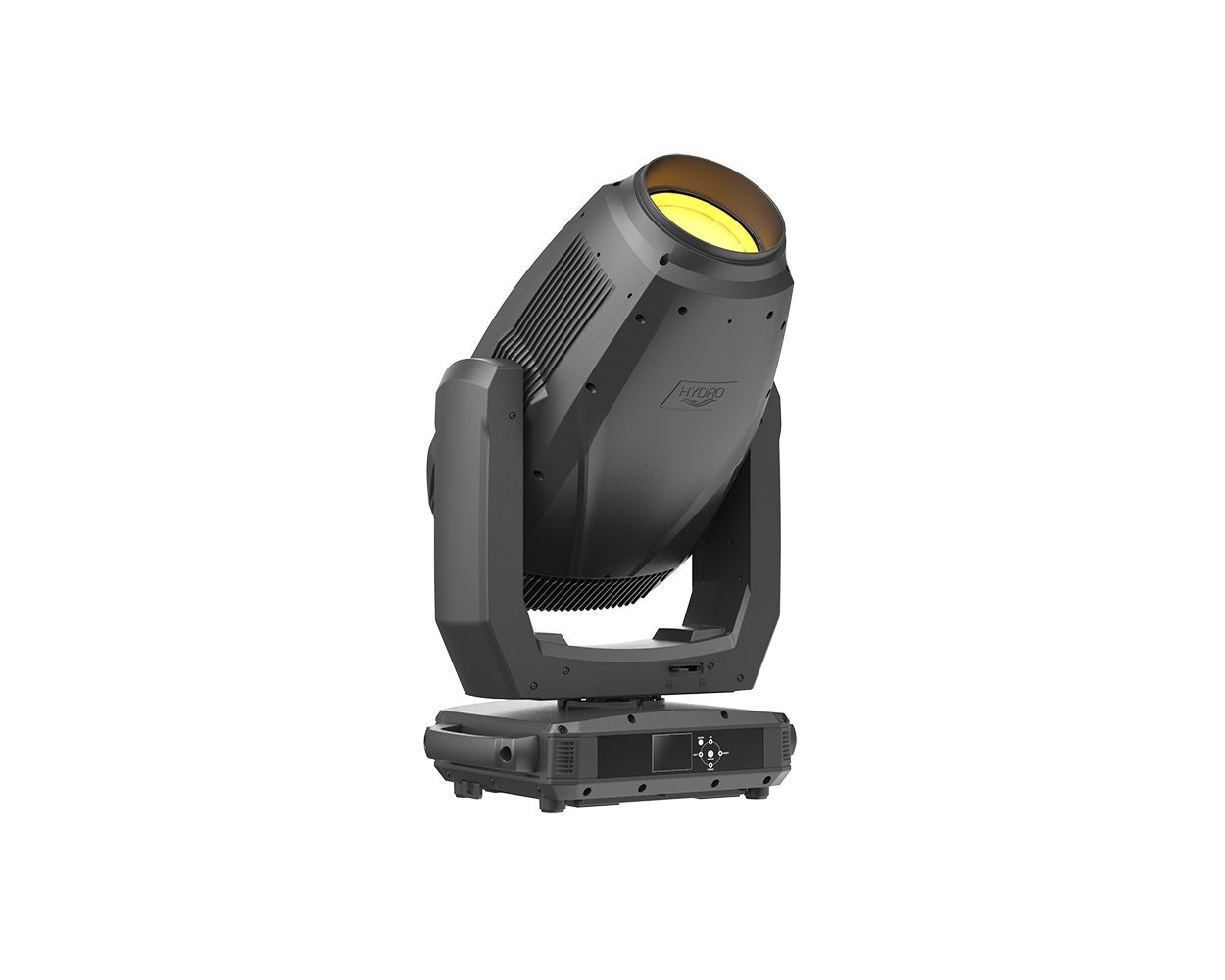

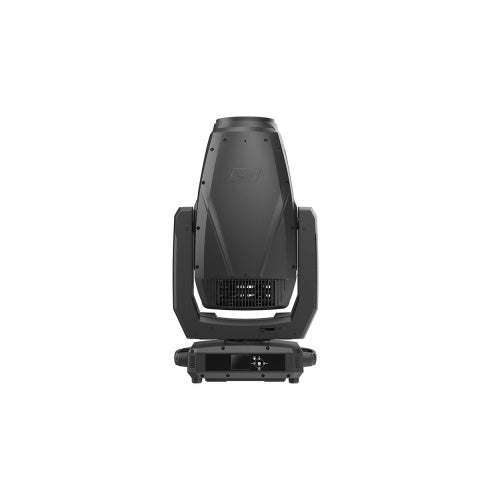

ADJ HYD869 Hydro Hybrid IP65 420W, Moving Head Fixture w/ Wired Digital Communication Network

$3,651.26 - $4,999.99

Part of ADJ's Hydro Series, the Hydro Hybrid is a IP65-rated hybrid moving head that produces a beam, spot and wash effect powered by a 420-Watt Osram SIRIUS HRI discharge lamp.

Hydro Hybrid is one of ADJ's most versatile fixtures to date because it produces a beam, spot and wash from the same fixture. Its IP65-rated housing, along with a 420-Watt Osram SIRIUS HRI lamped power source, makes it ideal for temporary outdoor or indoor event productions.

Hydro Hybrid offers an assortment of creative beam-shaping tool that modern lighting designers are seeking. The fixture has two prisms on dual planes, offers motorized zoom and focus, and 2 GOBO Wheels (9 rotating/removable and 14 fixed).

Any desired color can be selected from the CMY color mixing system. Or quickly choose from the 12 colors on the built-in color wheel. There are also preset white color temperature macros available to help aid with specific shades of white that can be changed on the fly.

The fixture operates at 420-Watts full power, and has a Eco mode at only 330-Watts. There are three DMX channel modes. Users also have the benefit of controlling the fixture via RDM.

View Product Features

  • Osram SIRIUS HRI 420W Discharge Lamp
  • Motorized Focus
  • Motorized Zoom
  • High Speed Shutter and Strobe
  • Pan Degree: 540 Degree /630 Degree
In stock

Scroll below to see our current inventory for this item.

Already own this item and want to sell it?

About the ADJ HYD869 Hydro Hybrid IP65 420W, Moving Head Fixture w/ Wired Digital Communication Network

The ADJ HYD869 Hydro Hybrid is a high-performance, fully weatherproof (IP65-rated) moving head fixture that represents a significant step up in power and capability within ADJ's Hydro series. As a "Hybrid," it combines the potent beam-shaping and projection features of a profile or spot fixture with the vast color-mixing capabilities and wide field of a wash light, creating an exceptionally versatile tool for outdoor festivals, touring, and demanding permanent installations. Its core is a powerful 420W white-light LED engine, capable of producing an intense, piercing beam for aerial effects as well as a broad, saturated wash when zoomed out, making it suitable for front lighting, aerial beam work, and scenic illumination.

A defining feature of this professional-grade fixture is its support for wired digital communication networks. While it fully supports standard DMX-512 control via XLR ports, it is also engineered to work on proprietary digital networks like ADJ's own A-Volute or other industry protocols (e.g., Art-Net, sACN) when equipped with an optional network node. This allows the fixture to be daisy-chained via a single Ethernet cable for both data and power (using Power-over-Ethernet or related technology in specific setups), dramatically simplifying cabling in complex, multi-fixture rigs. The IP65 rating ensures complete protection against dust and water jets, guaranteeing reliability in the harshest outdoor conditions.

The fixture boasts a comprehensive feature set, including a full-color system (often RGBL or similar for rich color), a rotating gobo wheel with indexing, a motorized zoom for dynamic beam adjustment, a variable frost filter for softening the beam edge, and fast, precise pan/tilt movement. It is designed for heavy-duty use, with a robust die-cast aluminum housing, advanced thermal management, and intelligent power management. The HYD869 Hydro Hybrid is targeted at professional rental companies, large-scale event production, and permanent architectural installations where weatherproofing, high output, and network integration are non-negotiable requirements.

Key Features

  • Osram SIRIUS HRI 420W Discharge Lamp
  • Motorized Focus
  • Motorized Zoom
  • High Speed Shutter and Strobe
  • Pan Degree: 540 Degree /630 Degree

ADJ HYD869 Hydro Hybrid IP65 420W, Moving Head Fixture w/ Wired Digital Communication Network Specs

Optical System & Light Source
Light Source
420W High-Output White Light LED
Luminous Flux
Very high output, suitable for large-scale applications (specific lumens vary)
Beam Angle
Motorized zoom (e.g., 3° to 40° range, typical for a hybrid)
Color System
Advanced color mixing system (e.g., RGB + Lime/Amber/White for wide gamut)
Color Temperature
Variable white light adjustment (e.g., 3000K - 9000K)
Gobos
Rotating/Indexing Gobo Wheel with multiple replaceable metal/glass gobos
Strobe
High-speed electronic strobe and pulse effects
Movement & Mechanics
Pan Range
540°
Tilt Range
270°
Pan/Tilt Speed
High-speed, precision 16-bit movement
Zoom
Motorized
Focus
Motorized (absolute/relative)
Frost/Diffusion
Motorized, variable frost filter
Control & Networking
Control Protocols
DMX-512, RDM
Digital Network
Compatible with ADJ A-Volute wired digital network (and/or Art-Net/sACN via optional node)
Data Connection
3-pin & 5-pin XLR In/Out (DMX), RJ45 Ethernet port for network data
Power & Data Link
May support combined power/data linking via proprietary connectors in network mode
DMX Channels
Multiple modes (e.g., 24, 36, 48 channels) for varying control depth
Control Modes
DMX, Network, Master/Slave, Standalone
Physical & Electrical
IP Rating
IP65 (Fully dust-tight and protected against water jets from any direction)
Power Supply
Auto-switching 100-240V AC, 50/60Hz
Power Consumption
~450 Watts (max)
Power Connection
PowerCON TRUE1 In and Out (for standard AC) or network power in specific mode
Housing
Heavy-duty die-cast aluminum, fully sealed
Cooling
Advanced, quiet IP65-rated forced-air cooling system
Weight
Approx. 28-32 kg (62-70 lbs) – substantial due to power and build
Dimensions (LxWxH)
Approx. 530 x 400 x 700 mm (21" x 16" x 28")
Mounting
Heavy-duty yoke with safety lock, integrated carrying handles

Key Features

  • Osram SIRIUS HRI 420W Discharge Lamp
  • Motorized Focus
  • Motorized Zoom
  • High Speed Shutter and Strobe
  • Pan Degree: 540 Degree /630 Degree
