Roland

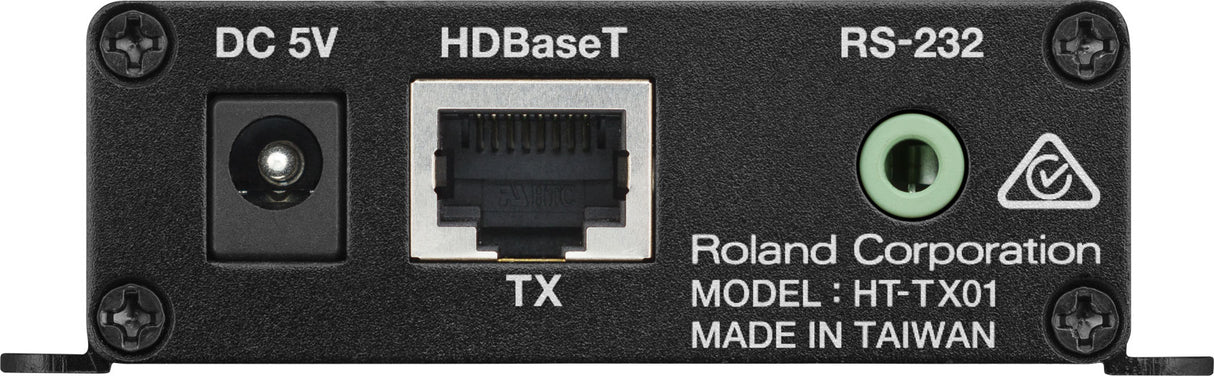

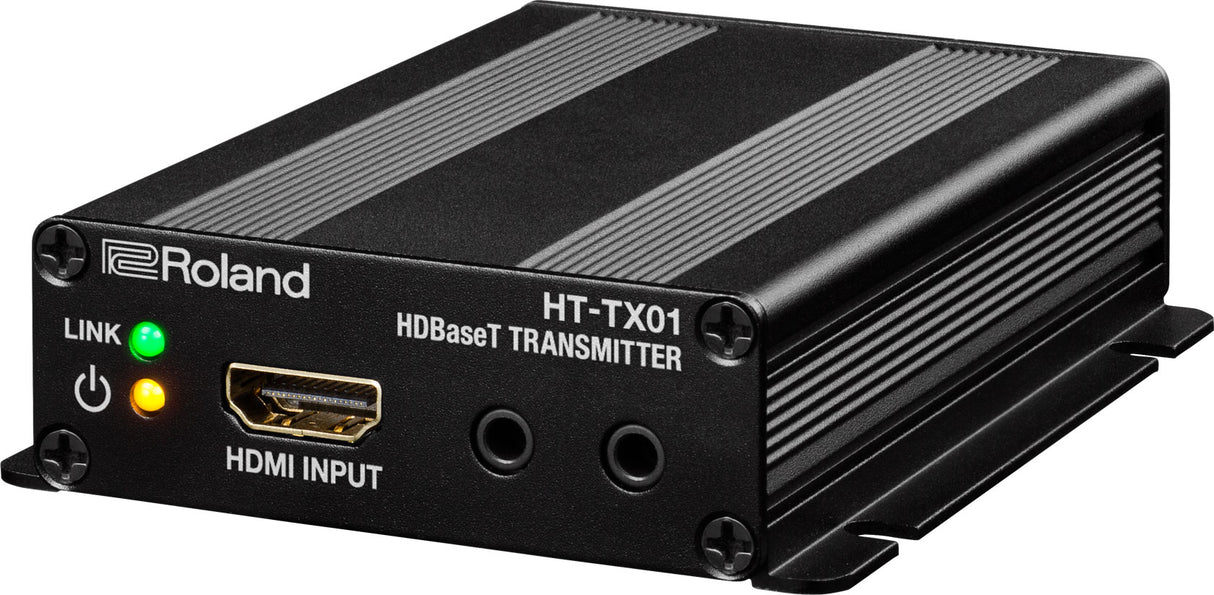

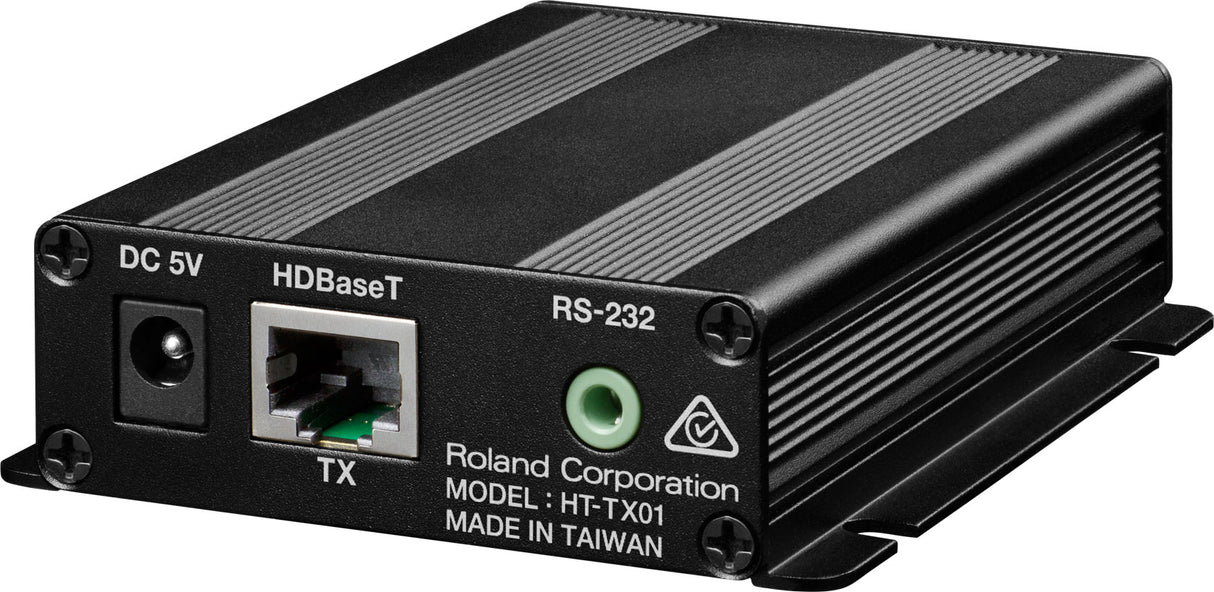

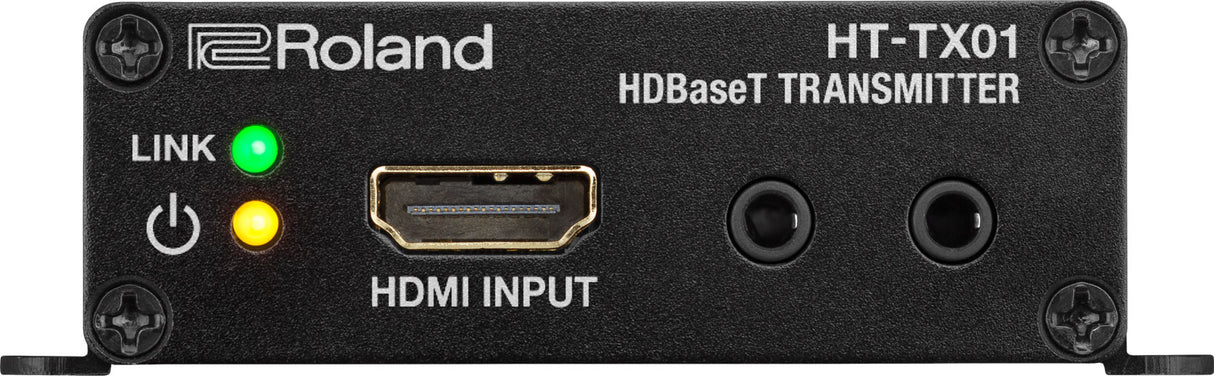

Roland HT-TX01 HDBaseT Transmitter

$0.00

The Roland HT‑TX01 is a compact HDBaseT-compatible transmitter that converts HDMI, embedded audio, and RS-232C control signals into a single stream delivered over shielded CAT‑5e/6 cable. Supporting up to 100 meters (328 ft) transmission distance, it handles resolutions up to 1080p/60Hz and 1920×1200 WUXGA. Ideal for conference installations, digital signage, and broadcast environments, the unit is HDCP compliant and facilitates clean, long-distance video distribution with minimal cabling.

View Product Features

Transmits HDMI video/audio plus RS-232C control over a single CAT‑5e/6 link up to 100 m (328 ft) – reducing wiring complexity.
Supports video up to 1080p/60Hz and WUXGA formats, with HDCP 1.3 compliance.
Supports embedded audio formats including PCM up to 8 channels, Dolby Digital, Dolby TrueHD, and DTS‑HD Master Audio.
Capable of RS‑232C full‑duplex control signal transmission, ideal for remote control or PTZ systems.
Compact, lightweight enclosure (~81 × 93 × 24 mm / 300 g) with included AC power adapter and mounting provisions.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Roland HT-TX01 HDBaseT Transmitter

Key Features

Transmits HDMI video/audio plus RS-232C control over a single CAT‑5e/6 link up to 100 m (328 ft) – reducing wiring complexity.
Supports video up to 1080p/60Hz and WUXGA formats, with HDCP 1.3 compliance.
Supports embedded audio formats including PCM up to 8 channels, Dolby Digital, Dolby TrueHD, and DTS‑HD Master Audio.
Capable of RS‑232C full‑duplex control signal transmission, ideal for remote control or PTZ systems.
Compact, lightweight enclosure (~81 × 93 × 24 mm / 300 g) with included AC power adapter and mounting provisions.

Roland HT-TX01 HDBaseT Transmitter Specs

Key Features

Transmits HDMI video/audio plus RS-232C control over a single CAT‑5e/6 link up to 100 m (328 ft) – reducing wiring complexity.
Supports video up to 1080p/60Hz and WUXGA formats, with HDCP 1.3 compliance.
Supports embedded audio formats including PCM up to 8 channels, Dolby Digital, Dolby TrueHD, and DTS‑HD Master Audio.
Capable of RS‑232C full‑duplex control signal transmission, ideal for remote control or PTZ systems.
Compact, lightweight enclosure (~81 × 93 × 24 mm / 300 g) with included AC power adapter and mounting provisions.
