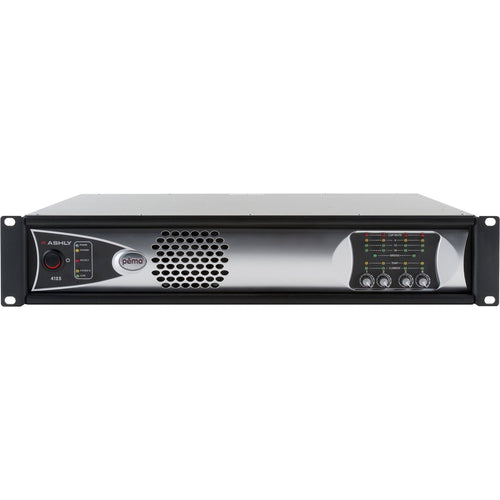

The Ashly PEMA4125 is a fully integrated, four-channel powered audio matrix processor designed to simplify and consolidate system design for commercial multi-zone installations. This all-in-one unit combines a four-channel power amplifier with an 8x8 digital signal processing matrix in a single 2U chassis. Each amplifier channel delivers 125 watts into a 4-ohm load, providing reliable power for distributed loudspeaker zones. The integrated 8x8 DSP matrix is the core of the system, offering flexible routing and comprehensive processing—including parametric EQ, dynamics, delay, and crossover filters—on all eight inputs and eight outputs, enabling complex audio distribution and tuning without the need for any external equipment.

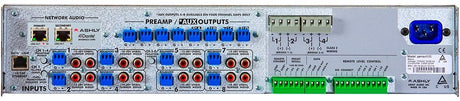

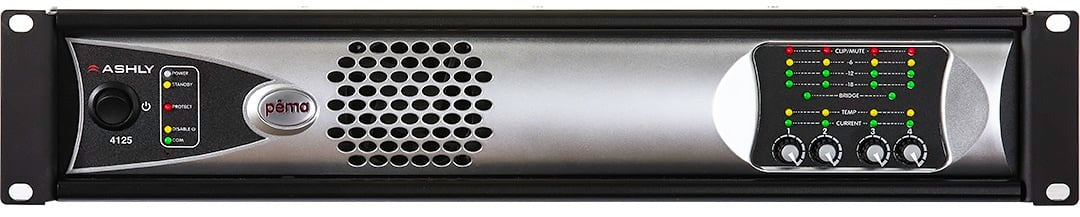

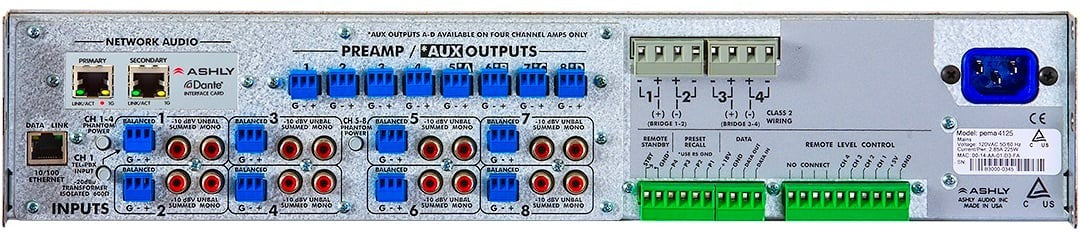

This processor simplifies installation by combining multiple system components. The eight inputs can accommodate various microphones and line-level sources, with mixing and routing handled internally. The four amplifier outputs drive zones directly, while the additional four processing outputs can be used for feeds to external amplifiers, recording, or other destinations. Control and configuration are managed through a front-panel interface or optional PC software, enabling the creation and recall of presets for different times of day or event types. This integrated approach reduces rack space, wiring complexity, and potential points of failure.

Built for reliability in continuous operation, the PEMA4125 includes protection against faults such as short circuits and thermal overload. Its combination of amplification, a flexible DSP matrix, and mixing in one device makes it an efficient and cost-effective solution for integrators designing sophisticated background music, paging, and multi-zone audio systems for restaurants, retail stores, schools, and corporate facilities. It provides a centralized, software-controllable hub for comprehensive audio management.
