SKU: NVMA260-0-US

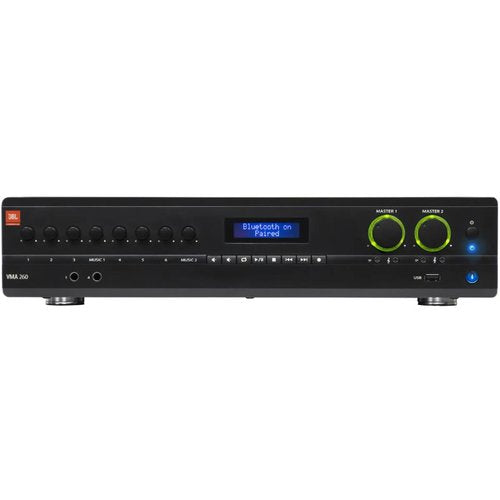

JBL Professional NVMA260-0-US VMA260 VMA Series Commercial Mixer Amplifier

$990.00

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

This versatile 2U rack-mountable component features an 8-input matrix system that feeds two independent 60-watt output channels. Designed to accommodate dynamic commercial environments like retail spaces, restaurants, fitness centers, and educational institutions, it natively supports low-impedance configurations (4Ω and 8Ω) alongside high-impedance (70V and 100V) speaker lines without requiring an external transformer setup. The unit is highly adaptable, boasting built-in wireless Bluetooth streaming and a front-panel USB port for media playback alongside traditional balanced mic/line Euroblock inputs and unbalanced consumer RCA connections. For simplified operational control, the VMA 260 includes localized voice-activated (VOX) ducking for seamless paging priorities, a customizable announcement chime function, independent front-panel bass and treble equalization controls per output zone, and seamless plug-and-play compatibility with JBL CSR-V wall-mounted volume controllers. Read more

Features

Channels & Power| 8 inputs, 2 output channels delivering 60W per channel (120W total)
Frequency Response| 20 Hz to 20 kHz (at 4Ω/8Ω low impedance output, ±2 dB)
Frequency Response (70V/100V)| 80 Hz to 15 kHz (high-pass filtered output, ±3 dB)
Total Harmonic Distortion (THD)| <0.5% at rated power
Signal-to-Noise Ratio| >76 dB
Crosstalk| -70 dB (adjacent channels, referenced to rated power at 1 kHz)
Input Sensitivity| Mic| 5.5 mVrms; Line| 1.3 Vrms; RCA| 130 mVrms
Input Impedance| Mic| 400 Ω; Line| 20 kΩ (Balanced); RCA| 50 kΩ
Output Regulation| <2 dB (from no load to full load)
Tone Control| Bass| ±14 dB @ 100 Hz; Treble| ±14 dB @ 10 kHz
Phantom Power| +27 VDC available on mic inputs
Form Factor| 2U Rack-mount chassis

Business Financing Options Avaiable

This versatile 2U rack-mountable component features an 8-input matrix system that feeds two independent 60-watt output channels. Designed to accommodate dynamic commercial environments like retail spaces, restaurants, fitness centers, and educational institutions, it natively supports low-impedance configurations (4Ω and 8Ω) alongside high-impedance (70V and 100V) speaker lines without requiring an external transformer setup. The unit is highly adaptable, boasting built-in wireless Bluetooth streaming and a front-panel USB port for media playback alongside traditional balanced mic/line Euroblock inputs and unbalanced consumer RCA connections. For simplified operational control, the VMA 260 includes localized voice-activated (VOX) ducking for seamless paging priorities, a customizable announcement chime function, independent front-panel bass and treble equalization controls per output zone, and seamless plug-and-play compatibility with JBL CSR-V wall-mounted volume controllers. Read more

Features

Channels & Power| 8 inputs, 2 output channels delivering 60W per channel (120W total)
Frequency Response| 20 Hz to 20 kHz (at 4Ω/8Ω low impedance output, ±2 dB)
Frequency Response (70V/100V)| 80 Hz to 15 kHz (high-pass filtered output, ±3 dB)
Total Harmonic Distortion (THD)| <0.5% at rated power
Signal-to-Noise Ratio| >76 dB
Crosstalk| -70 dB (adjacent channels, referenced to rated power at 1 kHz)
Input Sensitivity| Mic| 5.5 mVrms; Line| 1.3 Vrms; RCA| 130 mVrms
Input Impedance| Mic| 400 Ω; Line| 20 kΩ (Balanced); RCA| 50 kΩ
Output Regulation| <2 dB (from no load to full load)
Tone Control| Bass| ±14 dB @ 100 Hz; Treble| ±14 dB @ 10 kHz
Phantom Power| +27 VDC available on mic inputs
Form Factor| 2U Rack-mount chassis

About the JBL Professional NVMA260-0-US VMA260 VMA Series Commercial Mixer Amplifier

This versatile 2U rack-mountable component features an 8-input matrix system that feeds two independent 60-watt output channels. Designed to accommodate dynamic commercial environments like retail spaces, restaurants, fitness centers, and educational institutions, it natively supports low-impedance configurations (4Ω and 8Ω) alongside high-impedance (70V and 100V) speaker lines without requiring an external transformer setup. The unit is highly adaptable, boasting built-in wireless Bluetooth streaming and a front-panel USB port for media playback alongside traditional balanced mic/line Euroblock inputs and unbalanced consumer RCA connections. For simplified operational control, the VMA 260 includes localized voice-activated (VOX) ducking for seamless paging priorities, a customizable announcement chime function, independent front-panel bass and treble equalization controls per output zone, and seamless plug-and-play compatibility with JBL CSR-V wall-mounted volume controllers.

Optimized for intuitive setup and reliable daily operation, this commercial amplifier allows users to manage complex multi-zone systems without specialized audio training. Its integrated media engine enables staff to easily transition between modern digital streams and traditional analog hardware inputs, providing a single consolidated footprint that reduces overall gear rack clutter. The rugged chassis features advanced thermal monitoring and comprehensive circuit protection to safeguard against short circuits, overheating, and voltage overloads in demanding continuous-use environments. By combining efficient power delivery, flexible multi-impedance tap routing, and essential priority paging overrides, this unit provides an efficient all-in-one hub for business background music and public address systems.

Key Features

Channels & Power| 8 inputs, 2 output channels delivering 60W per channel (120W total)
Frequency Response| 20 Hz to 20 kHz (at 4Ω/8Ω low impedance output, ±2 dB)
Frequency Response (70V/100V)| 80 Hz to 15 kHz (high-pass filtered output, ±3 dB)
Total Harmonic Distortion (THD)| <0.5% at rated power
Signal-to-Noise Ratio| >76 dB
Crosstalk| -70 dB (adjacent channels, referenced to rated power at 1 kHz)
Input Sensitivity| Mic| 5.5 mVrms; Line| 1.3 Vrms; RCA| 130 mVrms
Input Impedance| Mic| 400 Ω; Line| 20 kΩ (Balanced); RCA| 50 kΩ
Output Regulation| <2 dB (from no load to full load)
Tone Control| Bass| ±14 dB @ 100 Hz; Treble| ±14 dB @ 10 kHz
Phantom Power| +27 VDC available on mic inputs
Form Factor| 2U Rack-mount chassis

JBL Professional NVMA260-0-US VMA260 VMA Series Commercial Mixer Amplifier Specs

Channels & Power
8 inputs, 2 output channels delivering 60W per channel (120W total)
Frequency Response
20 Hz to 20 kHz (at 4Ω/8Ω low impedance output, ±2 dB)
Frequency Response (70V/100V)
80 Hz to 15 kHz (high-pass filtered output, ±3 dB)
Total Harmonic Distortion (THD)
<0.5% at rated power
Signal-to-Noise Ratio
>76 dB
Crosstalk
-70 dB (adjacent channels, referenced to rated power at 1 kHz)
Input Sensitivity
Mic
Input Impedance
Mic
Output Regulation
<2 dB (from no load to full load)
Tone Control
Bass
Phantom Power
+27 VDC available on mic inputs
Form Factor
2U Rack-mount chassis

Key Features

Channels & Power| 8 inputs, 2 output channels delivering 60W per channel (120W total)
Frequency Response| 20 Hz to 20 kHz (at 4Ω/8Ω low impedance output, ±2 dB)
Frequency Response (70V/100V)| 80 Hz to 15 kHz (high-pass filtered output, ±3 dB)
Total Harmonic Distortion (THD)| <0.5% at rated power
Signal-to-Noise Ratio| >76 dB
Crosstalk| -70 dB (adjacent channels, referenced to rated power at 1 kHz)
Input Sensitivity| Mic| 5.5 mVrms; Line| 1.3 Vrms; RCA| 130 mVrms
Input Impedance| Mic| 400 Ω; Line| 20 kΩ (Balanced); RCA| 50 kΩ
Output Regulation| <2 dB (from no load to full load)
Tone Control| Bass| ±14 dB @ 100 Hz; Treble| ±14 dB @ 10 kHz
Phantom Power| +27 VDC available on mic inputs
Form Factor| 2U Rack-mount chassis
