SKU: IK81-DANTE

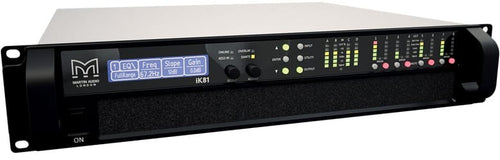

Martin Audio iKON iK81 Eight-channel 10,000W Class D Power Performance Amplifier

$11,250.00

Items Included

Item Notes

Condition: Fully Working 5 available
5 available View All
Note: Each item is unique. please check individual listings for details.
Pricing
Add to cart
Pre-Owned Guarantee 14 Day Return Window

Description

The iKON iK81 is an advanced 8-channel power amplifier which combines very high power density with superb audio performance, state-of-the-art DSP and network control. A dedicated controller amplifier for the Martin Audio Wavefront Precision WPM line array, the iK81 can also provide multi-channel amplification across the Martin Audio loudspeaker range. Read more

Features

  • Eight channels of efficient Class D amplification
  • Very high power density in 2U rack height
  • 10,000 Watts total power output
  • High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters)
  • Switch mode power supply
  • Global mains operation, 85V to 240V auto-sensing
  • Intuitive, user-friendly, front panel interface
  • Analogue, AES3 and Dante™ (AES67 compatible) digital audio network inputs
  • Ethernet network for system control and monitoring via Martin Audio VU-NET™ software application
  • Comprehensive protection and monitoring functions

Business Financing Options Avaiable

The iKON iK81 is an advanced 8-channel power amplifier which combines very high power density with superb audio performance, state-of-the-art DSP and network control. A dedicated controller amplifier for the Martin Audio Wavefront Precision WPM line array, the iK81 can also provide multi-channel amplification across the Martin Audio loudspeaker range. Read more

Features

  • Eight channels of efficient Class D amplification
  • Very high power density in 2U rack height
  • 10,000 Watts total power output
  • High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters)
  • Switch mode power supply
  • Global mains operation, 85V to 240V auto-sensing
  • Intuitive, user-friendly, front panel interface
  • Analogue, AES3 and Dante™ (AES67 compatible) digital audio network inputs
  • Ethernet network for system control and monitoring via Martin Audio VU-NET™ software application
  • Comprehensive protection and monitoring functions

About the Martin Audio iKON iK81 Eight-channel 10,000W Class D Power Performance Amplifier

The iK81 can deliver a full 1250 watts per channel into 2, 4 or 8 ohms with all channels driven while remaining highly efficient. Its high efficiency reduces the energy drawn from the mains supply and ensures the power reserves needed to deliver superb sound under arduous live conditions.

Martin Audio iKON iK81 | High Power, Eight-Channel Class D Amplifier
Ethernet is used for system remote control and monitoring via Martin Audio’s VU-NET software application, while a user friendly front panel interface allows full local control of all features. Dante digital audio network inputs are also provided for digital audio distribution and control.

Powerful DSP is fully integrated into the iK81 to provide a multitude of features. It also provides up to 1000 FIR filter taps @ 48kHz on each output channel, which is essential to implement DISPLAY’s wide bandwidth optimization process in the WPM line array.

The iK81 employs comprehensive protection functions to maintain safe operating conditions of both the amplifier and the loudspeakers driven — including a sophisticated loudspeaker limiter suite which incorporates peak, RMS and excursion limiting, as well as multi-band limiting for passive 2-way systems.

Key Features

  • Eight channels of efficient Class D amplification
  • Very high power density in 2U rack height
  • 10,000 Watts total power output
  • High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters)
  • Switch mode power supply
  • Global mains operation, 85V to 240V auto-sensing
  • Intuitive, user-friendly, front panel interface
  • Analogue, AES3 and Dante™ (AES67 compatible) digital audio network inputs
  • Ethernet network for system control and monitoring via Martin Audio VU-NET™ software application
  • Comprehensive protection and monitoring functions

Martin Audio iKON iK81 Eight-channel 10,000W Class D Power Performance Amplifier Specs

TYPE
Eight-channel Class D amplifier
POWER OUTPUT
1250W into 2Ω 1250W into 4Ω 1250W into 8Ω 625W into 16Ω 2500W bridged per channel pair, 4Ω 2500W bridged per channel pair, 8Ω
CV LINE OUTPUT
625W, 25V line 1250W, 70V line 1250W, 100V line
DIGITAL SIGNAL PROCESSING
96kHz/48kHz DSP on all inputs and outputs
COOLING
Dual vari-speed fans, front-to-back airflow
MAXIMUM AMBIENT TEMPERATURE
40°C (104°F)
AC INPUT OPERATING RANGE
85 – 240V ~ AC, 47 - 63Hz
MAINS INRUSH CURRENT
6A at 115V, 12A at 230V (max for <10ms)
MAINS CONNECTOR
Neutrik 32A Powercon™

Key Features

  • Eight channels of efficient Class D amplification
  • Very high power density in 2U rack height
  • 10,000 Watts total power output
  • High performance 96kHz DSP on all inputs and outputs (48kHz on outputs when implementing FIR filters)
  • Switch mode power supply
  • Global mains operation, 85V to 240V auto-sensing
  • Intuitive, user-friendly, front panel interface
  • Analogue, AES3 and Dante™ (AES67 compatible) digital audio network inputs
  • Ethernet network for system control and monitoring via Martin Audio VU-NET™ software application
  • Comprehensive protection and monitoring functions
