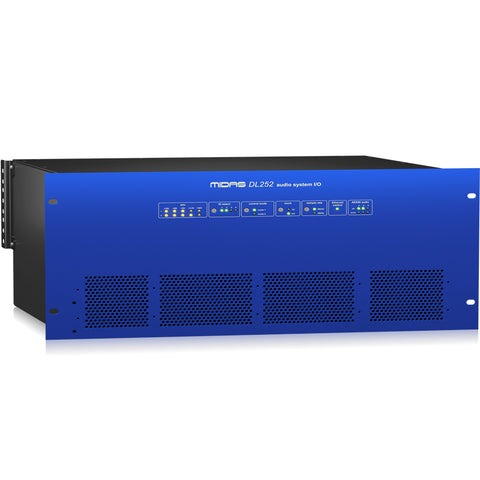

The Midas DL252-UL is a high-channel-count digital stage box designed as a remote input/output extension for compatible Midas digital mixing consoles, particularly those in the M32 and DL Series. Its primary function is to be placed on or near the stage, converting up to 16 analog microphone or line-level signals into a digital audio stream that is transmitted to the main console over a single Cat-5e or Cat-6 Ethernet cable via the proprietary Midas DL protocol (based on AES50). This setup dramatically reduces the need for long, heavy analog multicore snakes, improving signal integrity by minimizing noise and simplifying setup. The unit is equipped with 16 of Midas's renowned, fully discrete microphone preamplifiers, ensuring that the critical first gain stage captures audio with the clarity, headroom, and musicality the brand is famous for.

A defining feature of the DL252 is its substantial output capability, offering 48 analog outputs. This extensive output section allows it to function as a comprehensive digital splitter and distribution hub. It can send numerous mixes, effects returns, and other console outputs back to the stage to drive a large number of power amplifiers, in-ear monitor transmitters, and stage monitors. This massive bi-directional flow of audio over a single network cable is essential for large, complex live sound systems, such as those for major tours, festivals, and large houses of worship. The stage box features robust construction with a metal chassis and Neutrik connectors, built to withstand the physical demands of touring and frequent handling. Its UL certification indicates compliance with specific safety standards.

Operation is seamless when connected to a compatible console; preamp gains, phantom power, and other parameters are controlled remotely from the mixer's surface. The DL252 can be linked with other DL Series stage boxes to further expand the system's total I/O capacity. By combining high-quality Midas preamps, a massive 48-output section, and the efficiency of a digital snake system, the DL252-UL provides system engineers and integrators with a powerful, scalable, and reliable solution for building clean, high-performance audio systems for the most demanding applications.
