AMX

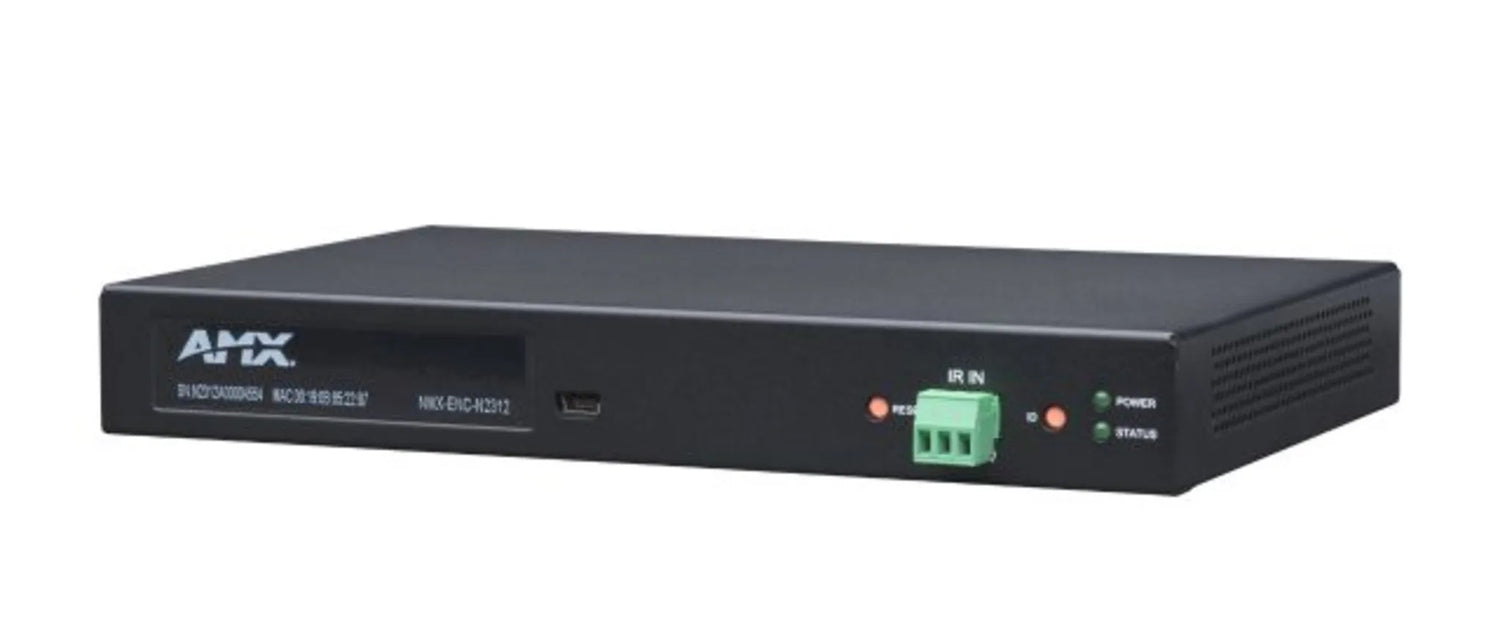

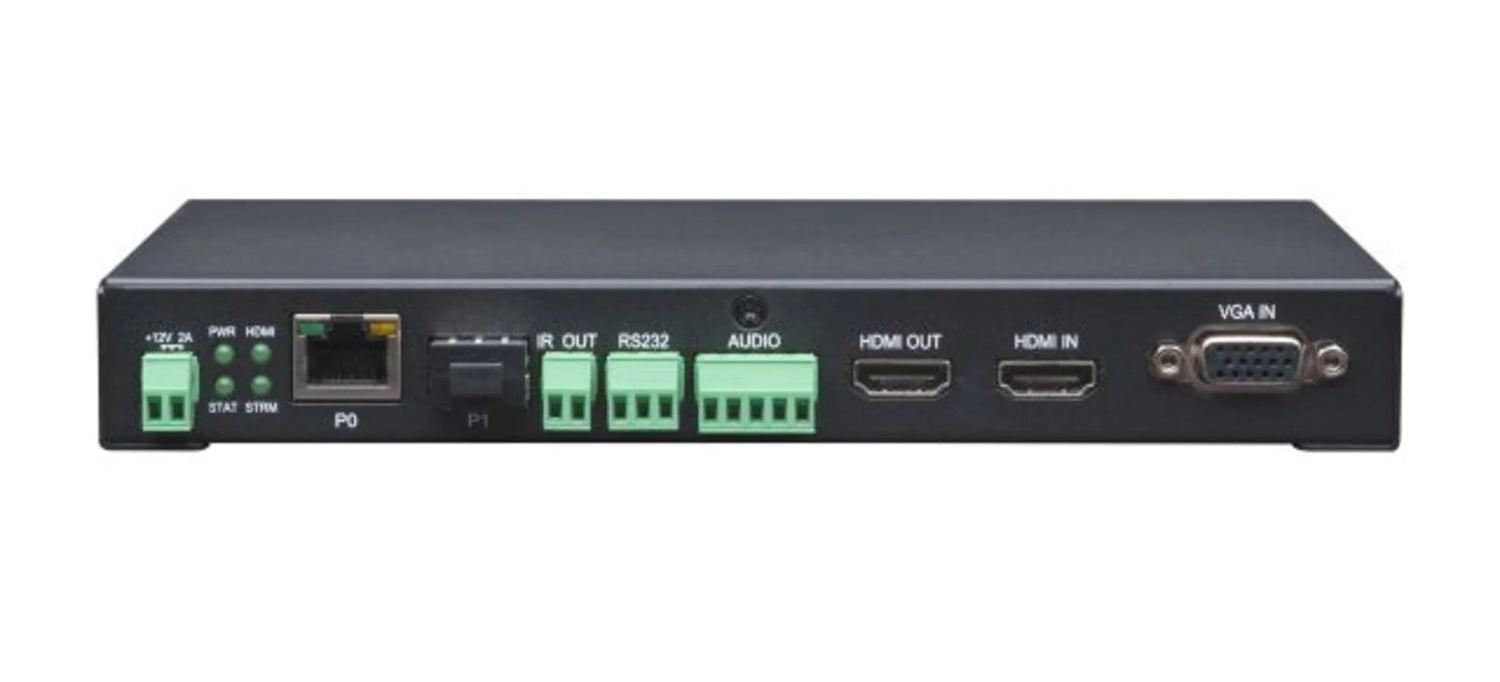

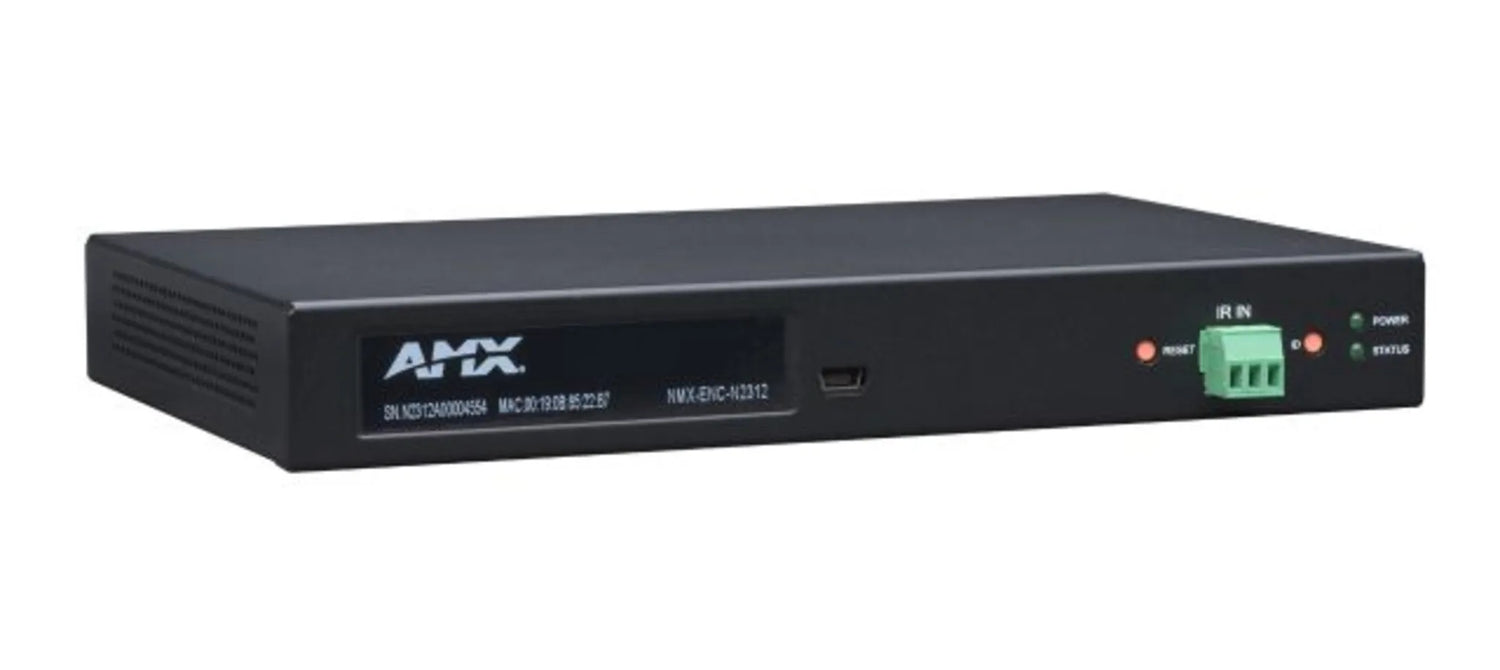

NMX-ENC-N2312 Encoder

$749.00

The NMX-ENC-N2312 Encoder delivers professional-grade digital media distribution with ultra-low latency, making it ideal for live-action and time-sensitive applications. Supporting 4K resolutions up to 4096x2160 and HDCP 2.2 protection, this encoder pairs seamlessly with the NMX-DEC-N2322 Decoder to create a complete switching and distribution system. Built on advanced JPEG2000 encoding technology, it offers the flexibility and reliability demanded by demanding broadcast and production environments.

View Product Features
  • Design Flexibility — Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
  • Power Over Ethernet (POE) — eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, highdensity installations
  • Advanced Security including SSL/TLS and HTTPS – Satisfies enterprise network security requirements.
  • Infrared (IR) — Emitter connection allows control of IR-only display devices
  • Fast Install — With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
  • Balanced and Unbalanced Audio — Embedded 7.1 digital audio or balanced/unbalanced analog audio
  • Pass Through HDMI — allows easy installation with local display such as desktop PC applicaitons
  • Multiple Connection Options — RJ-45 and SFP network connectors and HDMI video connections
  • KVM — Single USB-B for KVM applications
  • Native NetLinx — NetLinx Studio will easily recognize the device
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    NMX-ENC-N2312

    AMX NMX-ENC-N2312 Encoder

    $749.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the NMX-ENC-N2312 Encoder

The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution that can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. Utilizing JPEG2000 encoding, the N2312 and N2322 encoder and decoder deliver video with latency so low it supports extremely sensitive applications like live action.

Any source can be sent to one or more displays by routing through layer-2 / layer-3 switches utilizing standard Cat5e cable. The NMX-ENC-N2312 includes standard features like input scaling, bi-directional serial, IR, embedded 7.1 audio, and KVMover- IP extension. It also comes in a card version compatible with SVSI's N9206 card cage for high-density applications.

Key Features

  • Design Flexibility — Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
  • Power Over Ethernet (POE) — eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, highdensity installations
  • Advanced Security including SSL/TLS and HTTPS – Satisfies enterprise network security requirements.
  • Infrared (IR) — Emitter connection allows control of IR-only display devices
  • Fast Install — With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
  • Balanced and Unbalanced Audio — Embedded 7.1 digital audio or balanced/unbalanced analog audio
  • Pass Through HDMI — allows easy installation with local display such as desktop PC applicaitons
  • Multiple Connection Options — RJ-45 and SFP network connectors and HDMI video connections
  • KVM — Single USB-B for KVM applications
  • Native NetLinx — NetLinx Studio will easily recognize the device

NMX-ENC-N2312 Encoder Specs

Digital Video Input
HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++) (through adapter)
Analog Video Input
HD-15 VGA, Component, supported through a passive adapter
Video Outputs
Network video over Ethernet via RJ45 port or SFP via 1G SFP+ port, HDMI, DVI-D (through adapter)
Video Formats
HDMI 2.0, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP 2.2 content protection support, RGBHV. DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter
Progressive Input Resolutions
Supports 4K30 4:2:0 and most common HD resolutions up to 1920x1200. See Data Sheet for details.
Interlaced Input Resolutions
Supports 1080i60. See Data Sheet for details.
Analog Input Resolutions
Supports most common HD up to 1920x1200. See Data Sheet for details.
Analog-To-Digital Conversion
8-bit 165 MHz per each of three color channelsAudio Input Signal Types

Key Features

  • Design Flexibility — Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
  • Power Over Ethernet (POE) — eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, highdensity installations
  • Advanced Security including SSL/TLS and HTTPS – Satisfies enterprise network security requirements.
  • Infrared (IR) — Emitter connection allows control of IR-only display devices
  • Fast Install — With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
  • Balanced and Unbalanced Audio — Embedded 7.1 digital audio or balanced/unbalanced analog audio
  • Pass Through HDMI — allows easy installation with local display such as desktop PC applicaitons
  • Multiple Connection Options — RJ-45 and SFP network connectors and HDMI video connections
  • KVM — Single USB-B for KVM applications
  • Native NetLinx — NetLinx Studio will easily recognize the device
