Tascam

TASCAM ML-32D Dante / Analog Converter

$2,999.00

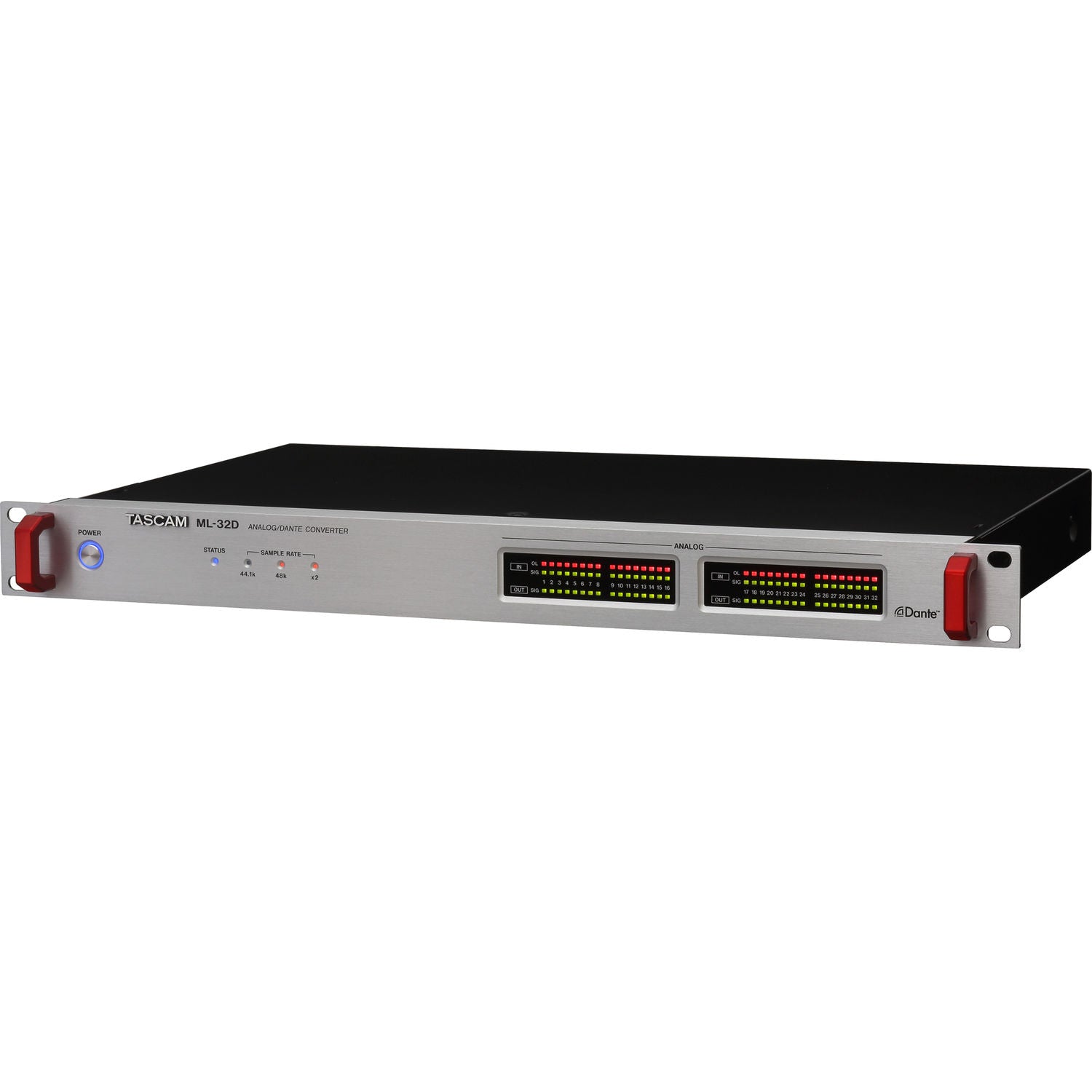

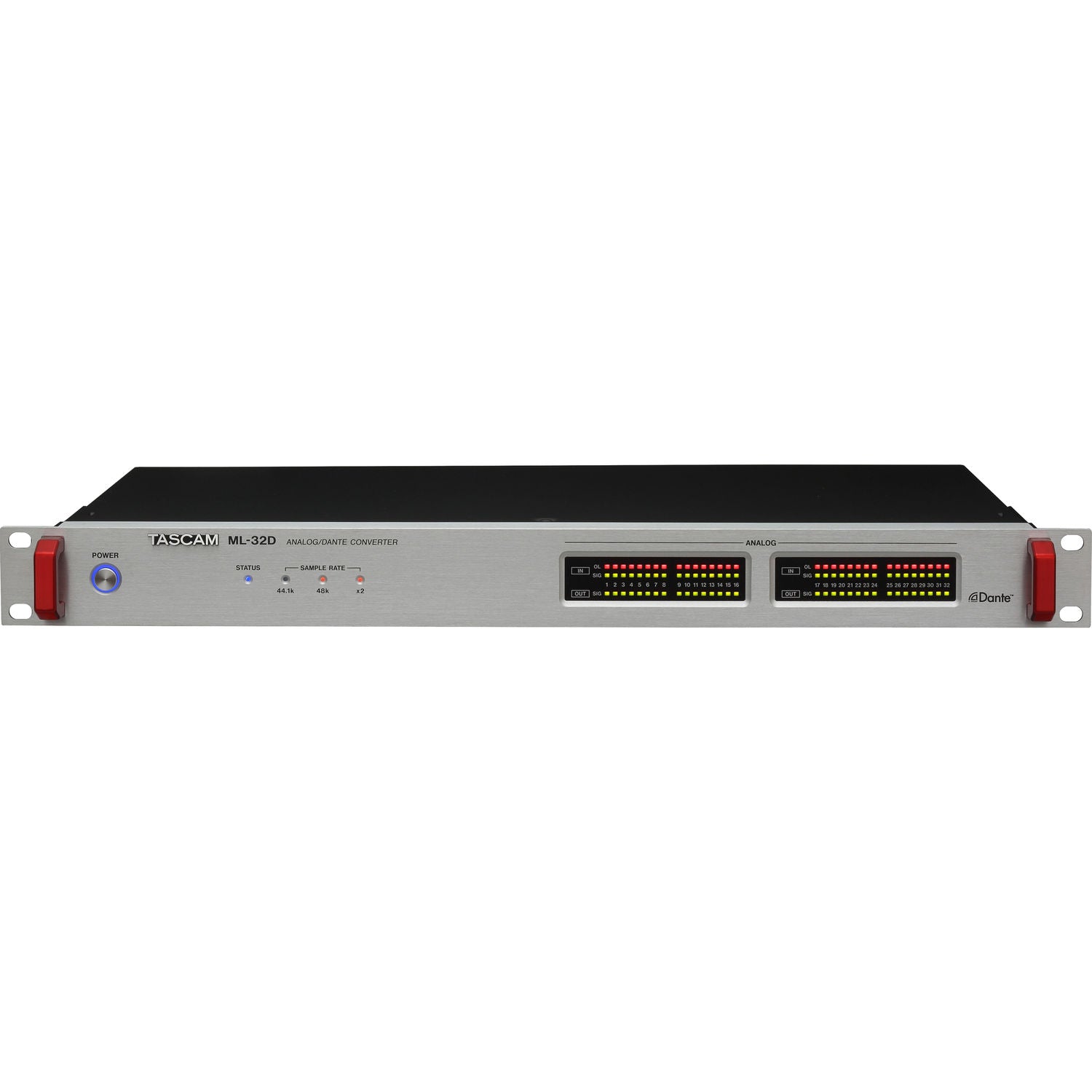

The ML-32D Dante / Analog Converter from Tascam is a Dante-focused converter designed to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize D-Sub format connectors.

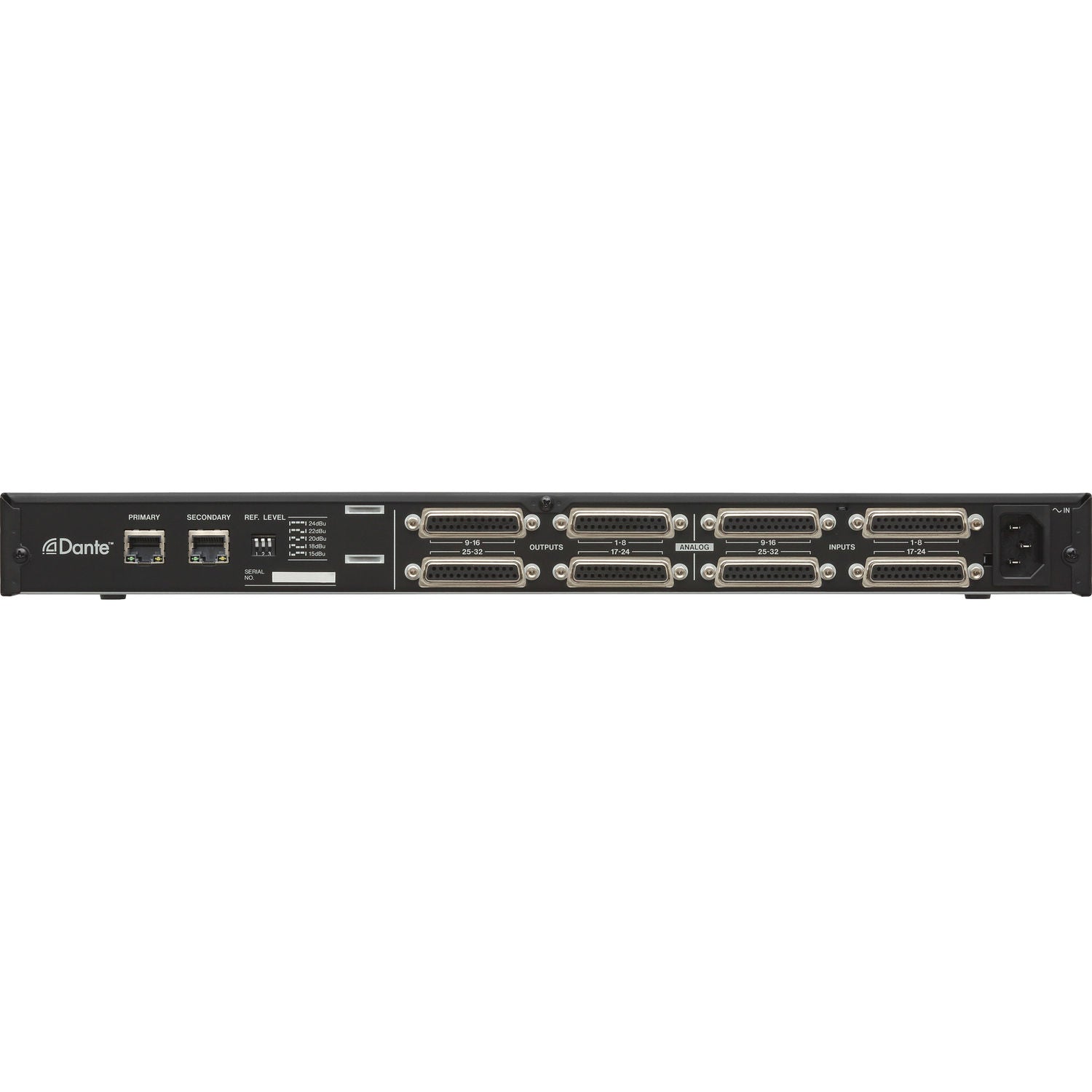

The Tascam ML-32D has four D-Sub inputs and four D-Sub outputs, that can be used to connect several devices that utilize D-Sub connectors such as microphone preamplifiers, console mixers, audio interfaces, amplifiers, and other audio devices.

Furthermore, the Dante protocol provides uncompressed, multi-channel, low-latency digital audio over a standard Ethernet network and supports up to 1024 channels of 32-bit / 192 kHz audio over a Cat 5/6 Ethernet system.

View Product Features
  • Dante-focused interface for connection of external audio in or out of a Dante audio network.
  • 32-channel analog line input and 32 analog line outputs (48 kHz / 96 kHz) using 8 D-Sub connectors.
  • Dual redundant Ethernet jacks which support both primary and secondary connections.
  • Up to 24-bit / 96 kHz quality.
  • LED display for signal level and overload per input/output channel.
  • Reference level dip switches for selectable dBu level metering.
  • Firmware updatable via Dante port.
  • AES67 and Revenna compatible.
In stock

Scroll below to see our current inventory for this item.

In-Stock Inventory

  •
    New

    ML-32D

    TASCAM ML-32D Dante / Analog Converter

    $2,999.00
    View Product

Already own this item and want to sell it?

Click here to sell your item

About the TASCAM ML-32D Dante / Analog Converter

The ML-32D Dante / Analog Converter from Tascam is a Dante-focused converter designed to insert or extract analog audio into or out of a Dante (Digital Audio Network Through Ethernet) network using external breakout devices that utilize D-Sub format connectors.

The Tascam ML-32D has four D-Sub inputs and four D-Sub outputs, that can be used to connect several devices that utilize D-Sub connectors such as microphone preamplifiers, console mixers, audio interfaces, amplifiers, and other audio devices.

Furthermore, the Dante protocol provides uncompressed, multi-channel, low-latency digital audio over a standard Ethernet network and supports up to 1024 channels of 32-bit / 192 kHz audio over a Cat 5/6 Ethernet system.

Key Features

  • Dante-focused interface for connection of external audio in or out of a Dante audio network.
  • 32-channel analog line input and 32 analog line outputs (48 kHz / 96 kHz) using 8 D-Sub connectors.
  • Dual redundant Ethernet jacks which support both primary and secondary connections.
  • Up to 24-bit / 96 kHz quality.
  • LED display for signal level and overload per input/output channel.
  • Reference level dip switches for selectable dBu level metering.
  • Firmware updatable via Dante port.
  • AES67 and Revenna compatible.

TASCAM ML-32D Dante / Analog Converter Specs

General
Channels of I/O
32 Input / 32 Output
Built-In DSP
No
Maximum Sampling Rate
96 kHz / 24-Bit
Number of Microphone Inputs
No
Built-In Microphone
No
Connectivity
Analog Audio I/O
4x DB-25 8-Channel Input 4x DB-25 8-Channel Output
Digital Audio I/O
No
Host Connection / USB
No
Host Connection Protocol
No
USB (Non-Host)
No
Sync I/O
No
Network I/O
2x RJ45 Dante
MIDI I/O
No
Performance
Frequency Response
20 Hz to 20 kHz +0.1/-0.5 dB (at 48 kHz, JEITA) 20 Hz to 40 kHz +0.1/-0.5 dB (at 96 kHz, JEITA)
Impedance
DB-25 Inputs: ≥ 10 Kilohms
SNR
113 dB
THD+N
0.001%
Digital Audio
Sample Rates
44.1 to 96 kHz
Sample Rate Conversion
No
Bit Depths
16 / 24-Bit
Sync Sources
Dante
Compatibility
OS Compatibility
Windows / macOS
Power
Power Requirements
AC/DC Power Adapter (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
22 W
Physical
Rackmount Size
1 U
Operating Conditions
32 to 104°F / 0 to 40°C
Dimensions
19 x 12 x 1.8" / 483 x 303.8 x 45 mm
Weight
7.7 lb / 3.5 kg

Key Features

  • Dante-focused interface for connection of external audio in or out of a Dante audio network.
  • 32-channel analog line input and 32 analog line outputs (48 kHz / 96 kHz) using 8 D-Sub connectors.
  • Dual redundant Ethernet jacks which support both primary and secondary connections.
  • Up to 24-bit / 96 kHz quality.
  • LED display for signal level and overload per input/output channel.
  • Reference level dip switches for selectable dBu level metering.
  • Firmware updatable via Dante port.
  • AES67 and Revenna compatible.
