Tascam
TASCAM TA-1VP - Vocal Processor
$499.00
Unit price
/
The TA-1VP from TASCAM is a vocal processor utilizing Antares' technologies (AutoTune and Mic Modeler) to deliver everything needed for a polished, modern vocal sound. The rack-mount unit includes a microphone preamp, compressor, de-esser, microphone and tube modeling, and pitch correction processing.

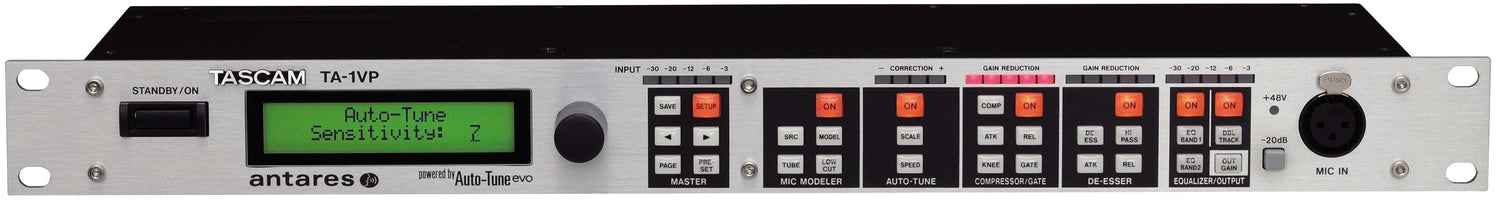

An XLR microphone input with switchable phantom power is available on the front panel, suitable for use with condenser microphones. Processing is laid out in simple-to-use blocks on the front panel, each with dedicated buttons and meters that display exactly what's being done to the signal at any point in the signal chain.
View Product Features
View Product Features
In stock
Scroll below to see our current inventory for this item.
In-Stock Inventory
-
New
-
About the TASCAM TA-1VP - Vocal Processor
Key Features
TASCAM TA-1VP - Vocal Processor Specs
Type
Vocal processor
Tuning
Chromatic and 24 diatonic scales, all user customizable Retune speed Pitch detection sensitivity
Processing and Effects
Intonation Modeling EQ Compression De-esser Gate
Compressor
Threshold: -36dB to 0.0dB Ratio: 1:1 to 99:1 Attack: 1mS to 200mS Release: 1mS to 200mS Knee: Continuously variable
Gate
Threshold: -96dB to 0.0dB Ratio: 1:1 to 99:1
De-Esser
Threshold: -60dB to 0.0dB Ratio: 1:1 to 99:1 Attack: 1mS to 200mS Release: 20mS to 2.5S High-Pass Frequency: 2.97kHz to 20kHz
Equalizer
2 Independent Parametric Bands 6dB low-pass 6dB high-pass 12dB low-pass 12dB high-pass Bandpass Notch Low-shelf (variable slope) Highj-shelf (variable slope) Peaking Double tracking Stereo or variable mono mix
Preset/User Programs
35 preset/user
Inputs
1 x XLR Microphone 1 x 1/4" TRS phone Line 1 x 5-pin DIN MIDI 1 x 1/4" TS phone Pedal Input
Input Impedance
Microphone 2.2kΩ Line 10kΩ
Input Level
Microphone Trim: 0.0dB to +30dB Nominal (PAD): -56.5dBu (0.001Vrms) to -26.5dBu (0.037Vrms) Nominal: -20.5dBu (0.073Vrms) to +9.5dBu (2.314Vrms) Maximum: +9.5dBu (2.314Vrms) Line Nominal: 8dBu (1.947Vrms) to 24dBu (12.283Vrms) Maximum: 24dBu (12.283Vrms)

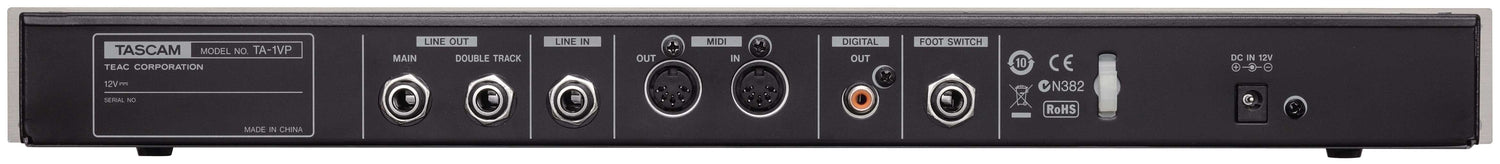

Output
2 x 1/4" TRS phone 1 x RCA coaxial S/PDIF 1 x 5-pin DIN MIDI
Output Impedance
Line 100Ω Digital 75Ω
Output Level
Line Nominal: +4dBu (1.228Vrms) Maximum: +20dBu (7.75Vrms) Digital 0.5Vpp/75Ω
Frequency Response
20Hz to 20kHz, +/-0.5dB (@ line output)
Noise
SNR: 98dB or better (@ line output)
THD
0.008% or less (@ line output)
Dynamic Range
120dB or better (@ line output)
Display
20 x 2 character LCD 5 x LED input level 5 x LED output level 4 x LED tuning correction 5 x LED compressor gain reduction 5 x LED de-esser gain reduction
Operating Temperature
41 to 95°F (5 to 35°C
Power Requirements
12VDC via TASCAM PS-1225L AC adapter (included)
Dimensions
19 x 5 x 1.73" (483 x 128 x 44mm)
Weight
4.4 lbs (2kg)
