3xLogic

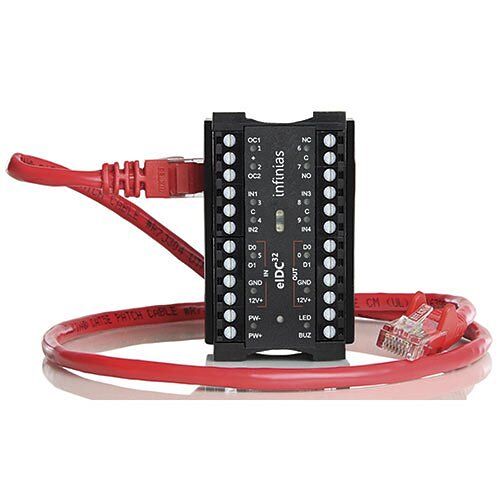

3xLogic S-EIDC32 Infinias Ethernet-Enabled Integrated Door Controller

$419.99

The S-EIDC32 (Ethernet-Enabled Integrated Door Controller) is a small form-factor device that is designed to be installed at the door, often fitting into a standard double-gang electrical box. This approach, known as edge-based IP access control, minimizes the amount of wiring needed by using standard Cat 5 or Cat 6 Ethernet cable to carry both power (via PoE) and data, connecting directly to the nearest network switch.It provides all the necessary inputs and outputs for connecting standard door hardware, such as card readers (Wiegand format), door contacts, push-to-exit buttons, and electronic locks. The controller can function as a standalone unit with an embedded web interface for configuration, or as part of a larger, integrated security management system using 3xLogic's Infinias Access Control Management software.

View Product Features

IP-Based Access Control: Supports single-door to multi-site systems over an IP network.
Power over Ethernet (PoE): Receives both power and data over a single Cat5/Cat6 cable from a PoE-enabled switch, simplifying installation.
Compact Design: Small size allows it to be mounted discreetly at the door or in a double-gang box, reducing wiring complexity.
Security: Features secure transmissions with end-to-end AES 128-bit encryption.
Integrated I/O: Provides four configurable inputs and three outputs (open collector and Form C relay) for connecting door peripherals like locks, sensors, and REX buttons.
Embedded Web Software: Functions in a standalone mode for single-door applications via an embedded web interface, managing up to 8,000 cardholders.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

Already own this item and want to sell it?

Click here to sell your item

About the 3xLogic S-EIDC32 Infinias Ethernet-Enabled Integrated Door Controller

Key Features

IP-Based Access Control: Supports single-door to multi-site systems over an IP network.
Power over Ethernet (PoE): Receives both power and data over a single Cat5/Cat6 cable from a PoE-enabled switch, simplifying installation.
Compact Design: Small size allows it to be mounted discreetly at the door or in a double-gang box, reducing wiring complexity.
Security: Features secure transmissions with end-to-end AES 128-bit encryption.
Integrated I/O: Provides four configurable inputs and three outputs (open collector and Form C relay) for connecting door peripherals like locks, sensors, and REX buttons.
Embedded Web Software: Functions in a standalone mode for single-door applications via an embedded web interface, managing up to 8,000 cardholders.
