Shure UA506 Single Rack Mount Kit

The UA506 is a hardware rack-mount kit designed to mount a single half-rack Shure wireless receiver or transmitter into a standard 19-inch equipment rack. It provides the necessary structural brackets and hardware to center or offset a single half-width component within a 1U rack space.

It is engineered for half-rack Shure wireless receivers and transmitters that utilize side-rail mounting points, including legacy and contemporary lines such as the SLX4, ULXS4, ULXP4, BLX4R, P9T (PSM 900), and other standard half-rack Shure chassis designs.

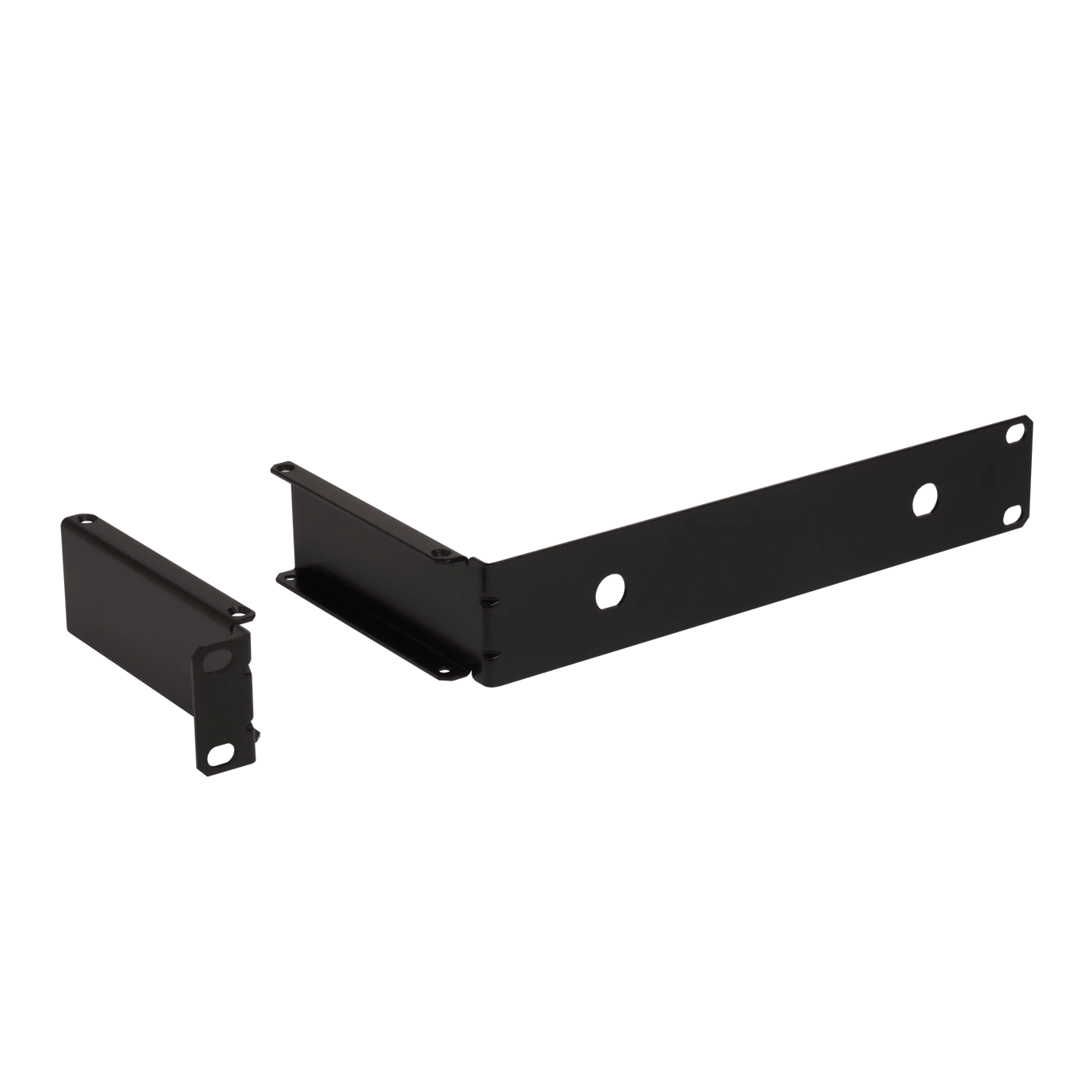

Because a half-rack receiver occupies roughly 8.5 inches of horizontal width, the UA506 uses an asymmetric bracket layout: the short ear mounts to one side of the chassis, while the extended long ear bridges the remaining horizontal width on the opposite side to reach the standard 19-inch rack rail width.

The long rack ear features pre-punched knockout holes designed to accept standard BNC bulkhead connectors. This allows users to bring the receiving antennas to the front of the rack using BNC extension jumper cables, preventing RF attenuation caused by keeping antennas enclosed inside metal equipment racks.

The brackets are stamped from heavy-gauge, durable steel finished in a matte black powder coat to match standard Shure wireless gear and professional AV rack enclosures.

No. The UA506 is designed exclusively for mounting a single half-rack unit. To mount two half-rack receivers side-by-side in a single 1U space, Shure offers the UA507 dual rack-mount kit (which utilizes two short ears and center linking/straddle plates).

Installation requires only a standard Phillips-head screwdriver to fasten the brackets to the receiver's threaded chassis side holes and secure the assembly into the rack frame rails.
