SKU: Theatrixx-XVVDP2QSDI

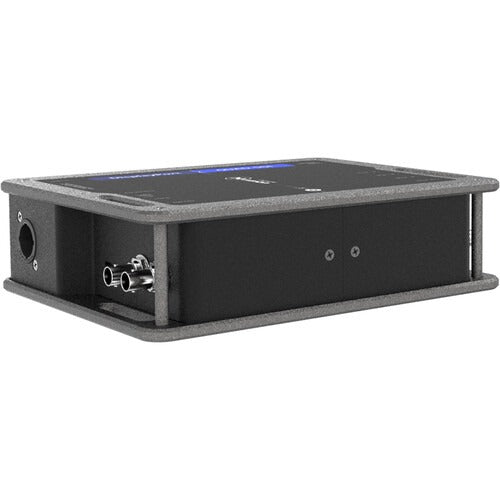

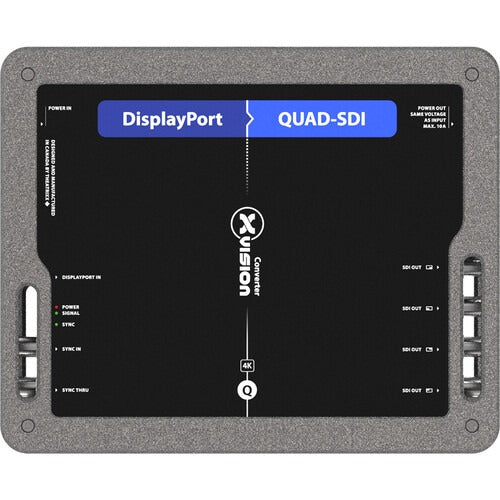

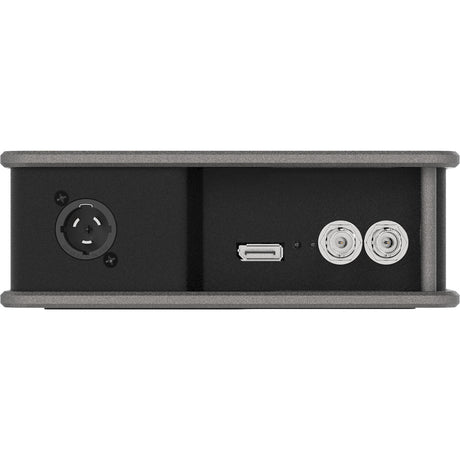

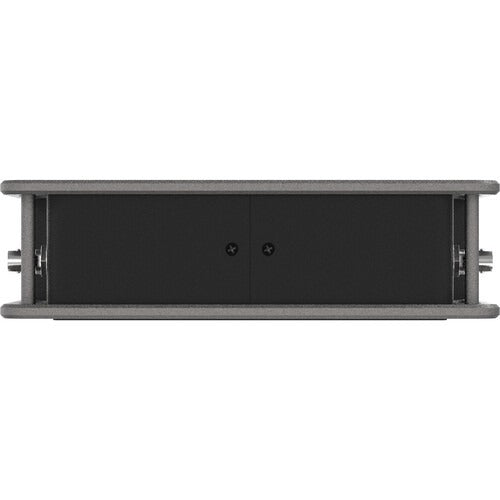

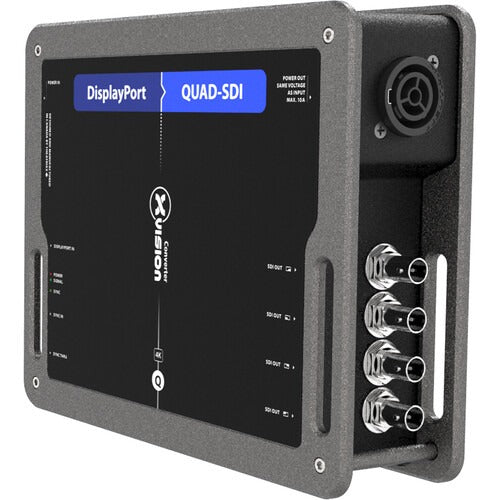

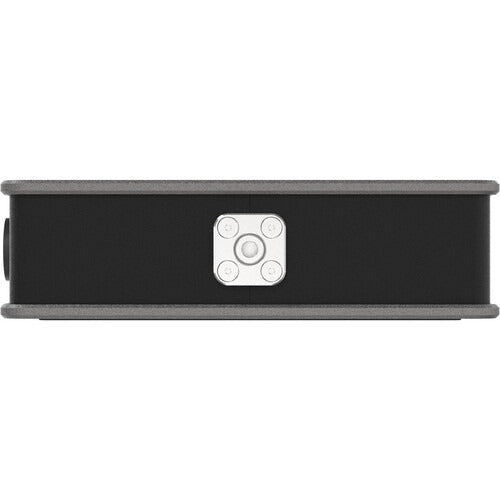

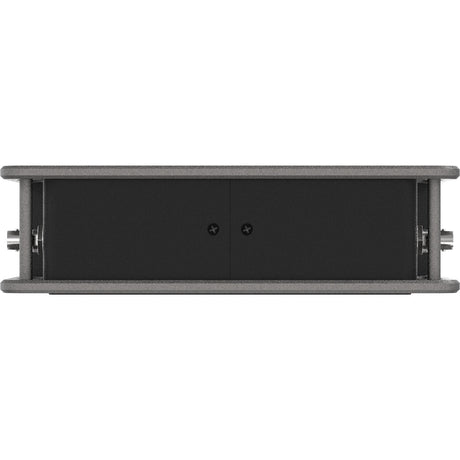

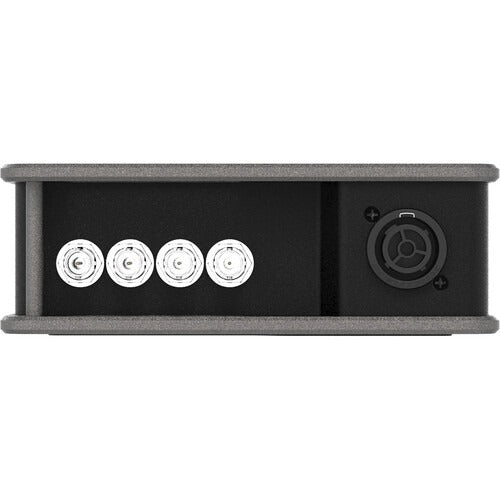

Theatrixx Technologies XVVDP2QSDI DisplayPort to Quad 3G-SDI xVision Converter

$1,820.00

Items Included

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window

Description

The DisplayPort to Quad 3G-SDI xVision Converter from Theatrixx converts four DisplayPort inputs and four quad-link BNC 3G-SDI outputs to convert video up to DCI 4K60 video. It also supports reclocked and amplified SDI loop through output. It is powered with an power cable with a locking PowerCON connector and it also has a built-in 120V outlet to power a nearby projector, TV, or laptop. It has a rugged, tour-ready enclosure with a magnetic stacking system and non-skid rubber pad to stack multiple converters. Its plug-and-play operation has no dipswitches, buttons, or menus to operate, and it has status LED indicators for quick troubleshooting. Read more

Features

  • 4 x DisplayPort 1.2 Inputs
  • 4 x Quad-Link 3G-SDI Output
  • Supports up to 4096 x 2160p60 Video
  • EDID, HDMI 2.0, Embedded Audio

Business Financing Options Avaiable

Description

The DisplayPort to Quad 3G-SDI xVision Converter from Theatrixx converts four DisplayPort inputs and four quad-link BNC 3G-SDI outputs to convert video up to DCI 4K60 video. It also supports reclocked and amplified SDI loop through output. It is powered with an power cable with a locking PowerCON connector and it also has a built-in 120V outlet to power a nearby projector, TV, or laptop. It has a rugged, tour-ready enclosure with a magnetic stacking system and non-skid rubber pad to stack multiple converters. Its plug-and-play operation has no dipswitches, buttons, or menus to operate, and it has status LED indicators for quick troubleshooting.

Features

  • 4 x DisplayPort 1.2 Inputs
  • 4 x Quad-Link 3G-SDI Output
  • Supports up to 4096 x 2160p60 Video
  • EDID, HDMI 2.0, Embedded Audio

About the Theatrixx Technologies XVVDP2QSDI DisplayPort to Quad 3G-SDI xVision Converter

Professional equipment in mission-critical applications is all about reliability and confidence. So we started with a clean sheet, and built what may soon become your most trustworthy piece of equipment.

Introducing the world’s first video converters truly designed for the road. Video converters nowadays are used everywhere on professional A/V events, presentations, live shows and tours and often have a critical role.

Yet, they are often the weakest link in the signal chain. Low quality connectors, weak enclosure, external consumer-grade power supply, and overall barebones design that all contribute to a generally unreliable piece of equipment. We wanted to change that, so we designed the xVision Video Converters.

Key Features

  • 4 x DisplayPort 1.2 Inputs
  • 4 x Quad-Link 3G-SDI Output
  • Supports up to 4096 x 2160p60 Video
  • EDID, HDMI 2.0, Embedded Audio

Theatrixx Technologies XVVDP2QSDI DisplayPort to Quad 3G-SDI xVision Converter Specs

Connections
Video Input
4 x DisplayPort 1.2
Video Loop-thru
4 x Quad-link 3G-SDI BNC (16 BNC)
Video Output
Tri-level sync (BNC) with loop-thru
Supported Signals
DisplayPort 1.2/HDMI 2.0 input
4096x2160p @ 60/50 fps
4K60P 4:4:4
4096x2160p @ 30/25/24 fps, 3840x2160p @ 60/50 fps, 3840x2160p @ 30/25/24 fps, 1920x1080p @ 60/50 fps, 1920x1080p @ 30/25/24 fps, 1920x1080i @ 60/50 fps
Quad-Link 3G-SDI out
4096x2160p @ 60/50/30/25/24 fps
4 x 1080P 4:2:2
3840x2160p @ 60/50/30/25/24 fps
Embedded audio
Up to 8 channels, 24 bit, 48 kHz
Default EDID
3840x2160p @ 60 or 50 fps (selectable)
SMPTE Standards
ST2082-1S, ST2082-10, ST425M Level A and B, ST424M, ST292M, ST259M
Physical
Height
62 mm (2.44 in)
Depth
180 mm (7.08 in)
Width
221 mm (8.7 in)
Weight
2 kg (4.4 lbs)
Alt. form factor
Also available in rackmount module (RM)
Environmental
Operating temp.
0-40° C
Relative Humidity
0 % to 90 % RH non-condensing
Power Requirements
Power Supply
Built-in power supply PowerCON True1 in / loop thru
Power Consumption
45 W max.
Operational Voltage Range
100-240 V 50-60 Hz

Key Features

  • 4 x DisplayPort 1.2 Inputs
  • 4 x Quad-Link 3G-SDI Output
  • Supports up to 4096 x 2160p60 Video
  • EDID, HDMI 2.0, Embedded Audio
