SKU: C2341-39

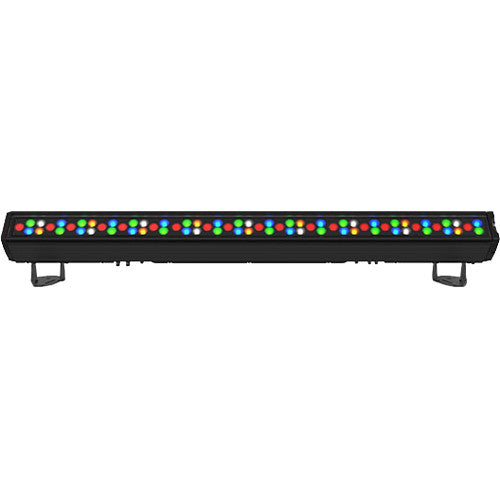

CHAUVET Professional COLORado Batten 72X IP65 RGBWA LED Batten

$610.20

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The CHAUVET Professional COLORado Batten 72X IP65 delivers powerful RGBWA color mixing in a compact, weather-resistant fixture. Ideal for outdoor events, architectural lighting, and stage productions, this LED batten features 72 individually controllable pixels for dynamic effects and smooth color transitions. The IP65 rating ensures durability in wet environments, while silent operation makes it perfect for any venue. Control via DMX, RDM, or wireless protocols for seamless integration into professional lighting systems. Energy-efficient LED technology reduces heat output and operating costs. Compact design allows flexible mounting on truss, walls, or ground support. Read more

Features

  • RGBAW LED Array: Equipped with 72 calibrated 3W LEDs (Red, Green, Blue, Amber, White) for extensive color mixing and pristine color rendering.
  • All-Weather IP65 Rating: A rugged, IP65-rated aluminum housing guarantees reliable outdoor operation and protection against the elements.
  • Selectable Color Temperatures: Features built-in color temperature presets ranging from 3200K to 10000K for quick and easy white-light matching.
  • Flicker-Free Broadcast Performance: Adjustable PWM frequencies (from 600 Hz to 25,000 Hz) and 16-bit dimming ensure smooth, flicker-free operation on video.
  • Pro-Grade Connections: Fitted with IP65-rated 5-pin DMX connectors and Seetronic Powerkon IP65 power connections for secure, weather-resistant daisy-chaining

Business Financing Options Avaiable

View Available Financing

The CHAUVET Professional COLORado Batten 72X IP65 delivers powerful RGBWA color mixing in a compact, weather-resistant fixture. Ideal for outdoor events, architectural lighting, and stage productions, this LED batten features 72 individually controllable pixels for dynamic effects and smooth color transitions. The IP65 rating ensures durability in wet environments, while silent operation makes it perfect for any venue. Control via DMX, RDM, or wireless protocols for seamless integration into professional lighting systems. Energy-efficient LED technology reduces heat output and operating costs. Compact design allows flexible mounting on truss, walls, or ground support. Read more

Features

  • RGBAW LED Array: Equipped with 72 calibrated 3W LEDs (Red, Green, Blue, Amber, White) for extensive color mixing and pristine color rendering.
  • All-Weather IP65 Rating: A rugged, IP65-rated aluminum housing guarantees reliable outdoor operation and protection against the elements.
  • Selectable Color Temperatures: Features built-in color temperature presets ranging from 3200K to 10000K for quick and easy white-light matching.
  • Flicker-Free Broadcast Performance: Adjustable PWM frequencies (from 600 Hz to 25,000 Hz) and 16-bit dimming ensure smooth, flicker-free operation on video.
  • Pro-Grade Connections: Fitted with IP65-rated 5-pin DMX connectors and Seetronic Powerkon IP65 power connections for secure, weather-resistant daisy-chaining

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the CHAUVET Professional COLORado Batten 72X IP65 RGBWA LED Batten

The CHAUVET Professional COLORado Batten 72X is a highly powerful, tour-ready IP65-rated linear batten designed to deliver seamless washes and dynamic pixel effects. Spanning just over 39 inches in length, this robust fixture is loaded with 72 calibrated 3-watt RGBAW (Red, Green, Blue, Amber, White) LEDs, providing a massive palette that ranges from soft pastels to deeply saturated hues. Built for versatility in touring, theatrical, and broadcast applications, it includes preset color temperatures ranging from a warm 3200K to a cool 10000K, vastly simplifying the process of matching ambient lighting or specific camera requirements. Its integrated 24° optics deliver a defined, punchy wash ideal for cyc lighting, backdrops, and footlighting.

Designed to withstand the elements, the COLORado Batten 72X boasts an IP65-rated aluminum alloy and die-cast housing, ensuring flawless temporary outdoor operation in wet conditions. Professional integration is front and center with Seetronic Powerkon IP65 power input/output and 5-pin IP65 XLR data connections. For quiet and camera-ready performance, the unit features ultra-smooth 16-bit dimming with five selectable dimming curves, as well as highly adjustable Pulse Width Modulation (PWM) frequencies (up to 25,000 Hz) to completely eliminate flicker on camera. With multiple DMX personalities, including 1-cell and 3-cell modes, it offers flexible control for both simple washes and complex pixel-mapping.

Key Features

  • RGBAW LED Array: Equipped with 72 calibrated 3W LEDs (Red, Green, Blue, Amber, White) for extensive color mixing and pristine color rendering.
  • All-Weather IP65 Rating: A rugged, IP65-rated aluminum housing guarantees reliable outdoor operation and protection against the elements.
  • Selectable Color Temperatures: Features built-in color temperature presets ranging from 3200K to 10000K for quick and easy white-light matching.
  • Flicker-Free Broadcast Performance: Adjustable PWM frequencies (from 600 Hz to 25,000 Hz) and 16-bit dimming ensure smooth, flicker-free operation on video.
  • Pro-Grade Connections: Fitted with IP65-rated 5-pin DMX connectors and Seetronic Powerkon IP65 power connections for secure, weather-resistant daisy-chaining

Already own this item and want to sell it?

Click here to sell your item

CHAUVET Professional COLORado Batten 72X IP65 RGBWA LED Batten Specs

Light Source
72 LEDs (18 red, 18 green, 18 blue, 9 white, 9 amber) 3 W (690 mA), 50,000 hours life expectancy
Color Temperature Presets
3200 K to 10000 K
CRI (at 3200 K)
80
Installed Optics
24°
Beam Angle
22° (Horizontal) x 18° (Vertical)
Field Angle
39° (Horizontal) x 34° (Vertical)
Illuminance (total)
1,730 lux @ 5 m
Lumens
3,631
Selectable PWM
600, 1200, 2000, 2400, 4000, 6000, 25000 Hz
DMX Channels
1-cell: 3, 4, 5, 8, 8, 9, 10, 10, 16 / 3-cell: 9, 12, 15, 21, 22, 24, 27, 30, 43
IP Rating
IP65

Key Features

  • RGBAW LED Array: Equipped with 72 calibrated 3W LEDs (Red, Green, Blue, Amber, White) for extensive color mixing and pristine color rendering.
  • All-Weather IP65 Rating: A rugged, IP65-rated aluminum housing guarantees reliable outdoor operation and protection against the elements.
  • Selectable Color Temperatures: Features built-in color temperature presets ranging from 3200K to 10000K for quick and easy white-light matching.
  • Flicker-Free Broadcast Performance: Adjustable PWM frequencies (from 600 Hz to 25,000 Hz) and 16-bit dimming ensure smooth, flicker-free operation on video.
  • Pro-Grade Connections: Fitted with IP65-rated 5-pin DMX connectors and Seetronic Powerkon IP65 power connections for secure, weather-resistant daisy-chaining

Already own this item and want to sell it?

Click here to sell your item

FAQs about CHAUVET Professional COLORado Batten 72X IP65 RGBWA LED Batten

What type of LED light source does the COLORado Batten 72X use?

The fixture is powered by 72 calibrated 3W RGBWA LEDs (18 red, 18 green, 18 blue, 9 white, and 9 amber). This configuration allows it to produce superb color rendering and a vast palette ranging from soft pastels to deeply saturated hues.

What are the optical beam and field angles?

It features 24° installed optics. This creates a precise wash with a 22° horizontal and 18° vertical beam angle, and a 39° horizontal and 34° vertical field angle.

Is the COLORado Batten 72X safe to use outdoors?

Yes. The batten is fully IP65-rated for temporary outdoor and wet use. It features IP-rated Seetronic powerKON connections and 5-pin IP65 XLR data connectors to ensure reliable all-weather operation.

Is this fixture suitable for on-camera broadcast or film?

Absolutely. To prevent any flickering on camera, it offers selectable Pulse Width Modulation (PWM) frequencies ranging from 600 Hz all the way up to 25,000 Hz, making it safe for IMAG, streaming, and slow-motion capture.

How smooth is the dimming on this fixture?

It boasts a 16-bit electronic dimming capability along with five selectable dimming curves. This provides exceptionally smooth theatrical fades and allows the fixture to easily integrate alongside aging traditional incandescent rigs.

How do the pre-set color temperatures work?

To speed up your lighting design process, the fixture includes built-in white color temperature presets ranging from a warm 3200 K to a cool 10,000 K.

What are my DMX control options?

The batten supports both DMX and RDM (Remote Device Management) protocols. It provides extensive programming versatility with 18 different DMX personalities, allowing you to run it in 1-cell or 3-cell control modes (ranging from 3 to 43 DMX channels).

How many fixtures can be power-linked together?

To simplify your setup and reduce cable clutter, you can safely power-link up to 10 units on a standard 120V circuit, or up to 19 units on a 230V circuit.

How is the fixture mounted?

The fixture is built with integrated trunnions that accommodate standard professional clamps, making it highly versatile for both vertical or horizontal hanging on a truss.
