SKU: C2341-49

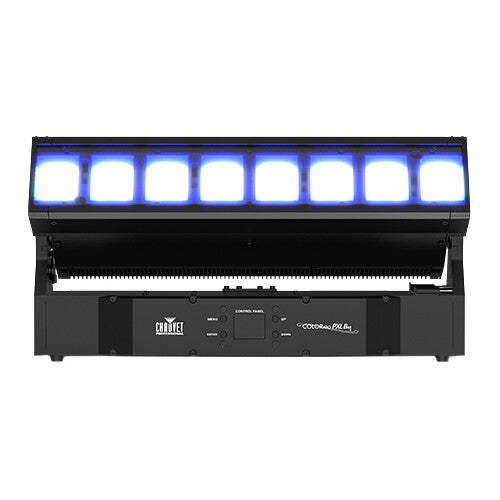

CHAUVET Professional COLORado PXL Bar 8 RGBW LED Moving Batten

$1,560.75

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The CHAUVET Professional COLORado PXL Bar 8 delivers powerful RGBW LED illumination in a compact moving batten format. Featuring 8 individually controllable pixels, this fixture offers precise color mixing and dynamic effects for stages, venues, and live events. The robust construction handles touring demands while the intuitive control options—including DMX, wireless, and standalone modes—adapt to any production setup. Perfect for creating immersive lighting designs with smooth color transitions and pixel-mapping capabilities. Read more

Features

  • Motorized Tilt & Zoom: Offers a rapid, quiet 200° motorized tilt and an expansive 3.6° to 47.3° zoom range for dynamic aerial sweeps and washes.
  • Intense Pixel Control: Features eight individual 45W RGBW LEDs that are fully pixel-mappable for deep colors, gradients, and intricate animations.
  • All-Weather IP65 Rating: Housed in a durable, fully sealed alloy body with IP-rated power and data connections to ensure flawless outdoor operation.
  • Seamless Pixel Pitch: Designed for edge-to-edge mounting to maintain a continuous, uniform pixel pitch across multiple units in a linear array.
  • Built-in Macros & Effects: Loaded with virtual gobos and movement macros featuring independent foreground and background color control to speed up programming.

Business Financing Options Avaiable

View Available Financing

The CHAUVET Professional COLORado PXL Bar 8 delivers powerful RGBW LED illumination in a compact moving batten format. Featuring 8 individually controllable pixels, this fixture offers precise color mixing and dynamic effects for stages, venues, and live events. The robust construction handles touring demands while the intuitive control options—including DMX, wireless, and standalone modes—adapt to any production setup. Perfect for creating immersive lighting designs with smooth color transitions and pixel-mapping capabilities. Read more

Features

  • Motorized Tilt & Zoom: Offers a rapid, quiet 200° motorized tilt and an expansive 3.6° to 47.3° zoom range for dynamic aerial sweeps and washes.
  • Intense Pixel Control: Features eight individual 45W RGBW LEDs that are fully pixel-mappable for deep colors, gradients, and intricate animations.
  • All-Weather IP65 Rating: Housed in a durable, fully sealed alloy body with IP-rated power and data connections to ensure flawless outdoor operation.
  • Seamless Pixel Pitch: Designed for edge-to-edge mounting to maintain a continuous, uniform pixel pitch across multiple units in a linear array.
  • Built-in Macros & Effects: Loaded with virtual gobos and movement macros featuring independent foreground and background color control to speed up programming.

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the CHAUVET Professional COLORado PXL Bar 8 RGBW LED Moving Batten

The CHAUVET Professional COLORado PXL Bar 8 is a compact yet immensely powerful, IP65-rated motorized tilting batten designed for touring, festivals, and architectural lighting. Measuring just under 20 inches in length, this robust fixture is armed with eight exceptionally bright 45-watt quad-color (RGBW) LEDs capable of delivering punchy, high-intensity aerial beams and expansive washes. Built with a rugged, outdoor-ready housing, it reliably stands up to wet and dusty environments without compromising its sleek form factor. The PXL Bar 8 is engineered for seamless edge-to-edge mounting, which allows lighting designers to construct uniform, continuous linear arrays and gapless pixel runs on truss bays or ground installations.

Like its larger sibling, the PXL Bar 16, this model excels in dynamic movement and intricate pixel mapping. It features a fast, quiet 200° motorized tilt and a versatile motorized zoom range from a narrow 3.6° to a wide 47.3°, providing incredible agility to morph from razor-sharp pixel beams to broad atmospheric washes in an instant. To streamline complex programming, the unit includes an onboard effects engine complete with virtual gobos and movement macros boasting separate foreground and background color control. Fully controllable via DMX, sACN, Art-Net, and Kling-Net, it easily integrates into high-tier production rigs while offering adjustable PWM to maintain pristine, flicker-free performance on camera.

Key Features

  • Motorized Tilt & Zoom: Offers a rapid, quiet 200° motorized tilt and an expansive 3.6° to 47.3° zoom range for dynamic aerial sweeps and washes.
  • Intense Pixel Control: Features eight individual 45W RGBW LEDs that are fully pixel-mappable for deep colors, gradients, and intricate animations.
  • All-Weather IP65 Rating: Housed in a durable, fully sealed alloy body with IP-rated power and data connections to ensure flawless outdoor operation.
  • Seamless Pixel Pitch: Designed for edge-to-edge mounting to maintain a continuous, uniform pixel pitch across multiple units in a linear array.
  • Built-in Macros & Effects: Loaded with virtual gobos and movement macros featuring independent foreground and background color control to speed up programming.

Already own this item and want to sell it?

Click here to sell your item

CHAUVET Professional COLORado PXL Bar 8 RGBW LED Moving Batten Specs

Light Source
8 LEDs (quad-color RGBW) 45 W (3.0 A), 50,000 hours life expectancy
Color Temperature (Calibrated White)
6121 K
Zoom Range
3.6° to 47.3° (motorized)
Tilt
200° (Ranges: 60°, 180°, 200°)
Illuminance (3.6°)
12,109 lux @ 5 m
Illuminance (47.3°)
563 lux @ 5 m
Lumens
3,503
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Control Protocols
Art-Net, Kling-Net, DMX, RDM, sACN
IP Rating
IP65

Key Features

  • Motorized Tilt & Zoom: Offers a rapid, quiet 200° motorized tilt and an expansive 3.6° to 47.3° zoom range for dynamic aerial sweeps and washes.
  • Intense Pixel Control: Features eight individual 45W RGBW LEDs that are fully pixel-mappable for deep colors, gradients, and intricate animations.
  • All-Weather IP65 Rating: Housed in a durable, fully sealed alloy body with IP-rated power and data connections to ensure flawless outdoor operation.
  • Seamless Pixel Pitch: Designed for edge-to-edge mounting to maintain a continuous, uniform pixel pitch across multiple units in a linear array.
  • Built-in Macros & Effects: Loaded with virtual gobos and movement macros featuring independent foreground and background color control to speed up programming.

Already own this item and want to sell it?

Click here to sell your item

FAQs about CHAUVET Professional COLORado PXL Bar 8 RGBW LED Moving Batten

What type of light source does the COLORado PXL Bar 8 use?

The fixture is powered by 8 high-output 45-watt quad-color (RGBW) LEDs. This engine delivers smooth color mixing, calibrated whites (6121 K), and intense light output for powerful washes and aerial effects.

What is the zoom range of the fixture?

It features a fast, smooth motorized zoom that allows you to seamlessly transition from a razor-sharp 3.5° aerial beam up to a broad 47.3° wash.

How much physical movement does the batten have?

The fixture features a fast and quiet motorized tilt range of 200°. You can also restrict the tilt travel via the menu to 60°, 180°, or 200° to cap the physical movement in low trim heights or tight scenic corridors.

Is this fixture fully pixel-mappable?

Yes. Every single one of the 8 RGBW cells is fully pixel-mappable for chases, gradients, and content-driven animations. To speed up programming, it features built-in virtual gobos and movement macros with separate foreground and background color control.

Can the COLORado PXL Bar 8 be used outdoors?

Absolutely. The fixture is fully IP65-rated for temporary outdoor and wet environments. It features a sealed housing with a pressure-equalizing M12 GORE valve, protecting its internal components from moisture, dust, and temperature swings.

What control protocols does it support?

This batten is designed to integrate seamlessly into complex professional rigs, offering comprehensive control via DMX, RDM, sACN, Art-Net, and Kling-Net.

Is the fixture safe for broadcast or on-camera use?

Yes. To ensure completely flicker-free performance on video, the fixture offers selectable Pulse Width Modulation (PWM) frequencies ranging from 600 Hz up to 15,000 Hz, accommodating various shutter speeds for film, IMAG, and broadcast.

Can I link multiple units together seamlessly?

Yes, the physical chassis is designed for seamless edge-to-edge mounting. When you place multiple COLORado PXL Bar 8 units end-to-end, it maintains perfect, consistent pixel pitch between the fixtures to create flawless, continuous light arrays.

How many of these fixtures can I daisy-chain for power?

The fixture utilizes secure, TRUE1-compatible Seetronic Powerkon IP65 connections. You can safely power-link up to 3 units on a standard 120V circuit, up to 5 units on a 208V circuit, or up to 6 units on a 230V circuit.
