SKU: C2341-50

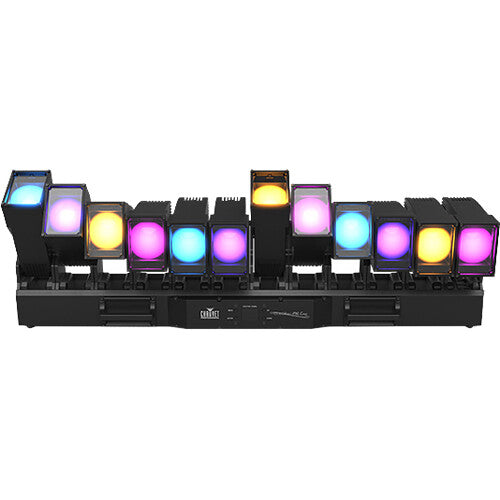

CHAUVET Professional COLORado PXL Curve 12 RGBW LED Moving Batten

$3,508.80

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The CHAUVET Professional COLORado PXL Curve 12 RGBW LED Moving Batten delivers dynamic, full-color lighting for stages, events, and installations. Featuring 12 individually controllable RGBW LEDs, this curved batten produces vibrant quad-color output with smooth color mixing and precise beam control. Its compact, flexible design fits curved surfaces and tight spaces while maintaining professional-grade brightness and color accuracy. Perfect for theatrical productions, concerts, corporate events, and architectural lighting applications. DMX-compatible for seamless integration into existing lighting systems. Read more

Features

  • Independent Moving Heads: Features 12 individually controllable heads, each with its own 200° motorized tilt and zoom for dynamic, complex aerial sweeps.
  • Intense RGBW Output: Equipped with twelve 45W quad-color (RGBW) LEDs capable of projecting deep, saturated colors and stunning pixel animations.
  • All-Weather IP65 Rating: Built with a rugged, fully sealed alloy body along with IP-rated power and data connections for highly reliable outdoor operation.
  • Seamless Pixel Pitch: Designed for precise edge-to-edge mounting to maintain a continuous, uniform pixel pitch across multiple units in a linear array.
  • Built-in Macros & Effects: Loaded with virtual gobos and pre-built movement macros featuring independent foreground and background color control to vastly speed up programming.

Business Financing Options Avaiable

View Available Financing

The CHAUVET Professional COLORado PXL Curve 12 RGBW LED Moving Batten delivers dynamic, full-color lighting for stages, events, and installations. Featuring 12 individually controllable RGBW LEDs, this curved batten produces vibrant quad-color output with smooth color mixing and precise beam control. Its compact, flexible design fits curved surfaces and tight spaces while maintaining professional-grade brightness and color accuracy. Perfect for theatrical productions, concerts, corporate events, and architectural lighting applications. DMX-compatible for seamless integration into existing lighting systems. Read more

Features

  • Independent Moving Heads: Features 12 individually controllable heads, each with its own 200° motorized tilt and zoom for dynamic, complex aerial sweeps.
  • Intense RGBW Output: Equipped with twelve 45W quad-color (RGBW) LEDs capable of projecting deep, saturated colors and stunning pixel animations.
  • All-Weather IP65 Rating: Built with a rugged, fully sealed alloy body along with IP-rated power and data connections for highly reliable outdoor operation.
  • Seamless Pixel Pitch: Designed for precise edge-to-edge mounting to maintain a continuous, uniform pixel pitch across multiple units in a linear array.
  • Built-in Macros & Effects: Loaded with virtual gobos and pre-built movement macros featuring independent foreground and background color control to vastly speed up programming.

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the CHAUVET Professional COLORado PXL Curve 12 RGBW LED Moving Batten

The CHAUVET Professional COLORado PXL Curve 12 is a fully pixel-mappable, motorized IP65-rated RGBW LED batten designed for major touring, festival, and permanent outdoor installations. It is equipped with twelve powerful 45-watt RGBW LEDs, each mounted on its own independently moving head. This unprecedented level of control allows lighting designers to create dynamic effects, volumetric sweeps, and completely unique waving movements from a single linear fixture. Built to thrive in demanding environments, it features a rugged, weather-ready housing that easily handles wet conditions while maintaining a sleek, array-friendly design supporting seamless edge-to-edge mounting for consistent, gapless pixel runs.

Beyond its innovative multi-head design, the PXL Curve 12 is loaded with advanced optical and control capabilities. Each of its 12 heads offers a fast, quiet 200° motorized tilt alongside individual motorized zoom ranging from a tight 5.7° spot to a wide 36.3° flood. To streamline complex programming, the unit boasts an onboard effects engine complete with virtual gobos and movement macros featuring separate foreground and background color control. With extensive support for DMX, sACN, Art-Net, Kling-Net, and RDM, it integrates seamlessly into the most demanding pixel-mapping rigs, while highly adjustable PWM frequencies guarantee flawless, flicker-free performance on camera.

Key Features

  • Independent Moving Heads: Features 12 individually controllable heads, each with its own 200° motorized tilt and zoom for dynamic, complex aerial sweeps.
  • Intense RGBW Output: Equipped with twelve 45W quad-color (RGBW) LEDs capable of projecting deep, saturated colors and stunning pixel animations.
  • All-Weather IP65 Rating: Built with a rugged, fully sealed alloy body along with IP-rated power and data connections for highly reliable outdoor operation.
  • Seamless Pixel Pitch: Designed for precise edge-to-edge mounting to maintain a continuous, uniform pixel pitch across multiple units in a linear array.
  • Built-in Macros & Effects: Loaded with virtual gobos and pre-built movement macros featuring independent foreground and background color control to vastly speed up programming.

Already own this item and want to sell it?

Click here to sell your item

CHAUVET Professional COLORado PXL Curve 12 RGBW LED Moving Batten Specs

Light Source
8 LEDs (quad-color RGBW) 45 W (3.0 A), 50,000 hours life expectancy
Color Temperature (Calibrated White)
6121 K
Zoom Range
3.6° to 47.3° (motorized)
Tilt
200° (Ranges: 60°, 180°, 200°)
Illuminance (3.6°)
12,109 lux @ 5 m
Illuminance (47.3°)
563 lux @ 5 m
Lumens
3,503
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Control Protocols
Art-Net, Kling-Net, DMX, RDM, sACN
IP Rating
IP65

Key Features

  • Independent Moving Heads: Features 12 individually controllable heads, each with its own 200° motorized tilt and zoom for dynamic, complex aerial sweeps.
  • Intense RGBW Output: Equipped with twelve 45W quad-color (RGBW) LEDs capable of projecting deep, saturated colors and stunning pixel animations.
  • All-Weather IP65 Rating: Built with a rugged, fully sealed alloy body along with IP-rated power and data connections for highly reliable outdoor operation.
  • Seamless Pixel Pitch: Designed for precise edge-to-edge mounting to maintain a continuous, uniform pixel pitch across multiple units in a linear array.
  • Built-in Macros & Effects: Loaded with virtual gobos and pre-built movement macros featuring independent foreground and background color control to vastly speed up programming.

Already own this item and want to sell it?

Click here to sell your item

FAQs about CHAUVET Professional COLORado PXL Curve 12 RGBW LED Moving Batten

What type of light source does the COLORado PXL Curve 12 use?

The fixture is powered by 12 independent heads, each equipped with a high-output 45-watt quad-color (RGBW) LED. This setup allows for intense, vibrant color mixing and fully independent pixel control across the entire batten.

Does the fixture offer independent movement for each LED?

Yes. Unlike traditional moving battens that tilt as one solid block, this fixture features 12 individually motorized heads. Each head boasts a fast, quiet 200° tilt range, allowing you to create complex, sweeping fans and volumetric aerial effects from a single fixture.

What is the zoom capability of the fixture?

Each of the 12 heads features its own independent, motorized zoom. The zoom range spans from a sharp 5.7° spot for tight beams to a wide 36.3° flood for broad washes, giving you the flexibility to morph from thin aerial columns to thick waves along the bar.

Can the COLORado PXL Curve 12 be used outdoors?

Absolutely. The fixture is fully IP65-rated for temporary outdoor and wet environments. It features a rugged die-cast aluminum chassis, weather-sealed IP65 5-pin DMX and network ports, and IP65 Seetronic Powerkon connections, making it perfect for festival stages.

Is this fixture fully pixel-mappable?

Yes, all 12 heads are fully pixel-mappable. To drastically speed up your programming, the fixture includes a built-in effects engine packed with virtual gobos and movement macros, complete with independent foreground and background color control.

What control protocols does it support?

Built for large-scale production networks, the fixture supports comprehensive control via DMX, RDM, sACN, Art-Net, and Kling-Net.

Is the fixture safe for broadcast, IMAG, or on-camera use?

Yes. To ensure completely flicker-free performance on camera, the batten offers user-selectable Pulse Width Modulation (PWM) frequencies ranging from 600 Hz up to 15,000 Hz, making it highly adaptable to various video shutter speeds.

Can I link multiple units together seamlessly?

Yes, the physical chassis is engineered for seamless edge-to-edge mounting. When multiple COLORado PXL Curve 12 units are placed end-to-end, they maintain a perfectly consistent pixel pitch between the fixtures for flawless runway and array effects.

How many of these fixtures can I daisy-chain for power?

Because each fixture is running 12 independent motors and high-output LEDs, it draws a significant amount of power (up to 790W at 120V). On a standard 120V circuit, you can only run 1 unit. However, on a 208V or 230V circuit, you can safely power-link up to 3 units together using the TRUE1-compatible connections.
