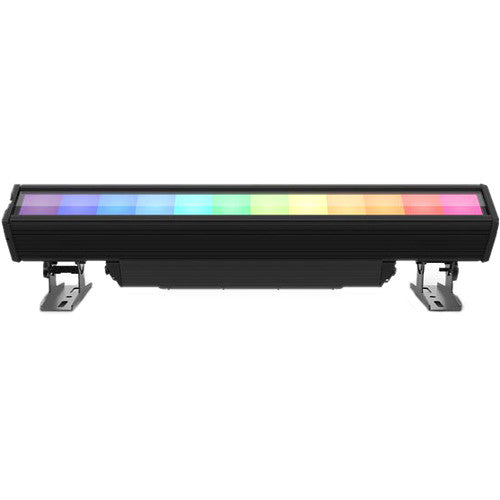

CHAUVET Professional COLORado Solo Batten RGBAW LED Batten

The fixture is powered by an array of 144 individual 3-watt LEDs (24 red, 24 green, 24 blue, 24 amber, and 48 white). This RGBAW configuration allows it to produce deeply saturated primaries, smooth pastels, and crisp, accurate whites.

Unlike traditional LED battens that display visible round "eyes" or pixels, the COLORado Solo Batten is designed with advanced optics that project a completely homogenized wash. The LEDs are grouped into 12 seamless square sections that blend together flawlessly end-to-end without any visible color separation or dimmed corners.

Yes. Despite acting as one seamless bar of light during standard wash applications, all 12 square sections are fully pixel-mappable. This allows programmers to create highly dynamic chases, gradients, and custom pixel-mapping effects across the batten.

Absolutely. The fixture is fully IP65-rated for temporary outdoor and wet environments. It features a rugged die-cast aluminum chassis and uses weather-sealed IP65 power, DMX, and Ethernet connections to keep out moisture and dust.

Out of the box, the fixture features an 18° installed optic that produces a tight, punchy beam (measuring 20° horizontal x 16° vertical). However, it also includes a slide-in wall wash filter that broadens the output into a wider, asymmetrical shape (37° horizontal x 15° vertical), which is perfect for smoothly lighting backdrops, cycs, and architectural facades.

Yes, it is highly camera-friendly. To prevent flickering on video, the fixture offers user-selectable Pulse Width Modulation (PWM) frequencies ranging from 600 Hz up to 25,000 Hz, allowing it to sync with a wide variety of camera shutter speeds.

To streamline the programming process for broadcast and theatrical uses, the fixture includes built-in, linear color temperature presets ranging from a very warm 1800 K to a cool 8000 K.

Built for professional touring and installations, the fixture supports comprehensive network and data control via Art-Net, sACN, DMX, and RDM (Remote Device Management). The chassis features both 5-pin DMX/RDM ports and etherCON ports for direct network integration.

The fixture utilizes secure, locking Seetronic Powerkon IP65 connections. It draws a maximum of around 336W at 120V. On a standard 120V circuit, you can safely power-link up to 4 units together. On a 208V or 230V circuit, you can daisy-chain up to 8 units.
