SKU: C2341-91

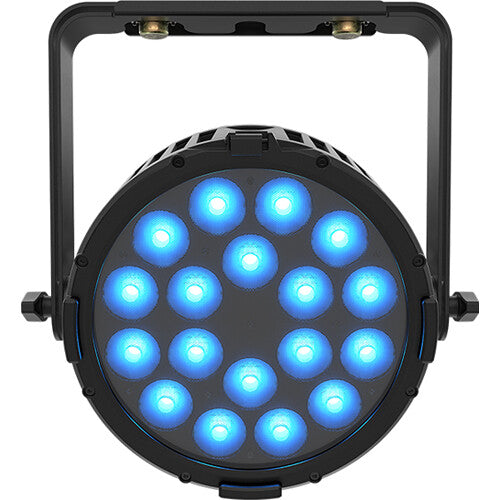

CHAUVET Professional COLORdash PAR H18 XIP RGBAWUV LED Wash Light

$335.55 - $422.40

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The CHAUVET Professional COLORdash PAR H18 XIP delivers powerful RGBAWUV color mixing in a compact, IP65-rated fixture designed for outdoor and indoor applications. This 18-LED wash light produces vibrant, saturated colors with exceptional brightness and smooth dimming capabilities. The XIP technology ensures reliable performance in demanding environments, while the intuitive control options—including DMX, RDM, and wireless compatibility—make integration seamless. Perfect for stage productions, architectural lighting, events, and installations where versatile color control and weather resistance are essential. Read more

Features

  • Light Source: 18 high-power hex-color (RGBAW-UV) LEDs delivering over 5,500 lumens of output
  • Weather Protection: Rugged IP65-rated aluminum die-cast housing with weatherproof power and data connections
  • Camera Performance: Selectable PWM frequencies ranging from 600 Hz to 25,000 Hz to ensure completely flicker-free broadcast capture
  • Control Integration: Supports DMX and RDM protocols with multiple flexible channel footprints (6, 8, 9, 13, or 14 channels)
  • Rigging Versatility: Includes a double-bracketed yoke with an omega bracket that conveniently converts for floor-standing applications

Business Financing Options Avaiable

View Available Financing

The CHAUVET Professional COLORdash PAR H18 XIP delivers powerful RGBAWUV color mixing in a compact, IP65-rated fixture designed for outdoor and indoor applications. This 18-LED wash light produces vibrant, saturated colors with exceptional brightness and smooth dimming capabilities. The XIP technology ensures reliable performance in demanding environments, while the intuitive control options—including DMX, RDM, and wireless compatibility—make integration seamless. Perfect for stage productions, architectural lighting, events, and installations where versatile color control and weather resistance are essential. Read more

Features

  • Light Source: 18 high-power hex-color (RGBAW-UV) LEDs delivering over 5,500 lumens of output
  • Weather Protection: Rugged IP65-rated aluminum die-cast housing with weatherproof power and data connections
  • Camera Performance: Selectable PWM frequencies ranging from 600 Hz to 25,000 Hz to ensure completely flicker-free broadcast capture
  • Control Integration: Supports DMX and RDM protocols with multiple flexible channel footprints (6, 8, 9, 13, or 14 channels)
  • Rigging Versatility: Includes a double-bracketed yoke with an omega bracket that conveniently converts for floor-standing applications

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the CHAUVET Professional COLORdash PAR H18 XIP RGBAWUV LED Wash Light

The Chauvet Professional COLORdash PAR H18 XIP is a high-power, IP65-rated LED wash light engineered to deliver vibrant and precise color fields for demanding outdoor festivals, touring productions, and broadcast environments. Driven by an array of 18 hex-color LEDs, it combines Red, Green, Blue, Amber, White, and Ultraviolet (RGBAW-UV) elements to produce an expansive palette ranging from deep, rich saturates and subtle pastels to striking blacklight effects and beautifully calibrated white color temperatures. Its advanced internal optics maximize optical efficiency to project smooth, even coverage across any stage or performance area.

Built to withstand harsh weather conditions, the fixture features a rugged die-cast aluminum housing paired with weatherproof Seetronic Powerkon power connections and IP-rated DMX links. It provides intuitive configuration via a user-friendly OLED touchscreen display with password protection, alongside remote management capabilities through RDM. Complete with selectable 16-bit dimming curves and adjustable Pulse Width Modulation (PWM) frequencies to eliminate on-camera flicker, the unit offers exceptional performance and versatility for professional lighting designers

Key Features

  • Light Source: 18 high-power hex-color (RGBAW-UV) LEDs delivering over 5,500 lumens of output
  • Weather Protection: Rugged IP65-rated aluminum die-cast housing with weatherproof power and data connections
  • Camera Performance: Selectable PWM frequencies ranging from 600 Hz to 25,000 Hz to ensure completely flicker-free broadcast capture
  • Control Integration: Supports DMX and RDM protocols with multiple flexible channel footprints (6, 8, 9, 13, or 14 channels)
  • Rigging Versatility: Includes a double-bracketed yoke with an omega bracket that conveniently converts for floor-standing applications

Already own this item and want to sell it?

Click here to sell your item

CHAUVET Professional COLORdash PAR H18 XIP RGBAWUV LED Wash Light Specs

Light Output
5,567 Lumens
Illuminance
1,106 lux @ 5 m
Beam Angle
25.4°
Field Angle
39°
Color Temperature Range
2,800 K to 10,000 K
Control Protocols
DMX, RDM
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Power Consumption
154 W, 1.25 A @ 120 V, 60 Hz
IP Rating
IP65 (temporary outdoor/wet use)

Key Features

  • Light Source: 18 high-power hex-color (RGBAW-UV) LEDs delivering over 5,500 lumens of output
  • Weather Protection: Rugged IP65-rated aluminum die-cast housing with weatherproof power and data connections
  • Camera Performance: Selectable PWM frequencies ranging from 600 Hz to 25,000 Hz to ensure completely flicker-free broadcast capture
  • Control Integration: Supports DMX and RDM protocols with multiple flexible channel footprints (6, 8, 9, 13, or 14 channels)
  • Rigging Versatility: Includes a double-bracketed yoke with an omega bracket that conveniently converts for floor-standing applications

Already own this item and want to sell it?

Click here to sell your item

FAQs about CHAUVET Professional COLORdash PAR H18 XIP RGBAWUV LED Wash Light

What type of light source does the COLORdash PAR H18 XIP use?

The fixture is powered by 18 high-output hex-color (RGBAW+UV) LEDs. This configuration allows you to generate a massive palette of colors, from subtle pastels and warm whites to intensely saturated hues, as well as vibrant ultraviolet effects.

Can the COLORdash PAR H18 XIP be used outdoors?

Yes. The "XIP" designation means the fixture is fully IP65-rated for temporary outdoor and wet use. It features a rugged, die-cast aluminum housing and utilizes weatherproof Seetronic Powerkon IP65 power and IP-rated DMX connections to ensure reliable performance in the rain, dust, or humidity.

What are the beam and field angles?

The fixture's advanced optics deliver a tight 25.4° beam angle for concentrated light output, while the field angle spreads to 39° to provide smooth, even wash coverage across stages or architectural features.

Is this wash light suitable for on-camera broadcast or film?

Yes, it is highly camera-friendly. To prevent any banding or flickering on video, the fixture offers multiple, user-selectable Pulse Width Modulation (PWM) frequencies ranging from 600 Hz up to 25,000 Hz, making it easily adaptable to various camera shutter speeds for broadcast and livestreamed events.

How do the white light and color temperature controls work?

The fixture includes built-in color temperature presets that allow you to quickly dial in calibrated white light. The color temperature range is highly versatile, extending from a warm 2800 K to a cool 10,000 K, which is perfect for matching other light sources in a room without needing to manually mix the RGBWA diodes.

How smooth is the dimming on this fixture?

It boasts flawless 16-bit electronic dimming and includes four selectable dimming curves. This ensures exceptionally smooth theatrical fades, completely eliminating any choppiness or flickering at the very bottom of the dimming range.

What are my DMX control options?

The fixture supports both standard DMX and RDM (Remote Device Management). It offers versatile programming with 5 different DMX channel personalities (ranging from 6, 8, 9, 13, and 14 channels). For data connections, the chassis includes both 3-pin and 5-pin XLR ports.

How can I adjust settings without a DMX controller?

The back panel features an easy-to-read OLED display with a touchscreen interface. This allows for simple, intuitive onboard configuration, standalone color mixing, and triggering built-in automated programs. The menu can also be password-protected to prevent unauthorized tampering during events.

How many fixtures can I daisy-chain for power?

Using the secure, IP-rated Seetronic Powerkon connections, you can safely power-link up to 9 units on a standard 120V circuit, up to 16 units on a 208V circuit, or up to 18 units on a 230V circuit, which significantly cuts down on cable clutter in your rig.
