SKU: C2341-60

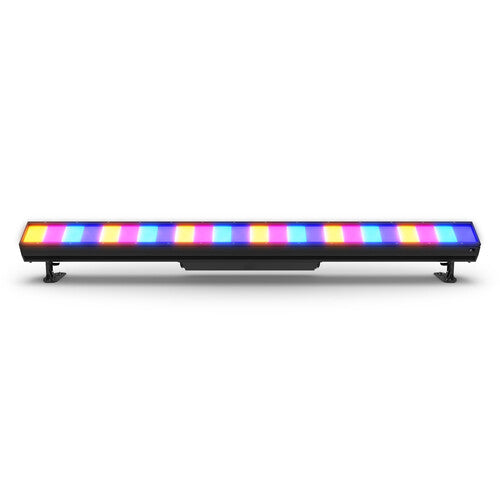

CHAUVET Professional COLORado Solo Bar 6 RGBwWL LED Batten

$3,180.75

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The Professional COLORado Solo Bar 6 RGBwWL LED Batten delivers powerful, versatile lighting for stages, events, and installations. This compact batten features six individually controllable RGBA+WL (red, green, blue, amber, white, and lime) LED elements, enabling unlimited color mixing and dynamic effects. Ideal for theaters, concert venues, clubs, and corporate events, the COLORado Solo Bar 6 produces smooth color transitions and vibrant output with minimal power consumption. Its rugged construction withstands touring demands, while intuitive DMX control integrates seamlessly into professional lighting rigs.  Read more

Features

  • Light Source: 24 (RGBWwL) LED Engines
  • Color Tuning: Linear CCT presets from 2,800 K to 8,000 K with CRI 95
  • Wireless Control: Integrated Lumenradio CRMX receiver
  • Weather Protection: IP65 rating for all-weather outdoor use
  • Dimming Control: Ultra-smooth 18-bit dimming with selectable PWM frequencies up to 25,000 Hz

Business Financing Options Avaiable

View Available Financing

The Professional COLORado Solo Bar 6 RGBwWL LED Batten delivers powerful, versatile lighting for stages, events, and installations. This compact batten features six individually controllable RGBA+WL (red, green, blue, amber, white, and lime) LED elements, enabling unlimited color mixing and dynamic effects. Ideal for theaters, concert venues, clubs, and corporate events, the COLORado Solo Bar 6 produces smooth color transitions and vibrant output with minimal power consumption. Its rugged construction withstands touring demands, while intuitive DMX control integrates seamlessly into professional lighting rigs.  Read more

Features

  • Light Source: 24 (RGBWwL) LED Engines
  • Color Tuning: Linear CCT presets from 2,800 K to 8,000 K with CRI 95
  • Wireless Control: Integrated Lumenradio CRMX receiver
  • Weather Protection: IP65 rating for all-weather outdoor use
  • Dimming Control: Ultra-smooth 18-bit dimming with selectable PWM frequencies up to 25,000 Hz

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the CHAUVET Professional COLORado Solo Bar 6 RGBwWL LED Batten

The Chauvet Professional COLORado Solo Bar 6 is a 24-cell, IP65-rated LED batten designed for touring, broadcast, film, and theatrical applications. Featuring an RGBwWL (Red, Green, Blue, warm White, Lime) engine array, it delivers exceptional color blending, precise pixel-mapping capabilities, and high-quality whites with linear color temperature control ranging from 2,800 K to 8,000 K. Its edge-to-edge homogenized squares allow lighting designers to build seamless direct-view visual effects or use the fixture as a high-output wash, cyc, or footlight.

Engineered to excel both outdoors and in broadcast environments, the light features a rugged, all-weather die-cast housing alongside virtually silent operation. Control options are highly versatile, offering compatibility with DMX, RDM, Art-Net, sACN, and wireless CRMX. Equipped with selectable PWM settings to eliminate on-camera flicker, smooth 18-bit dimming curves, and built-in alignment guide pins, the unit delivers professional-grade flexibility for complex staging layouts.

Key Features

  • Light Source: 24 (RGBWwL) LED Engines
  • Color Tuning: Linear CCT presets from 2,800 K to 8,000 K with CRI 95
  • Wireless Control: Integrated Lumenradio CRMX receiver
  • Weather Protection: IP65 rating for all-weather outdoor use
  • Dimming Control: Ultra-smooth 18-bit dimming with selectable PWM frequencies up to 25,000 Hz

Already own this item and want to sell it?

Click here to sell your item

CHAUVET Professional COLORado Solo Bar 6 RGBwWL LED Batten Specs

Light Output
25,198 Lumens
Illuminance
5,834 lux @ 5 m
Beam Angle
16.7° (40.7° with included CYC filter)
Control Protocols
DMX, RDM, CRMX, Art-Net, sACN
Dimming Modes
4 Dimming Curves, 18-bit resolution
Selectable PWM
1,000 Hz to 25,000 Hz
Power Consumption
600 W @ 120 V, 60 Hz
IP Rating
IP65

Key Features

  • Light Source: 24 (RGBWwL) LED Engines
  • Color Tuning: Linear CCT presets from 2,800 K to 8,000 K with CRI 95
  • Wireless Control: Integrated Lumenradio CRMX receiver
  • Weather Protection: IP65 rating for all-weather outdoor use
  • Dimming Control: Ultra-smooth 18-bit dimming with selectable PWM frequencies up to 25,000 Hz

Already own this item and want to sell it?

Click here to sell your item

FAQs about CHAUVET Professional COLORado Solo Bar 6 RGBwWL LED Batten

What type of light source does the COLORado Solo Bar 6 use?

The fixture is powered by 24 homogenized RGBWwL (Red, Green, Blue, Warm White, Lime) LED engines. This 5-color array delivers a full spectrum of vibrant colors alongside high-quality whites, boasting an impressive CRI of 95 for superior color rendering.

What are the native beam and field angles, and can they be modified?

The native optics provide a 16.7° beam angle and a 36.1° field angle for a tight, punchy throw. However, the fixture includes a slide-in slot and comes with three beam-shaping filters to broaden the wash: a CYC filter (40.7° beam), a Half Diffusion filter (18.9° beam), and a Stealth Diffusion filter (25° beam).

Is this batten safe to use outdoors?

Yes. It is fully IP65-rated, featuring an aluminum die-cast housing and a pressure-equalizing M12 GORE valve. It is protected from dust, fog, rain, and haze, making it highly reliable for outdoor touring, festivals, and all-weather permanent installations.

Can the 24 LED cells be individually controlled for effects?

Absolutely. The 24 LED cells are fully pixel-mappable. The homogenized square lenses are designed to blend perfectly from edge to edge, eliminating the "circle in a square" look and providing stunning direct-view pixel animation effects.

Is the COLORado Solo Bar 6 suitable for broadcast and film applications?

Yes, it is extremely camera-friendly. It features selectable Pulse Width Modulation (PWM) frequencies ranging from 1,000 Hz to 25,000 Hz, ensuring completely flicker-free performance on camera. It also operates virtually silently, making it ideal for noise-sensitive studio environments.

How do the white light and color temperature controls work?

To simplify programming for broadcast and theatrical uses, the fixture includes linear color temperature presets ranging from 2800 K to 8000 K. It also offers plus/minus green adjustments and emulated red-shift (accessible via DMX or onboard control) to ensure accurate skin tones on camera.

What control protocols does the batten support?

The fixture offers comprehensive programming flexibility. You can control it via standard DMX, RDM, Art-Net, and sACN. It also natively supports CRMX for reliable wireless data transmission.

How easy is it to rig multiple fixtures together in a continuous line?

The physical chassis is built for rapid, repeatable setups. It features easily adjustable sliding brackets on a standard T-rail for optimal clamp placement, along with integrated guide pins that ensure quick, seamless end-to-end alignment when connecting multiple battens.

How many fixtures can I daisy-chain for power?

The fixture uses IP65-rated Seetronic Powerkon connections. It draws a maximum of around 600W at 120V. On a standard 120V circuit, you can safely power-link up to 2 units. On a 208V, 230V, or 240V circuit, you can daisy-chain up to 4 units together.
