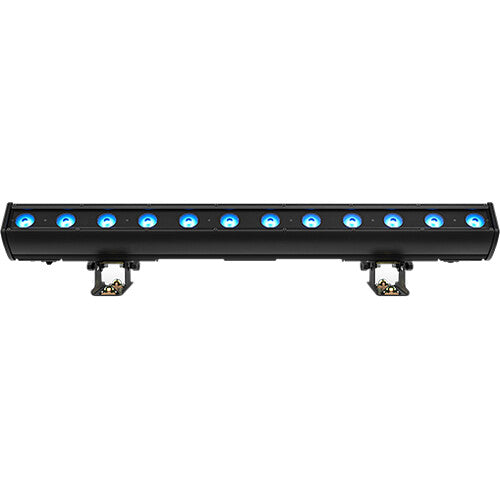

CHAUVET Professional COLORdash Batten H12X IP RGBWAUV LED Batten

It is equipped with 12 individually controllable 10-watt hex-color (RGBAW+UV) LEDs. This configuration allows you to mix a massive palette of subtle pastels, deep saturated colors, and brilliant ultraviolet effects from a single fixture.

The fixture provides a wide, even wash. It features a measured 24.9° beam angle and a 40.7° field angle, delivering smooth coverage without distracting hot spots.

Yes. It is fully IP65-rated for temporary outdoor and wet environments (with an IP66 rating on the pressure-equalizing M12 GORE valve). It features a rugged die-cast aluminum housing and weather-sealed power and data connections, making it highly reliable for all-weather productions.

Absolutely. To prevent any flickering on camera, the fixture offers adjustable Pulse Width Modulation (PWM) frequencies ranging from 600 Hz up to 25,000 Hz, making it safe for IMAG, streaming, and various video shutter speeds.

Yes. All 12 of the hex-color emitters are fully pixel-mappable. When placing multiple battens end-to-end, it maintains an even pixel pitch between the fixtures to create flawless, continuous pixel-mapped chases and gradients.

It boasts flawless 16-bit electronic dimming along with four selectable dimming curves. This provides exceptionally smooth theatrical fades and eliminates choppiness at the bottom of the dimming range.

Built for versatile control integration, it supports both standard DMX and RDM (Remote Device Management). It offers 8 different DMX personalities (ranging from 6 to 59 channels) to accommodate various console limitations and programming needs.

The batten is designed for quick and flexible deployment. It includes integrated floor trunnions that serve double duty as sturdy floor stands, as well as Omega brackets for easy, secure hanging on truss structures.

The fixture utilizes secure, IP-rated Seetronic Powerkon connections. Because it draws a modest 154W at 120V, you can safely power-link up to 9 units on a standard 120V circuit, up to 16 units on a 208V circuit, or 17 units on a 230V circuit.
