Pepwave

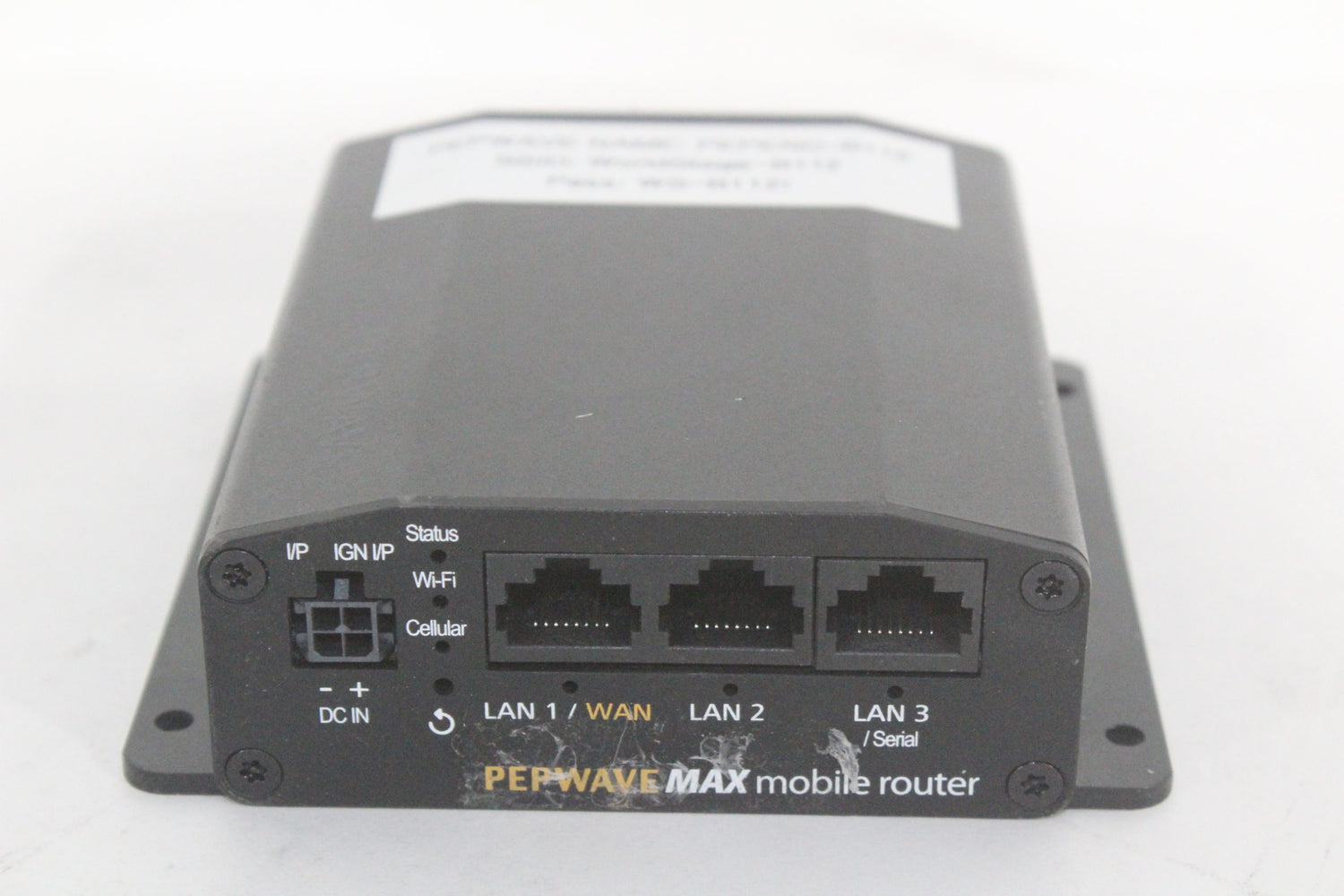

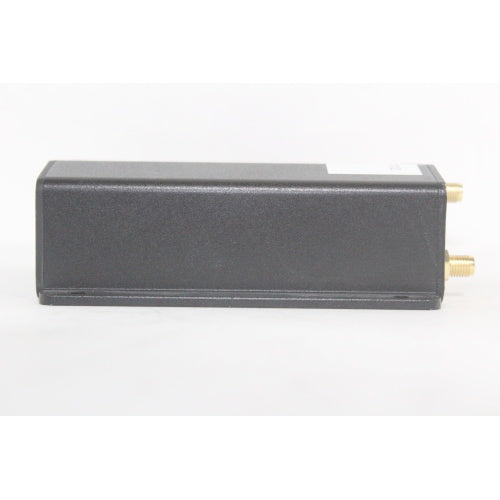

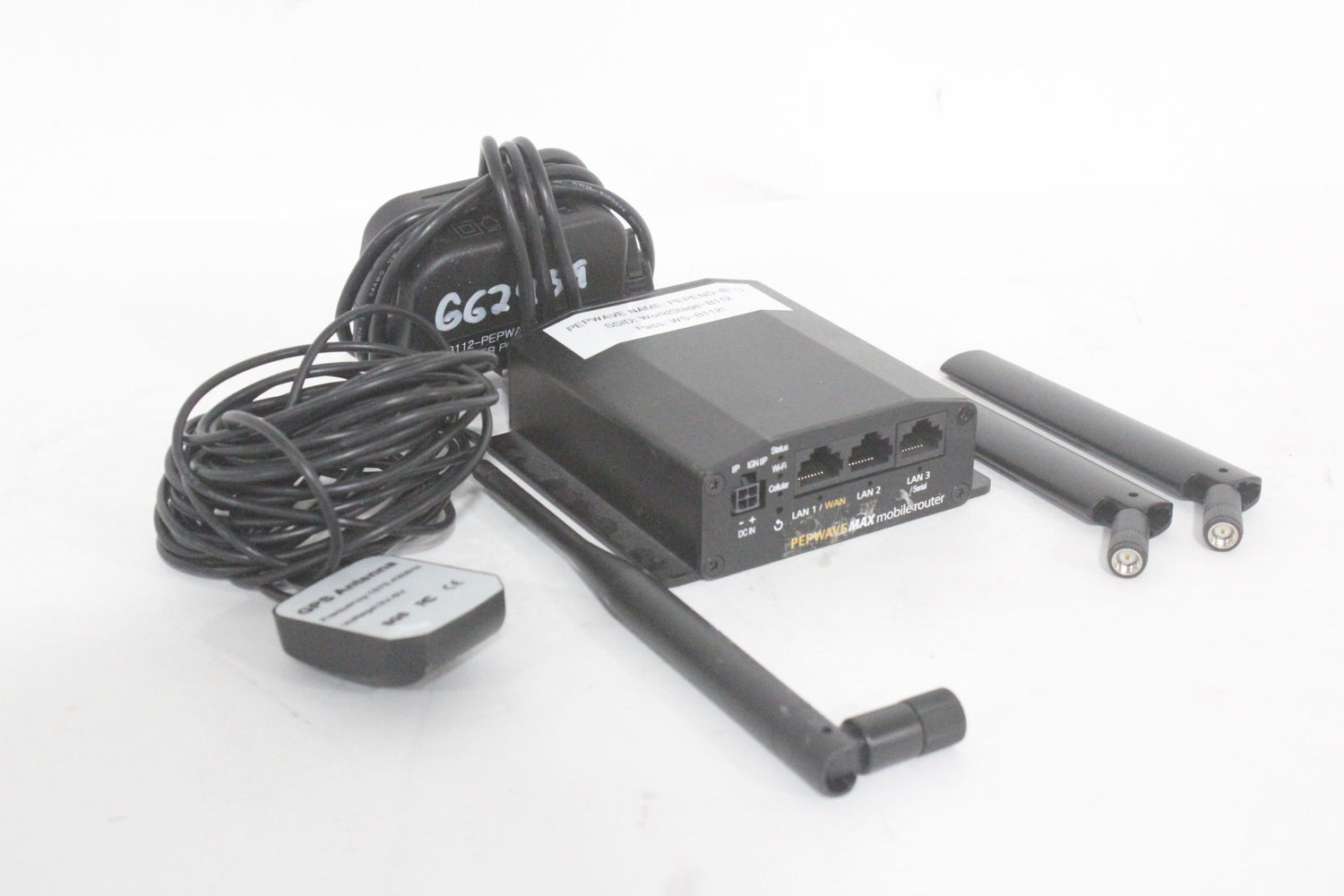

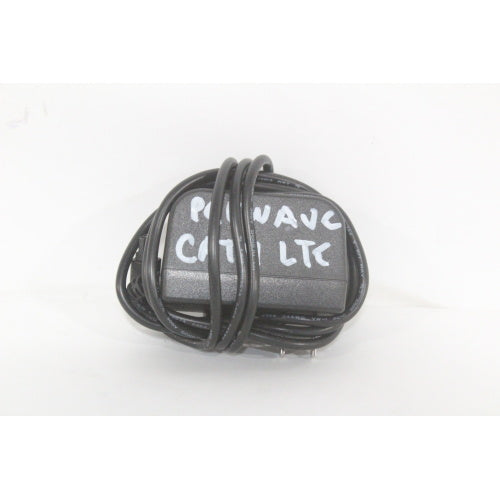

Pepwave B71 Max Transit Mini Mobile Router - Band 71

$0.00

The Peplink Pepwave MAX Transit Mini is a compact, industrial-grade mobile router specifically designed for in-vehicle deployments and other mobile applications. It is equipped with a single embedded LTE modem that supports Band 71, T-Mobile's 600 MHz frequency, which provides extended coverage in remote areas and better signal penetration in buildings. The router also supports Band 14 for FirstNet, giving first responders priority access. The device is built for reliability, with a wide operating temperature range and resistance to shock and vibration. The Transit Mini can be powered via passive PoE or a standard 12V–28V DC input, and it features ignition sensing to turn on and off with the vehicle. A redundant SIM slot allows for automatic switching between different cellular carriers, ensuring continuous connectivity.

View Product Features

  • Band 71 and FirstNet: Provides extended coverage in remote and indoor areas.
  • Dual SIM slot: Ensures network redundancy and automatic failover.
  • Ignition sensing: Automatically powers on/off with a vehicle's ignition.

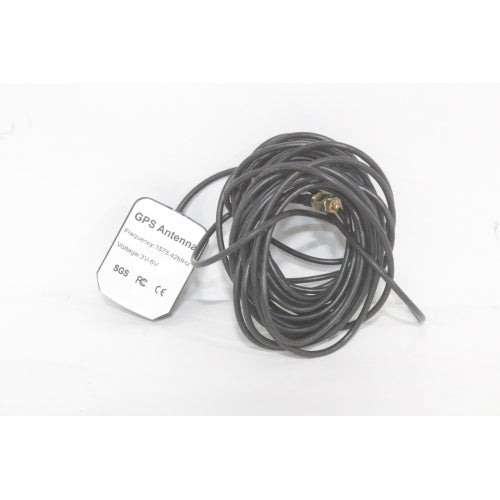

  • Integrated GPS: Allows for fleet tracking and location management.
  • Compact and rugged: Industrial-grade housing fits in small, tight spaces.
  • Cloud management: InControl 2 platform for remote monitoring and configuration.
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Pepwave B71 Max Transit Mini Mobile Router - Band 71

The Pepwave B71 Max Transit Mini is a compact, ruggedized cellular mobile router engineered specifically to provide reliable, high-speed internet connectivity in remote and mobile environments where traditional broadband is unavailable or unreliable. Its defining feature is deep support for Band 71 (600 MHz) LTE, a low-frequency spectrum deployed by major carriers that offers superior signal penetration and range, particularly valuable in rural areas, inside vehicles, or through dense foliage where higher frequency bands struggle. This makes the device an essential tool for first responders, field service technicians, RV users, and mobile broadcasters who require a steadfast primary or failover internet connection for critical communications, data transfer, and real-time GPS tracking.

Despite its small form factor, the router is built for demanding conditions, featuring a robust, waterproof and dustproof housing that meets IP67 standards, allowing it to withstand harsh weather, vibrations, and exposure. It integrates a high-gain, external antenna interface to further enhance signal reception, which can be connected to vehicle-mounted antennas for optimal performance on the move. The B71 Max is not merely a modem; it is a full-featured router incorporating advanced WAN failover capabilities, allowing it to seamlessly switch between multiple cellular connections or to a wired Ethernet source if available, ensuring uninterrupted connectivity. It also includes dual-band Wi-Fi for creating a local hotspot, VPN support for secure remote access, and comprehensive cloud-based management through the Pepwave Connect platform for easy remote configuration and monitoring.

The device is designed for simplicity and autonomy in the field, often featuring an ignition-sensing power input for automatic on/off operation in vehicles and the ability to be powered via a wide range of DC sources. Its efficient design provides stable connectivity for multiple users and devices, supporting data-intensive applications like video streaming, live telemetry, and cloud-based software. By combining rugged durability, specialized Band 71 support, and sophisticated network management in a miniature package, the Pepwave B71 Max Transit Mini delivers a powerful, go-anywhere internet solution that keeps mobile teams and assets connected when it matters most.

Key Features

  • Band 71 and FirstNet: Provides extended coverage in remote and indoor areas.
  • Dual SIM slot: Ensures network redundancy and automatic failover.
  • Ignition sensing: Automatically powers on/off with a vehicle's ignition.
  • Integrated GPS: Allows for fleet tracking and location management.
  • Compact and rugged: Industrial-grade housing fits in small, tight spaces.
  • Cloud management: InControl 2 platform for remote monitoring and configuration.

Pepwave B71 Max Transit Mini Mobile Router - Band 71 Specs

Cellular Connectivity
Primary LTE Band
Band 71 (600 MHz)
Additional LTE Support
B2, B4, B5, B12, B13, B14, B66
Cellular Modem Category
Cat 7
Peak Download Speed
300 Mbps
Peak Upload Speed
100 Mbps
Network & Routing
Wi-Fi Standard
802.11ac Dual-Band
Ethernet Ports
1 x WAN/LAN, 1 x LAN
WAN Failover
Dual SIM, Cellular/Ethernet
VPN Support
IPsec, OpenVPN, L2TP
Physical & Environmental
Housing Rating
IP67
Operating Temperature
-22°F to 149°F (-30°C to 65°C)

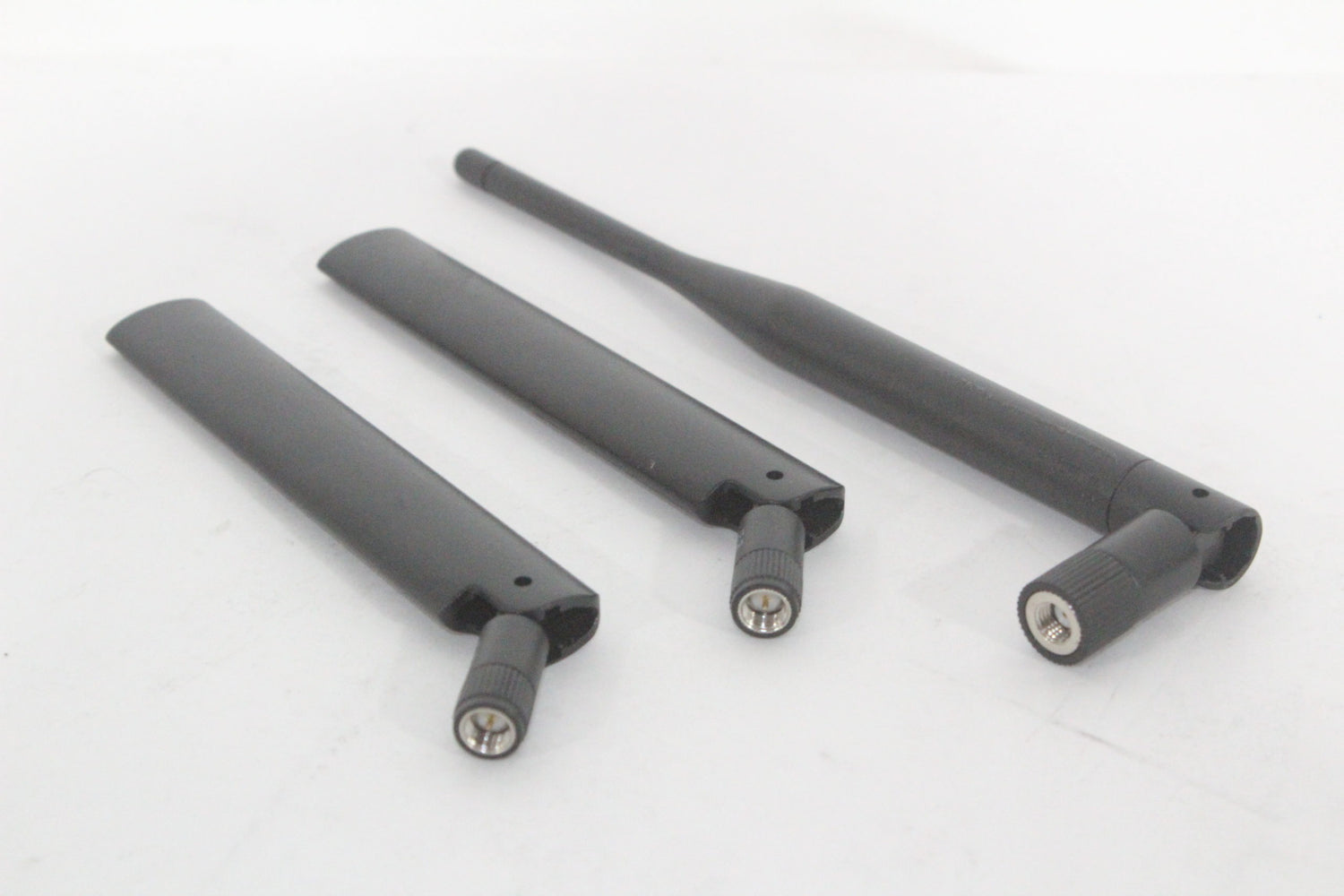

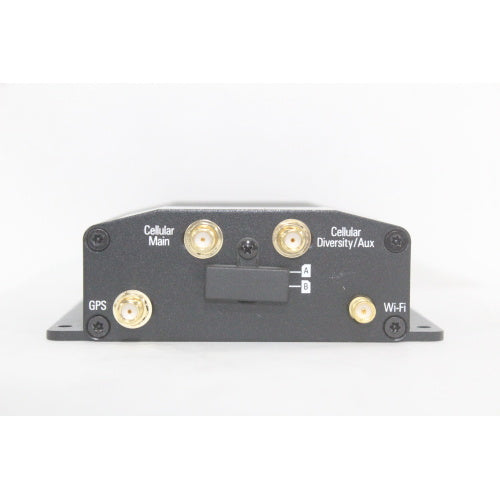

Antenna Connectors
2 x TS-9 (Cellular)
Power Input
9-36V DC
Management & Power
Cloud Management
Pepwave Connect
GPS
Built-in
Ignition Sensing
Yes
Power Consumption
6W (typical)
Dimensions & Certifications
Device Dimensions
4.33" x 2.83" x 1.18"
Device Weight
12 oz
Carrier Certification
FirstNet Ready, Verizon, T-Mobile

Key Features

  • Band 71 and FirstNet: Provides extended coverage in remote and indoor areas.
  • Dual SIM slot: Ensures network redundancy and automatic failover.
  • Ignition sensing: Automatically powers on/off with a vehicle's ignition.
  • Integrated GPS: Allows for fleet tracking and location management.
  • Compact and rugged: Industrial-grade housing fits in small, tight spaces.
  • Cloud management: InControl 2 platform for remote monitoring and configuration.
