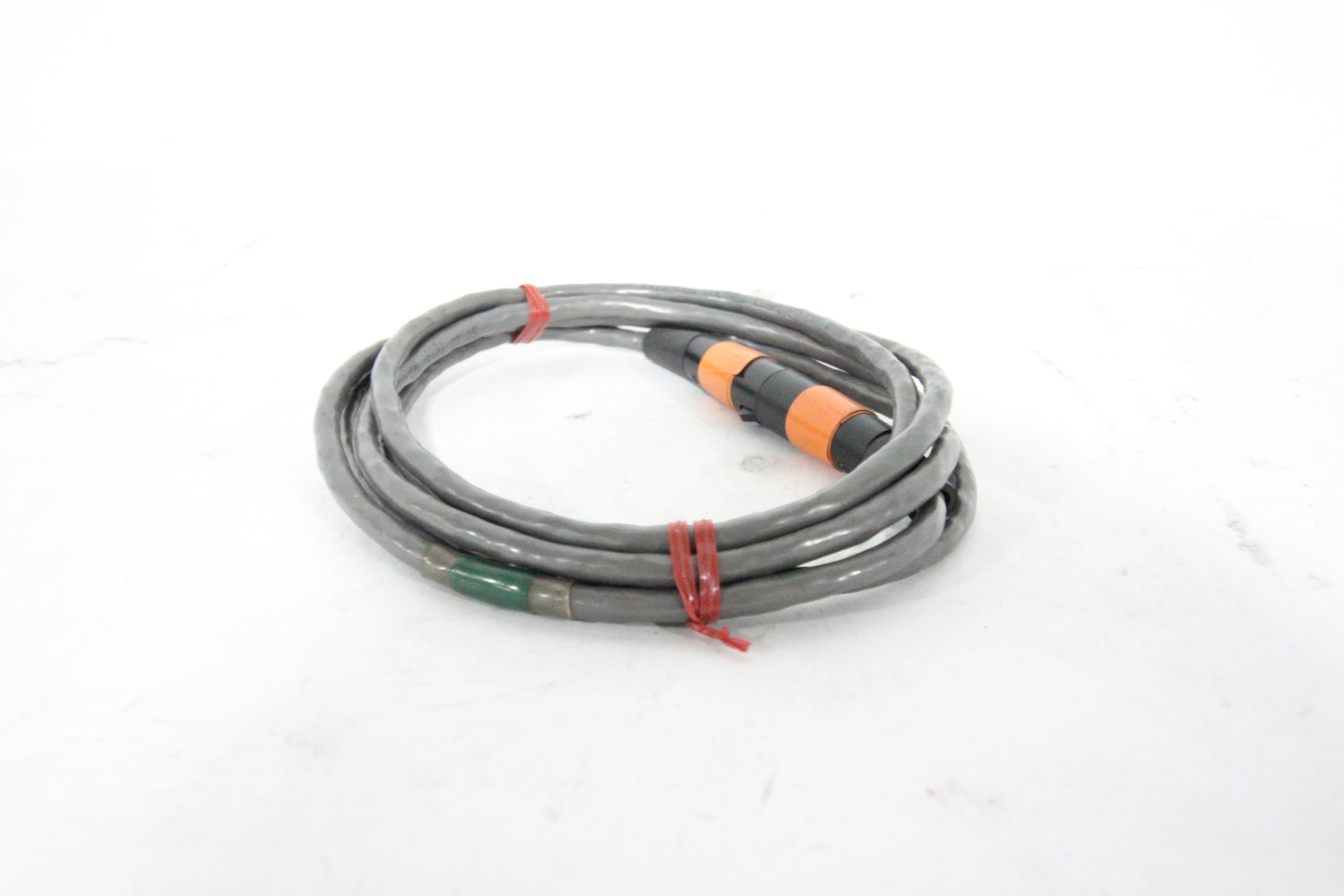

Belden's 10-foot, 6-pin data and power cable is a specialized multi-conductor cable engineered for the simultaneous transmission of control signals, data communication, and low-voltage power over a single, unified jacket. This cable typically features four balanced, twisted data pairs (4PR) constructed with 24 AWG solid bare copper conductors, providing reliable signal integrity for digital protocols such as RS-232, RS-422, RS-485, or DMX512, which are commonly used in professional audiovisual, lighting, and control system installations. The inclusion of two additional conductors, often 25 AWG, is dedicated specifically for carrying DC power, allowing a single cable run to provide both connectivity and operating voltage to peripheral devices like controllers, sensors, or small motors, thereby simplifying installation and reducing cable clutter.

The cable's construction is designed to minimize crosstalk and electromagnetic interference, which is critical for maintaining data integrity in electrically noisy environments. Each twisted pair is individually shielded with an aluminized polyester foil to protect the data signals from external noise, while an overall braided shield or foil wrap provides additional protection against RFI/EMI for the entire cable assembly. The robust outer jacket, typically made from PVC or a low-smoke zero-halogen (LSZH) material, offers durability, flexibility, and resistance to abrasion, oils, and moisture, making it suitable for use in both permanent installations and portable applications where it may be subject to handling.

The specific configuration of six pins—separating data and power into distinct conductors—allows for standardized terminations to common connectors like 6-pin XLR, facilitating interoperability in professional ecosystems. This type of cable is a staple in systems where centralized control and power distribution are key, such as in architectural lighting networks, motorized window treatment controls, or complex AV system controllers. By integrating power and data into one durable, shielded cable, Belden provides a clean, efficient, and reliable infrastructure solution that reduces installation time, potential points of failure, and overall system complexity.
