Crest Audio

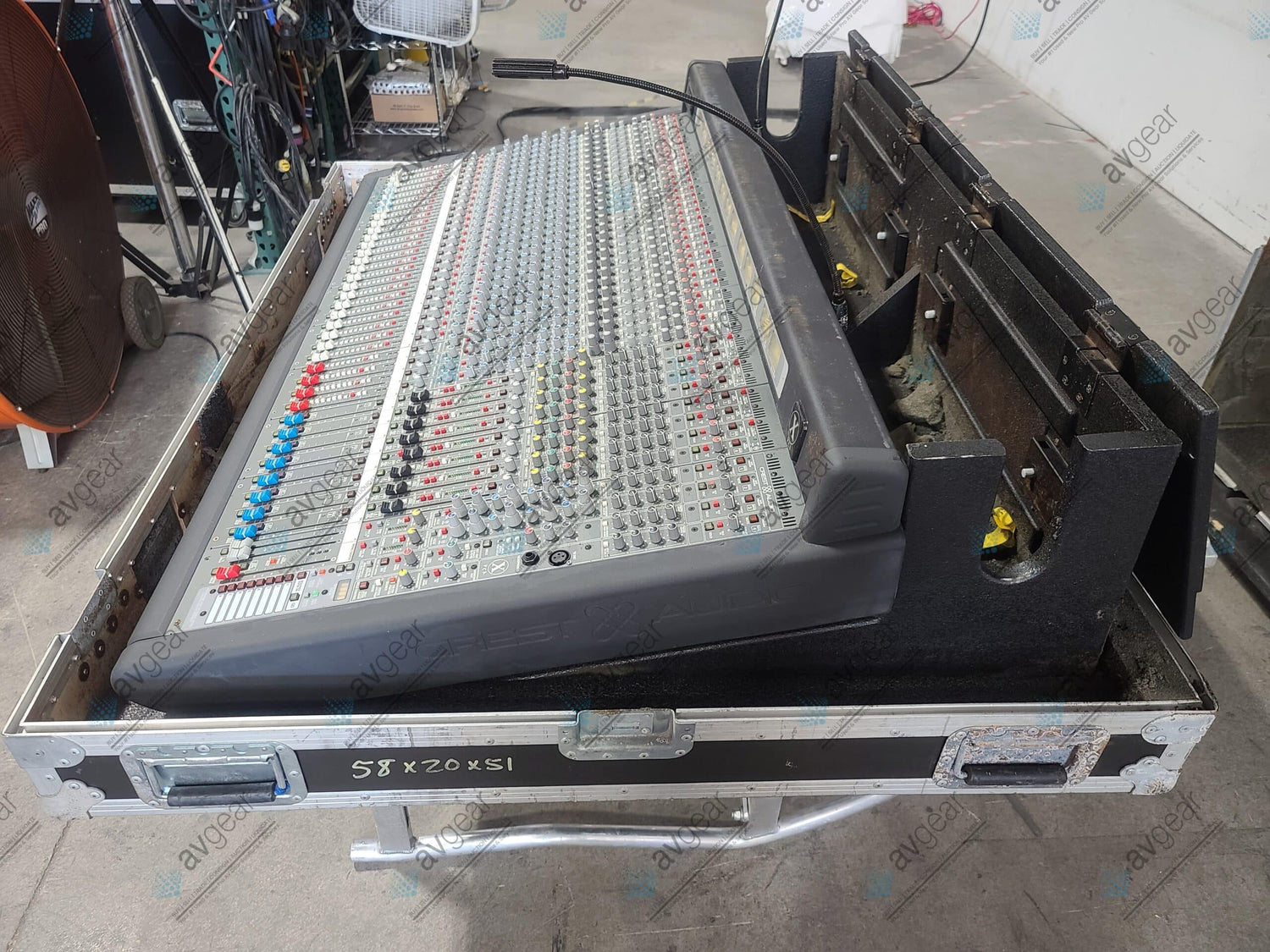

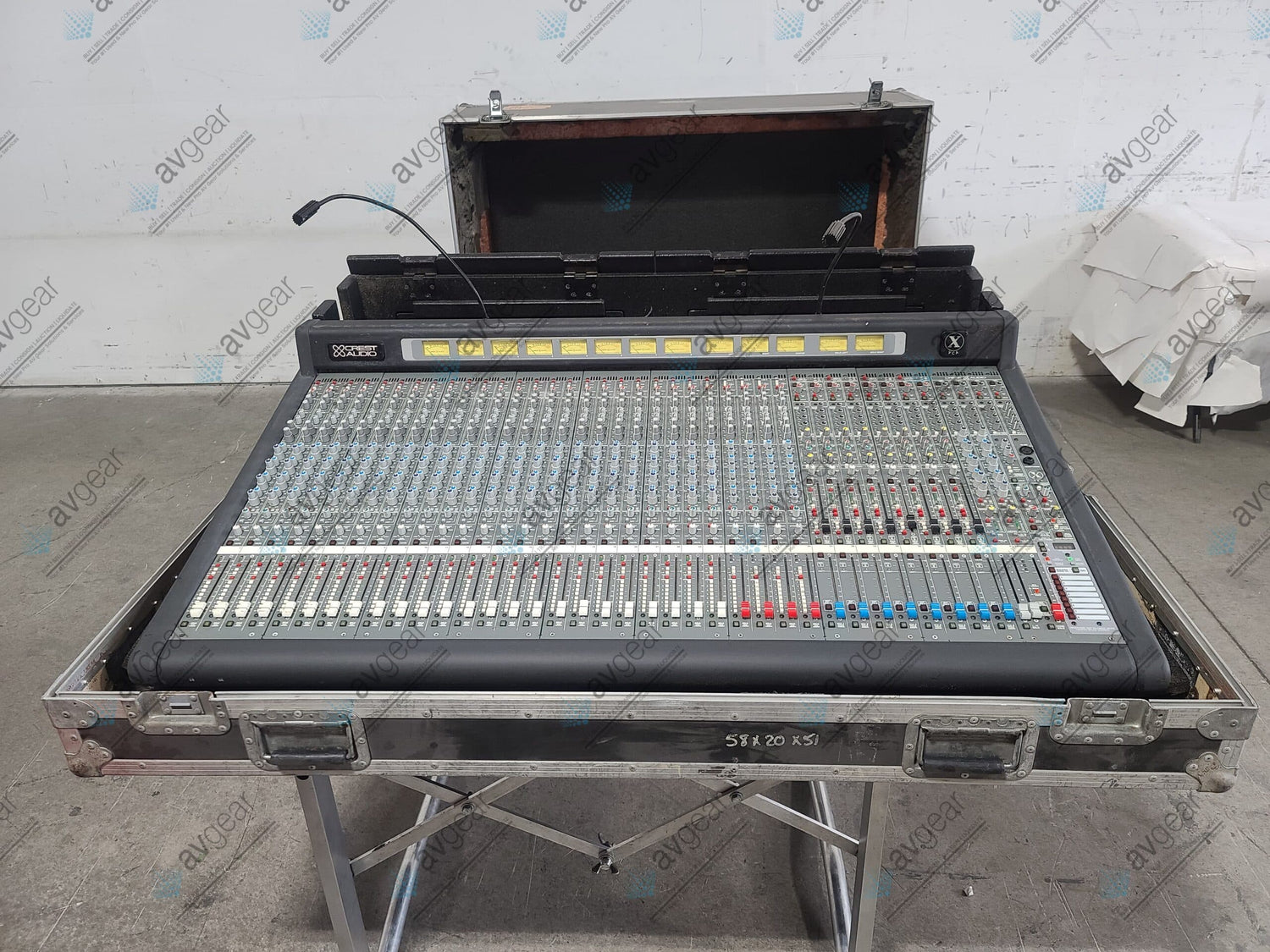

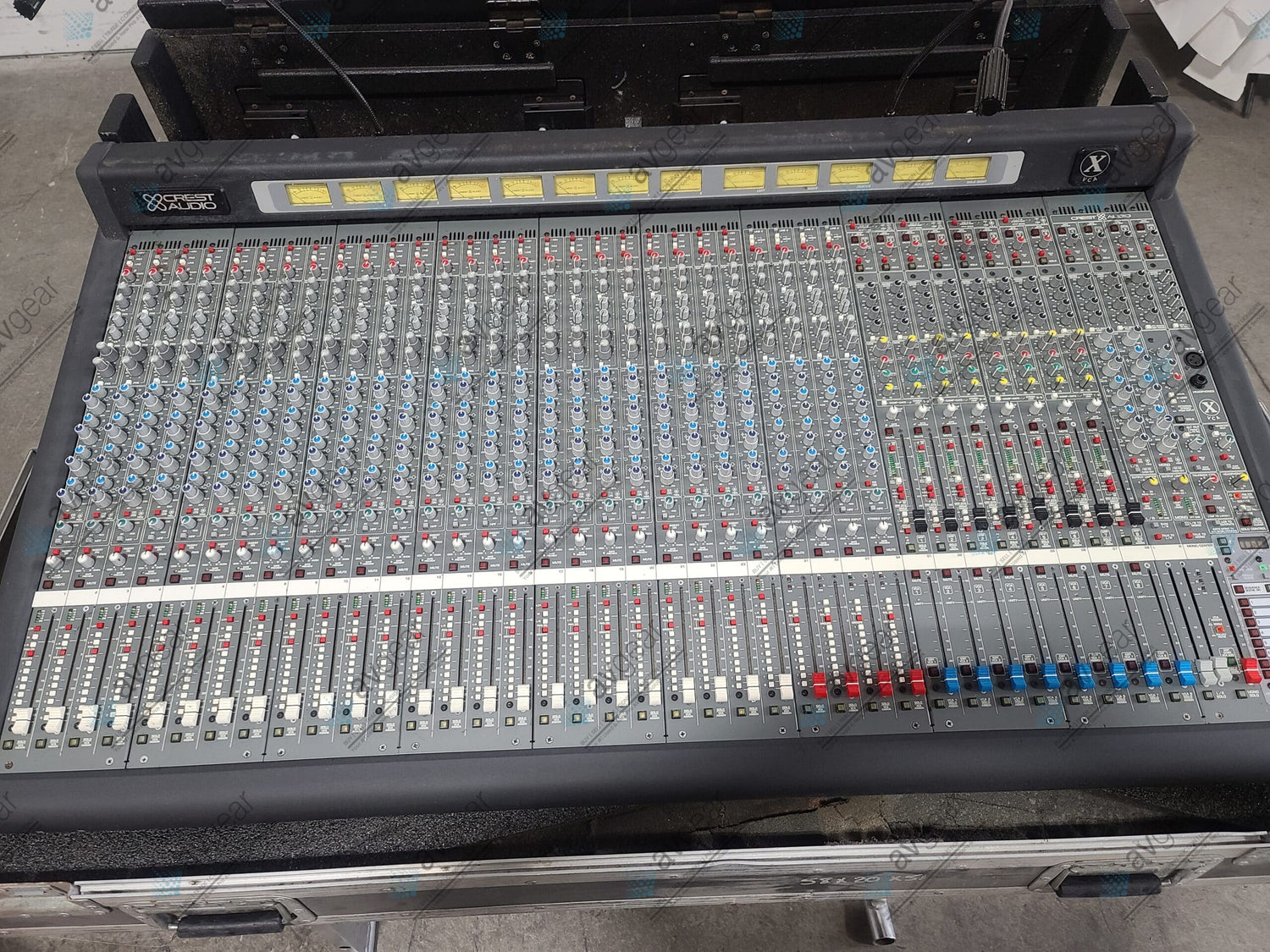

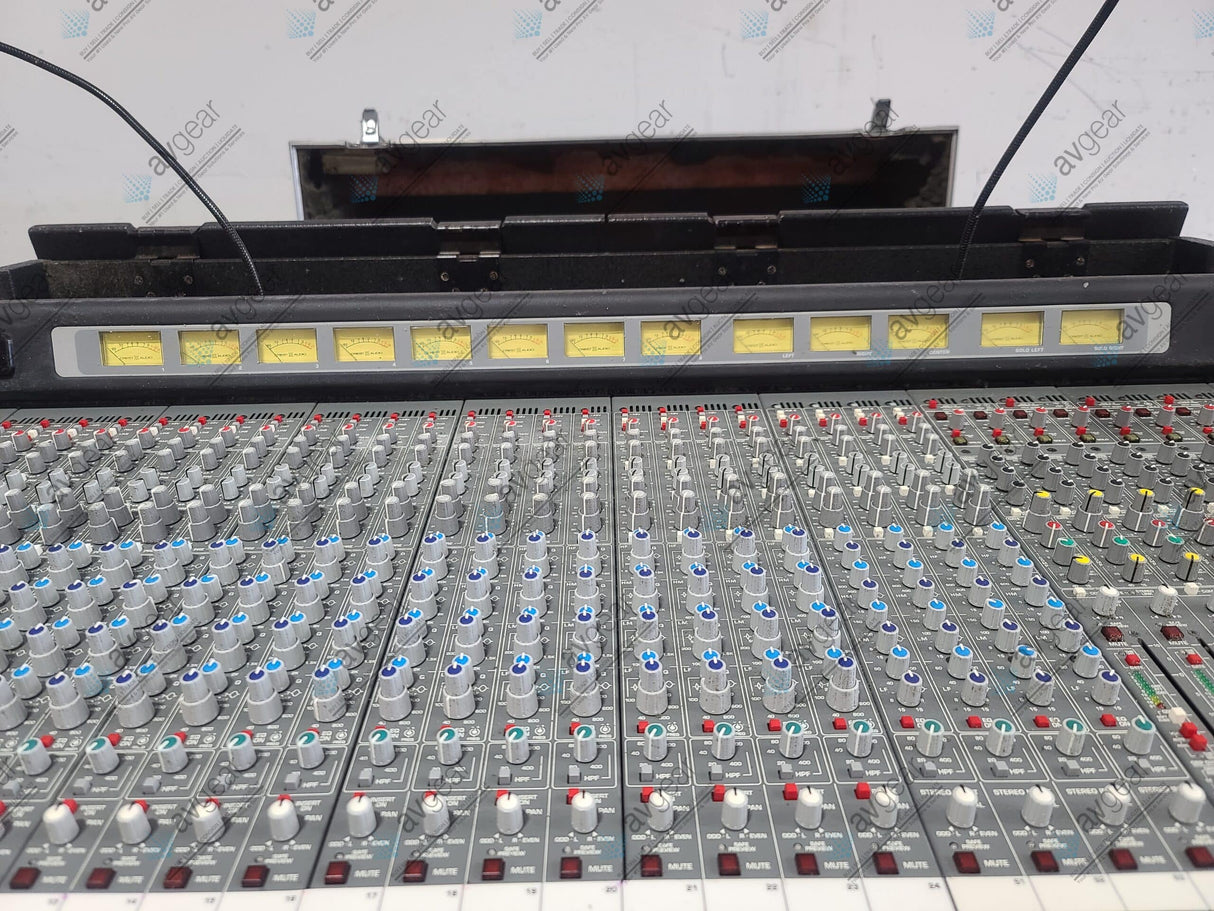

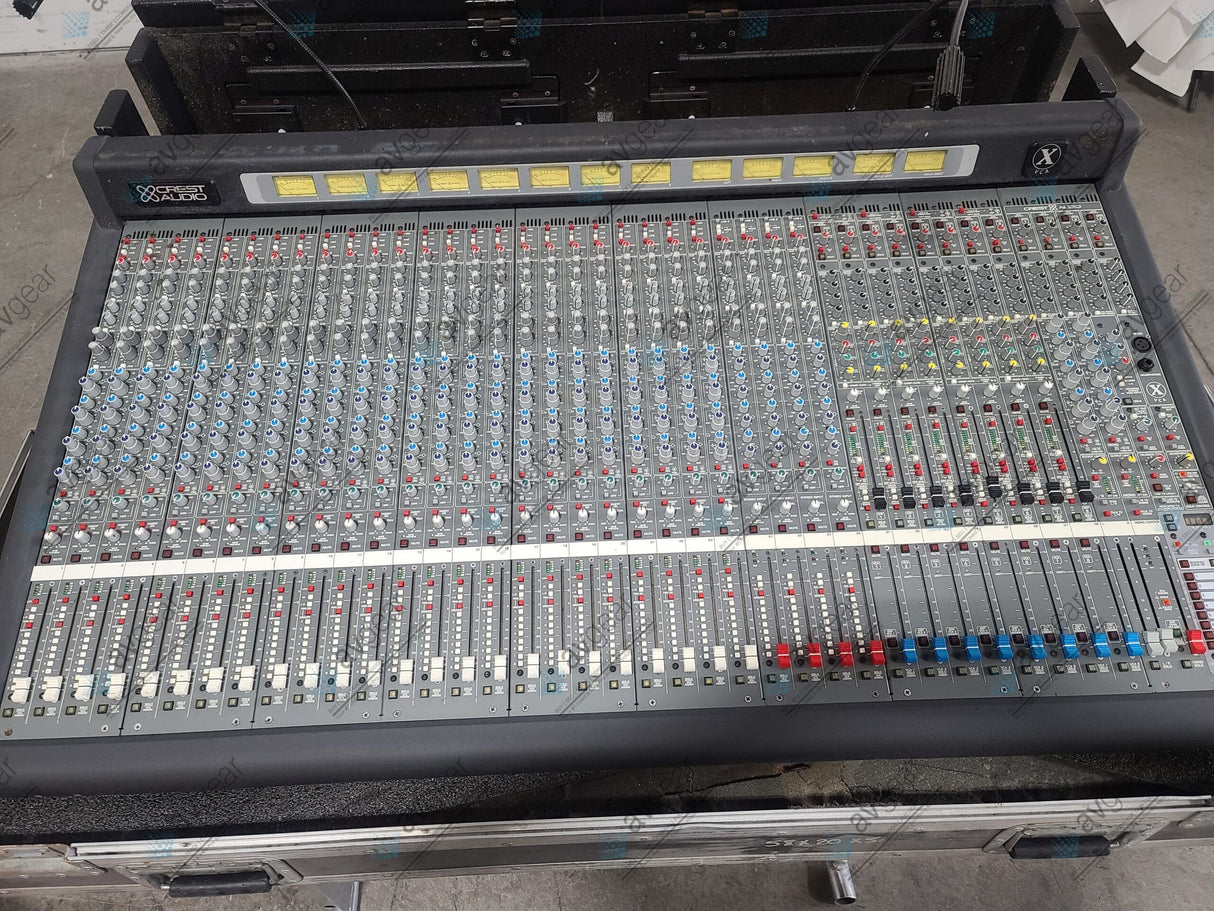

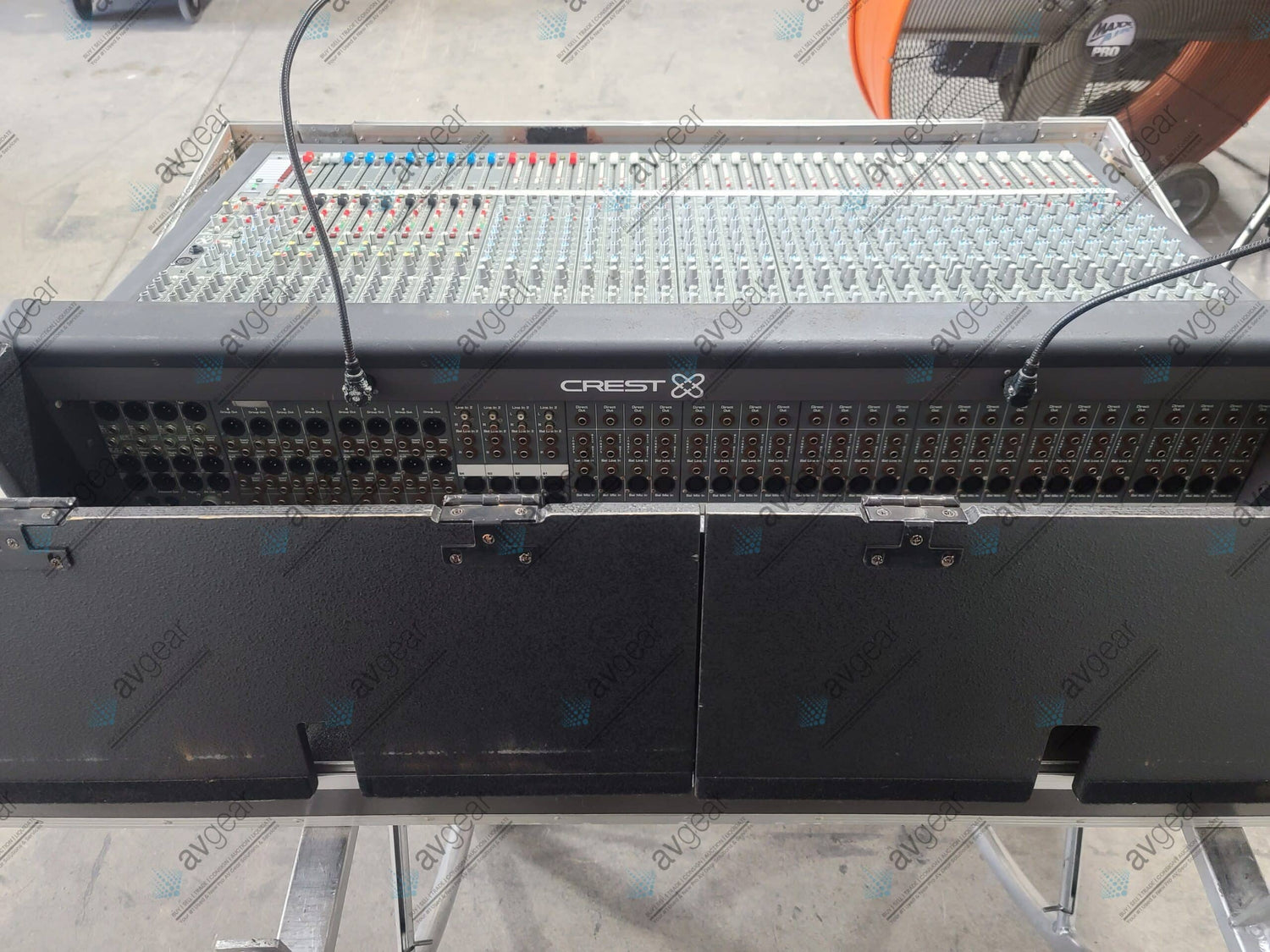

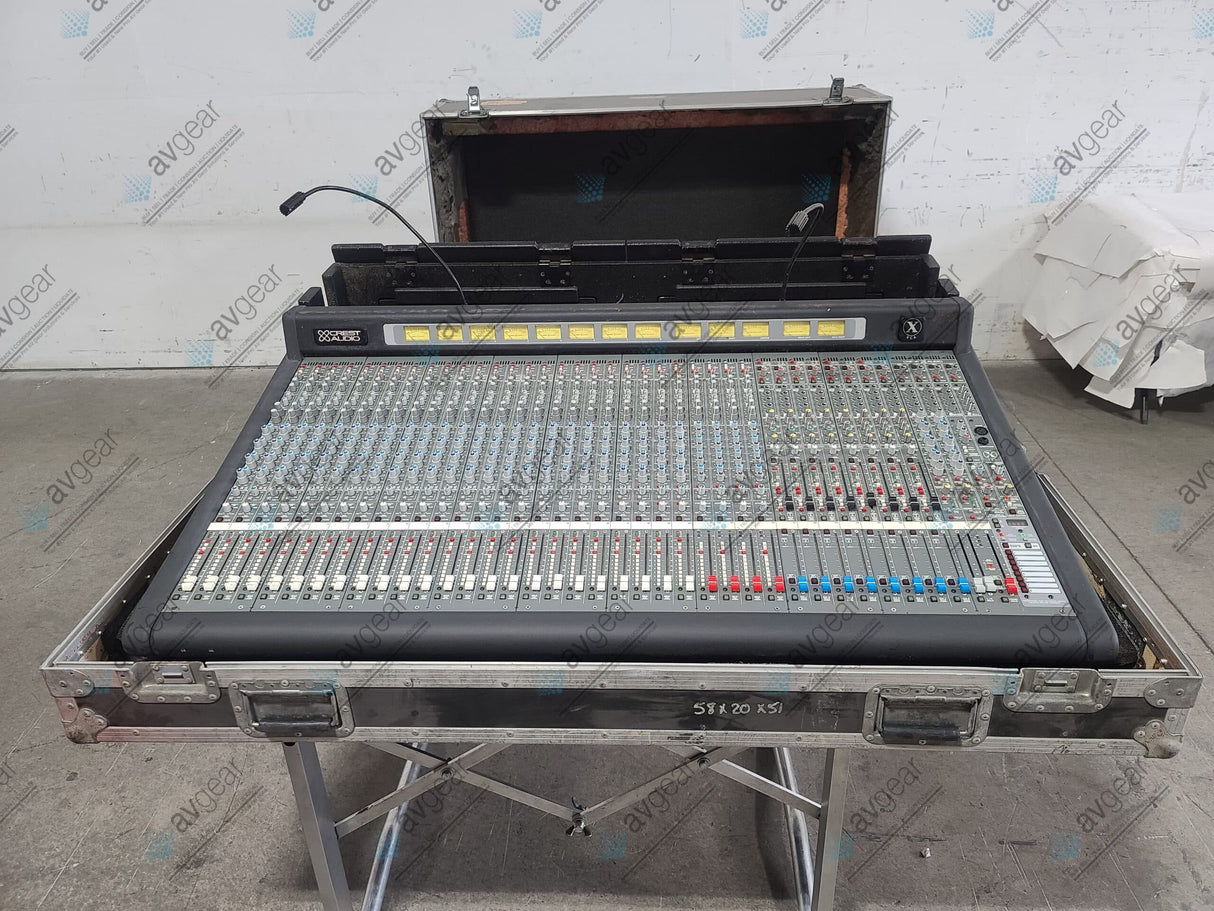

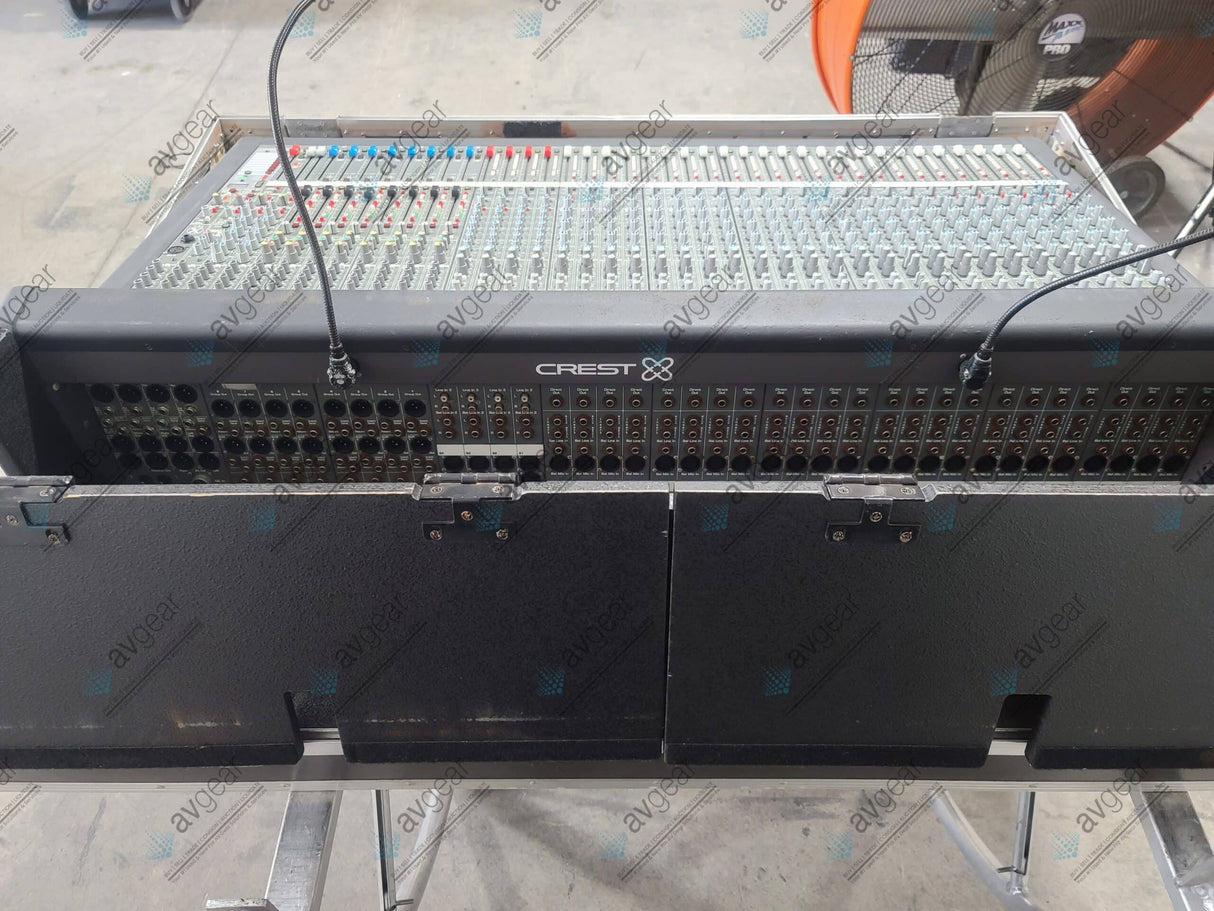

Crest Audio X-VCA Channel Mixing Console

$129.95

Simplicity of operation may be desirable in a generic console designed for users of all levels, but for the experienced professional, such products often fail to provide necessary professional features. Rather than employing a least-common-denominator approach, X-VCA includes those features most-desired by veteran front-of-house engineers. Full-parametric eq is provided on all mono input channels. Stereo full-facility input channels are used for effect-returns on faders, and eight-channels of dynamics are provided on group channels. Full-VCA control is provided, not only on input channels, but also on group channels for maximum control of complex mixes.Auxiliary sends may be switched between mono or stereo operation. Five-band eq and RMS-limiters are provided on the stereo and mono outputs, helping to maintain control of maximum signal-levels when strict noise ordinances are enforced.

View Product Features
  • eight VCA-masters control input and group channels-VCA assignment may be stored via the microprocessor control system
  • four-band eq and variable high-pass filter on all input channels
  • mono inputs have full-parametric eq, while stereo inputs are sweepable in all four bands
  • eight-channels of dynamics include variable-ratio - COMPRESSOR/LIMITER and DOWNWARD EXPANDER (gate)
  • output eq and RMS-limiters on primary stereo and mono outputs
  • multiple outputs, including ALTERNATE OUTPUT, MATRIX 1–4 (option for additional
  • external matrix outputs) and dedicated ASSISTIVE LISTENING OUTPUTS
    direct-output on all mono input channels
  • five-segment level indication on all mono input modules, with variable intensity SIGNAL
  • PRESENT indicator and multiple sample point PEAK indicator
  • stereo solo system features switchable AFL/PFL mode and LAST-PRESSED functions, with master SOLO CLEAR switch
  • discrete bus assignment to groups, left/right and mono outputs
  • true LCR panning available on mono input channels
  • separate ground-compensated insert sends and balanced returns
  • fully-balanced primary outputs and balanced mic and line inputs
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

    No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Crest Audio X-VCA Channel Mixing Console

The Crest Audio X-VCA Channel Mixing Console is a professional analog audio mixing desk designed for live sound reinforcement, touring, and fixed installation applications. It was developed during the era when VCA (Voltage Controlled Amplifier) technology became popular for managing large-format analog consoles efficiently. The console allows multiple input channels to be controlled simultaneously using VCA groups, enabling sound engineers to adjust overall mix levels without affecting individual channel gain structure. This made it especially valuable in live concert environments, theatres, and houses of worship where fast, precise control over complex mixes was essential.

Built with Crest Audio’s reputation for rugged construction and high headroom analog circuitry, the X-VCA series was known for reliability in demanding professional environments. It provides extensive channel control, flexible routing, and clear signal handling suited for FOH (front-of-house) mixing. While now considered legacy equipment compared to modern digital consoles, the Crest X-VCA remains respected for its sound quality, intuitive layout, and robust analog performance, and it is still found in some touring rigs, rental inventories, and permanent installations.

Key Features

  • eight VCA-masters control input and group channels-VCA assignment may be stored via the microprocessor control system
  • four-band eq and variable high-pass filter on all input channels
  • mono inputs have full-parametric eq, while stereo inputs are sweepable in all four bands
  • eight-channels of dynamics include variable-ratio - COMPRESSOR/LIMITER and DOWNWARD EXPANDER (gate)
  • output eq and RMS-limiters on primary stereo and mono outputs
  • multiple outputs, including ALTERNATE OUTPUT, MATRIX 1–4 (option for additional
  • external matrix outputs) and dedicated ASSISTIVE LISTENING OUTPUTS
    direct-output on all mono input channels
  • five-segment level indication on all mono input modules, with variable intensity SIGNAL
  • PRESENT indicator and multiple sample point PEAK indicator
  • stereo solo system features switchable AFL/PFL mode and LAST-PRESSED functions, with master SOLO CLEAR switch
  • discrete bus assignment to groups, left/right and mono outputs
  • true LCR panning available on mono input channels
  • separate ground-compensated insert sends and balanced returns
  • fully-balanced primary outputs and balanced mic and line inputs

Crest Audio X-VCA Channel Mixing Console Specs

Product Type
Analog mixing console
Manufacturer
Crest Audio
Model Series
X-VCA
Console Type
VCA-controlled analog mixing console
Channel Architecture
Mono input channels with VCA grouping
VCA Groups
Supported (console-dependent configuration)
Audio Path
Fully analog signal path
Input Type
Microphone and line-level inputs
Equalization
Channel EQ (analog)
Routing
Subgroups, main mix buses
Master Section
VCA master control section
Application
Live sound, touring, theatre, houses of worship
Installation Type

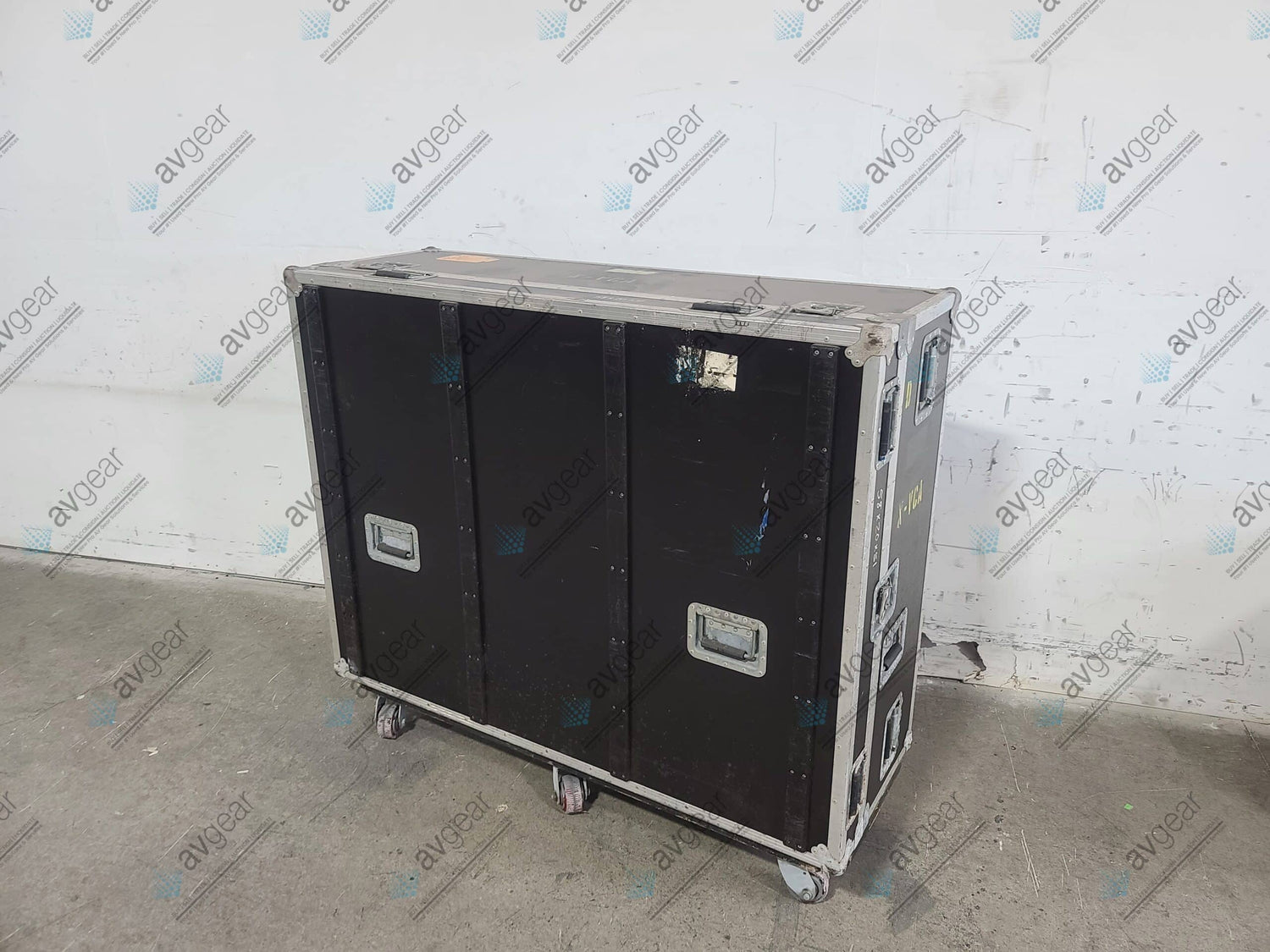

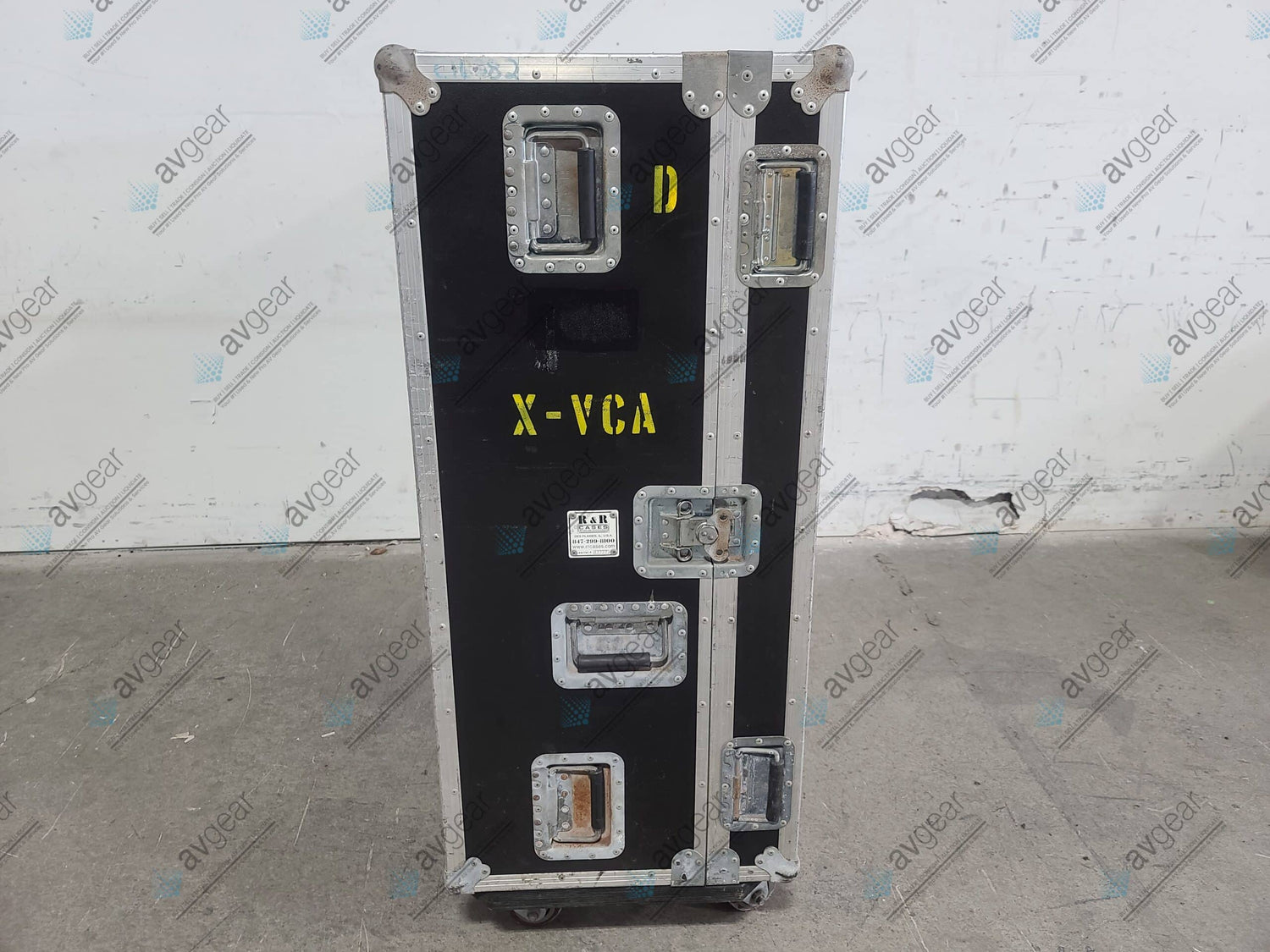

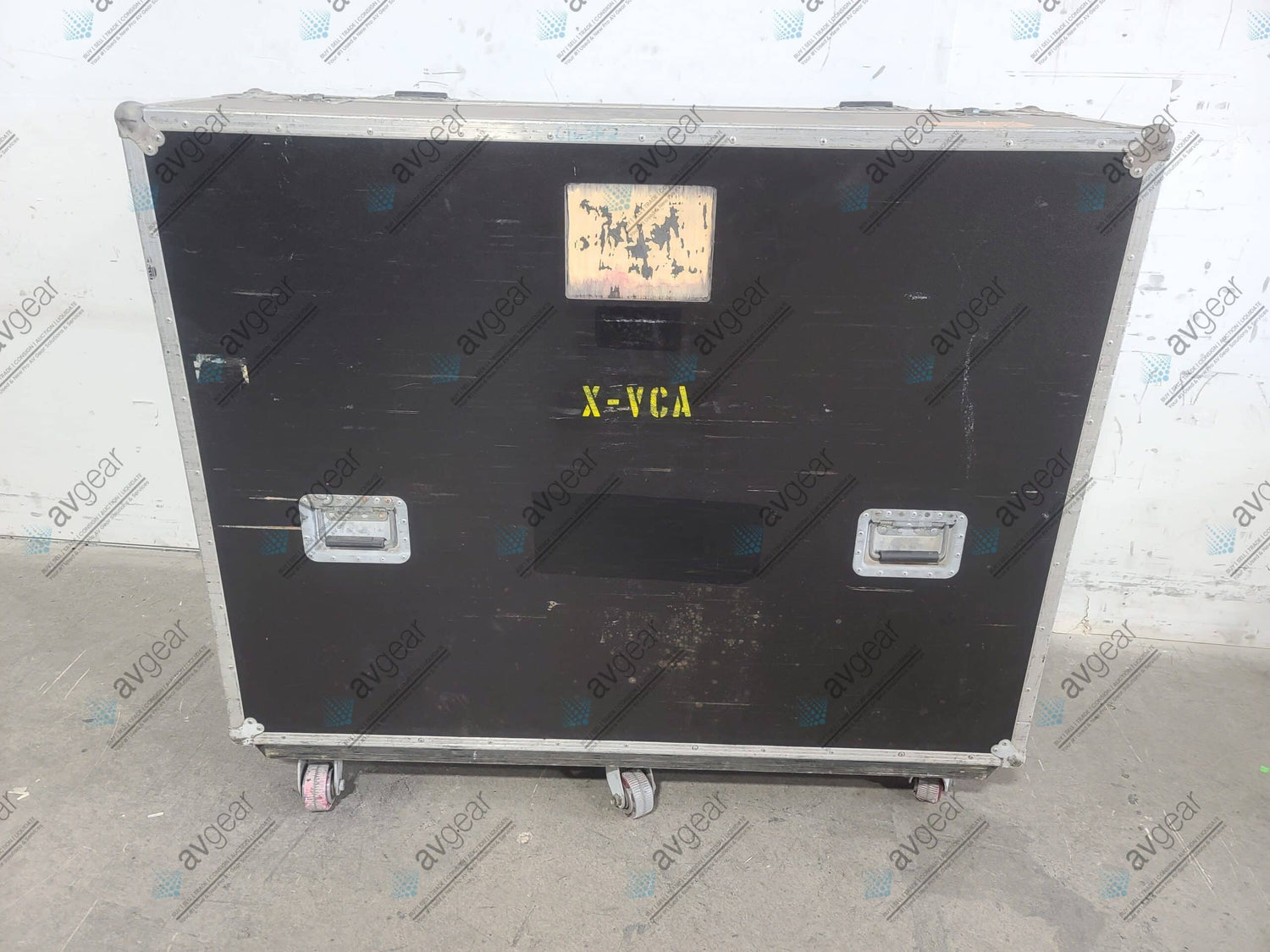

FOH console, touring rack/flight case mounting
Construction
Heavy-duty metal chassis
Operating Environment
Professional live sound environments
Status
Legacy / discontinued product line

Key Features

  • eight VCA-masters control input and group channels-VCA assignment may be stored via the microprocessor control system
  • four-band eq and variable high-pass filter on all input channels
  • mono inputs have full-parametric eq, while stereo inputs are sweepable in all four bands
  • eight-channels of dynamics include variable-ratio - COMPRESSOR/LIMITER and DOWNWARD EXPANDER (gate)
  • output eq and RMS-limiters on primary stereo and mono outputs
  • multiple outputs, including ALTERNATE OUTPUT, MATRIX 1–4 (option for additional
  • external matrix outputs) and dedicated ASSISTIVE LISTENING OUTPUTS
    direct-output on all mono input channels
  • five-segment level indication on all mono input modules, with variable intensity SIGNAL
  • PRESENT indicator and multiple sample point PEAK indicator
  • stereo solo system features switchable AFL/PFL mode and LAST-PRESSED functions, with master SOLO CLEAR switch
  • discrete bus assignment to groups, left/right and mono outputs
  • true LCR panning available on mono input channels
  • separate ground-compensated insert sends and balanced returns
  • fully-balanced primary outputs and balanced mic and line inputs
