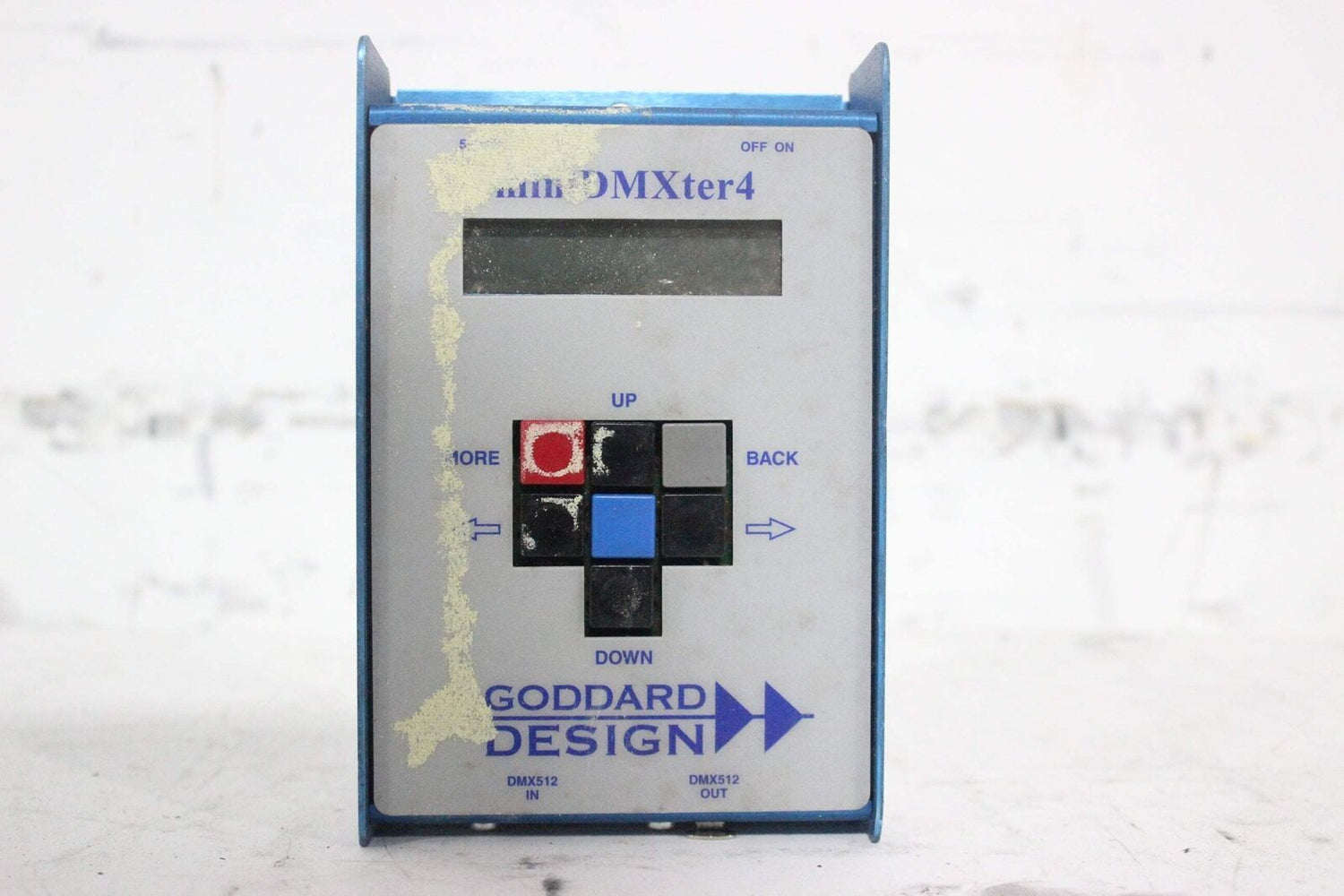

The Goddard Design Co. MiniDMXter4 is a highly portable, professional-grade diagnostic tool designed for troubleshooting, analyzing, and generating DMX512 control signals in theatrical, live event, and architectural lighting systems. This compact device serves as a critical tool for lighting technicians, allowing them to verify signal integrity, test fixtures, and isolate problems within a DMX network without the need for a full lighting console. Its primary functions include acting as a DMX source (transmitter) to manually control dimmer levels and test fixture functions, a DMX sniffer (receiver) to monitor live DMX data on a line, and a terminator to properly terminate a DMX line, preventing signal reflections that can cause erratic behavior.

The MiniDMXter4 features a clear, backlit LCD screen that displays real-time DMX data in multiple formats, such as a channel level meter, a numerical snapshot of values, or a raw data stream. It can generate test patterns, including all channels at full, a chase, or a custom scene, which is invaluable for pre-show checks and fixture addressing verification. Advanced diagnostic capabilities include measuring DMX signal voltage, checking for proper line termination, and detecting common wiring faults like shorts or breaks. Its rugged, handheld enclosure is built to withstand the rigors of backstage and on-site use, and it operates on standard AA batteries or an optional AC adapter for extended use.

Connectivity is provided via standard 5-pin XLR in and out ports, ensuring compatibility with industry-standard DMX cabling. The intuitive interface, navigated through a few buttons, makes it accessible for both novice and experienced users. For lighting professionals, the MiniDMXter4 is an indispensable troubleshooting companion that saves significant time and frustration by quickly identifying issues related to DMX addressing, signal flow, cabling, and fixture compatibility, ensuring a reliable and functional lighting control system.
