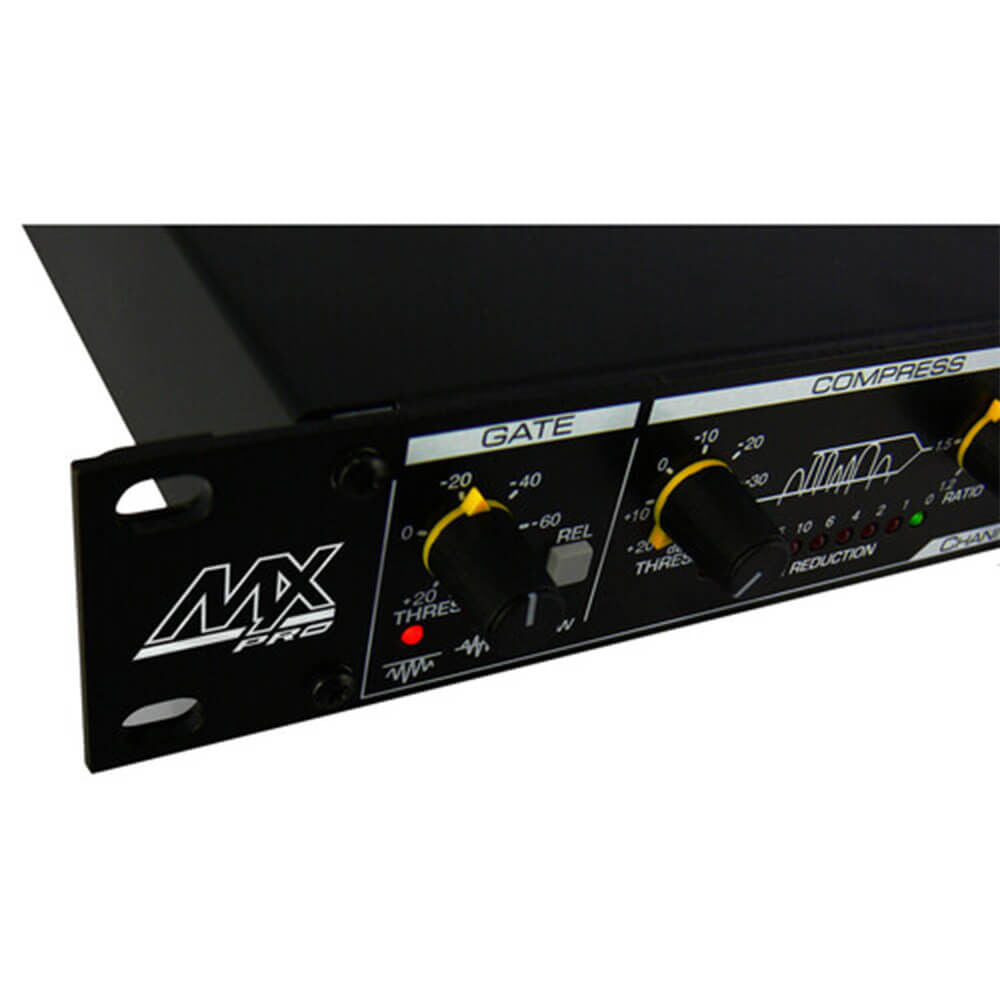

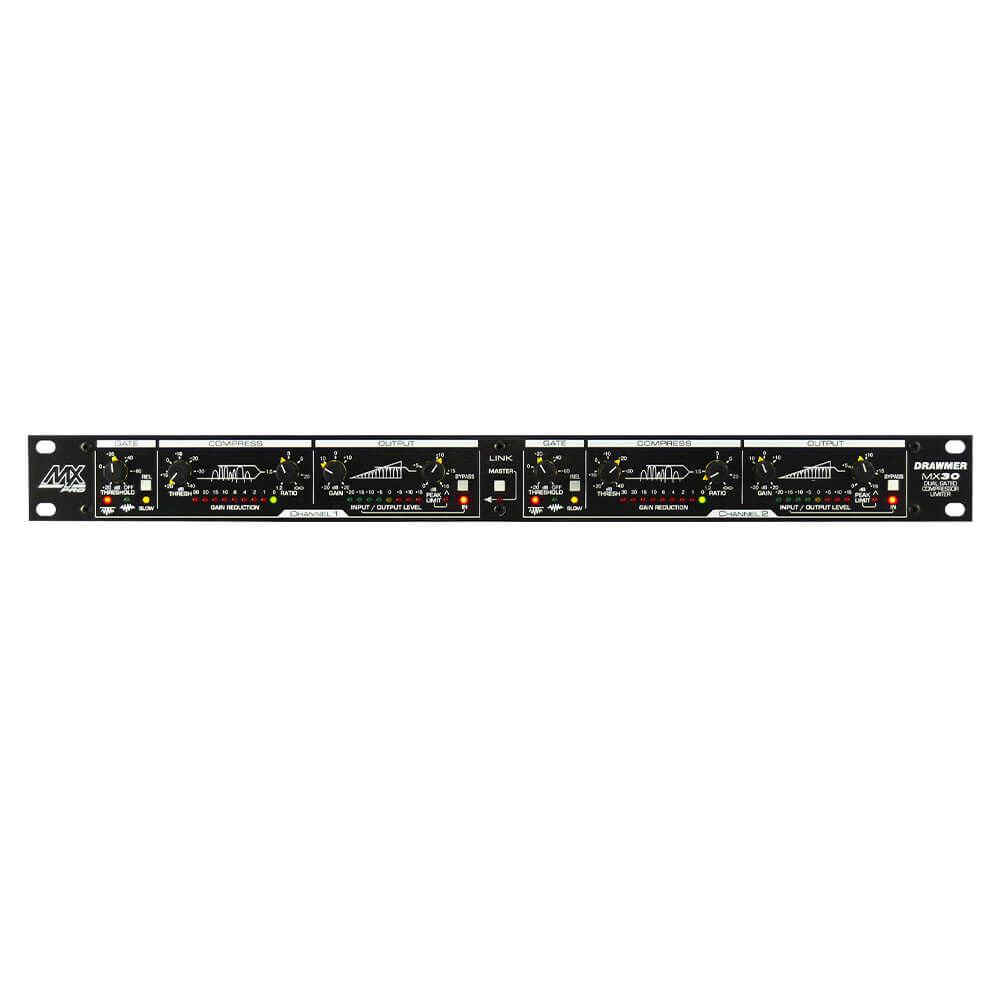

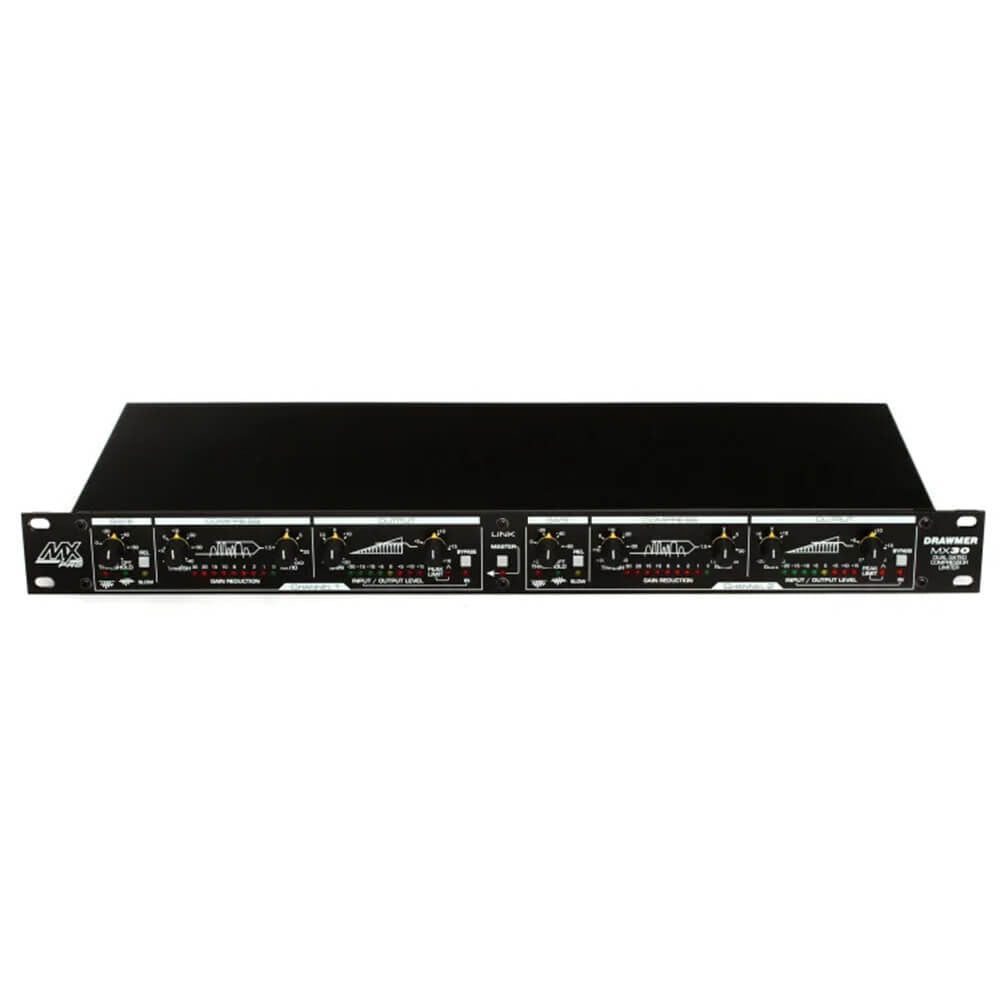

Drawmer MX30 Dual Gated Compressor for Studio & Live Audio

$199.95

The Drawmer MX30 is a two-channel dynamics processor combining a gate/expander, compressor and peak limiter in one 1U rack unit. It’s designed for both studio and live-sound use, offering a simplified yet professional interface for controlling noise, dynamics and peaks with the kind of sound-quality you’d expect from a high-end brand. With independent channels or stereo linking, it can handle individual sources (e.g., drums, vocals) or full stereo sub-mixes. The unit features balanced +4 dBu XLR and unbalanced -10 dBu jack connectivity, making it flexible for a variety of signal-levels and rigs.

View Product Features

Dual-channel processing with two fully independent channels that can also be linked for stereo operation.
Programme Adaptive gate/expander on each channel with variable, automatic attack/hold/release and selectable fast/slow release modes—ideal for reducing noise while maintaining transient impact.
Soft-knee compressor section featuring a wide threshold range (approx. –40 dB to +20 dB), continuously variable ratio from around 1.2:1 up to infinity for limiting, and automatic attack/release for smooth, musical compression.
Peak limiter stage with variable threshold and a zero-overshoot design to control output peaks cleanly and protect downstream equipment or digital recorders.
Comprehensive metering including gain-reduction bar graphs, input/output level meters, and clear LED indicators for gate and limiter status.

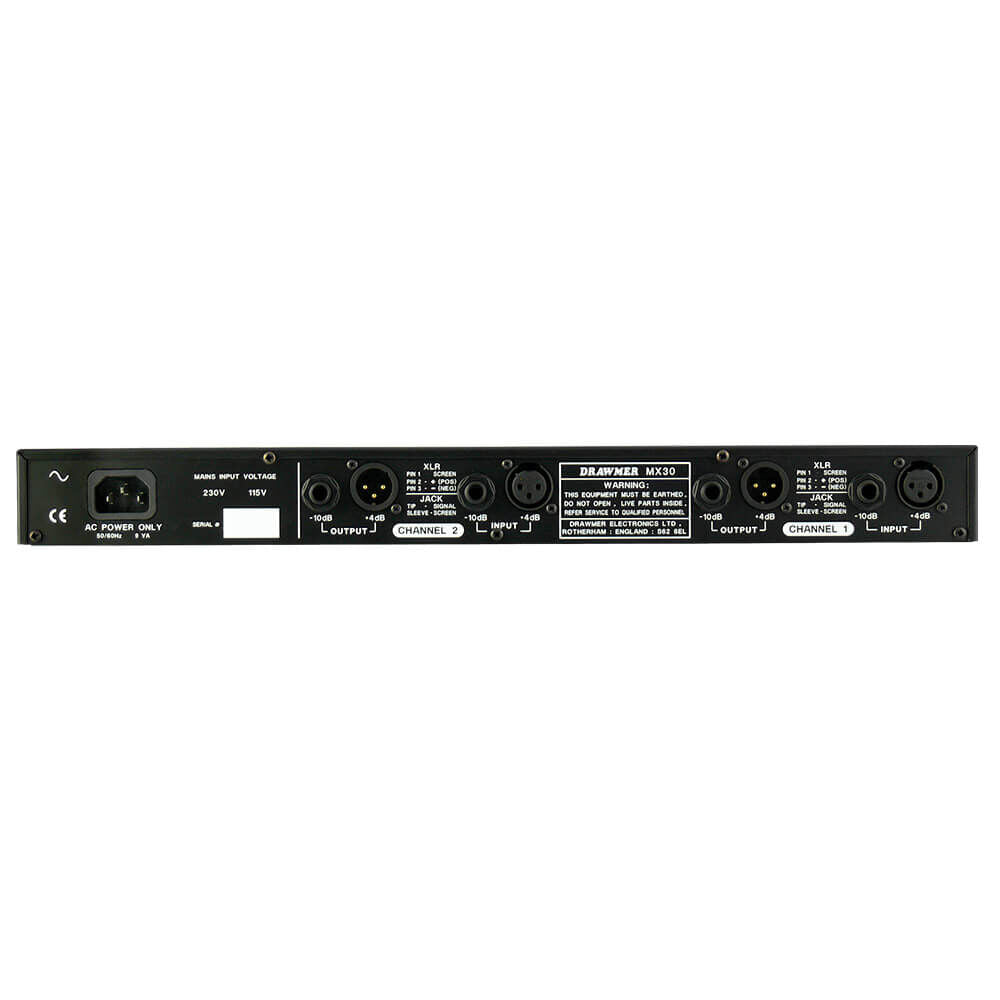

Flexible I/O connectivity with balanced XLR inputs/outputs (approx. 20 kΩ input impedance), unbalanced jack I/O (approx. 4 kΩ), and compatibility with both +4 dBu and –10 dBu operating levels.
Wide bandwidth and high headroom, with frequency response extending from below 10 Hz to around 36 kHz (–1 dB), maximum input level of approximately +21 dBu, and maximum output level around +20 dBu.
1U rack-mount form factor (approx. 483 × 44 × 200 mm) and lightweight design (~3.2 kg), suitable for studio racks and live-sound setups.

Out of Stock

0 in stock

Once stock replenishes, inventory will display below.

In-Stock Inventory

No products currently in stock

Already own this item and want to sell it?

Click here to sell your item

About the Drawmer MX30 Dual Gated Compressor for Studio & Live Audio

Key Features

Dual-channel processing with two fully independent channels that can also be linked for stereo operation.
Programme Adaptive gate/expander on each channel with variable, automatic attack/hold/release and selectable fast/slow release modes—ideal for reducing noise while maintaining transient impact.
Soft-knee compressor section featuring a wide threshold range (approx. –40 dB to +20 dB), continuously variable ratio from around 1.2:1 up to infinity for limiting, and automatic attack/release for smooth, musical compression.
Peak limiter stage with variable threshold and a zero-overshoot design to control output peaks cleanly and protect downstream equipment or digital recorders.
Comprehensive metering including gain-reduction bar graphs, input/output level meters, and clear LED indicators for gate and limiter status.
Flexible I/O connectivity with balanced XLR inputs/outputs (approx. 20 kΩ input impedance), unbalanced jack I/O (approx. 4 kΩ), and compatibility with both +4 dBu and –10 dBu operating levels.
Wide bandwidth and high headroom, with frequency response extending from below 10 Hz to around 36 kHz (–1 dB), maximum input level of approximately +21 dBu, and maximum output level around +20 dBu.
1U rack-mount form factor (approx. 483 × 44 × 200 mm) and lightweight design (~3.2 kg), suitable for studio racks and live-sound setups.
