EAW JF60 2-Way Full Range Passive Speaker

$149.00 - $249.99

Items Included

Item Notes

Condition: Out of stock
Once stock replenishes, inventory will display below.
Pricing
Sold out
Pre-Owned Guarantee 14 Day Return Window

Description

A 2-way full range system (passive LF/HF crossover) in a vented trapezoidal enclosure. Includes a 6.5-in woofer and a 1.34-in tweeter on a Wave Guide Plate™. The JF60 is engineered for exceptional performance in the nearfield from a compact enclosure. It delivers surprisingly high output and exceptional fidelity. Very effective as a fill/delay element in larger overall systems or for foreground/background music reproduction. Six year warranty. Read more

Features

  • Ultra-compact passive two-way system
  • 6.5-in LF/1.3-in tweeter
  • High impact, high definition sound
  • For portable use or permanent installation

Business Financing Options Avaiable

A 2-way full range system (passive LF/HF crossover) in a vented trapezoidal enclosure. Includes a 6.5-in woofer and a 1.34-in tweeter on a Wave Guide Plate™. The JF60 is engineered for exceptional performance in the nearfield from a compact enclosure. It delivers surprisingly high output and exceptional fidelity. Very effective as a fill/delay element in larger overall systems or for foreground/background music reproduction. Six year warranty. Read more

Features

  • Ultra-compact passive two-way system
  • 6.5-in LF/1.3-in tweeter
  • High impact, high definition sound
  • For portable use or permanent installation

About the EAW JF60 2-Way Full Range Passive Speaker

The EAW JF60 is a compact, two-way passive loudspeaker engineered for versatile background music and foreground speech reinforcement in professional fixed installations. It is designed as a discreet yet capable audio solution for environments such as retail stores, restaurants, hotels, conference rooms, and corporate spaces where clear, intelligible sound and aesthetic integration are important. The speaker combines a 6.5-inch low-frequency driver with a 1-inch titanium dome high-frequency driver, delivering a balanced frequency response with sufficient output for its size. A key installer-friendly feature is its rotatable Constant Directivity horn, which can be oriented horizontally or vertically to best match the room's acoustics, ensuring even sound distribution and minimizing problematic reflections from walls and ceilings.

Housed in a durable, injection-molded polypropylene enclosure with a paintable, textured black finish, the JF60 is built for long-term reliability in commercial settings. It incorporates a 70V/100V multi-tap transformer, allowing for simple and efficient integration into centralized distributed audio systems where many speakers are powered from a single amplifier. The cabinet includes an integrated U-bracket for straightforward wall or ceiling mounting. By offering a combination of solid acoustic performance, practical installation features like the rotatable horn and multi-tap transformer, and a discreet form factor, the EAW JF60 provides a reliable and high-quality audio solution for commercial sound installations that require both performance and practicality.

Key Features

  • Ultra-compact passive two-way system
  • 6.5-in LF/1.3-in tweeter
  • High impact, high definition sound
  • For portable use or permanent installation

EAW JF60 2-Way Full Range Passive Speaker Specs

General
Configuration
2-Way, Passive Loudspeaker
Application
Background Music & Speech Reinforcement
Finish
Textured Black (Paintable)
Acoustic Design
Low-Frequency Driver
6.5-inch (165mm)
High-Frequency Driver
1-inch (25mm) titanium dome compression driver
Horn
Rotatable Constant Directivity horn (coverage pattern e.g., 90° x 60°)
Performance
Frequency Response (-10 dB)
Typically 70 Hz - 20 kHz
Power Handling (Continuous/Program)
e.g., 100W / 200W
Sensitivity (1W/1m)
e.g., 92 dB
Maximum SPL (Peak)
e.g., 116 dB
System Integration
Impedance
8 ohms (Direct), 70V/100V (Transformer)
Transformer Taps
70V/100V with multiple power tap settings (e.g., 60W to 3.75W)

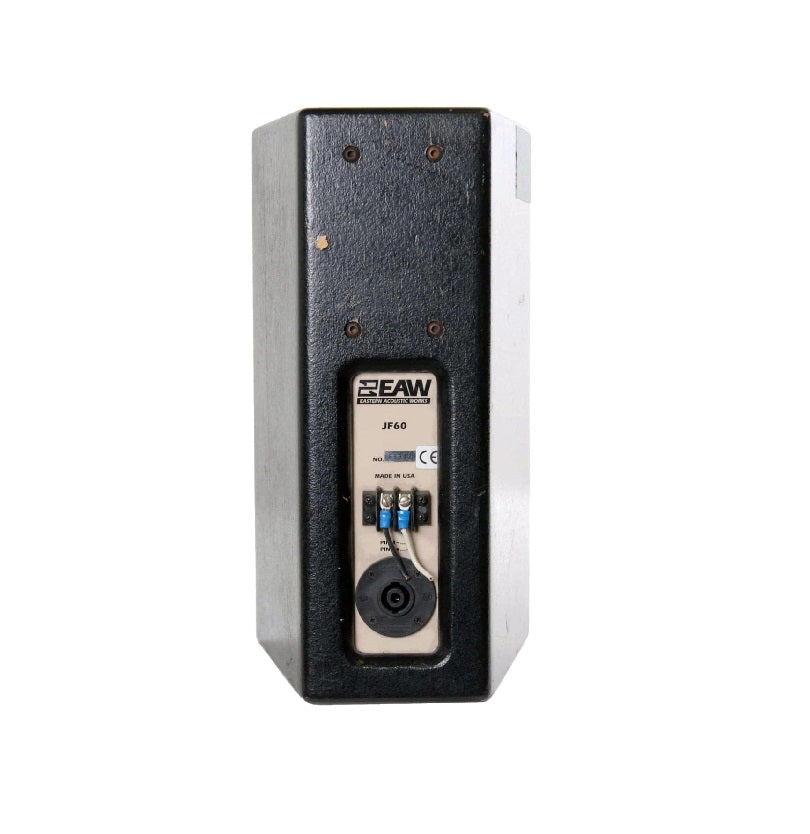

Input Connectors
Spring-loaded terminals
Physical
Enclosure Material
Injection-molded polypropylene
Mounting
Integrated U-bracket for wall/ceiling mounting
Grille
Powder-coated steel with foam backing
Dimensions (H x W x D)
Approx. 375 x 240 x 205 mm (14.75" x 9.45" x 8.1")
Weight
Approx. 5.2 kg (11.5 lbs)

Key Features

  • Ultra-compact passive two-way system
  • 6.5-in LF/1.3-in tweeter
  • High impact, high definition sound
  • For portable use or permanent installation
