EAW

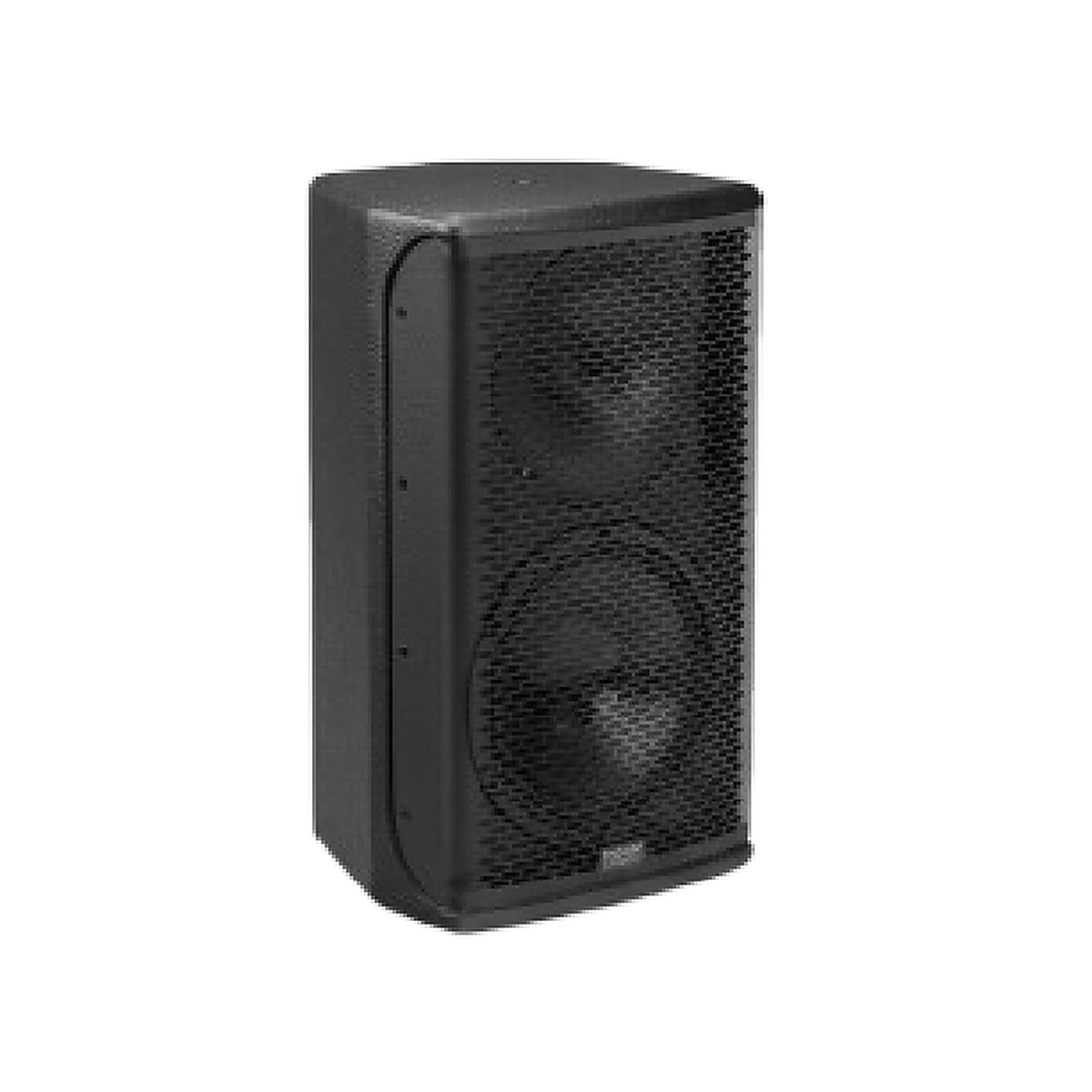

EAW JFX88 2-Way Full Range Speaker

$0.00

The JFX88 is a 2-way ultra-compact multi-use loudspeaker. Its multi-functional design adds considerably to its value as a full-range loudspeaker. Combining high output and natural reproduction, it is specifically outfitted to serve in a variety of both portable and permanent applications.

The asymmetric enclosure provides typical angles needed for ceiling and wall mounting as well as for stage monitor operation. For permanent installation, enclosure hardware includes mounting points for an optional U-bracket and an Omnimount® Series 100 or similar bracket. A pole mount cup is provided for portable use.

The JFX88 is particularly suitable as a nearfield main loudspeaker or as a fill/delay element in larger systems. Its wide angle projection makes audience coverage easy. While the JFX88 is well suited as is for many applications, the addition of a subwoofer expands its capabilities for more demanding applications such as for small houses of worship, theaters, and band PA.

Six year warranty.

View Product Features

  • Minimally sized for smallest venues and lowest profile applications
  • HF compression driver and vented LF for fully professional performance
  • Wave Guide Plate™ optimizes HF pattern for near field applications
  • Asymmetric enclosure provides multiple mounting angles
  • Pole mount cup plus U-bracket & Omnimount® Series 100 or similar mounting points
  • Passive crossover for easy operation and economical powering
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the EAW JFX88 2-Way Full Range Speaker

The EAW JFX88 is a versatile 8-inch two-way full-range loudspeaker designed for a wide array of professional sound reinforcement applications, including portable PA, installed sound, and stage monitoring. This speaker combines a robust 8-inch low-frequency driver with a high-frequency compression driver and horn in a compact, trapezoidal enclosure. The design focuses on delivering a balanced frequency response with clear vocal reproduction and sufficient low-end punch for music and speech reinforcement in small to medium-sized venues such as clubs, houses of worship, conference rooms, and restaurants. Its trapezoidal shape allows for flexible positioning as a main speaker on a pole or stand, as a side-fill, or as a floor monitor, providing multiple deployment options from a single cabinet.

Engineered for durability and reliability, the JFX88 features a rugged plywood cabinet finished in a textured black coating that resists scratches and wear. The integrated rigging points enable secure mounting on walls or ceilings for permanent installations, while the built-in pole socket facilitates quick setup for portable use. The passive crossover network is optimized for smooth power response and driver protection, ensuring consistent performance even at high output levels. The speaker's voicing emphasizes midrange clarity and controlled high-frequency dispersion, which enhances intelligibility and reduces listening fatigue, making it suitable for long-duration events and spoken word applications.

As a member of EAW's commercial and installed sound product lines, the JFX88 is built to provide dependable, high-quality audio with straightforward operation. It requires an external power amplifier, offering system designers flexibility in scaling power to match the specific needs of the application. For integrators and mobile entertainers seeking a rugged, sonically transparent, and multi-purpose loudspeaker that can serve reliably in various roles, the EAW JFX88 offers a practical and performance-oriented solution that balances output, clarity, and physical versatility.

Key Features

  • Minimally sized for smallest venues and lowest profile applications
  • HF compression driver and vented LF for fully professional performance
  • Wave Guide Plate™ optimizes HF pattern for near field applications
  • Asymmetric enclosure provides multiple mounting angles
  • Pole mount cup plus U-bracket & Omnimount® Series 100 or similar mounting points
  • Passive crossover for easy operation and economical powering

EAW JFX88 2-Way Full Range Speaker Specs

Transducer System
LF Driver
8 inch
HF Driver
Compression Driver & Horn
Crossover Type
Passive
Performance
Frequency Response
75 Hz - 18 kHz
Power Handling (RMS)
150 W
Sensitivity (1W/1m)
93 dB
Maximum SPL
118 dB
Nominal Impedance
8 Ω
Enclosure & Mounting
Enclosure Type
Trapezoidal
Material
Plywood
Finish
Black Texture
Mounting Options
Pole Socket, Rigging Points
Connectors
Input Connectors
NL4, 1/4" Jack
Physical
Dimensions (HxWxD)
Approx. 16 x 11 x 10 in
Weight
Approx. 20 lbs

Key Features

  • Minimally sized for smallest venues and lowest profile applications
  • HF compression driver and vented LF for fully professional performance
  • Wave Guide Plate™ optimizes HF pattern for near field applications
  • Asymmetric enclosure provides multiple mounting angles
  • Pole mount cup plus U-bracket & Omnimount® Series 100 or similar mounting points
  • Passive crossover for easy operation and economical powering
