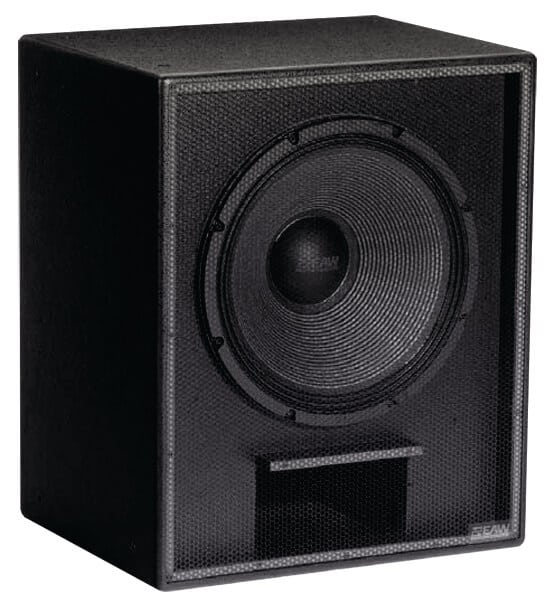

The EAW SBK180 is a high-output, single-driver 18-inch passive subwoofer engineered to deliver powerful and articulate low-frequency extension for professional touring and installed sound systems. Housed in a robust, tour-grade plywood enclosure with a textured black finish, it is built to withstand the physical demands of the road while providing the acoustic rigidity necessary for accurate bass reproduction. The subwoofer utilizes a high-excursion 18-inch driver with a heavy-duty motor structure and a large voice coil, optimized to move substantial volumes of air and produce deep, impactful sub-bass frequencies. The cabinet design, typically a vented (bass-reflex) configuration with a tuned port, maximizes efficiency and output in the lowest octaves, providing the foundational energy for music genres ranging from electronic and hip-hop to live rock and cinematic soundtracks.

This subwoofer is designed to operate in the infrasonic and low-bass region, typically reinforcing frequencies from 35 Hz up to approximately 100 Hz. Its high power handling capacity allows it to be driven by substantial amplifier power, translating electrical energy into high sound pressure levels with low distortion. The passive design requires connection to an external amplifier channel, and its performance is critically dependent on proper system processing. Using an external DSP or a processor-equipped amplifier is essential to provide precise crossover filters, phase correction, protective limiting, and equalization tailored to the specific installation or array, ensuring both optimal sonic integration with main loudspeakers and long-term driver protection.

Featuring dual NL4 Speakon connectors wired in parallel for easy daisy-chaining, the SBK180 simplifies system expansion and wiring in multi-subwoofer arrays. It includes integrated rigging points and handles, allowing for secure ground-stacking or flown deployment when used with appropriate EAW hardware. When deployed in multiples, these subwoofers can be configured in cardioid arrays to control low-frequency directionality and reduce stage bleed. The EAW SBK180 represents a professional-grade tool for sound engineers and system integrators who demand reliable, high-output sub-bass reinforcement capable of scaling to meet the requirements of medium to large-scale venues and events.
