EAW

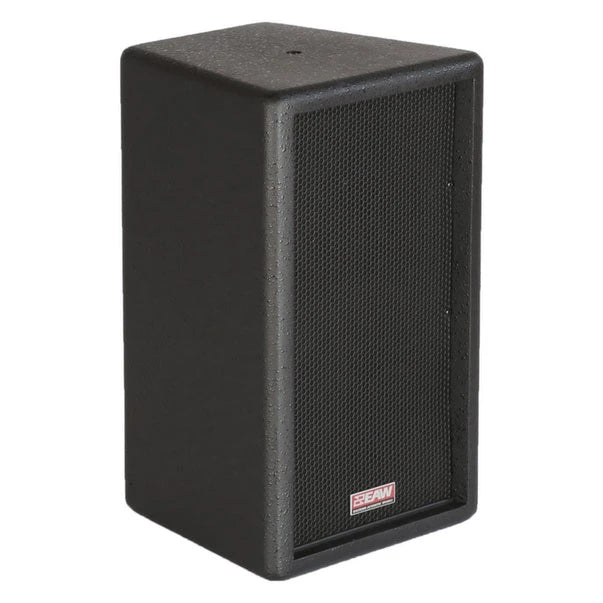

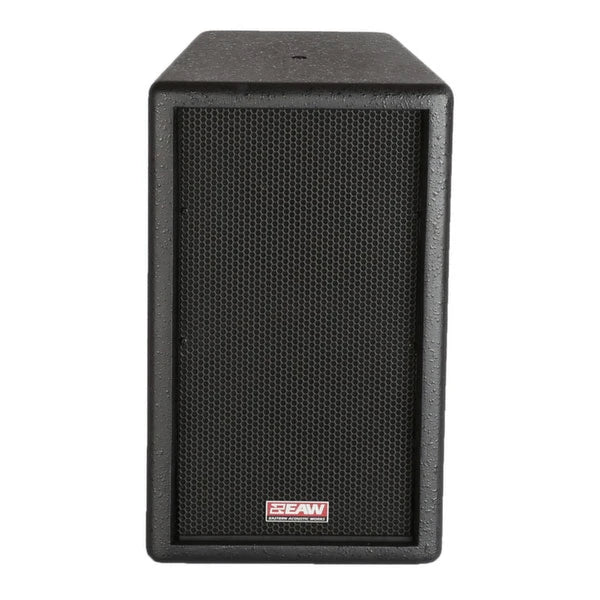

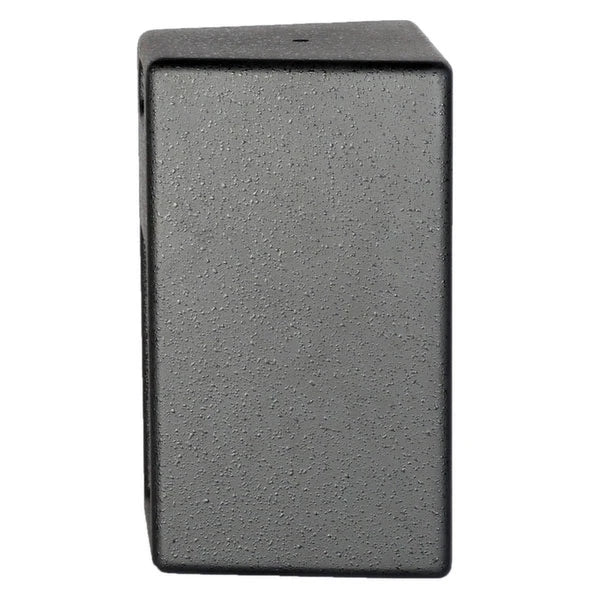

EAW VFR69-BK 2-Way Full Range Passive Loudspeaker (Black)

$0.00

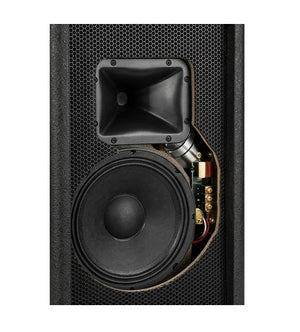

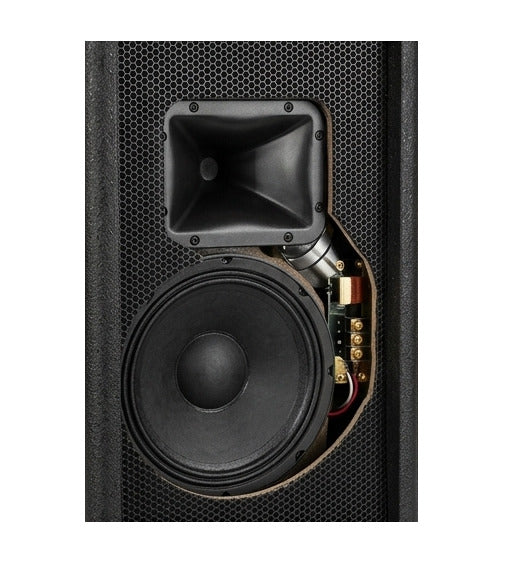

The VFR69 is a two-way, full range loudspeaker system that includes a direct-radiating, vented 6-inch LF cone transducer and a 1-inch exit / 1.25-inch voice coil HF compression driver loaded with a large, square, user-rotatable 90x60 coverage pattern horn. The square horn design allows installers to mount the enclosure horizontally, and by rotating the horn 90 degrees, maintain the system’s coverage pattern.

Because the VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers employed the same revolutionary “beamwidth-matching” internal passive crossover/filter networks that distinguish the MK Series from other two-way systems. When powered by an EAW-specified amplifier or through a UX Series digital signal processor, the VFR69 benefits from EAW Focusing technology, which eliminates anomalies inherent in the time domain of any loudspeaker.

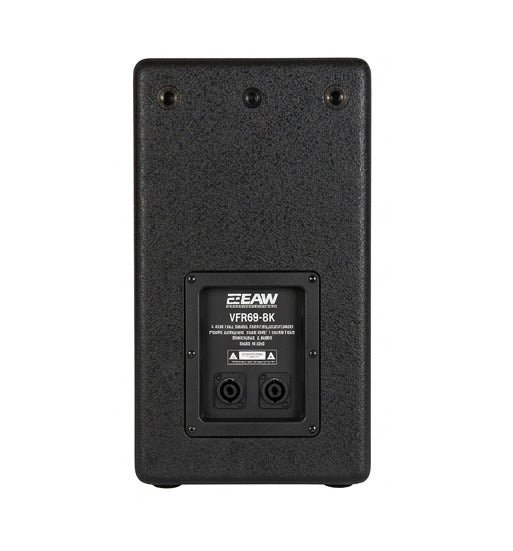

The VFR69 includes traditional portable features such as handles, a pole cup, and parallel NL4 connectors, as well as permanent installation features including barrier strip input, an optional transformer, and OmniMount mounting points. The unique design integrates the handles into the enclosure, leaving the sides smooth and attractive.

Six year warranty.

View Product Features

  • Install/Portable Hybrid
  • Two-way, full range loudspeakers
  • Large, user-rotatable horns for optimized pattern control
  • Beamwidth-matching crossover point
  • Long-lasting reliability
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the EAW VFR69-BK 2-Way Full Range Passive Loudspeaker (Black)

The EAW VFR69-BK is a compact, two-way passive loudspeaker engineered for high-fidelity audio reproduction in a wide array of fixed installation applications, presented in a discreet matte black finish. Designed for environments where visual subtlety is as important as acoustic performance, this speaker is ideal for retail spaces, restaurants, corporate boardrooms, modern houses of worship, and architectural projects where it can be seamlessly integrated into dark or neutral-colored interiors. Its slim, low-profile enclosure houses a sophisticated coaxial driver arrangement, which ensures perfect acoustic alignment from a single point source, resulting in exceptional off-axis response and a wide, uniform coverage pattern. This design philosophy prioritizes both sonic coherence and aesthetic discretion, providing a high-quality audio solution that supports the space's function without becoming a visual distraction.

Acoustic performance is driven by a concentric design where a low-frequency driver and a high-frequency compression driver are mounted on the same axis. This coaxial configuration guarantees consistent phase response and eliminates the lobing errors common in conventional two-way designs, yielding a coherent wavefront with precise imaging and a smooth frequency response. The dedicated crossover network is meticulously tuned to optimize the interaction between the drivers, producing a natural and articulate sound characterized by outstanding vocal clarity and detailed music reproduction. The result is a loudspeaker that delivers accurate sound dispersion with minimal tonal coloration, ensuring every listener within its coverage area experiences consistent audio quality, whether for background music, paging, or immersive multimedia content.

Constructed for durability and installation flexibility, the VFR69-BK features a rigid, injection-molded polymer enclosure that is both lightweight and acoustically inert. The matte black finish is designed to be resilient against scuffs and easy to clean. For installation, the cabinet incorporates multiple mounting options, including keyhole slots and a proprietary yoke system that allows for precise vertical and horizontal aiming to tailor coverage as needed. The grille is a fine, acoustically transparent fabric that maintains the sleek visual line. This combination of thoughtful acoustic engineering, discreet aesthetics, and versatile mounting makes it an ideal choice for architects, designers, and system integrators seeking a high-performance loudspeaker that complements contemporary interior design while delivering professional-grade sound.

Key Features

  • Install/Portable Hybrid
  • Two-way, full range loudspeakers
  • Large, user-rotatable horns for optimized pattern control
  • Beamwidth-matching crossover point
  • Long-lasting reliability

EAW VFR69-BK 2-Way Full Range Passive Loudspeaker (Black) Specs

Driver Architecture
Design
2-Way Passive Coaxial
Enclosure Material
Injection-Molded Polymer
Color
Black
Grille Type
Acoustically Transparent Fabric
Transducer Details
Low-Frequency Size
6.5 inches
High-Frequency Type
1-inch Compression
Mounting
Coaxial (Concentric)
Performance Characteristics
Frequency Response
75 Hz - 20 kHz
Sensitivity
89 dB
Nominal Impedance
8 ohms
Peak Power Handling
400 watts
Coverage Pattern
100 Degrees Conical
Physical Specifications
Height
10.6 inches
Width
7.7 inches
Depth
7.1 inches
Weight
8.8 lbs
Installation Features
Mounting Points
Keyhole Slots
Aiming Hardware
Multi-Position Yoke
UV Resistance
Yes (Finish Stability)
Application Notes
Primary Use
Architectural Install
Environment
Indoor
Visual Design
Discreet, Low-Profile

Key Features

  • Install/Portable Hybrid
  • Two-way, full range loudspeakers
  • Large, user-rotatable horns for optimized pattern control
  • Beamwidth-matching crossover point
  • Long-lasting reliability
