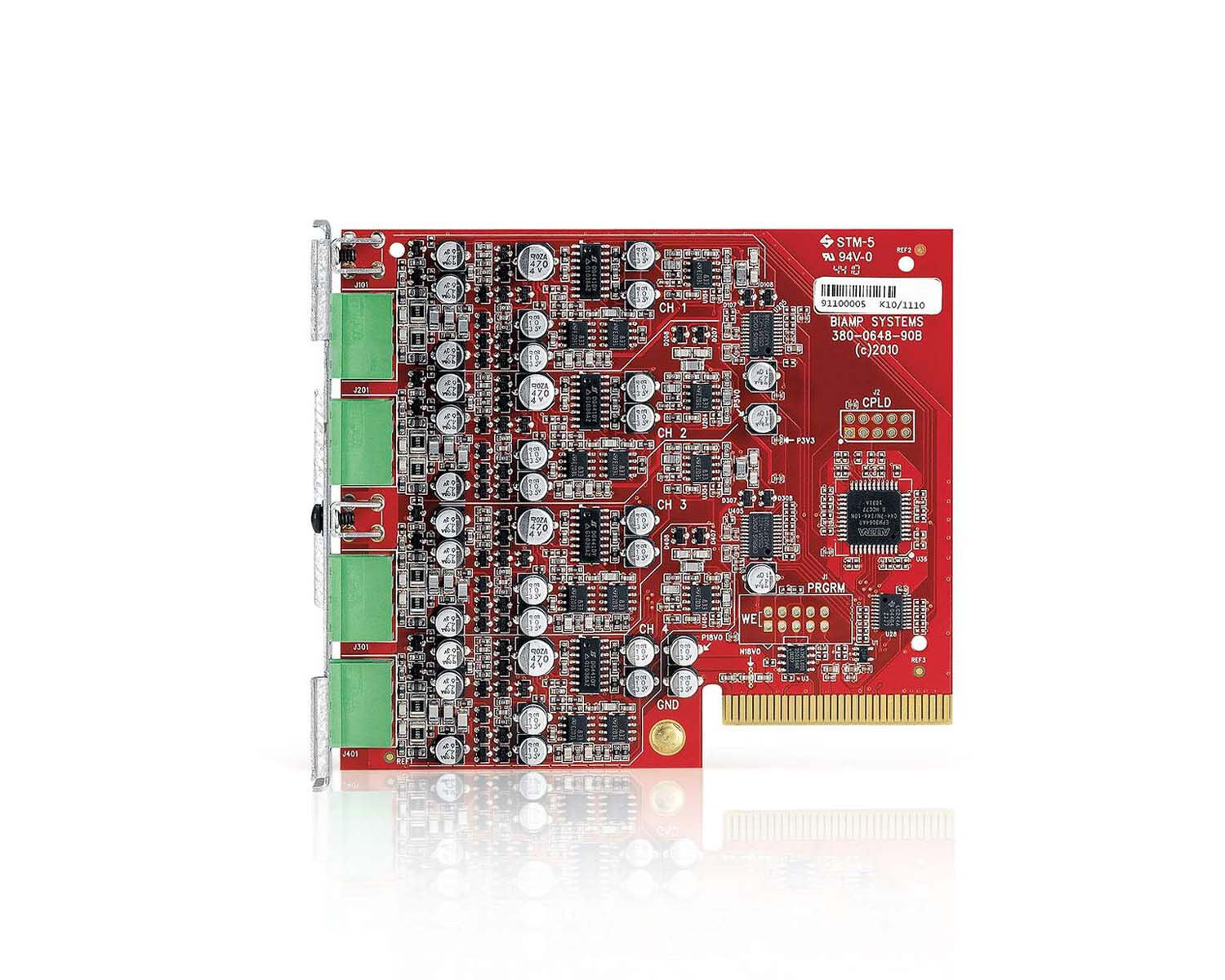

The Biamp Tesira SIC-4 is a specialized, modular input card designed to expand the audio capture capabilities of a Tesira digital signal processor (DSP) system. This card provides four discrete channels of high-quality analog audio input, each configurable as either a microphone or line-level source, making it a versatile building block for professional installed audio systems in corporate, education, healthcare, and hospitality environments. The card slots into an available expansion bay on a Tesira server or I/O frame, seamlessly integrating with the digital audio network and becoming a fully addressable component within the Tesira environment. Its primary function is to convert incoming analog signals from sources like gooseneck microphones, wireless mic receivers, musical instruments, or playback devices into pristine digital audio for processing, mixing, routing, and distribution by the central Tesira DSP.

Each of the four channels on the SIC-4 is engineered with premium components to ensure low noise, high headroom, and transparent conversion. Mic/line selection is performed via software in the Tesira configuration tool, allowing installers to repurpose channels remotely without physical adjustments. When set to microphone mode, each channel provides phantom power (typically +48V) for condenser microphones and includes adjustable gain control. In line-level mode, the input is optimized to accept consumer or professional line signals at the appropriate level. All channels feature analog-to-digital conversion with high resolution and sampling rates compatible with the Tesira platform, ensuring signal integrity is maintained from the point of entry into the system. Advanced features such as software-controlled limiters and high-pass filters are available per channel within the DSP software, providing essential tools for managing dynamic range and reducing low-frequency rumble before the audio enters the digital domain.

The modular design of the Tesira platform, exemplified by the SIC-4 card, offers exceptional scalability and future-proofing. System designers can precisely specify the number and type of I/O cards needed for a project, avoiding the cost and wasted capacity of fixed-I/O processors. Installation is streamlined, as multiple cards and processors can be distributed throughout a facility and connected via a single digital audio network (DAN), drastically reducing long and costly analog cable runs. The SIC-4 card, therefore, is more than just an input; it is a critical interface point that brings real-world analog audio into the powerful, software-defined realm of the Tesira ecosystem, enabling sophisticated audio control, automation, and integration that meets the exact needs of complex modern venues.
