Elation

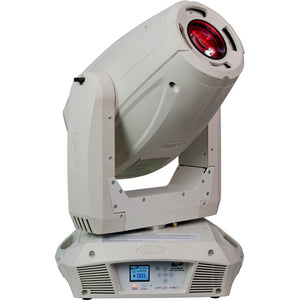

Elation EPS843-WHT Platinum Spot 15R PRO Moving Head Light - White

$0.00

The White Platinum Spot 15R Pro Effect Light from Elation Professional is a lighting effect fixture, designed for indoor use. This unit is powered by a Philips MSD Platinum 15R lamp. The Platinum Spot 15R Pro has a built-in EWDMX wireless DMX receiver which uses FHSS technology. The 2 gobo wheels have a total of 22 interchangeable, indexing gobos. There are 8 rotating and 14 static gobos. It also features a static color wheel with 6 dichroic colors, including UV and CTB. The data control is made via 3 pin and 5 pin DMX connectors.

View Product Features

  • CMY color mixing system 16-bit
  • Two direction rainbow effect
  • EWDMX wireless DMX receiver built-in
  • 6 dichroic colors and 22 gobos
  • 3 facet rotating prism
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Elation EPS843-WHT Platinum Spot 15R PRO Moving Head Light - White

The Elation Platinum Spot 15R PRO in White is a flagship white-finished moving head spotlight that combines a powerful optical system with a comprehensive feature set designed for the most demanding professional applications. This fixture leverages a high-luminosity 1,500-watt discharge lamp to produce an intensely bright and sharply focused beam, capable of long-throw projection while maintaining rich color saturation and clarity. Its white exterior is specifically chosen for environments where visual aesthetics are paramount, such as television studios, upscale events, or architectural installations where the fixture itself needs to blend into a light-colored set or ceiling. The core of its performance lies in a sophisticated optical path that includes a motorized zoom, allowing the beam angle to be adjusted from a tight pin spot to a wider wash, and a motorized focus system to ensure razor-sharp imagery on any surface.

Creative control is extensive, facilitated by two rotating gobo wheels with indexable rotation. The first wheel holds a selection of fixed metal gobos, while the second contains rotating glass gobos with replaceable slots, enabling a vast array of static and animated patterns. This is complemented by a full CMY (Cyan, Magenta, Yellow) color mixing system with an additional fixed color wheel, providing unparalleled subtractive color blending for smooth transitions across millions of shades, including delicate pastels and deep saturated hues. A motorized iris and a five-facet rotating prism further expand the effect possibilities, allowing for beam shaping and multiplication. All these parameters, including ultra-smooth 16-bit pan and tilt movement, are controlled with precision, enabling the fixture to execute complex cues with fluid accuracy.

Engineered for reliability, the fixture features a robust die-cast aluminum housing in a durable white finish, with an advanced thermal management system to ensure stable operation and maximize lamp life. It includes a quiet mode for broadcast environments and offers comprehensive control via DMX, RDM, and wireless options. The inclusion of a built-in power supply allows for automatic voltage adjustment across global standards. The Platinum Spot 15R PRO in White stands as a versatile and powerful tool for lighting designers who require a high-output, feature-rich moving spotlight that also meets stringent aesthetic requirements for visible hardware.

Key Features

  • CMY color mixing system 16-bit
  • Two direction rainbow effect
  • EWDMX wireless DMX receiver built-in
  • 6 dichroic colors and 22 gobos
  • 3 facet rotating prism

Elation EPS843-WHT Platinum Spot 15R PRO Moving Head Light - White Specs

Light Source & Output
Lamp Type
1,500W Discharge
Lamp Life
1500 Hours
Color Temperature
7000K
Equivalent Brightness
42,000 Lumens
Optical System
Zoom Range
3° to 22°
Focus
Motorized
Iris
Motorized Dimming/Strobe
Prism
5-Facet Rotating
Gobo & Color System
Gobo Wheel 1
7 Fixed Metal + Open
Gobo Wheel 2
7 Rotating Glass + Open
Color Mixing
CMY + Fixed Color Wheel
Color Wheel
8 Dichroic Filters
Movement & Control
Pan Range
540°
Tilt Range
270°

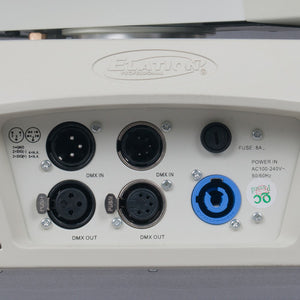

Control Protocol
DMX512, RDM, Wireless
Movement Resolution
16-bit
Physical & Electrical
Housing Finish
White
Power Connection
PowerCON TRUE1
Voltage Range
100-240V AC
Weight
47 kg

Key Features

  • CMY color mixing system 16-bit
  • Two direction rainbow effect
  • EWDMX wireless DMX receiver built-in
  • 6 dichroic colors and 22 gobos
  • 3 facet rotating prism
