Chauvet

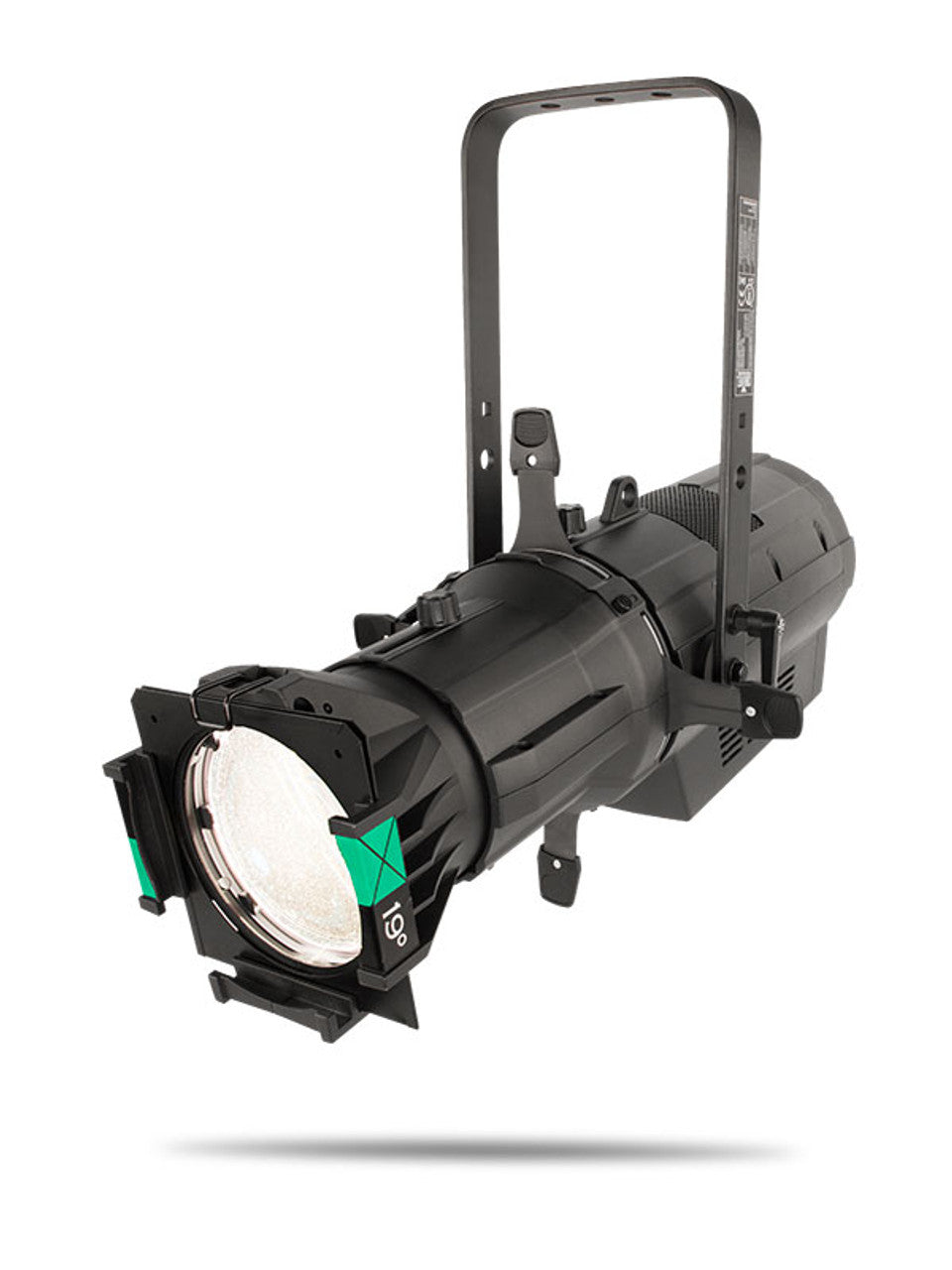

Chauvet Ovation E260WW LED Ellipsoidal

$0.00

Ovation E-260WW is powered by a single source 230 W LED that exceeds the output of a 750 W tungsten light source. This warm white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.

View Product Features

  • Warm or cool white ERS style fixture with output exceeding a tungsten 750 W source
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
  • Flat, even field of light for superior gobo projection
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories
Out of Stock
0 in stock

Once stock replenishes, inventory will display below.

Already own this item and want to sell it?

About the Chauvet Ovation E260WW LED Ellipsoidal

The Chauvet Ovation E-260WW is a professional, warm-white LED ellipsoidal (ERS) fixture designed as a direct, energy-efficient replacement for traditional 300W tungsten-halogen source four-type profiles. It produces a consistent, flicker-free warm white light with a color temperature of 3000K and a high Color Rendering Index (CRI), making it ideal for theatrical stage lighting, television studios, worship spaces, and architectural applications where accurate, natural color reproduction is critical. The fixture utilizes a high-output LED engine that dramatically reduces power consumption and heat output compared to its incandescent predecessors, while offering an extremely long service life that minimizes maintenance and lamp replacement costs.

This ellipsoidal features a four-blade framing shutter system with individually rotatable blades, allowing for precise beam shaping and hard-edge cuts to isolate specific areas of a stage or set. It includes a standard slot for accepting industry-standard gobos for pattern projection, and the focus can be adjusted from a sharp, defined edge to a soft field. The optical system is designed to deliver a flat field with even illumination and minimal color fringing. Housed in a durable, die-cast aluminum body with a familiar form factor, it integrates seamlessly into existing lighting rigs and uses standard accessories from conventional ellipsoidals, such as gel frames, irises, and gobo holders.

The Ovation E-260WW represents a significant step forward in sustainable stage lighting, providing the quality of light and control that lighting designers expect from a traditional ERS, but with the operational benefits of modern LED technology. Its combination of excellent color quality, precise beam control, and low total cost of ownership makes it a compelling choice for venues and productions looking to upgrade their lighting inventory for improved performance and efficiency.

Key Features

  • Warm or cool white ERS style fixture with output exceeding a tungsten 750 W source
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
  • Flat, even field of light for superior gobo projection
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories

Chauvet Ovation E260WW LED Ellipsoidal Specs

Light Source & Output
LED Type
Warm White High-CRI Array
Color Temperature
3000K
CRI (Ra)
93
Equivalent Wattage
Replaces 300W Tungsten
Total Luminous Flux
Approx. 3,000 lumens
Beam Angle
Adjustable via lens tube (typical range: 19° - 50°)
Optical & Control
Field Angle Range
19°, 26°, 36°, 50° (via interchangeable lens tubes)
Shutter System
4 independently rotatable framing shutters
Gobo Slot
Standard "A" Size (accepts steel/glass gobos)
Focus Adjustment
Field (soft) to Beam (hard)
Electrical & Physical
Input Voltage
AC 100-240V, 50/60 Hz
Power Consumption
65W
Power Connection
IEC PowerCON TRUE1
Housing Material
Die-cast Aluminum
Dimensions (LxWxH)
500 mm x 245 mm x 225 mm
Weight
5.4 kg
Performance & Lifetime
Dimming
0-100% smooth, flicker-free
Expected LED Life
50,000 hours (L70)

Key Features

  • Warm or cool white ERS style fixture with output exceeding a tungsten 750 W source
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
  • Flat, even field of light for superior gobo projection
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories
