SKU: C2341-183

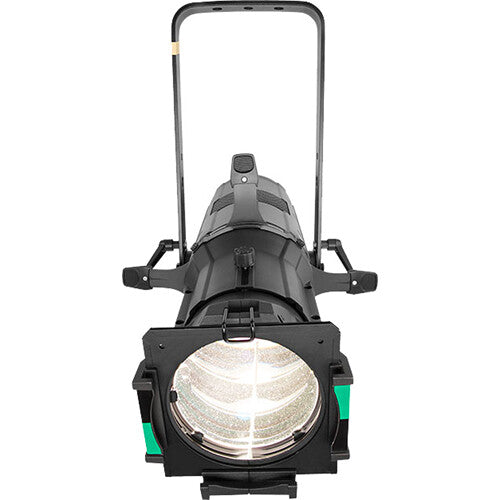

CHAUVET Pro Ovation E-160WW-2 LED Ellipsoidal Engine TRUE1 Power

$549.75

Items Included

Item Notes

Condition: Fully Working 5 availableⓘ
5 availableⓘ View All
Note: Each item is unique. please check individual listings for details.
Price
Add to cart
Pre-Owned Guarantee 14 Day Return Window
Trade-In & SAVE Click Here To Get Started

Description

The CHAUVET Pro Ovation E-160WW-2 delivers professional-grade LED ellipsoidal performance with warm white output and TRUE1 power connectivity. Engineered for touring productions, theaters, and live events, this compact engine combines efficient LED technology with the familiar ellipsoidal optics lighting designers trust. Features smooth dimming, consistent color temperature, and reduced heat output compared to traditional fixtures. The TRUE1 power system ensures reliable connectivity and simplified rigging. Ideal for venues requiring bright, focused beam control with minimal power consumption and maintenance demands. Read more

Features

  • Tungsten Emulation: Produces a 3031K warm white output comparable to a 575W tungsten fixture, yet draws under 100W.
  • Pro Power Connections: Upgraded with Seetronic Powerkon IP65 (TRUE1-style) connectors for safe, reliable power linking.
  • Smooth Dimming: Features ultra-smooth 16-bit dimming and selectable 8-bit dimming curves for flawless fades to black.
  • Crisp Gobo Projection: Engineered to deliver a flat, even field of light for sharp, superior pattern projection.
  • Broadcast Ready: Offers adjustable Pulse Width Modulation (PWM) and virtually silent operation for flicker-free camera performance and noise-sensitive spaces.

Business Financing Options Avaiable

View Available Financing

Not Included

doesnotincludelenstube

The CHAUVET Pro Ovation E-160WW-2 delivers professional-grade LED ellipsoidal performance with warm white output and TRUE1 power connectivity. Engineered for touring productions, theaters, and live events, this compact engine combines efficient LED technology with the familiar ellipsoidal optics lighting designers trust. Features smooth dimming, consistent color temperature, and reduced heat output compared to traditional fixtures. The TRUE1 power system ensures reliable connectivity and simplified rigging. Ideal for venues requiring bright, focused beam control with minimal power consumption and maintenance demands. Read more

Features

  • Tungsten Emulation: Produces a 3031K warm white output comparable to a 575W tungsten fixture, yet draws under 100W.
  • Pro Power Connections: Upgraded with Seetronic Powerkon IP65 (TRUE1-style) connectors for safe, reliable power linking.
  • Smooth Dimming: Features ultra-smooth 16-bit dimming and selectable 8-bit dimming curves for flawless fades to black.
  • Crisp Gobo Projection: Engineered to deliver a flat, even field of light for sharp, superior pattern projection.
  • Broadcast Ready: Offers adjustable Pulse Width Modulation (PWM) and virtually silent operation for flicker-free camera performance and noise-sensitive spaces.

Recommended Accessories

    No products currently in stock

Frequently Purchased Together

    No products currently in stock

About the CHAUVET Pro Ovation E-160WW-2 LED Ellipsoidal Engine TRUE1 Power

The CHAUVET Professional Ovation E-160WW-2 is a highly efficient, virtually silent warm white LED ellipsoidal fixture engineered for theaters, studios, and quiet broadcast environments. It delivers an impressive output that rivals a traditional 575W tungsten light source while drawing barely 100 watts of power, making it a massive energy-saving asset. The "-2" designation includes a convenient upgrade to Seetronic Powerkon IP65 (TRUE1-style) power input and output connections, providing secure, professional-grade daisy-chaining for your rig.

With a 3031K color temperature and a high CRI of 90, the Ovation E-160WW-2 guarantees excellent color fidelity and natural-looking lighting. It provides a remarkably flat, even field of light, which ensures that gobo projections are crisp and clear across the entire beam. Furthermore, it features ultra-smooth 16-bit electronic dimming with multiple selectable 8-bit dimming curves for flawless fades, adjustable PWM for flicker-free camera performance, and full RDM support for flexible remote management.

Key Features

  • Tungsten Emulation: Produces a 3031K warm white output comparable to a 575W tungsten fixture, yet draws under 100W.
  • Pro Power Connections: Upgraded with Seetronic Powerkon IP65 (TRUE1-style) connectors for safe, reliable power linking.
  • Smooth Dimming: Features ultra-smooth 16-bit dimming and selectable 8-bit dimming curves for flawless fades to black.
  • Crisp Gobo Projection: Engineered to deliver a flat, even field of light for sharp, superior pattern projection.
  • Broadcast Ready: Offers adjustable Pulse Width Modulation (PWM) and virtually silent operation for flicker-free camera performance and noise-sensitive spaces.

Already own this item and want to sell it?

Click here to sell your item

CHAUVET Pro Ovation E-160WW-2 LED Ellipsoidal Engine TRUE1 Power Specs

Light Source
1 LED (Warm White) 86 W (2.3 A), 50,000 hours life expectancy
Color Temperature
3031 K
CRI
90
DMX Channels
1, 2, 3, or 6
DMX Connectors
3- and 5-pin XLR
Power Connectors
Seetronic Powerkon IP65 (TRUE1-style) In/Out
Dimming
16-bit (Electronic)
Selectable PWM
600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Power Draw
101 W, 0.86 A @ 120 V, 60 Hz

Key Features

  • Tungsten Emulation: Produces a 3031K warm white output comparable to a 575W tungsten fixture, yet draws under 100W.
  • Pro Power Connections: Upgraded with Seetronic Powerkon IP65 (TRUE1-style) connectors for safe, reliable power linking.
  • Smooth Dimming: Features ultra-smooth 16-bit dimming and selectable 8-bit dimming curves for flawless fades to black.
  • Crisp Gobo Projection: Engineered to deliver a flat, even field of light for sharp, superior pattern projection.
  • Broadcast Ready: Offers adjustable Pulse Width Modulation (PWM) and virtually silent operation for flicker-free camera performance and noise-sensitive spaces.

Already own this item and want to sell it?

Click here to sell your item

FAQs about CHAUVET Pro Ovation E-160WW-2 LED Ellipsoidal Engine TRUE1 Power

What type of light source does the Ovation E-160WW-2 use?

The fixture is powered by a highly efficient 86W warm white LED. It delivers a 3031 K color temperature with a high CRI of 90, providing an output that rivals a traditional 575W tungsten source while drawing significantly less electrical power.

Does the engine include a lens tube?

No, this specific model is the ellipsoidal engine body only. Lens tubes are sold separately, allowing you to customize the fixture with Chauvet's wide range of fixed lenses (from 5° to 50°) or manual zoom lenses (15°–30° or 25°–50°) depending on your specific throw distance requirements.

Is this fixture suitable for noise-sensitive environments like theaters and studios?

Yes. The Ovation E-160WW-2 is convection-cooled and operates virtually silently, making it ideal for intimate theatrical settings, broadcast studios, and any application where audio clarity is critical and fan noise must be minimized.

Will the light flicker if I use it for video or broadcast applications?

No, it is fully camera-ready. The fixture features adjustable Pulse Width Modulation (PWM) settings ranging from 600 Hz up to 25,000 Hz, ensuring completely flicker-free performance on camera.

What are the DMX control modes and data connections?

For maximum flexibility in any rig, the fixture includes both 3-pin and 5-pin XLR DMX input and output connectors. It fully supports DMX and RDM (Remote Device Management) protocols and can be operated in 1, 2, 3, or 6-channel DMX personalities.

What kind of power connections does the fixture utilize?

This upgraded "-2" version of the engine features highly secure, Seetronic Powerkon IP65 power input and output connectors on the chassis, which are fully compatible with industry-standard TRUE1-style power cables.

How many units can I safely daisy-chain for power?

Because it is an energy-saving fixture that draws only about 100W of power at full intensity, you can safely power-link up to 13 units on a standard 120V circuit, or up to 25 units on a 230V circuit, greatly reducing cable clutter.

Is the fixture capable of projecting gobos?

Yes. The ellipsoidal engine is designed to project a remarkably flat, even field of light, which results in superior, crisp gobo projection. It accepts standard "A" size or "B" size gobos when paired with the appropriate optional gobo holder.

What type of dimming control does it offer?

The fixture boasts ultra-smooth 16-bit electronic dimming that fades flawlessly all the way down to the very bottom of the curve. It also includes four selectable 8-bit dimming curves to seamlessly match the fade profiles of traditional tungsten fixtures or other lights in your rig.
