ADJ

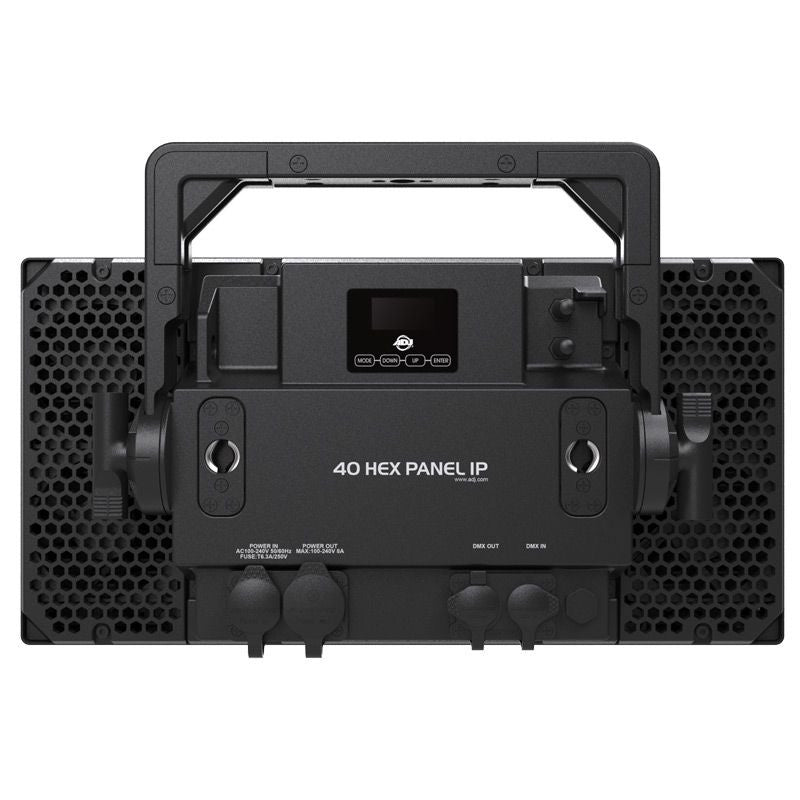

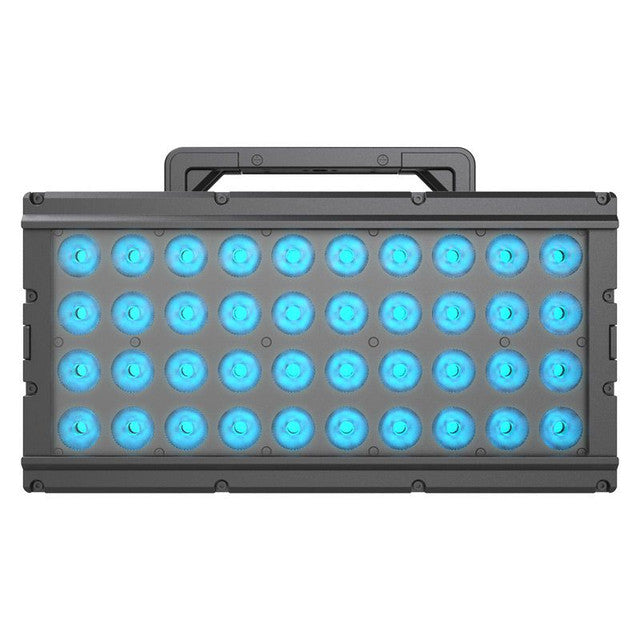

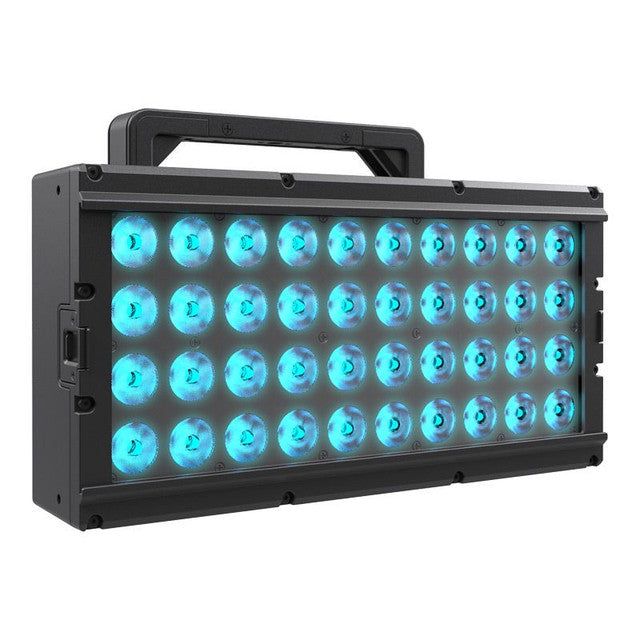

ADJ 40 Hex Panel IP Wash, Blinder, and Strobe Fixture
$1,218.70
Unit price
/
The ADJ 40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or color strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. A magnetic, removable filter frame allows for the addition of a diffusion filter to adjust the beam angle.
View Product Features
View Product Features
Out of Stock
0 in stock
Once stock replenishes, inventory will display below.
In-Stock Inventory
About the ADJ 40 Hex Panel IP Wash, Blinder, and Strobe Fixture
Key Features
ADJ 40 Hex Panel IP Wash, Blinder, and Strobe Fixture Specs
Light
Fixture Type
LED Panel
Light Source
40x Color/UV LED - 20 W
Expected Lamp Life
50,000 Hours
Colors
Amber, Blue, Green, Lime, Red, Ultraviolet
Pixel Configuration
10x Zone
Lumen Output
19,590 Lumens
Beam Angle
28.6 x 23.7°
Field Angle
50.8 x 44.9°
Shutter / Strobe
Electronic
Iris
No
Focus
Manual
Zoom Adjustment
No
Dimming
16-Bit Electronic, 0 to 100% with 5 Dimmer Modes
Performance
Operating Modes
DMX
Gobos
No
Control
Control Protocols
DMX512, RDM
DMX Channel Modes
24 Mode(s): 6 / 12 / 15 / 20 / 24 / 27 / 29 / 30 / 36 / 40 / 60 / 63 / 68 / 70 / 120 / 123 / 128 / 132-Channel
Display / Controls
OLED
Remote Control
No
Mobile App Compatible
No
Connectivity
Inputs/Outputs
1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output
Wireless
No
Power
AC Power Connector
Input: 1x Seetronic IP-Rated Output: 1x Seetronic IP-Rated
Input Power
100 to 240 VAC, 60 / 50 Hz
Fuse
T 4 A 250 V
Power / Current Consumption
120 VAC, 60 Hz: 513 W 220 VAC, 50 Hz: 492 W
Power Linking
1 Units at 120 VAC 4 Units at 230 VAC
Physical
Environmental Resistance
Dust/Water-Resistant (IP65)
Mounting
Single Yoke Only
Included Accessories
1x Power Cable 1x Filter
Duty Cycle
No
Exterior Color
Black
Certifications
CE, cETLus
Dimensions
16.42 x 11.7 x 8.35" / 41.71 x 29.7 x 21.21 cm
Weight
24.5 lb / 11.1 kg
