Optical System & Light Source
Fixture Type

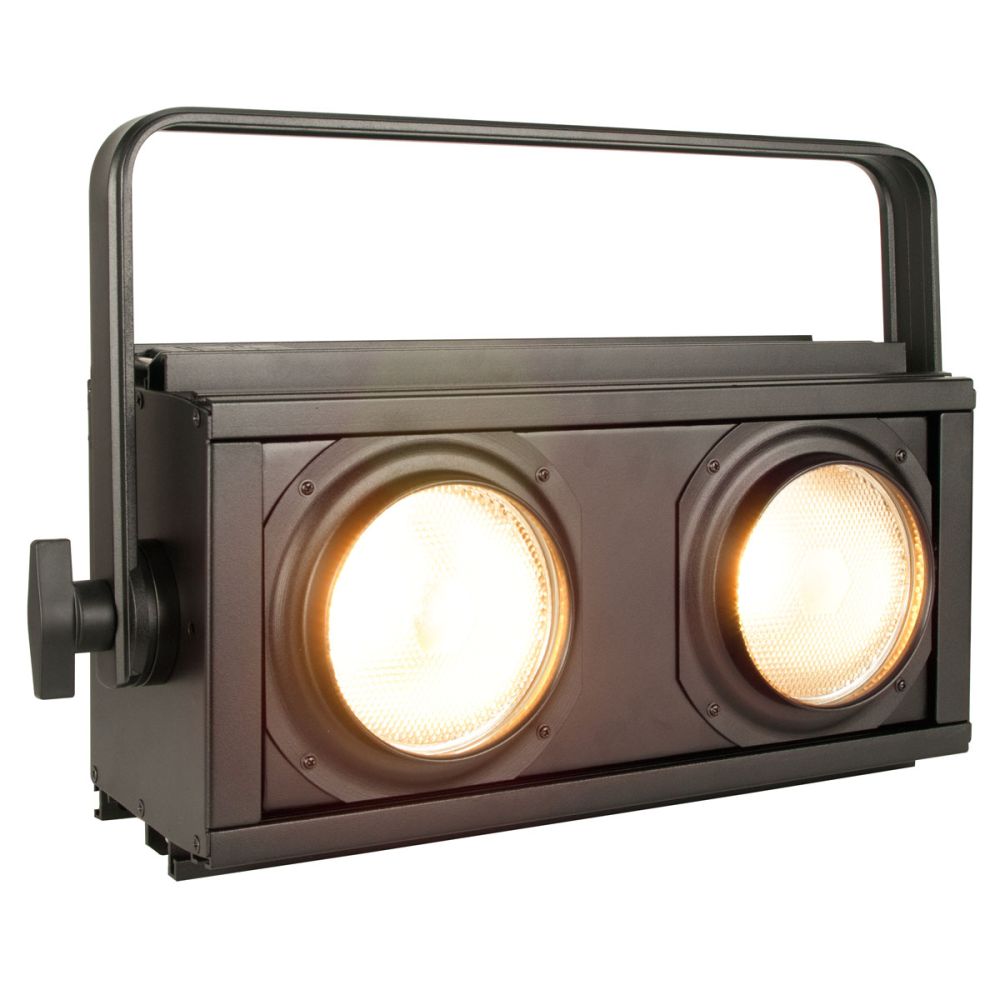

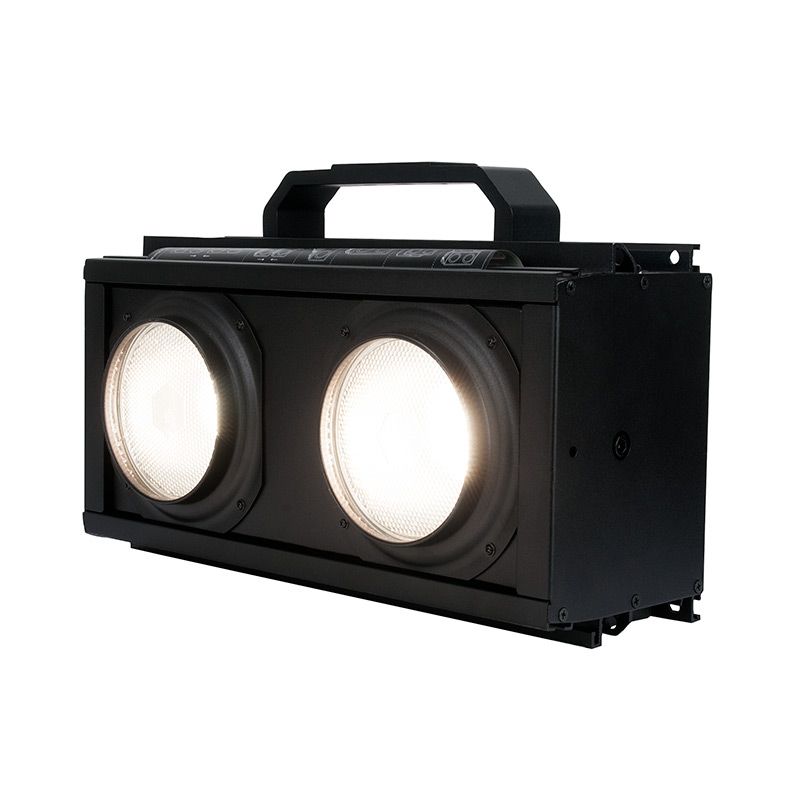

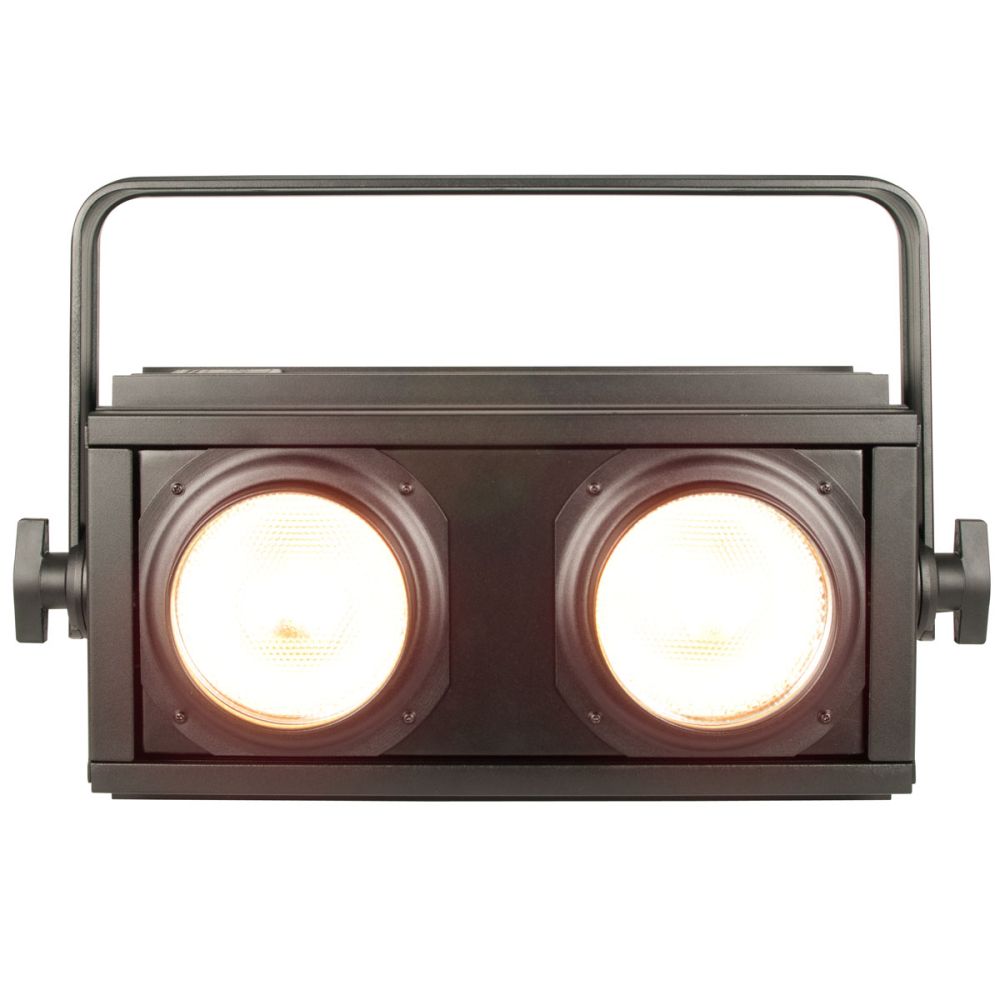

Dual-Head LED Blinder/Strobe
Light Source per Head
110W High-Output Cool White LED Array (Total: 220W)
Number of Heads
2 (independently controllable)
Color System
Full RGB color mixing per head
Primary Function
High-intensity blinding and strobe lighting effects
Beam Angle
Medium to wide beam for broad audience coverage
Strobe Speed
Variable from slow pulse to ultra-fast flash (e.g., 0.5 - 25 Hz)
Control
Independent or synchronized control of both heads
Effects Modes
Strobe, pulse, random strobe, built-in chase sequences between heads
Dimming
Instant on/off capability; smooth dimming for fade effects
Color Mixing
Individual RGB control for each head for colored strobes
Control Protocol
DMX-512 / RDM (Remote Device Management)
DMX Channels
Multiple selectable modes (e.g., 4, 7, or 10 channels per head, 8, 14, or 20 total)
RDM
Yes, for remote addressing and diagnostics
Control Modes
DMX, Master/Slave, Standalone with built-in programs, Sound-Active
Display
LCD screen for addressing and mode configuration

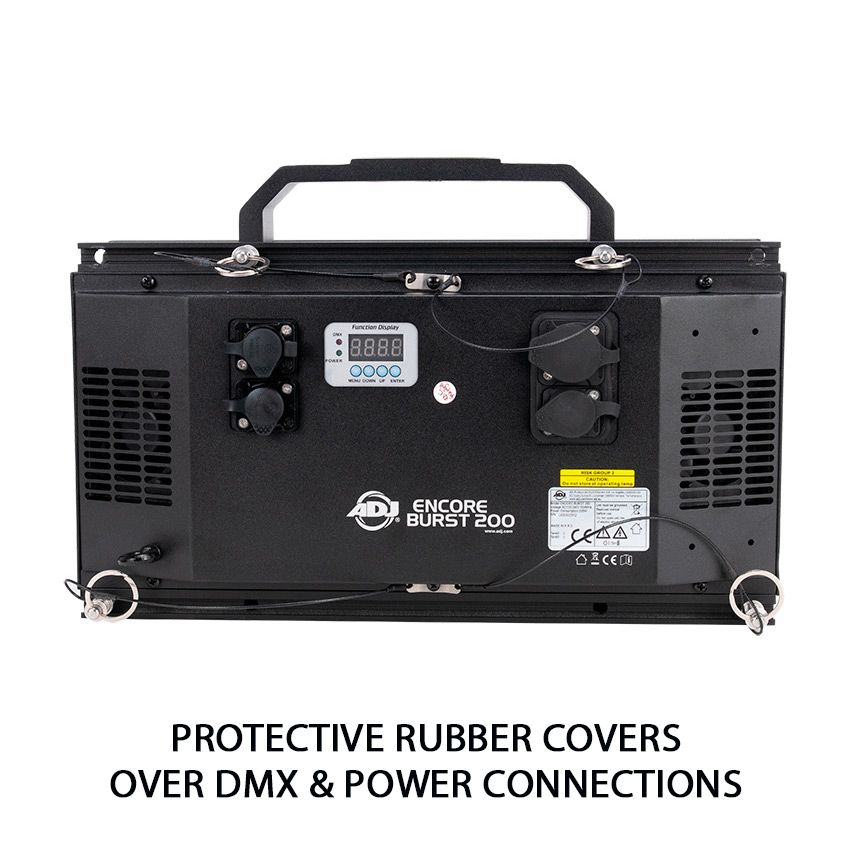

Connectivity
3-pin & 5-pin XLR DMX In/Out, PowerCON TRUE1 In/Out (linkable)
Power Supply
Auto-switching 100-240V AC, 50/60Hz
Power Consumption
~250 Watts (maximum)
Housing
Durable metal (die-cast aluminum) construction
Cooling
Temperature-controlled quiet fan
Weight
Approx. 10 kg (22 lbs)
Dimensions (LxWxH)
Approx. 330 x 265 x 355 mm (13" x 10.4" x 14")
Mounting
Standard yoke with Omega bracket, integrated carry handles, safety cable eyelets
Lens
Typically uses a frosted or textured lens to diffuse the LED array and prevent spotting
Programs
Built-in auto programs for chase, random, and sound-activated strobe patterns
Software Updates
Firmware upgradable via USB
Safety
Thermal protection, electronic lock for yoke, safety certifications (ETL, CE)
Typical Use
Concert audience blinders, nightclub peak-time effects, theatrical lightning/special FX, festival stages.
