HOLOPLOT MD96 X1 Series Matrix Array Loudspeaker Module

The MD96 is an advanced two-way Audio Module that integrates 96 individually amplified drivers in a two-layered matrix design. It utilizes 3D Audio-Beamforming and Wave Field Synthesis to provide precise sound placement and control over horizontal and vertical axes.

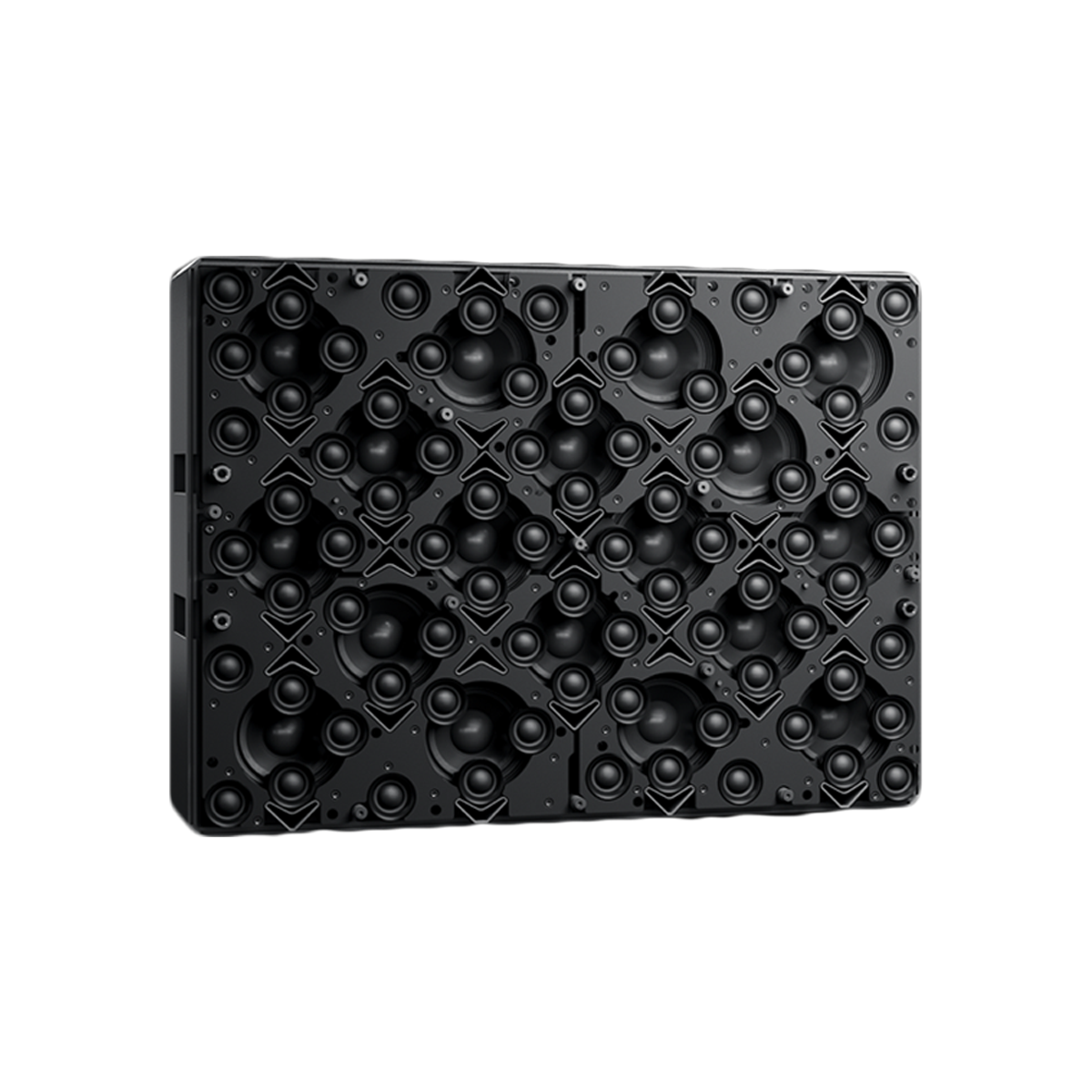

The module features 78 1.3-inch high-frequency soft-dome tweeters with integrated waveguides, and 18 5-inch low-frequency cone drivers housed in individual dual-ported chambers.

No. The MD96 features built-in amplification utilizing six 16-channel digital amplifier modules. Amplification channels for each of the 96 drivers are integrated directly into the cabinet, eliminating the need for separate amplifier racks.

A single X1 Matrix Array can create up to 12 independently controlled beams in parallel. This includes up to 8 fully user-configurable parametric beams or virtual sources, alongside 4 coverage beams optimized for predefined audience areas.

Under an optimized parallel beam configuration, the maximum SPL is 142 dB for the low-frequency layer and 152 dB for the high-frequency layer.

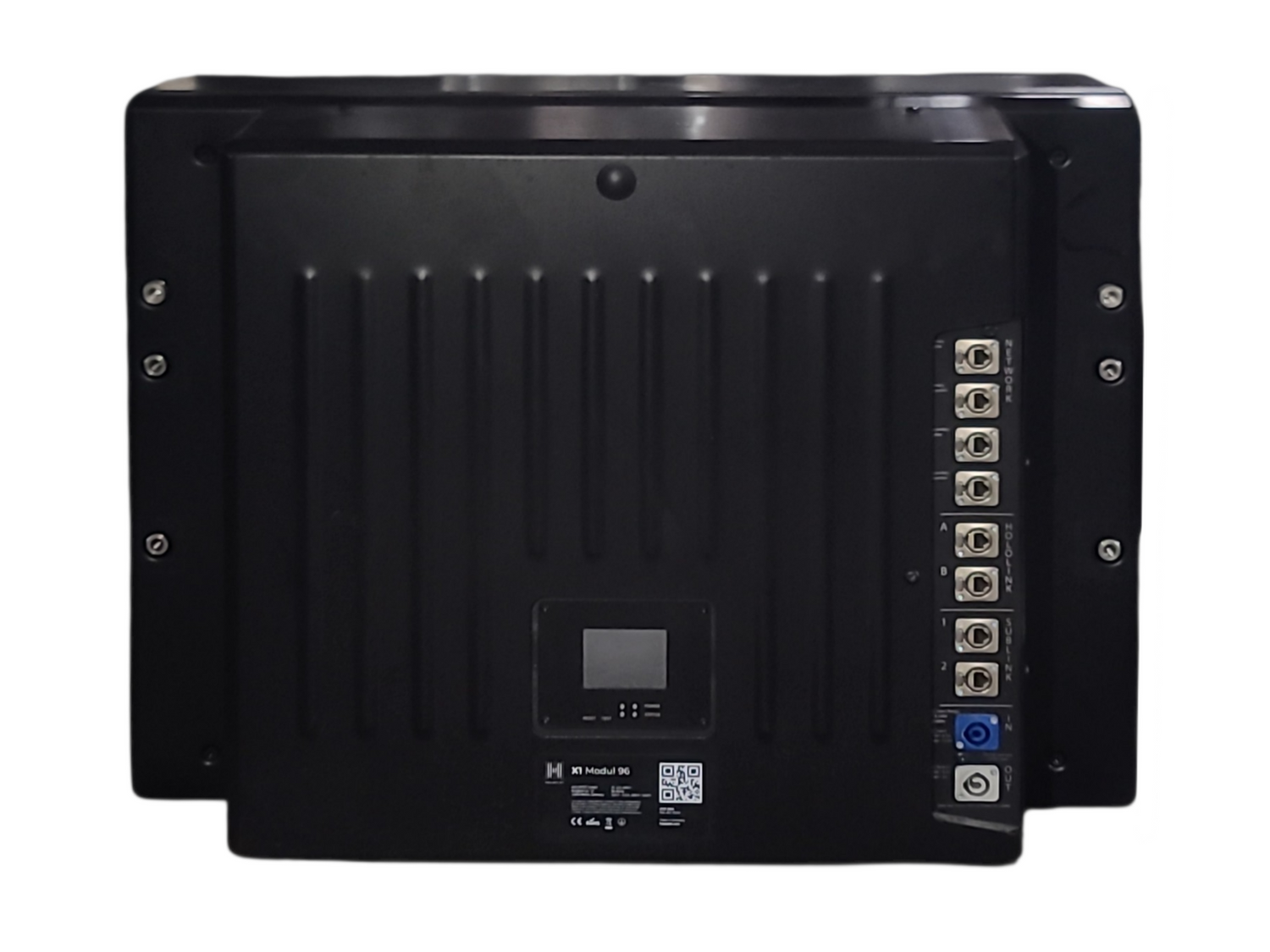

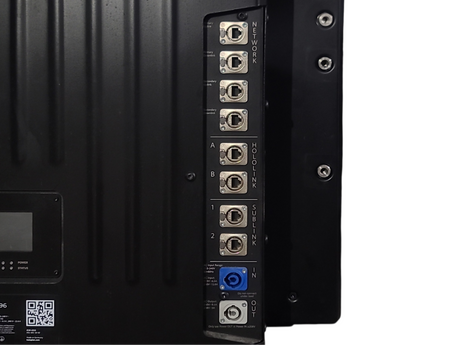

The module supports Audio-over-IP networking and is equipped with etherCON connectors that are fully compatible with Dante™ and AES67 protocols.

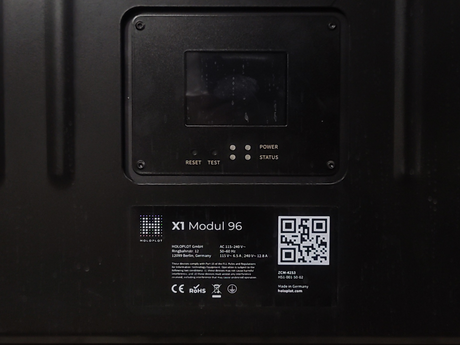

The MD96 is equipped with infrared transceivers for automatic neighbor detection, orientation sensors to ensure proper rigging, front-facing LEDs for fast module identification, and electric/acoustic self-testing capabilities.

The module uses a high-performance FPGA for advanced digital signal processing across 96 DSP channels. It offers 7,600 parametric EQ bands and over 1,100 Finite Impulse Response (FIR) filters to accurately tailor the sound field.

Yes. The X1 series features a highly scalable, modular design. You can connect multiple rows and columns of Matrix Array loudspeakers seamlessly to accommodate any system design or scale up for larger venues.
