AJA | SKU: 1918-100

AJA 12GM 12G-SDI Mux/Demux w/ PSU

Name: AJA 12GM 12G-SDI Mux/Demux w/ PSU
Brand: AVGear.com
SKU: 1918-100
Price: 594.96 USD
Availability: OutOfStock

$594.96 ~~$699.95~~

Shipping calculated at checkout.

Cosmetic Rating

Fair

"Fair Condition" gear exhibits noticeable signs of use, including moderate wear, scratches, and minor cosmetic damage. While some non-essential parts may be missing, these items are fully functional for key purposes. A great choice for those prioritizing functionality over appearance.

For used equipment, the images displayed reflect the exact item and contents included, unless otherwise specified in the product description.

Already own this item and want to sell it?

Click here to sell your item

Description

12GM is a compact SDI transport Mini-Converter that enables 12G-SDI to quad link 3G-SDI and quad link 3G-SDI to 12G-SDI conversion. The muxer/demuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates, as well as Dual-Link and Dual-Stream conversions. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.

Features

SDI Transport Converter for 12G, 6G, 3G and 1.5G-SDI·
Supports multiple types of Quad, Dual, and Single type conversions
Two Sample Interleave (2SI) to/from Square Division (Quadrant) pixel mapping
3G-SDI Level A to/from 3G-SDI Level B Dual-Link (DL)
3G-B Dual Stream Support
Simple Frame Rate Conversion (FRC) between Fractional or Integer rates
HDR signaling metadata pass-through and optional override
Pass-through of Single Link 12G, 6G, 3G, 1.5G and 270M SDI video
Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
Configurable as a 1x4 Distribution Amplifier
Input signal diagnostics and timing analyzer for quad link signals
Automatic or manual control
Detailed timing analysis for validating alignment of quad-link SDI inputs
Passes SDI embedded audio, 24-bit, up to 16-Channels
Configure via USB port and supplied AJA Mini-Config software

Testing Notes

Untested

In The Box

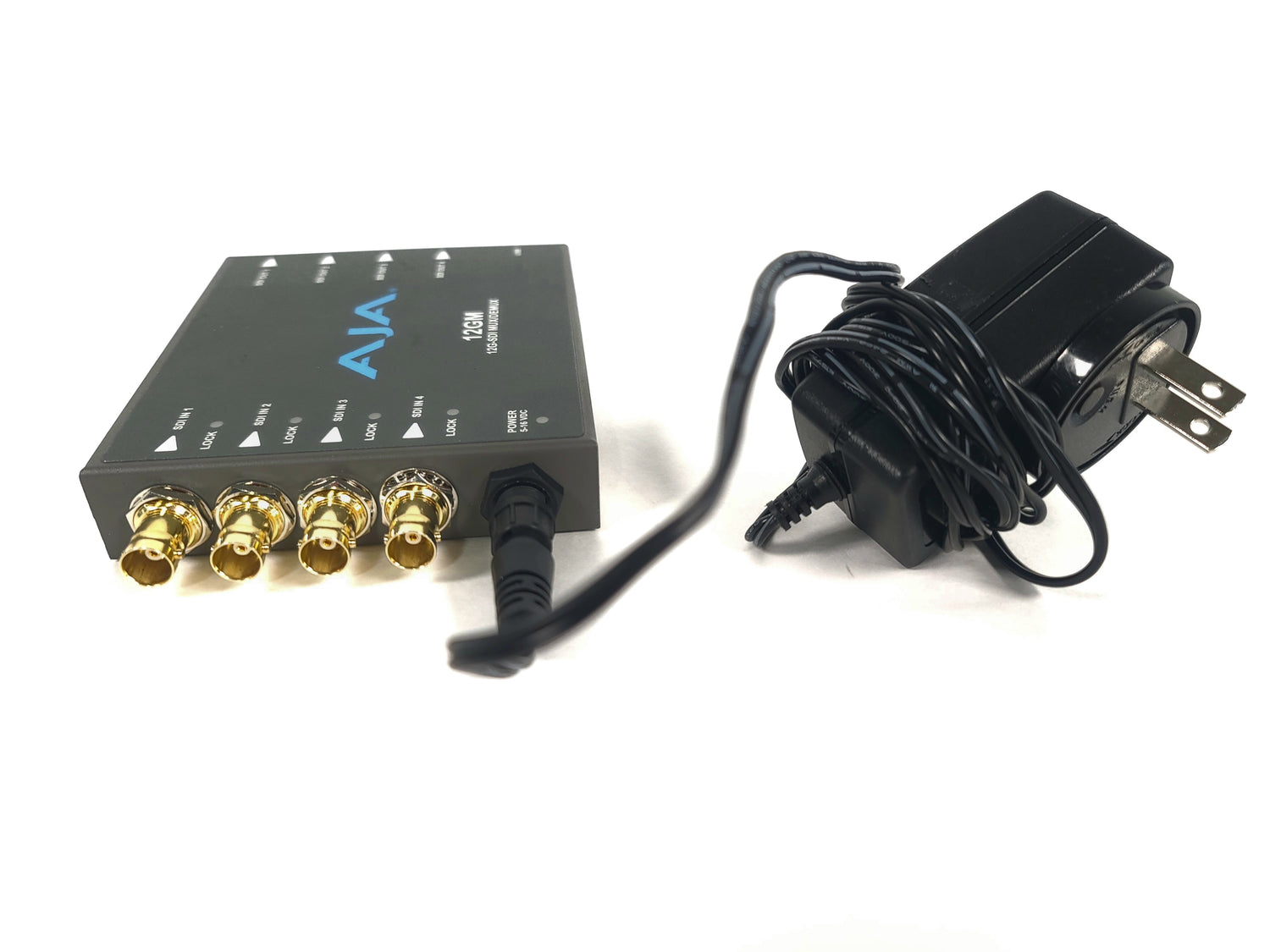

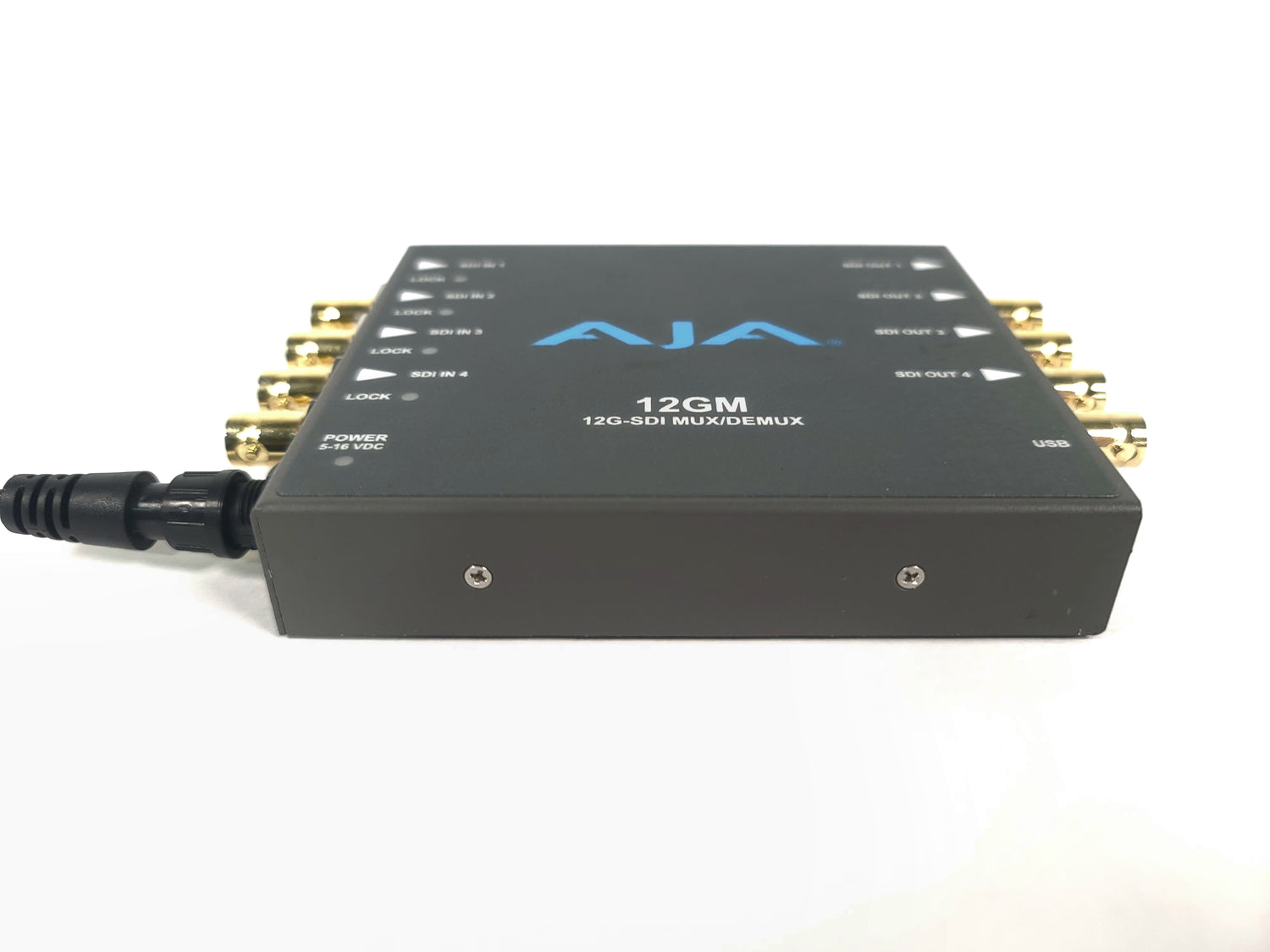

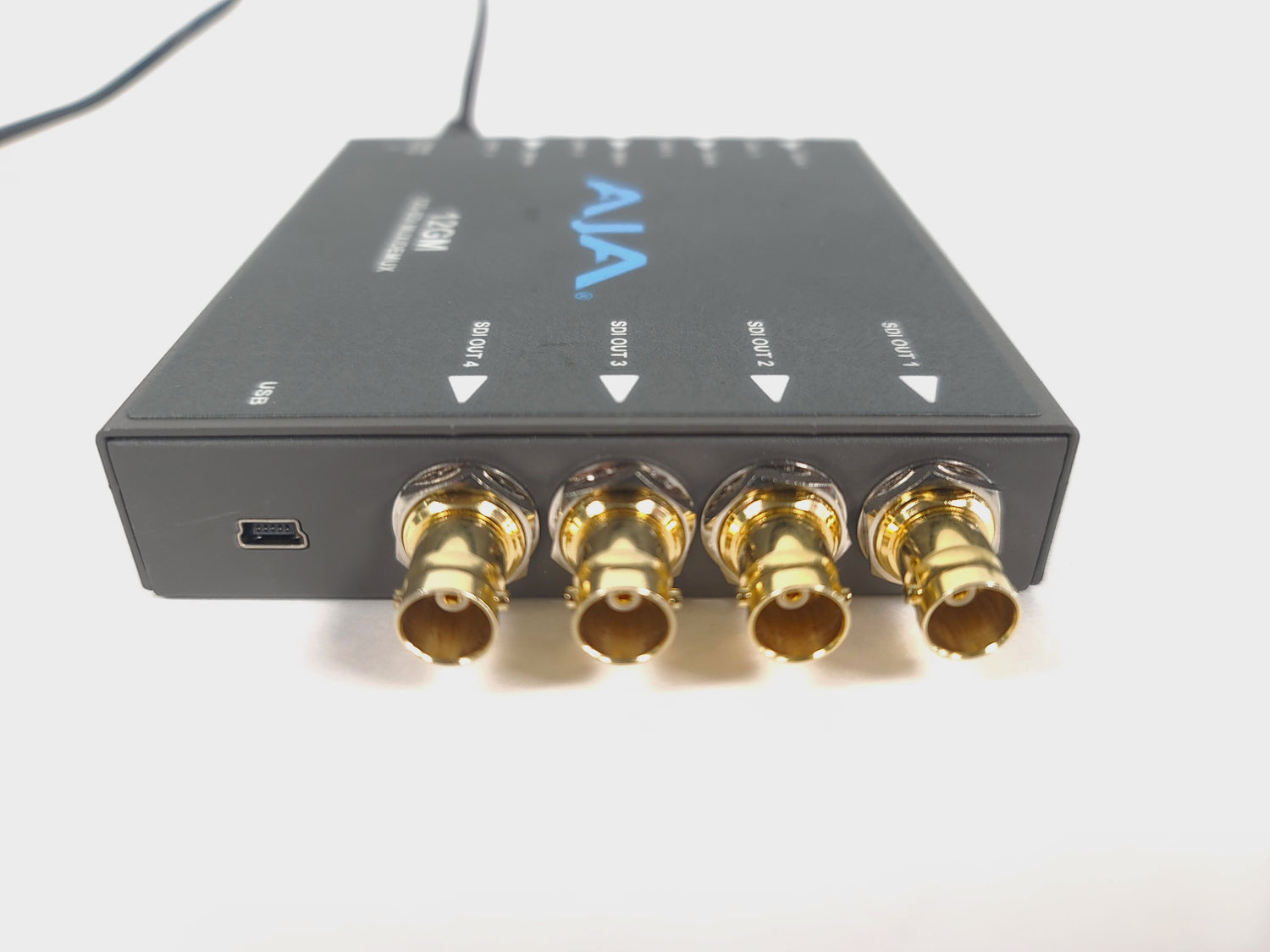

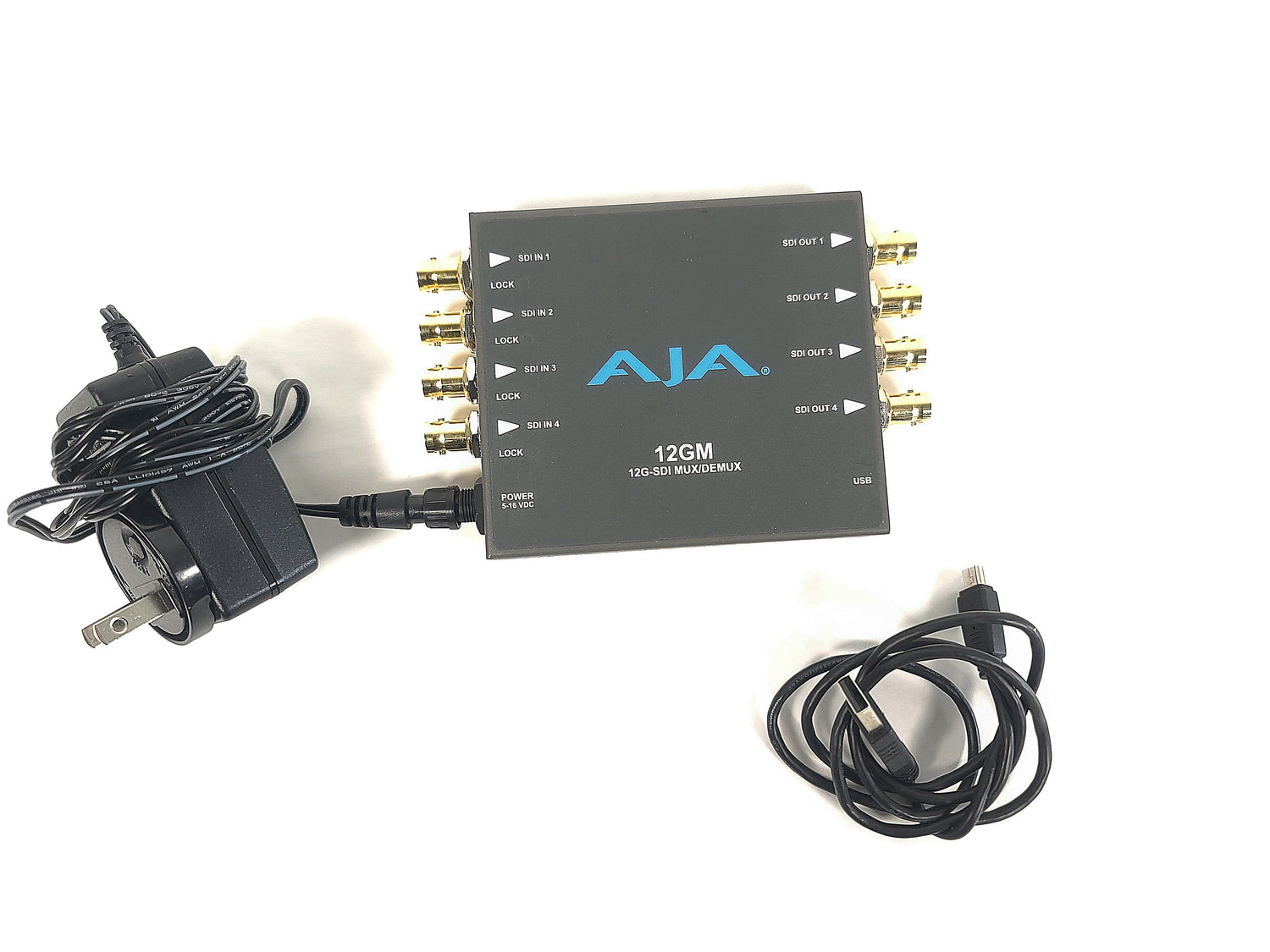

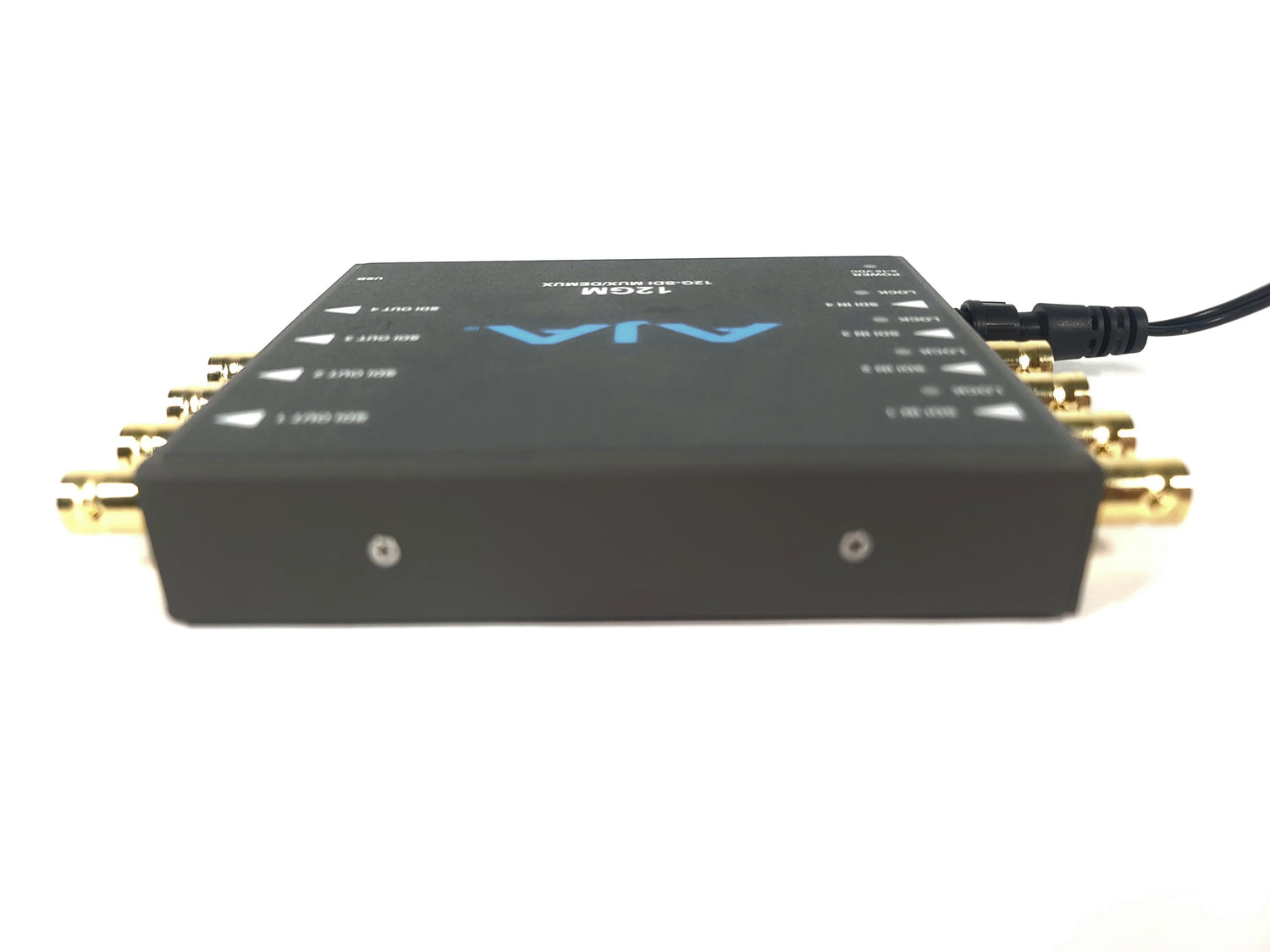

AJA 12GM 12G-SDI Mux/Demux
PSU
